📝 Yellow Vinyl Piggy Back Quick Disconnect (100 Pack)
Upgrade your 12v wiring with yellow vinyl piggy back quick disconnect terminals designed for adding an extra connection point without cutting or modifying existing wiring. Ideal for campervans, caravans, motorhomes, and off-grid builds, this version features a double crimp sleeve design and easy-entry collar for clean, reliable terminations.
⭐ Essential Benefits
• Piggy back design – allows an additional connection point from a single terminal.
• Easy entry collar – guides cable smoothly into the barrel for faster, cleaner installations.
• Double crimp sleeve design – improves mechanical strength and long-term connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 75°C temperature rating – suitable for general-purpose interior DC wiring.
⚙️ Functionality
These piggy back quick disconnect terminals are designed to crimp onto cable ends and connect to a matching female spade terminal while also providing a secondary male spade tab for an additional connection. Strip the cable, insert into the easy-entry collar, then crimp to form a secure mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Accessory circuits – ideal for switches, fuse blocks, lighting, pumps, and general distribution.
• Cable size range – 4mm²–6mm² (AWG 12–10).
• Terminal type – 6.3mm (¼") piggy back spade configuration.
🧰 Installation Difficulty
🟢 1/5 (Easy) – simple strip and crimp installation with standard crimping tools.
🔍 Features

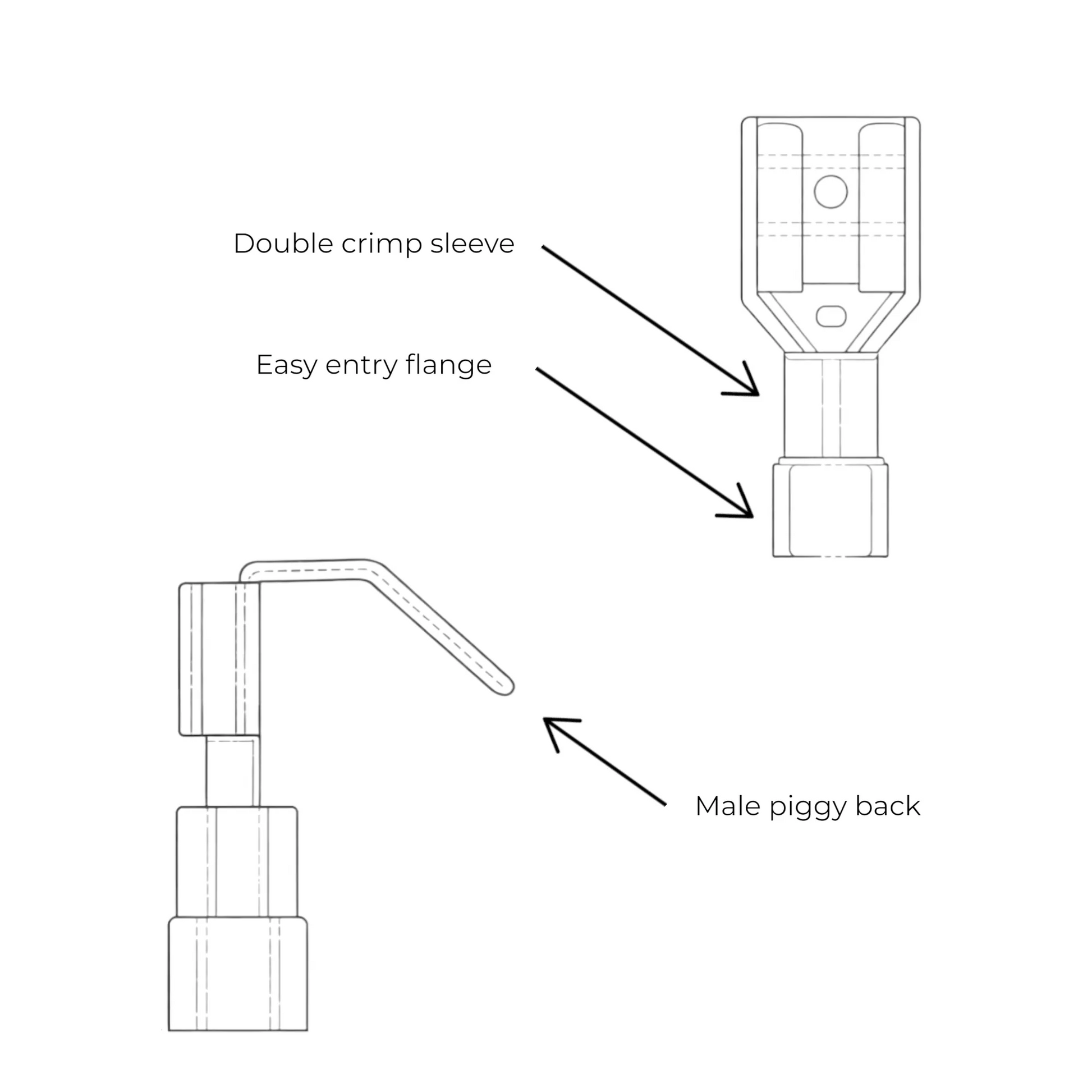

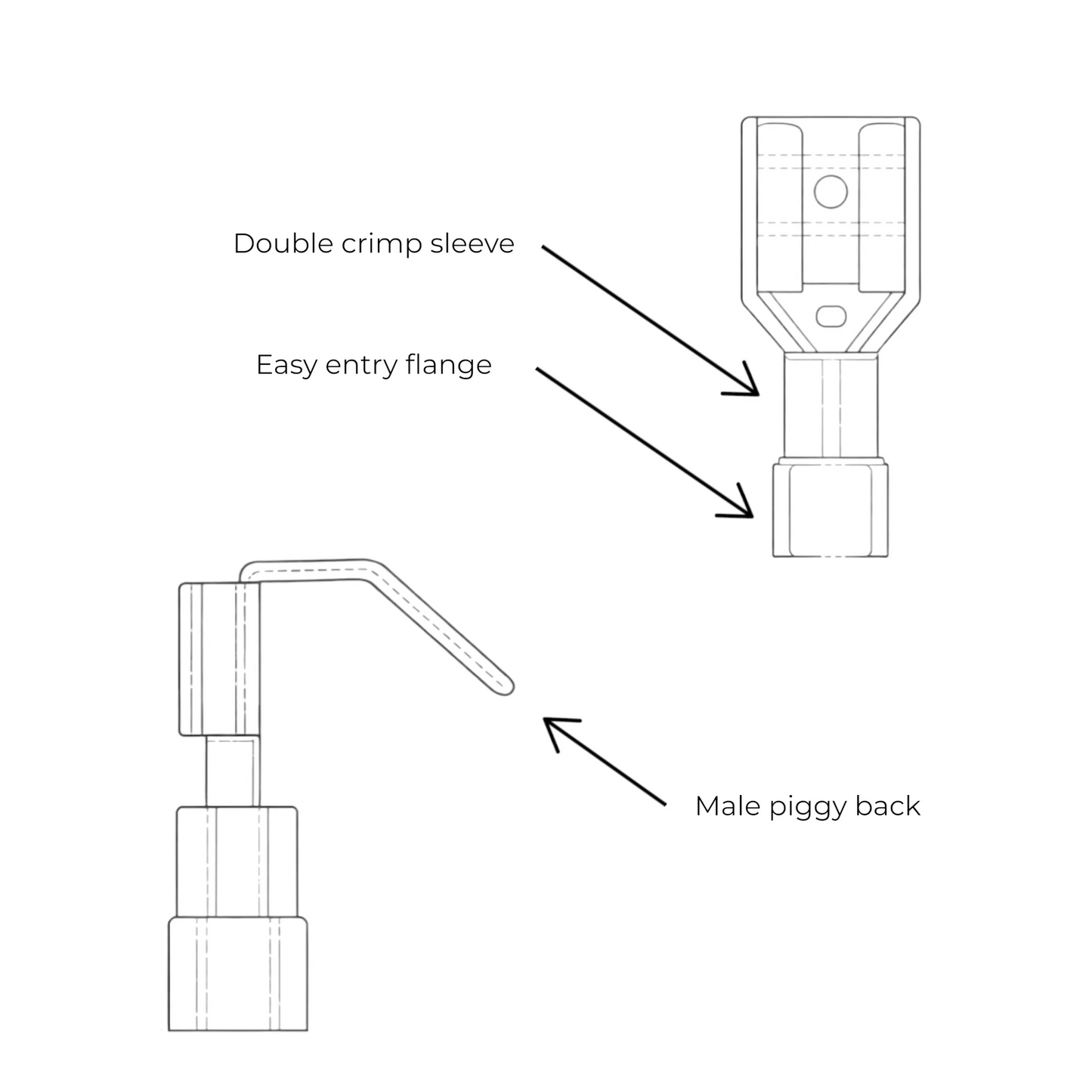

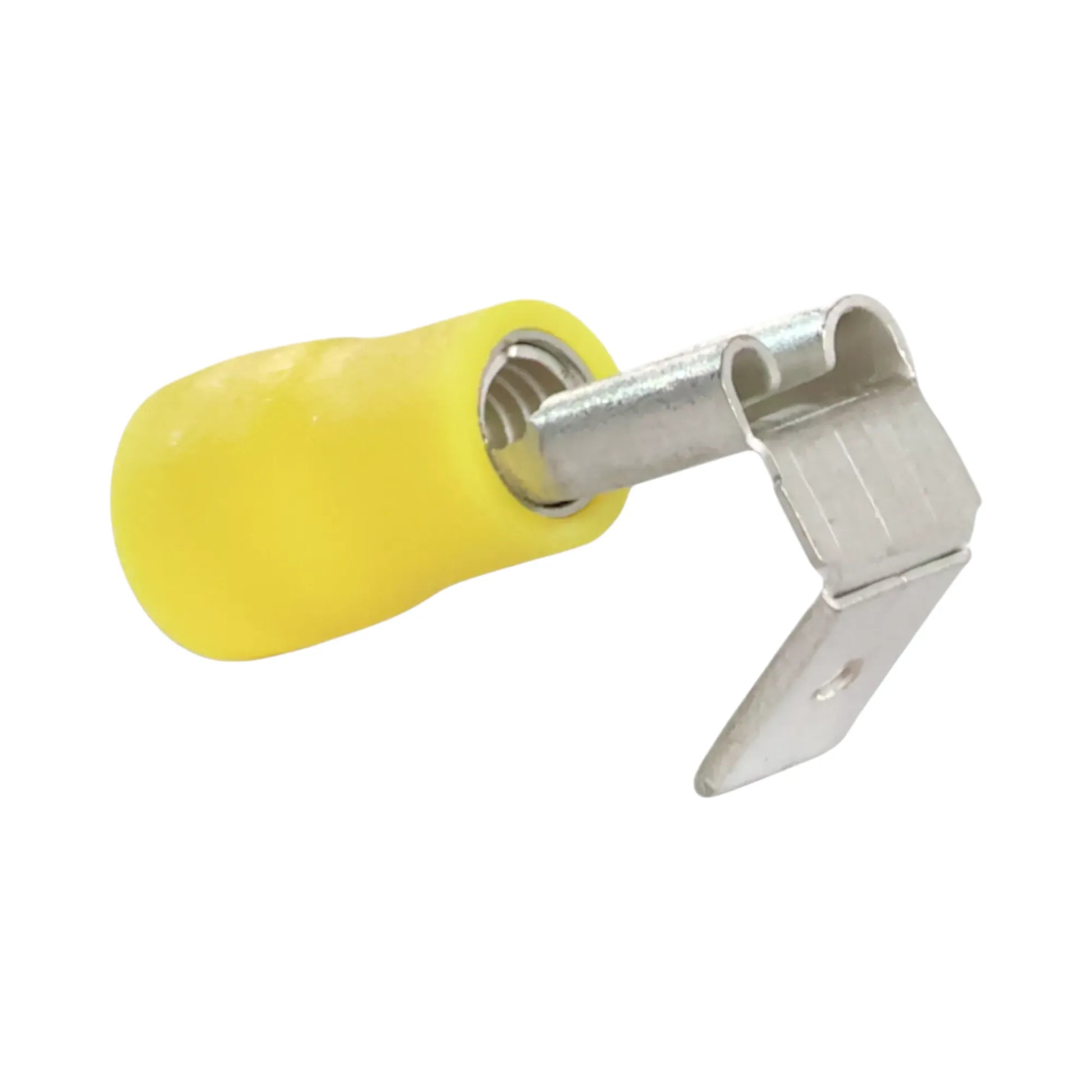

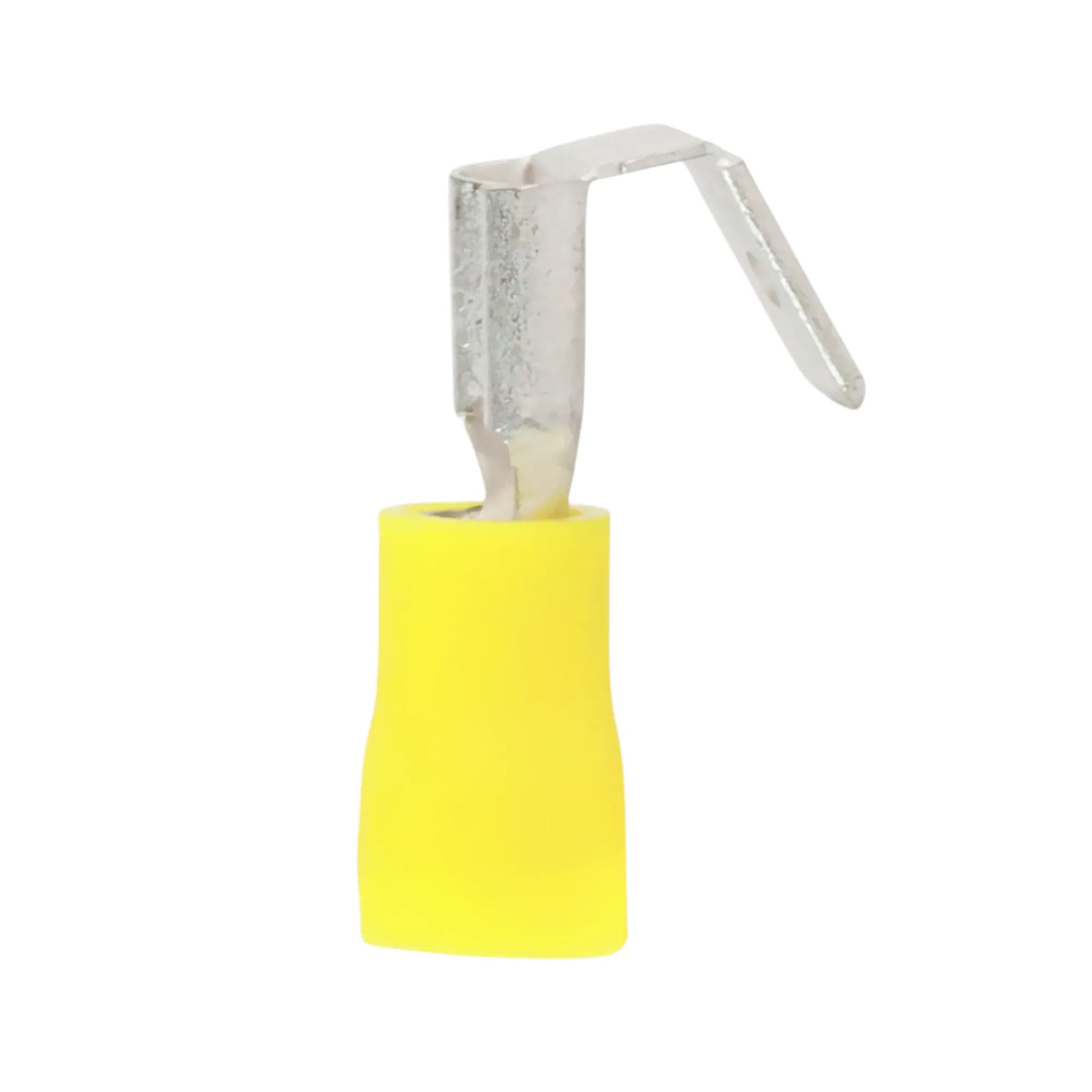

• Yellow vinyl insulated terminal – piggy back quick disconnect style.
• Integrated secondary male tab – enables an additional inline connection.
• Easy entry collar – guides cable smoothly into the barrel.
• Double crimp sleeve design – improves strength and connection stability.
• 75°C heat rating – suited to general interior DC environments.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Yellow |
| Insulation Type | Vinyl |
| Cable Size Range | 4mm²–6mm² |
| AWG Range | 12–10 |
| Terminal Width | 6.3mm (¼") |
| Max Current | 48A |
| Temperature Rating | 75°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × yellow vinyl piggy back quick disconnect terminals
🙌 Why Choose This Product?
Piggy back terminals make it easy to add accessories or split circuits cleanly without rewiring existing connections, making them ideal for expanding 12v systems.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid accessories.
