Yellow Vinyl Male Quick Disconnect (100 Pack)
📝 Yellow Vinyl Male Quick Disconnect (100 Pack)
Upgrade your 12v wiring with higher-quality yellow vinyl male quick disconnect terminals designed for fast, secure connections in campervans, caravans, motorhomes, and off-grid builds. These connectors feature a double crimp sleeve design and easy-entry collar for clean, reliable terminations in everyday DC wiring.
⭐ Essential Benefits
• Quick disconnect design – allows fast connection and removal for servicing or component swaps.
• Easy entry collar – guides cable smoothly into the barrel for faster, cleaner installations.

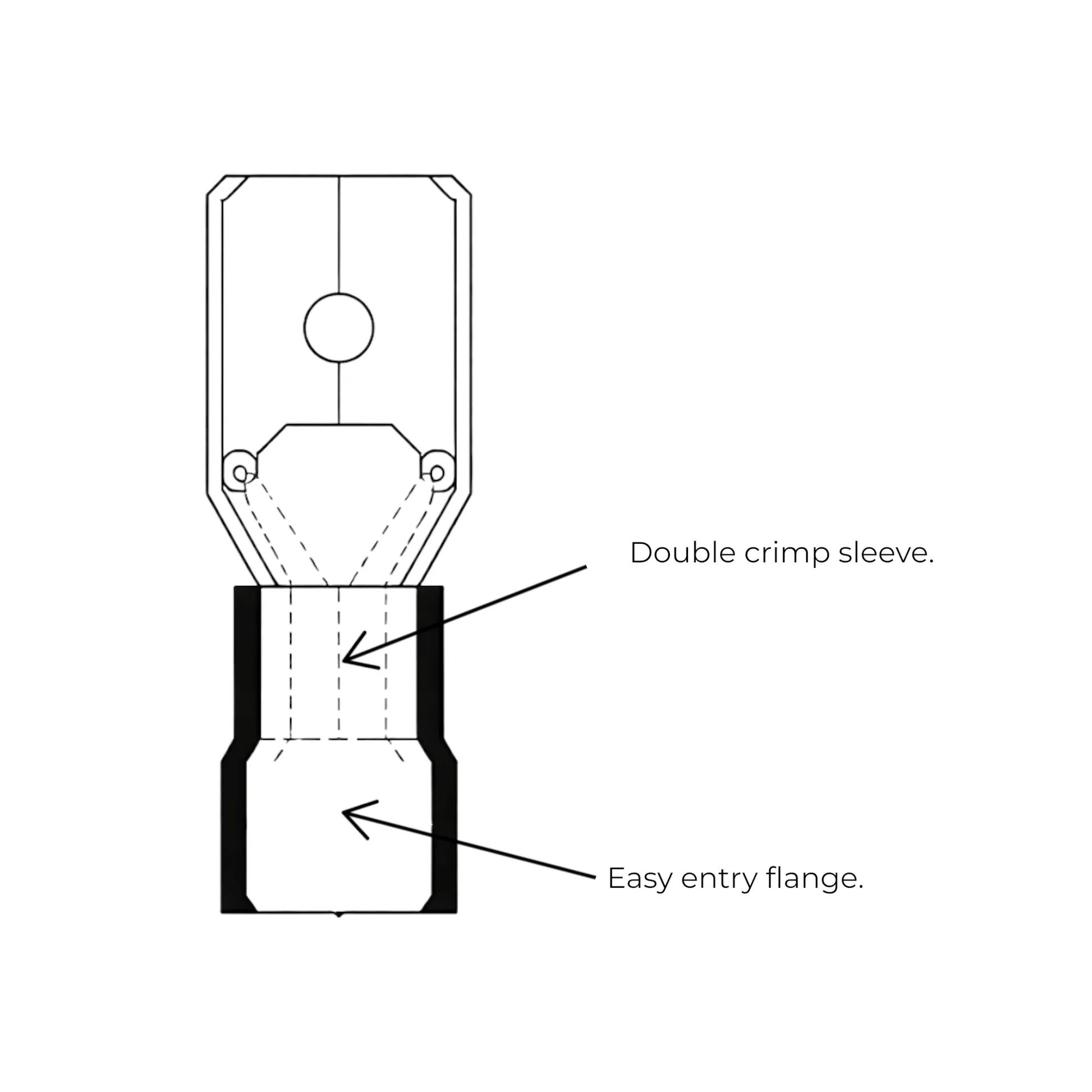

• Double crimp sleeve design – improves mechanical strength and long-term connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 75°C temperature rating – suitable for general-purpose interior DC wiring.
⚙️ Functionality
These male quick disconnect terminals are designed to crimp onto cable ends and connect to matching female spade terminals. Strip the cable, insert into the easy-entry collar, then crimp using the double crimp sleeve design to form a secure mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Accessory circuits – ideal for switches, fuse blocks, lighting, pumps, and general distribution.
• Cable size range – 4mm²–6mm² (AWG 12–10).
• Terminal type – suits standard 6.3mm female spade terminals.
🧰 Installation Difficulty
🟢 1/5 (Easy) – simple strip and crimp installation with standard crimping tools.
🔍 Features

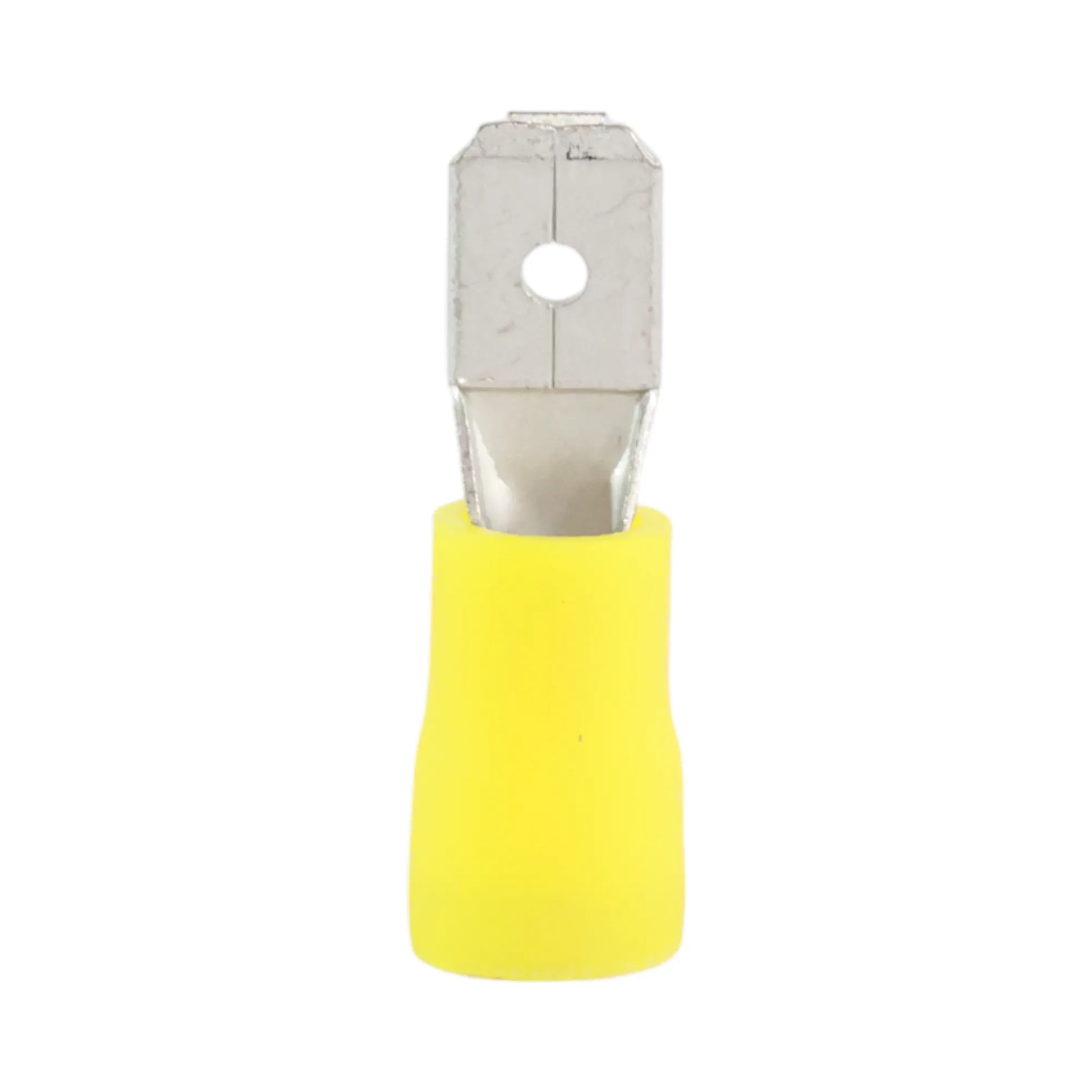

• Yellow vinyl insulated terminal – male quick disconnect style.
• Easy entry collar – guides cable smoothly into the barrel.
• Double crimp sleeve design – improves strength and connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 75°C heat rating – suited to general interior DC environments.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Yellow |
| Insulation Type | Vinyl |
| Cable Size Range | 4mm²–6mm² |
| AWG Range | 12–10 |
| Terminal Width | 6.3mm (¼") |
| Max Current | 48A |
| Temperature Rating | 75°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × yellow vinyl male quick disconnect terminals
🙌 Why Choose This Product?
These quick disconnects make servicing and upgrades simple while delivering stronger mechanical retention thanks to the double crimp sleeve design. Ideal for clean, organised 12v builds and touring rigs.
