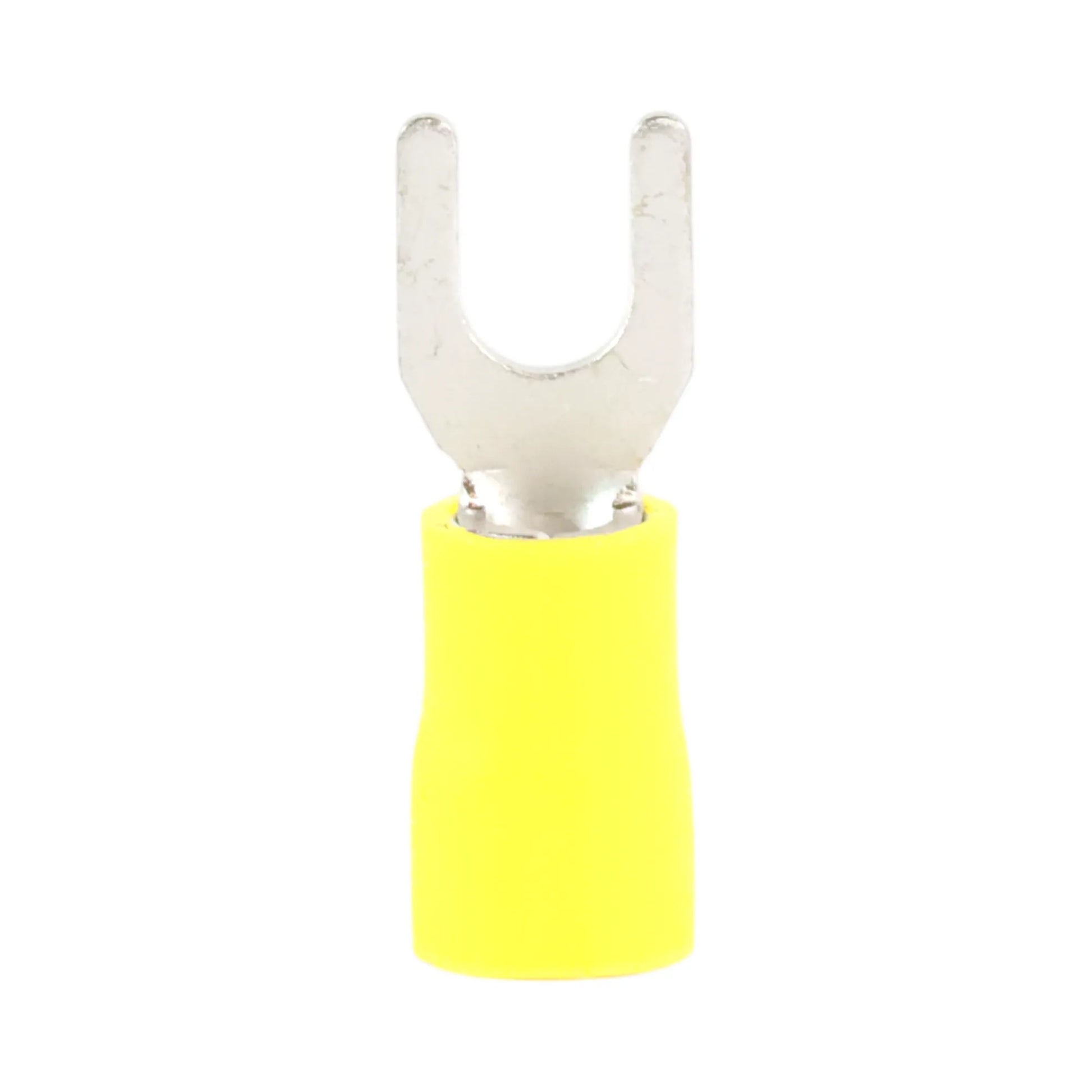

Yellow Vinyl Insulated Fork Terminal M5 (100 Pack)
Yellow Vinyl Insulated Fork Terminal M5 (100 Pack)
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Yellow Vinyl Insulated Fork Terminal M5 (100 Pack)
📝 Yellow Vinyl Fork Terminal M5 (100 Pack)
Upgrade your 12v wiring with yellow vinyl fork terminals designed for secure screw-down connections in campervans, caravans, motorhomes, and off-grid builds. This M5 version features a double crimp sleeve design and easy-entry collar for clean, reliable terminations on 12v–48v DC systems.
⭐ Essential Benefits
• Fork (spade) design – allows quick removal without fully removing the mounting screw.
• Easy entry collar – guides cable smoothly into the barrel for faster, cleaner installations.

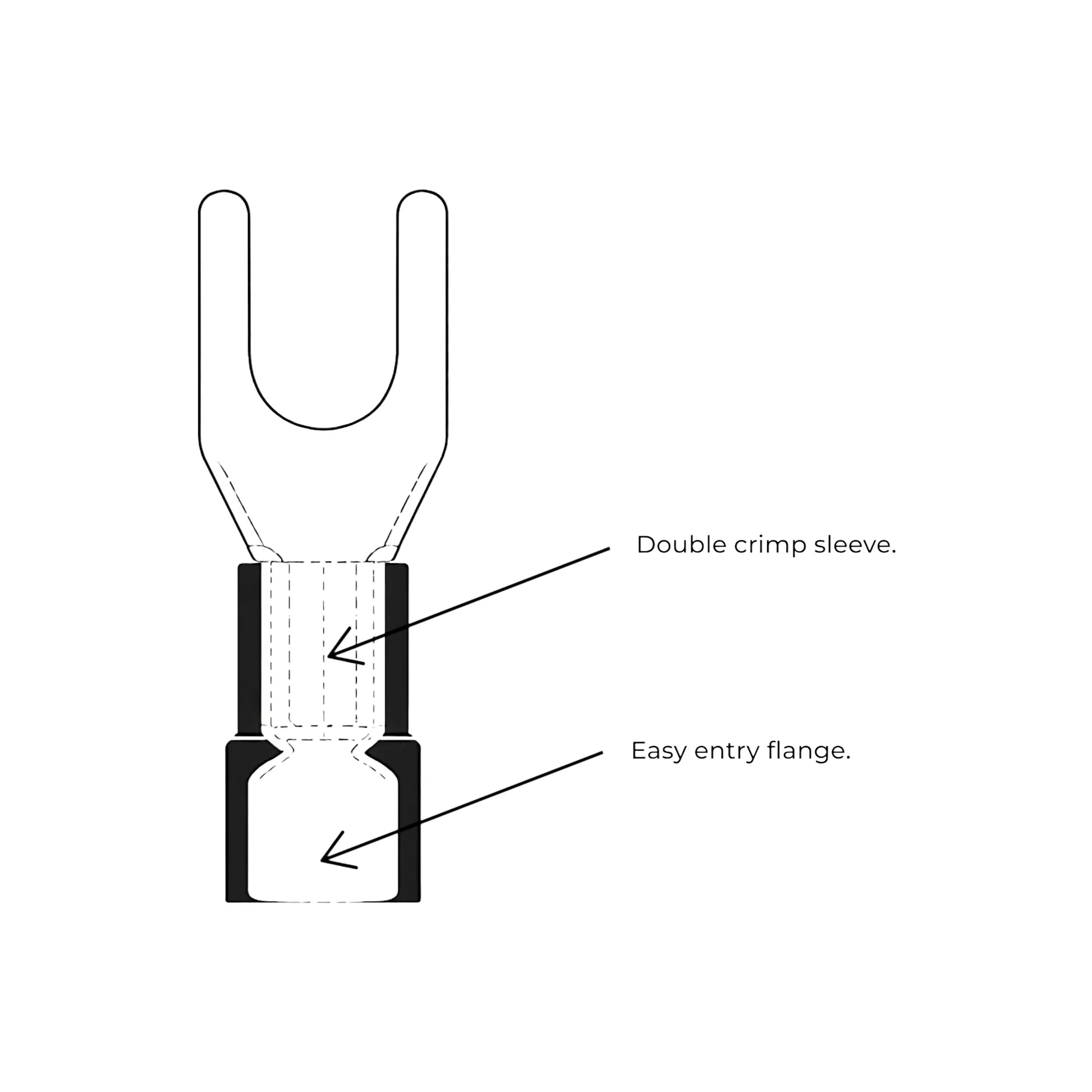

• Double crimp sleeve design – improves mechanical strength and long-term connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 75°C temperature rating – suitable for general-purpose interior DC wiring.
⚙️ Functionality
These fork terminals are designed to crimp onto cable ends and secure under M5 screw terminals on fuse blocks, busbars, relays, switches, and distribution points. Strip the cable, insert into the easy-entry collar, then crimp using the double crimp sleeve design to create a secure mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Mounting size – suits M5 screw or stud terminals.
• Cable size range – 4mm²–6mm² (AWG 12–10).
🧰 Installation Difficulty
🟢 1/5 (Easy) – simple strip and crimp installation with standard crimping tools.
🔍 Features
• Yellow vinyl insulated terminal – fork/spade style.
• M5 fork opening – suits 5mm screw or stud terminals.
• Easy entry collar – guides cable smoothly into the barrel.
• Double crimp sleeve design – improves strength and connection stability.
• 75°C heat rating – suited to general interior DC environments.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Yellow |
| Insulation Type | Vinyl |
| Terminal Type | Fork (spade) |
| Stud Size | M5 |
| Cable Size Range | 4mm²–6mm² |
| AWG Range | 12–10 |
| Max Current | 48A |
| Temperature Rating | 75°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × yellow vinyl fork terminals (M5)
🙌 Why Choose This Product?
Fork terminals make servicing easier than ring terminals while still providing a secure screw-down connection, making them ideal for fuse blocks, relays, and compact 12v distribution setups.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid accessories.
