Yellow Nylon Male Quick Disconnect (100 Pack)
📝 Yellow Nylon Male Quick Disconnect (100 Pack)

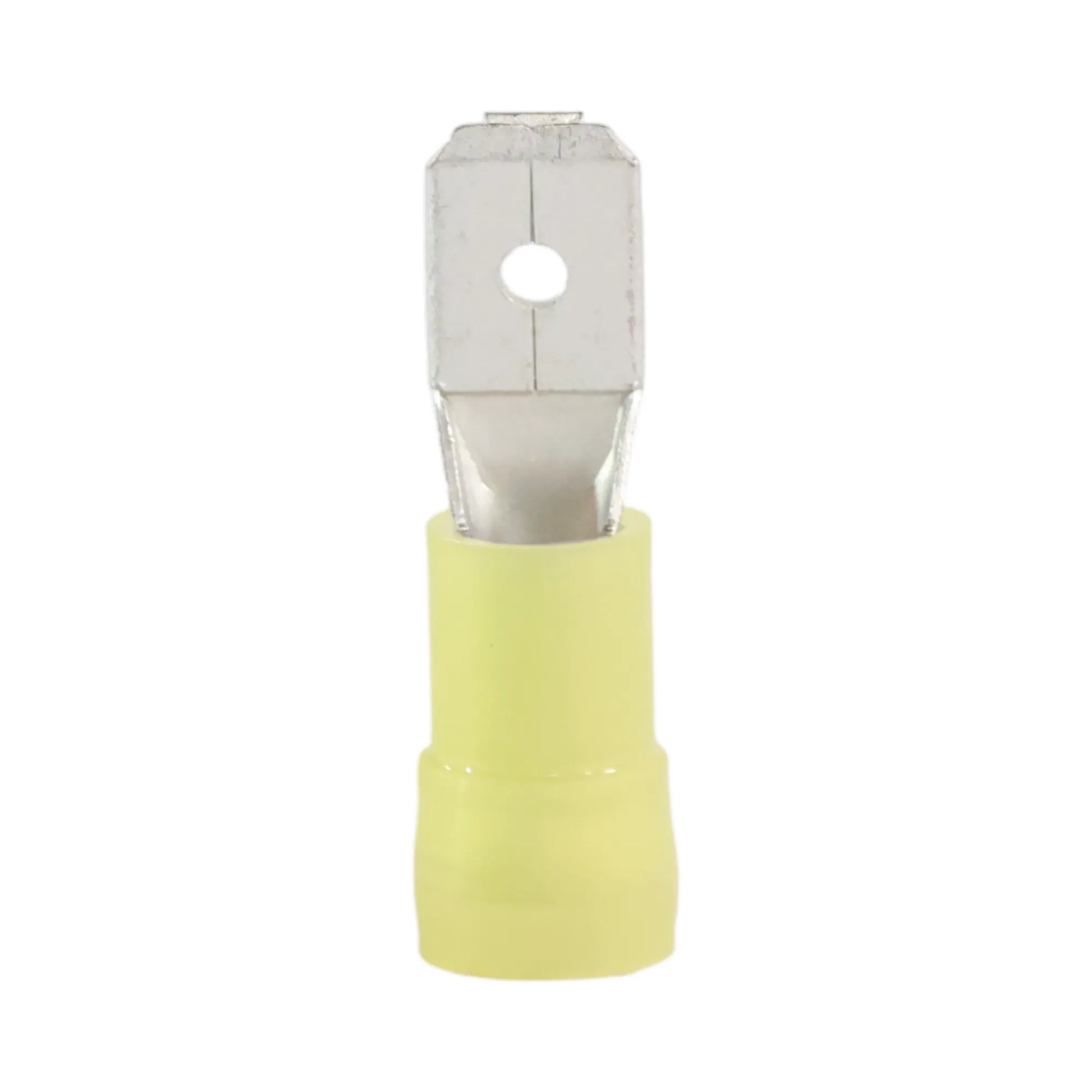

Upgrade your 12v wiring with higher-quality yellow nylon male quick disconnect terminals designed for fast, secure connections in campervans, caravans, motorhomes, and off-grid builds. These connectors feature a double crimp sleeve design and easy-entry collar, combined with tougher nylon insulation for higher-temperature DC environments.
⭐ Essential Benefits
• Quick disconnect design – allows fast connection and removal for servicing or component swaps.
• Easy entry collar – guides cable smoothly into the barrel for faster, cleaner installations.

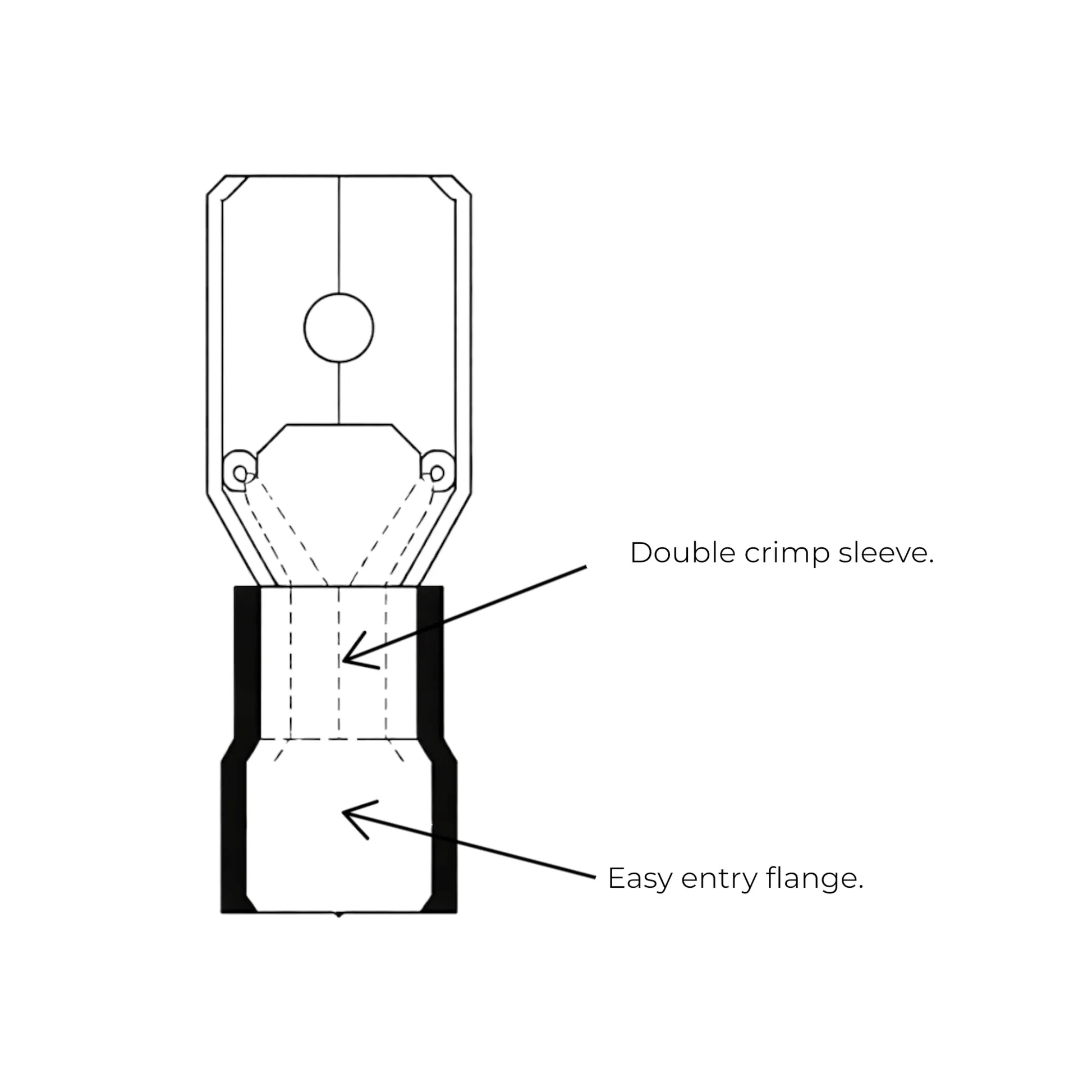

• Double crimp sleeve design – improves mechanical strength and long-term connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 105°C temperature rating – higher heat resistance than vinyl for demanding installations.
⚙️ Functionality
These male quick disconnect terminals are designed to crimp onto cable ends and connect to matching female spade terminals. Strip the cable, insert into the easy-entry collar, then crimp using the double crimp sleeve design to form a secure mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Accessory circuits – ideal for switches, fuse blocks, lighting, pumps, and general distribution.
• Cable size range – 4mm²–6mm² (AWG 12–10).
• Terminal type – suits standard 6.3mm female spade terminals.
🧰 Installation Difficulty
🟢 1/5 (Easy) – simple strip and crimp installation with standard crimping tools.
🔍 Features
• Yellow nylon insulated terminal – male quick disconnect style.
• Easy entry collar – guides cable smoothly into the barrel.
• Double crimp sleeve design – improves strength and connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 105°C heat rating – suited to higher-temperature DC environments.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Yellow |
| Insulation Type | Nylon |
| Cable Size Range | 4mm²–6mm² |
| AWG Range | 12–10 |
| Terminal Width | 6.3mm (¼") |
| Max Current | 48A |
| Temperature Rating | 105°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × yellow nylon male quick disconnect terminals
🙌 Why Choose This Product?
These nylon quick disconnects offer improved heat resistance and durability over vinyl, making them ideal for more demanding 12v campervan and off-grid wiring builds.
