Yellow Nylon Insulated Ring Terminal M6 (100 Pack)
📝 Yellow Nylon Insulated Ring Terminal M6 (100 Pack)

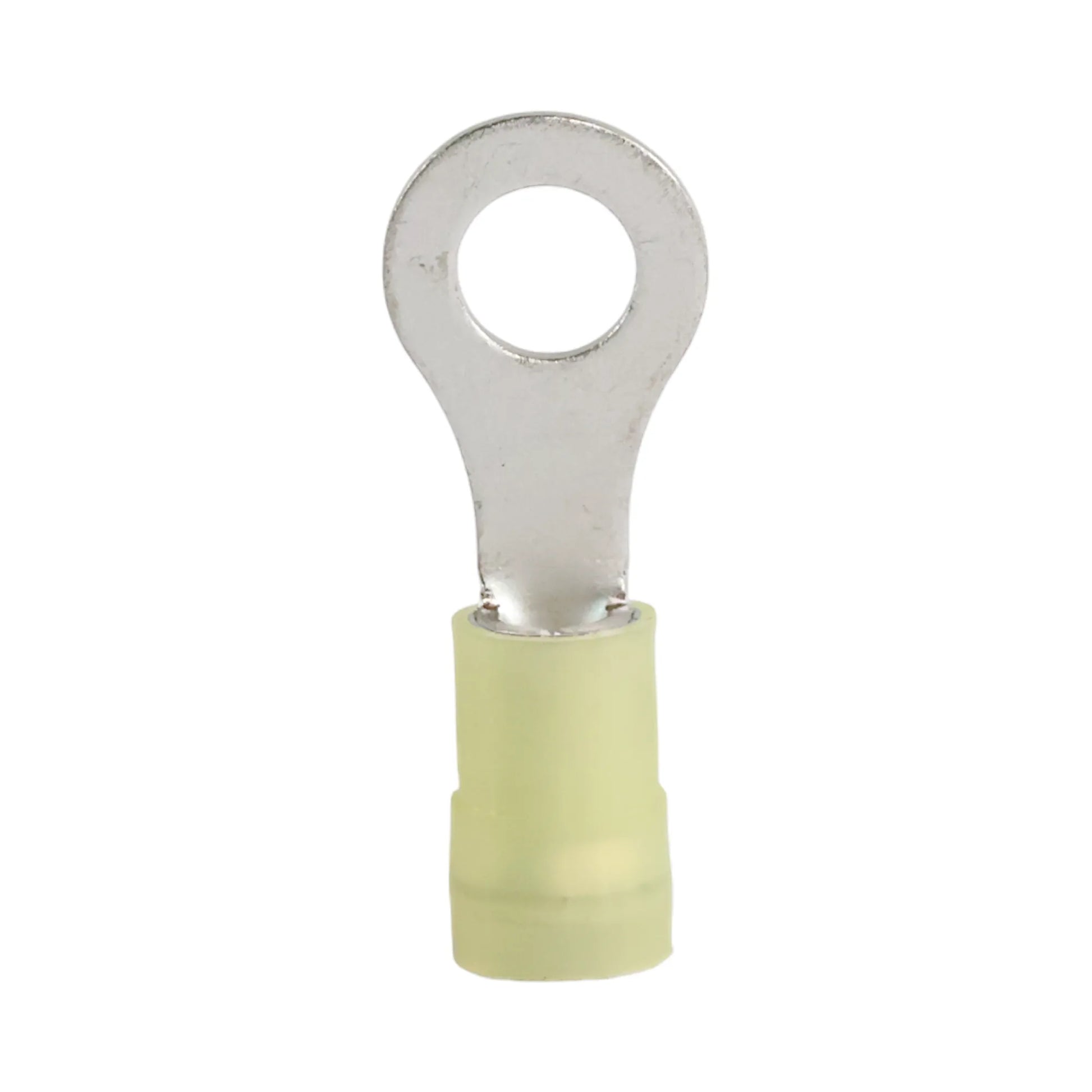

These yellow nylon insulated ring terminals are designed for reliable higher-current DC wiring in automotive, campervan, caravan, and off-grid 12v–48v systems.
Built to suit 4–6mm² cable (AWG 12–10) and featuring an M6 ring size to suit 6mm studs/bolts, they provide a secure, vibration-resistant crimp connection for circuits rated up to 48A.

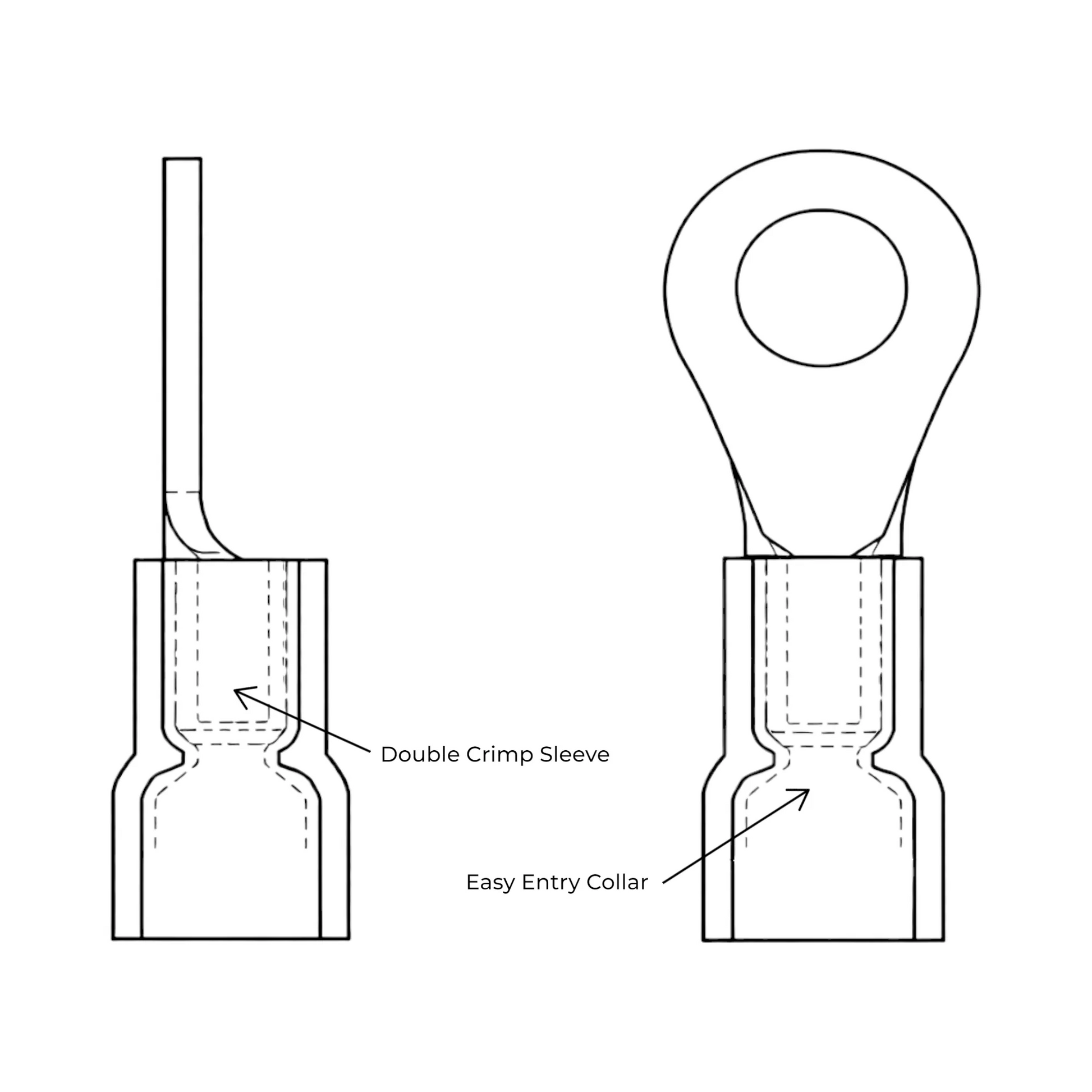

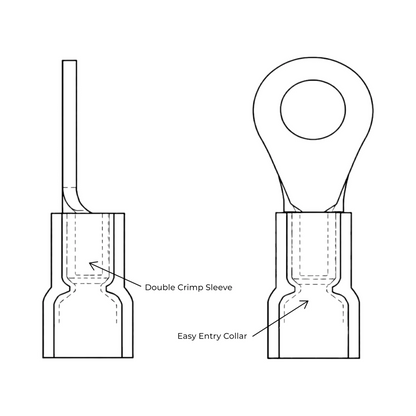

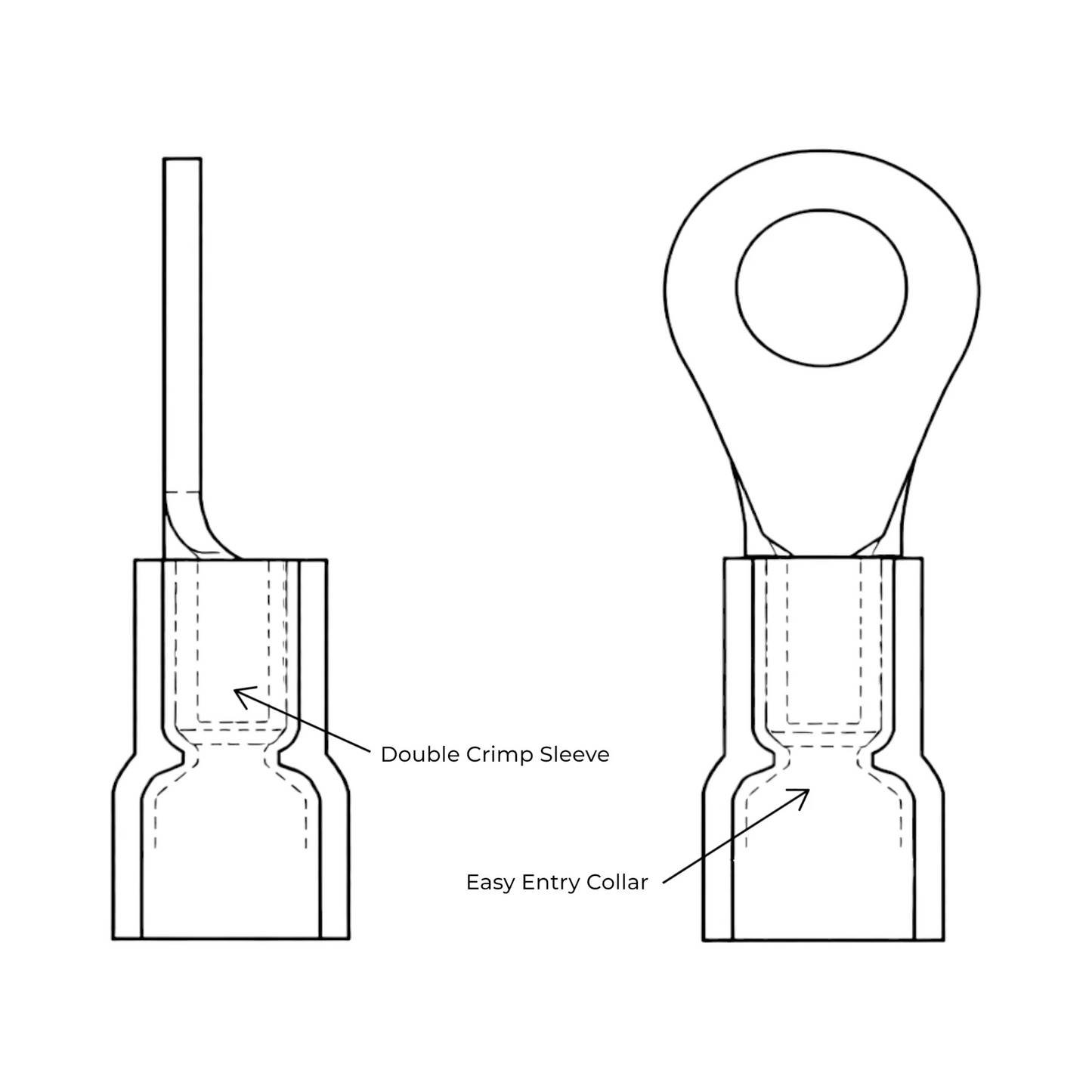

Upgraded with tougher nylon insulation and a double crimp sleeve design, these terminals offer improved durability, better vibration resistance, and higher temperature performance compared to standard vinyl versions.
⭐ Essential Benefits
• Tough nylon insulation – improved durability and resistance to heat and vibration.
• Double crimp sleeve design – enhances mechanical strength and long-term connection stability.
• 48A max current rating – ideal for higher-current DC circuits.
• 105°C temperature rating – higher heat tolerance for demanding environments.
• Easy entry collar – allows smooth cable insertion for cleaner installations.
⚙️ Functionality
The nylon insulation provides enhanced strain relief and improved performance in vibration-prone environments. The internal barrel compresses securely around the conductor when crimped with a suitable ratchet tool, forming a low-resistance mechanical and electrical bond.
Ideal for distribution wiring, fuse holders, battery feeds, and higher-current accessory circuits in mobile and off-grid builds.
🔌 Compatibility
• Suits 4–6mm² cable.
• AWG 12–10.
• Fits M6 studs/bolts.
• Suitable for 12v, 24v and 48v DC systems.
• Rated up to 48A max current.
🧰 Installation Difficulty
🟢 1/5 (Easy)
Requires a suitable ratchet crimp tool designed for insulated terminals.
🔍 Features
• Yellow nylon insulated sleeve.
• Higher 105°C temperature rating.
• Easy-entry collar for simplified cable insertion.
• Double crimp barrel for improved security.
• Designed for DC automotive and off-grid applications.
• Supplied in bulk 100 pack.
📊 Specifications
| Specification | Value |
|---|---|
| Terminal Type | Ring terminal |
| Stud Size | M6 |
| Cable Size | 4–6mm² |
| AWG | 12–10 |
| Maximum Current | 48A |
| Temperature Rating | 105°C |
| Insulation Type | Nylon |
| Pack Size | 100 Pack |
| Voltage Suitability | 12v–48v DC systems |
📘 DC Crimp Terminal Insulation Comparison
| Material | Pros | Typical Use Case |
|---|---|---|
| Vinyl | Low cost, Easy to crimp, Suitable for light-duty circuits | Interior dry areas, Basic accessory wiring, Lighting circuits, Low-current applications, Budget-focused builds |
| Nylon | Tougher insulation, Higher temperature resistance, Flexible, Better vibration resistance, Improved strain relief | Campervan 12v systems, Fuse blocks, DC-DC chargers, Solar controllers, General distribution wiring |
| Heat Shrink | Sealed insulation when heated, Excellent strain relief, High vibration resistance, Corrosion protection, Professional finish | Battery cables, Inverter feeds, Solar inputs, External wiring runs, Under-chassis wiring, Marine or damp environments |
📦 What’s Included
• 100 × Yellow nylon insulated ring terminals M6
🙌 Why Choose This Product?
These yellow nylon insulated terminals are built for higher-current circuits and improved durability in demanding mobile electrical systems. Ideal for campervan, caravan, and off-grid wiring where reliability matters.
