Yellow Heat Shrink Insulated Butt Splice Connector (100 Pack)
📝 Yellow Heat Shrink Insulated Butt Splice Connector (100 Pack)
Upgrade your 12v wiring with higher-quality yellow heat shrink insulated butt splice connectors designed for sealed, vibration-resistant joins in campervans, caravans, motorhomes, and off-grid builds. These connectors deliver a stable crimp connection with adhesive-lined heat shrink insulation that forms a protective seal when heated.
⭐ Essential Benefits
• Sealed cable joining – creates a strong inline connection with moisture-resistant insulation.
• Adhesive-lined heat shrink – forms a protective seal when heated for improved durability.
• Superior vibration resistance – excellent strain relief for touring and mobile installs.
• Corrosion protection – helps protect connections in damp or exposed environments.
• Professional finish – ideal for critical DC wiring and battery-related circuits.
⚙️ Functionality
These heat shrink insulated butt splice connectors are used to join two cables end-to-end. Strip each cable end, insert into the connector, crimp securely, then apply heat to shrink the insulation and activate the internal adhesive lining, forming a sealed mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Battery and higher-reliability circuits – ideal for connections exposed to vibration or moisture.
• Cable size range – 4mm²–6mm² (AWG 12–10).
🧰 Installation Difficulty
🟢 1/5 (Easy) – strip, crimp, and heat with a standard crimp tool and heat source.
🔍 Features

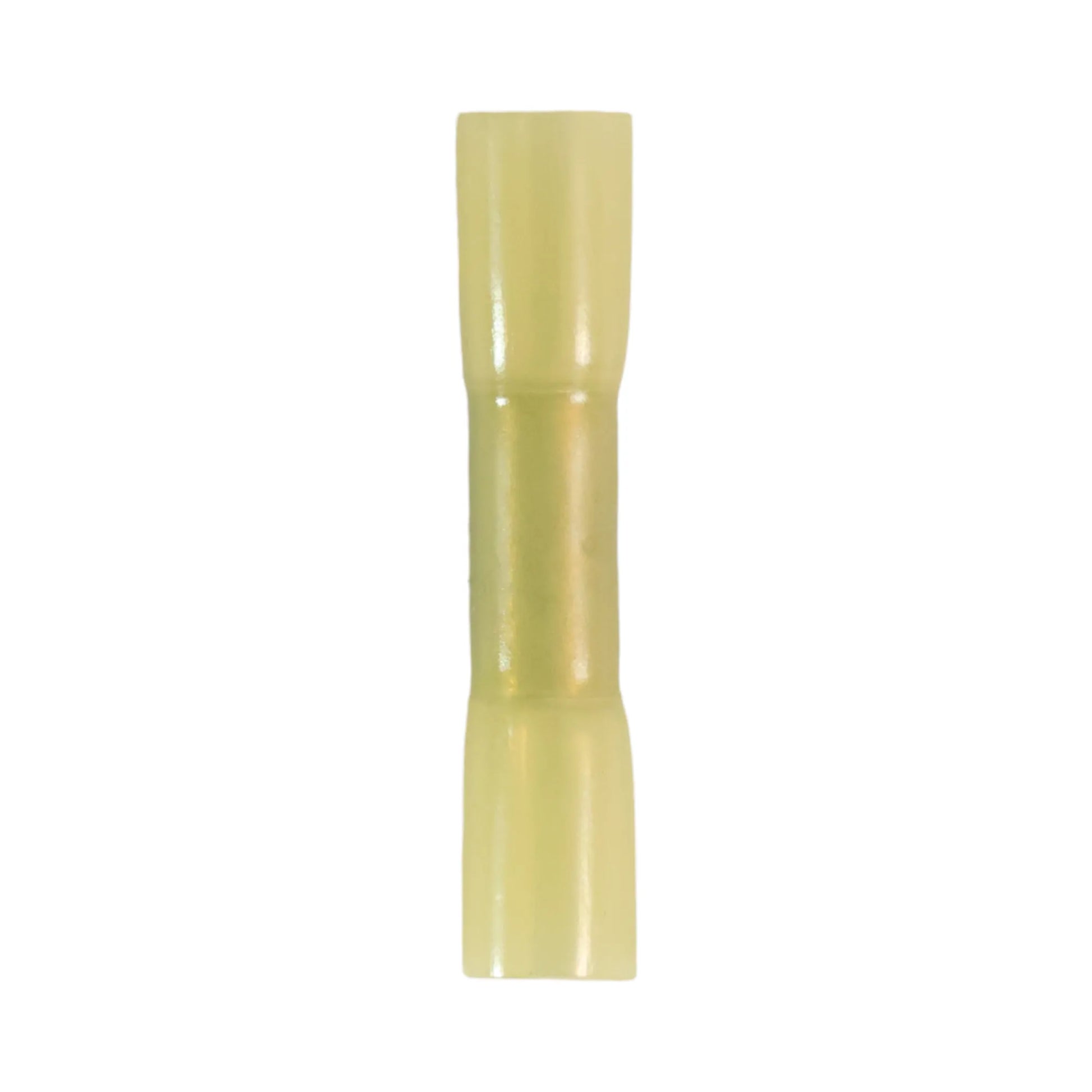

• Yellow heat shrink insulated connector – inline butt splice design for sealed cable joins.
• Adhesive-lined tubing – shrinks to form a moisture-resistant seal.
• 105°C heat rating – suitable for demanding DC wiring environments.
• Stable crimp barrel – designed for reliable conductivity and long-term connection strength.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Yellow |
| Insulation Type | Adhesive-lined heat shrink |
| Cable Size Range | 4mm²–6mm² |
| AWG Range | 12–10 |
| Max Current | 48A |
| Temperature Rating | 105°C |
| System Compatibility | 12v–48v DC (typical applications) |
📘 DC Crimp Terminal Insulation Comparison
| Material | Pros | Typical Use Case |
|---|---|---|
| Vinyl | Low cost, Easy to crimp, Suitable for light-duty circuits | Interior dry areas, Basic accessory wiring, Lighting circuits, Low-current applications, Budget-focused builds |
| Nylon | Tougher insulation, Higher temperature resistance (105°C), Flexible, Better vibration resistance, Improved strain relief | Campervan 12v systems, Fuse blocks, DC-DC chargers, Solar controllers, General distribution wiring |
| Heat Shrink | Sealed insulation when heated, Excellent strain relief, High vibration resistance, Corrosion protection, Professional finish | Battery cables, Inverter feeds, Solar inputs, External wiring runs, Under-chassis wiring, Marine or damp environments |
📦 What’s Included
• 100 × yellow heat shrink insulated butt splice connectors
🙌 Why Choose This Product?
These connectors provide maximum protection compared to standard insulated types, delivering sealed, vibration-resistant joins for critical 12v wiring in touring and off-grid setups.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid accessories.
