The full rundown
A 3-channel controller and 2.4GHz touch-slide remote for RGB LED lighting. Pick a colour, dim it and switch it off, all wirelessly.
Why it works

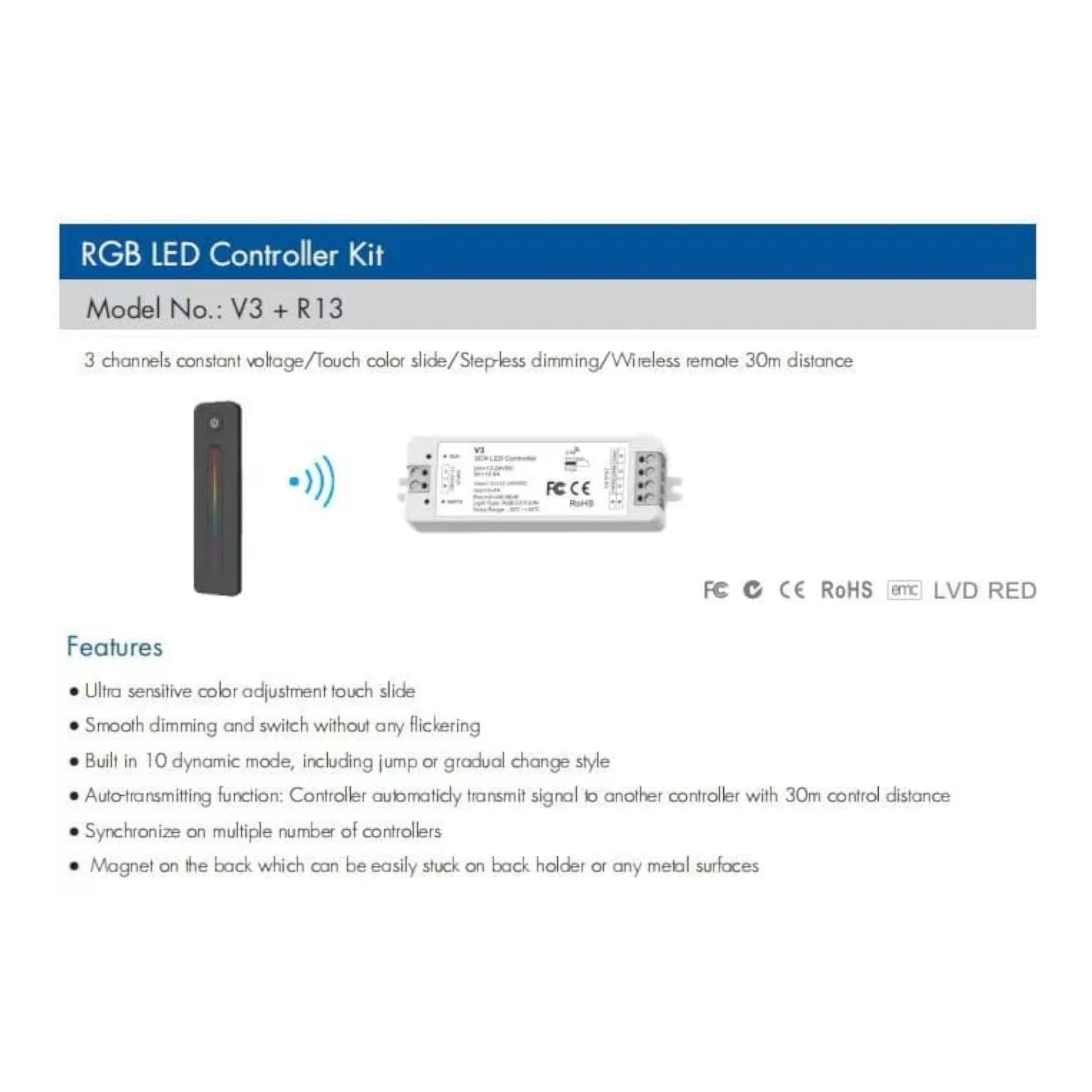

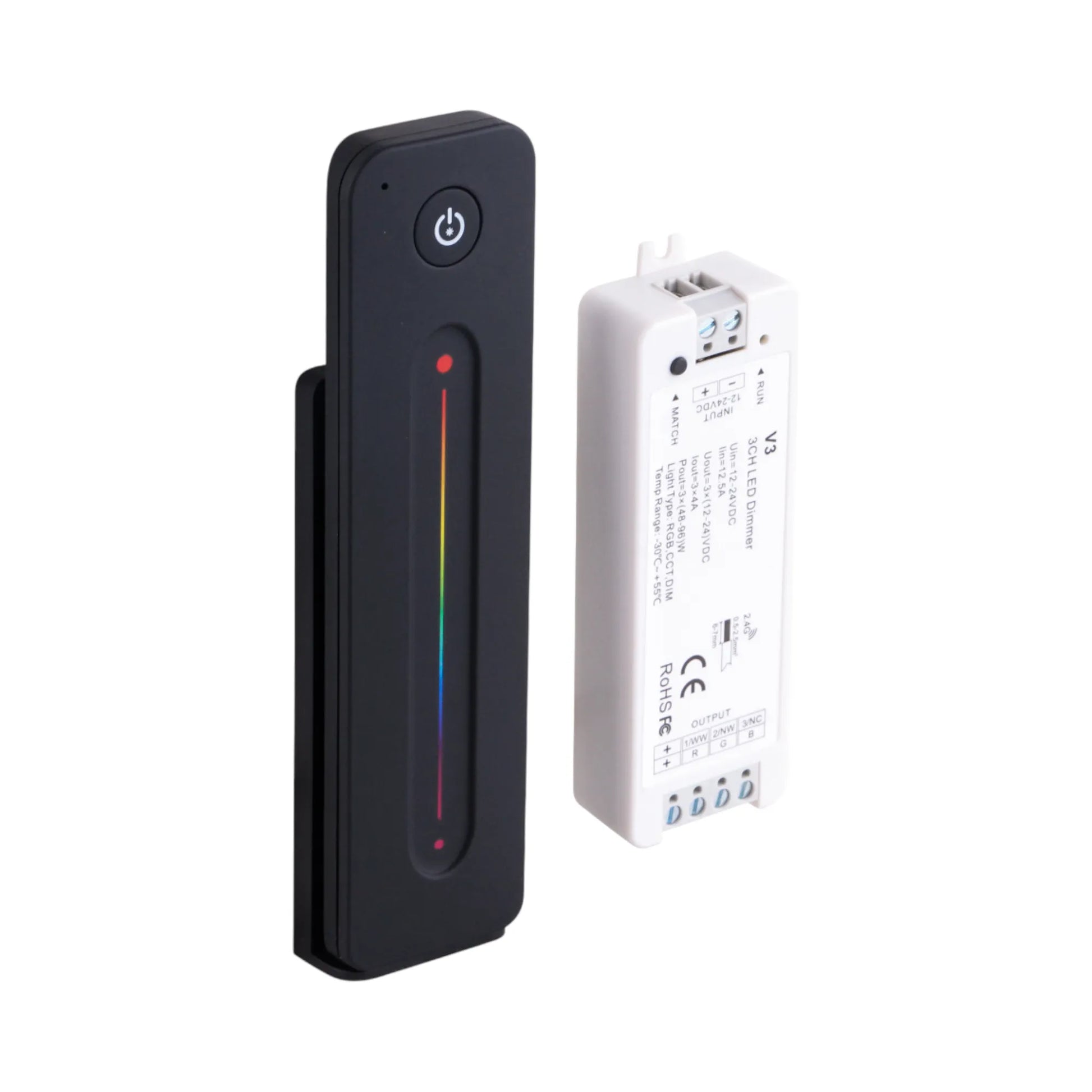

- Complete kit: Includes V3 controller + R13 remote for full lighting control.
- 3-in-1 output: The V3 supports RGB, CCT (WW/NW/CW), and single-colour LED strips.
- Wireless RGB + dimming: Control brightness, RGB colours and white from the R13.
- 4096-step PWM dimming: Smooth 0-100% output with no flicker.
- 30m RF wireless range: Reliable control using 2.4GHz RF technology.
- Auto-transmitting: Relays wireless signals automatically between controllers.
- Multi-controller synchronisation: Ideal for multi-zone lighting systems.
- Supports up to 10 remotes: Flexible for multi-room, multi-user setups.
- 10 built-in dynamic modes: Including jump or gradual change styles.
- Magnetic remote holder: The R13 sits in a magnetic holder that can be screwed to the wall or stuck on with the included adhesive pad.

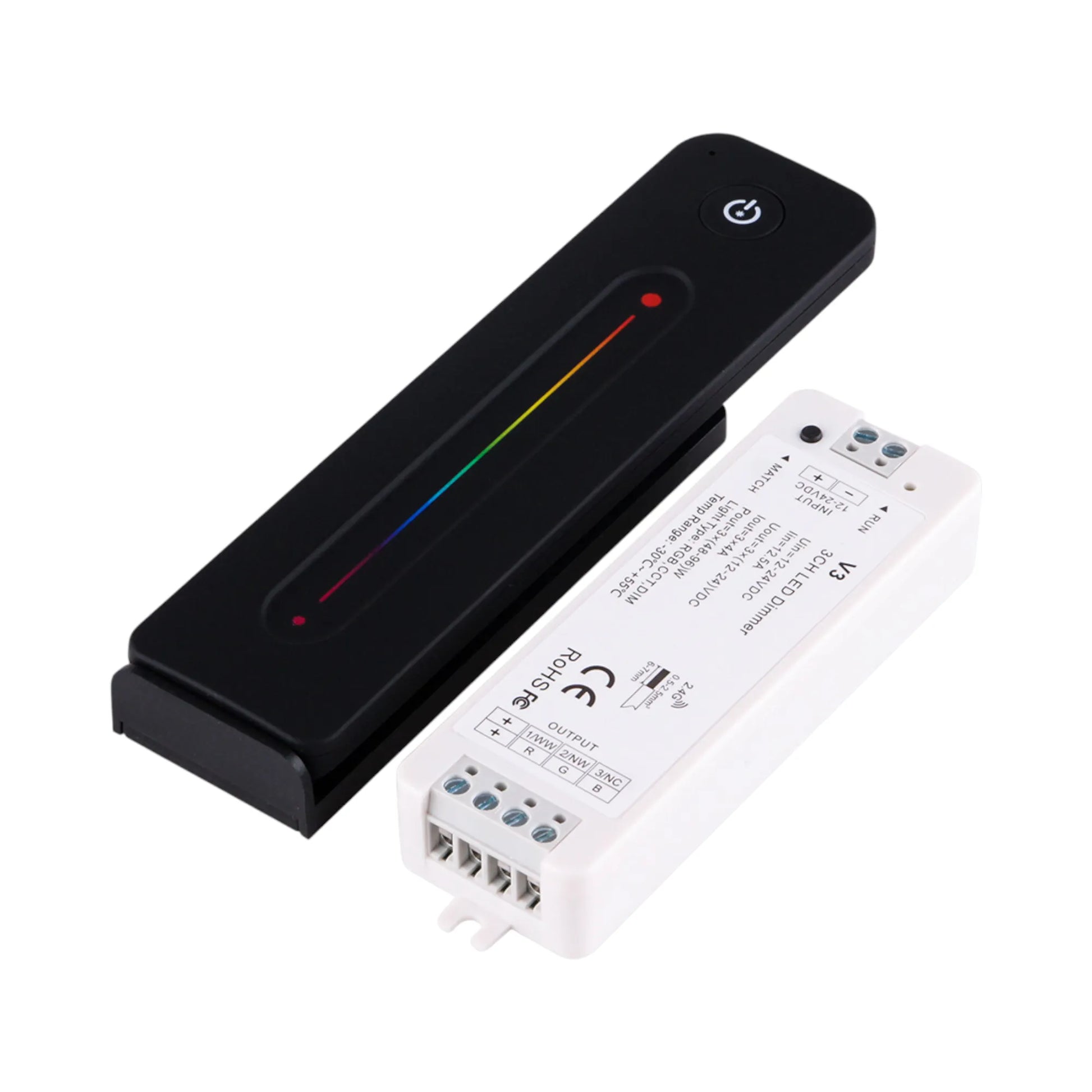

What's in the box

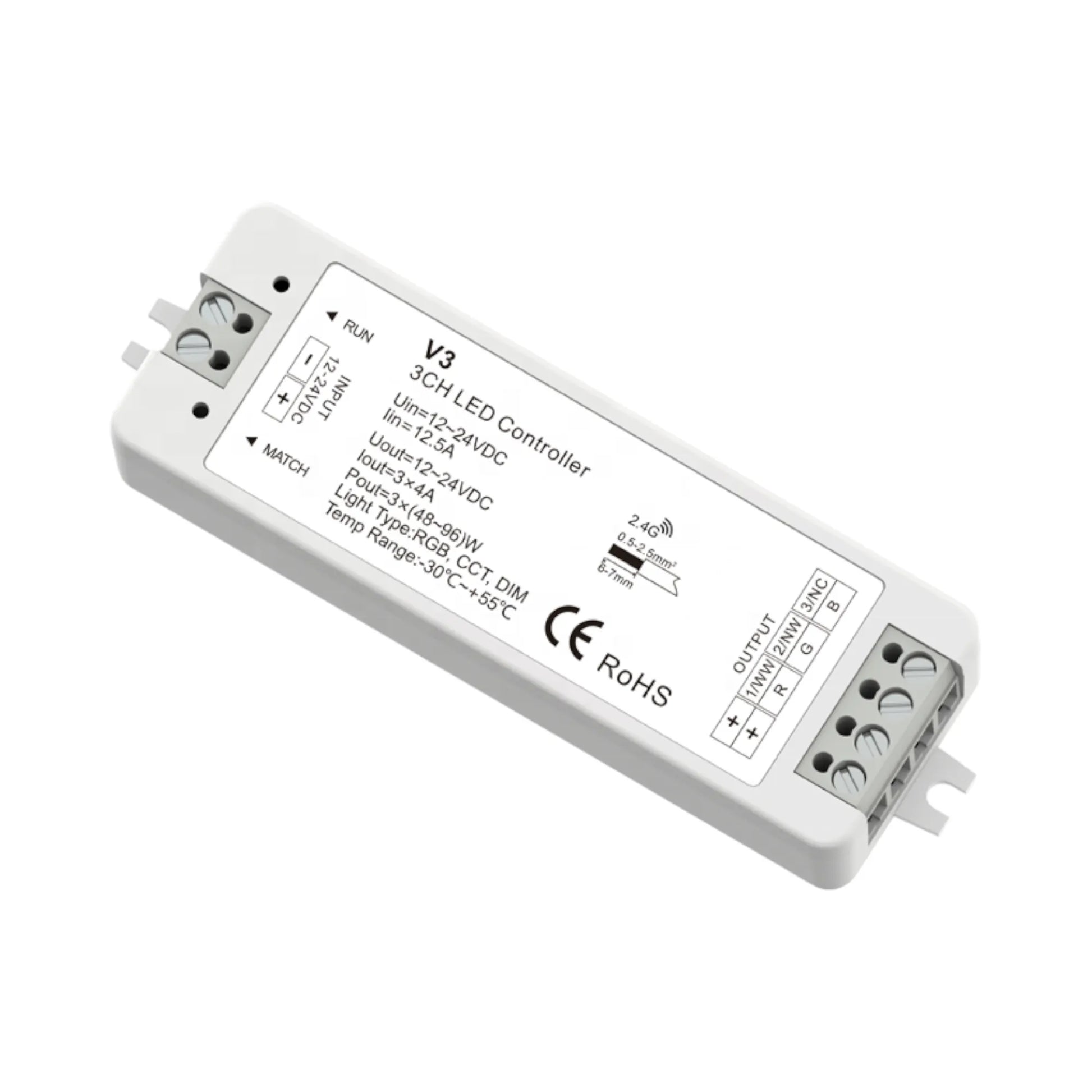

- 1 x V3 RGB/CCT/Dimming 3-Channel LED Controller

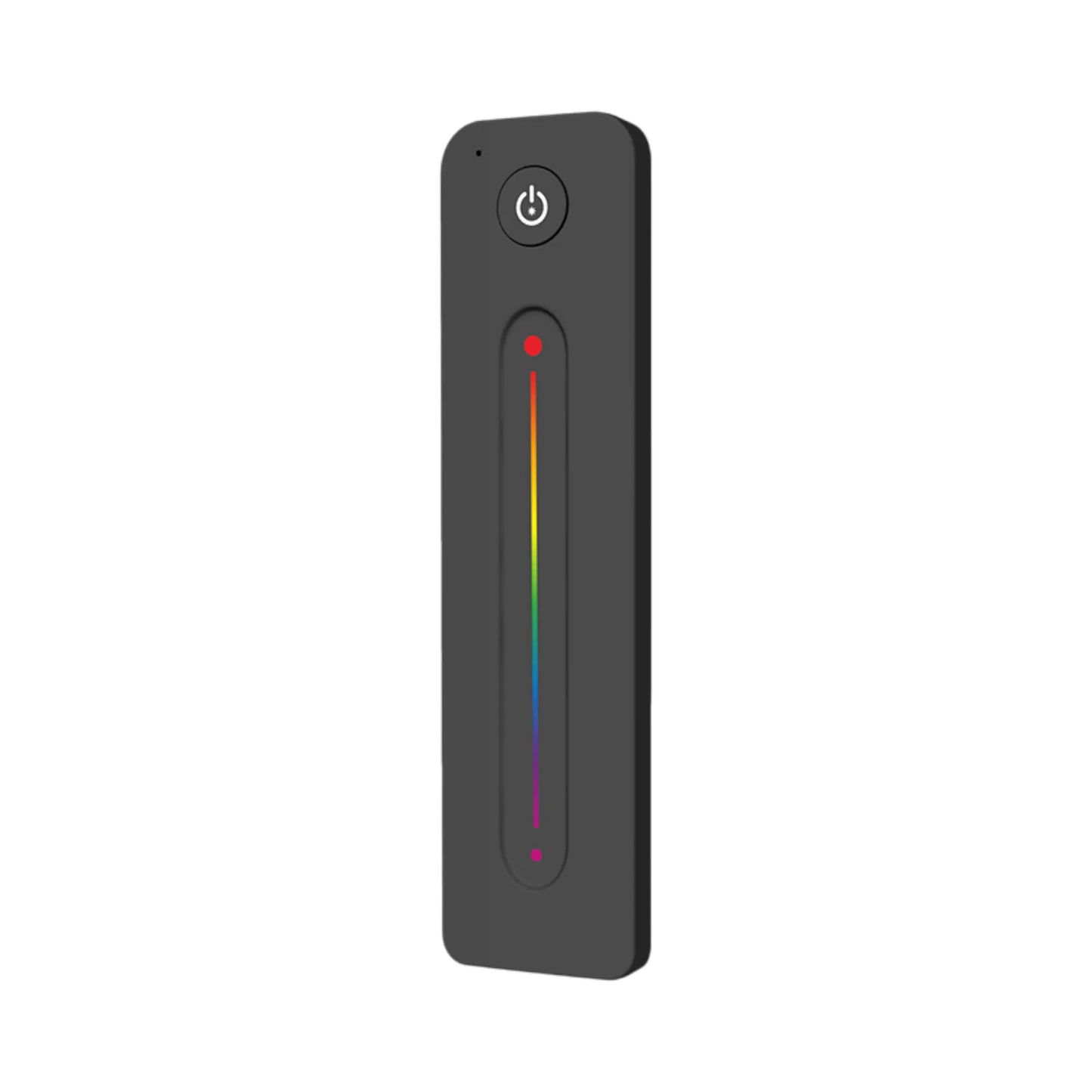

- 1 x R13 RF Touch-Slide Remote (brightness + RGB colour + white)
- 1 x Magnetic Remote Holder
- 1 x Adhesive Pad (for the holder)
- User Instructions
How it works
- 3-channel versatility: Works with RGB, CCT dual-colour, or single-colour LED strips from one controller.
- Full wireless control: Adjust brightness, RGB colours and white using the included R13 remote.
- Smooth dimming engine: Delivers 0-100% flicker-free output with 4096 PWM steps.

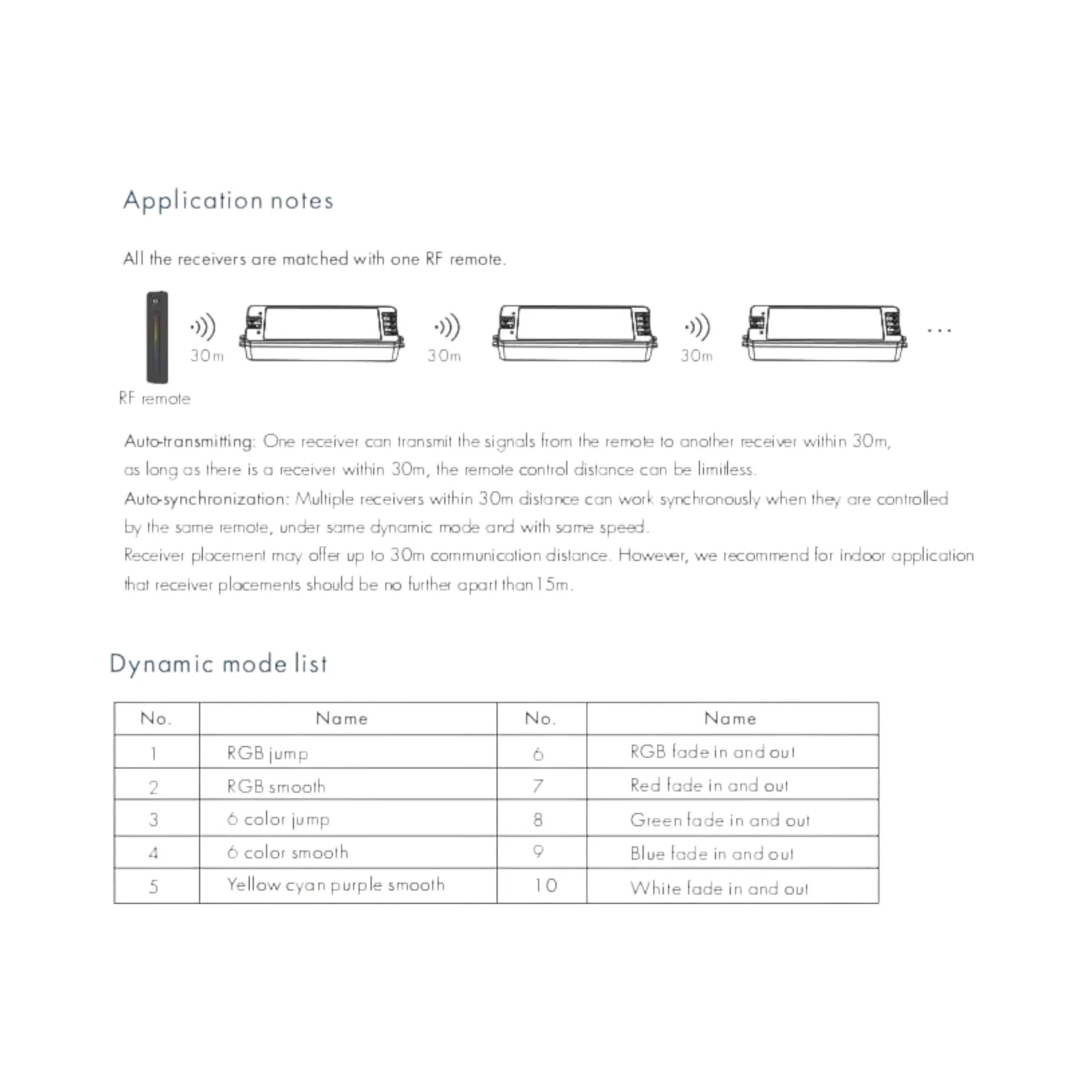

- Auto-transmitting system: Sends control signals automatically to nearby V3 controllers (up to 30m).
- Multi-controller sync: Keeps multiple zones perfectly matched for whole-van or multi-room setups. One R13 can be paired with multiple V3 controllers, and each V3 can be controlled by up to 10 remotes.
- Long-range operation: Stable 2.4GHz RF control for reliable performance in vans, RVs, and indoor installs.

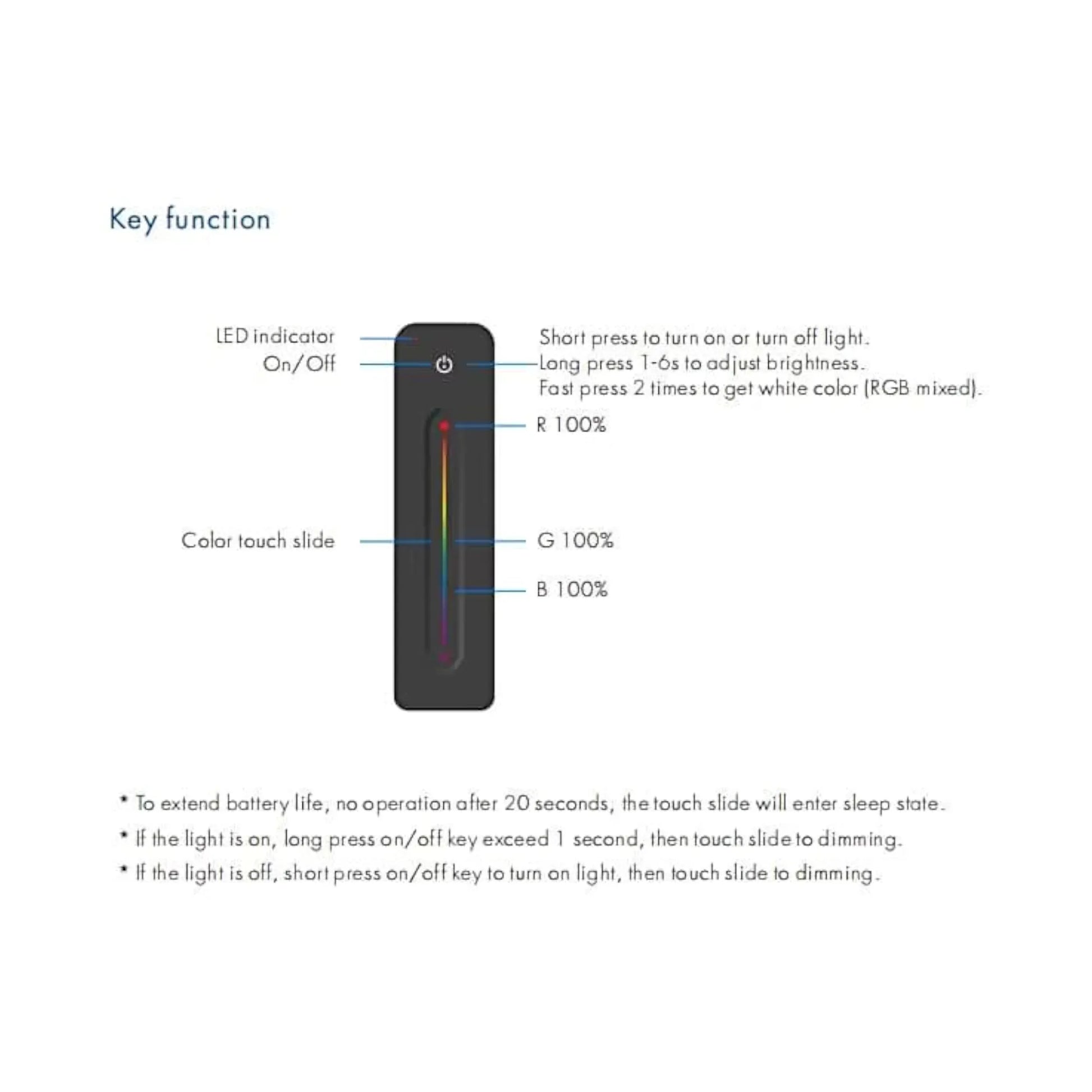

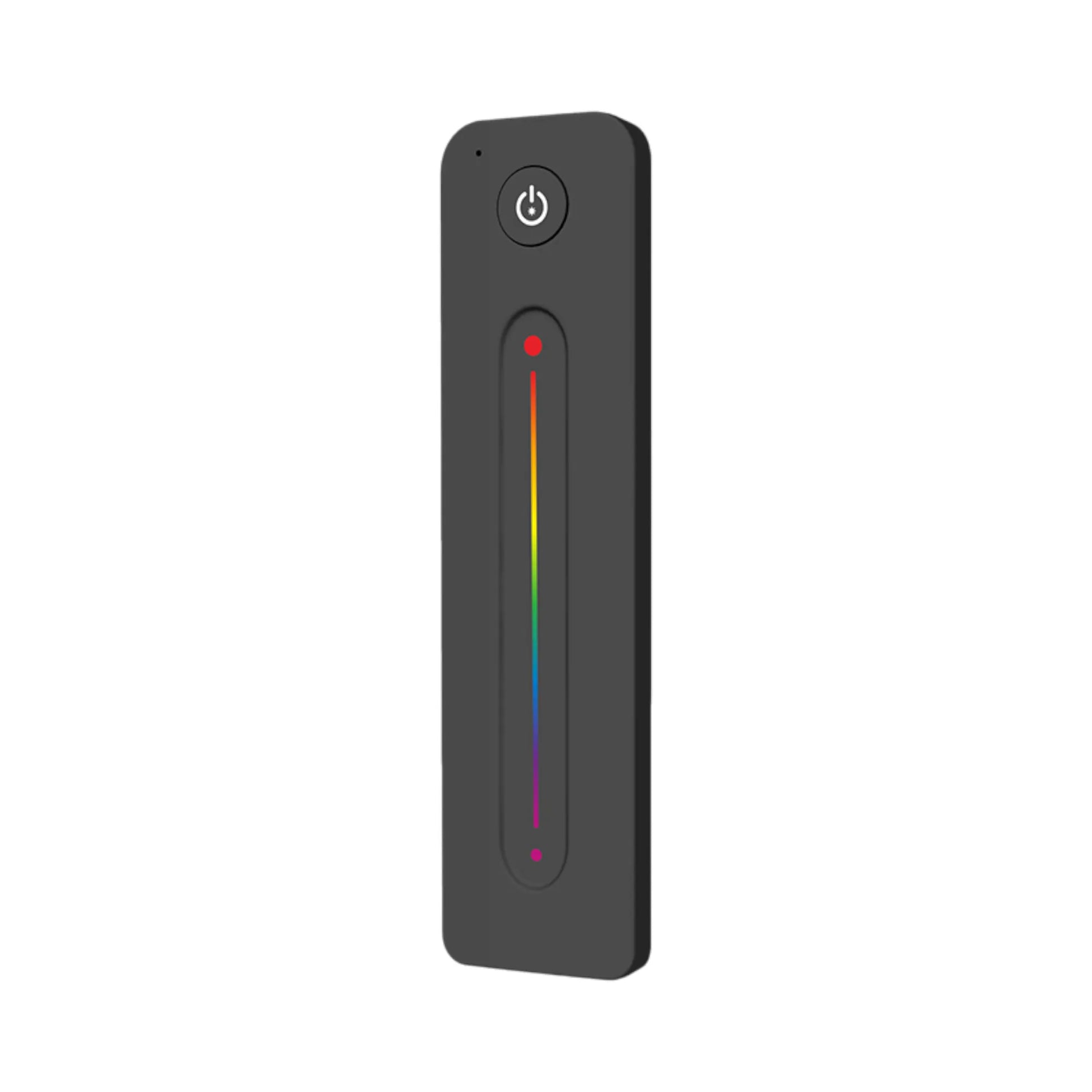

On the R13, a short press of the on/off key turns the lights on or off, and a long press (1-6 seconds) adjusts brightness. Slide your finger along the colour touch slide to pick any RGB colour, or fast press the on/off key twice for white (RGB mixed). To extend battery life, the touch slide goes to sleep after 20 seconds without use.
What it suits
- RGB LED strips
- CCT dual-colour LED strips (WW/NW/CW, with a CCT remote)
- Single-colour LED strips
- 12V or 24V DC systems
- R13 and compatible 2.4GHz RF remotes (up to 10 per controller)
- Vans, caravans, RVs, boats, cabins
- Interior 12V/24V lighting systems (IP20)
Fitting it

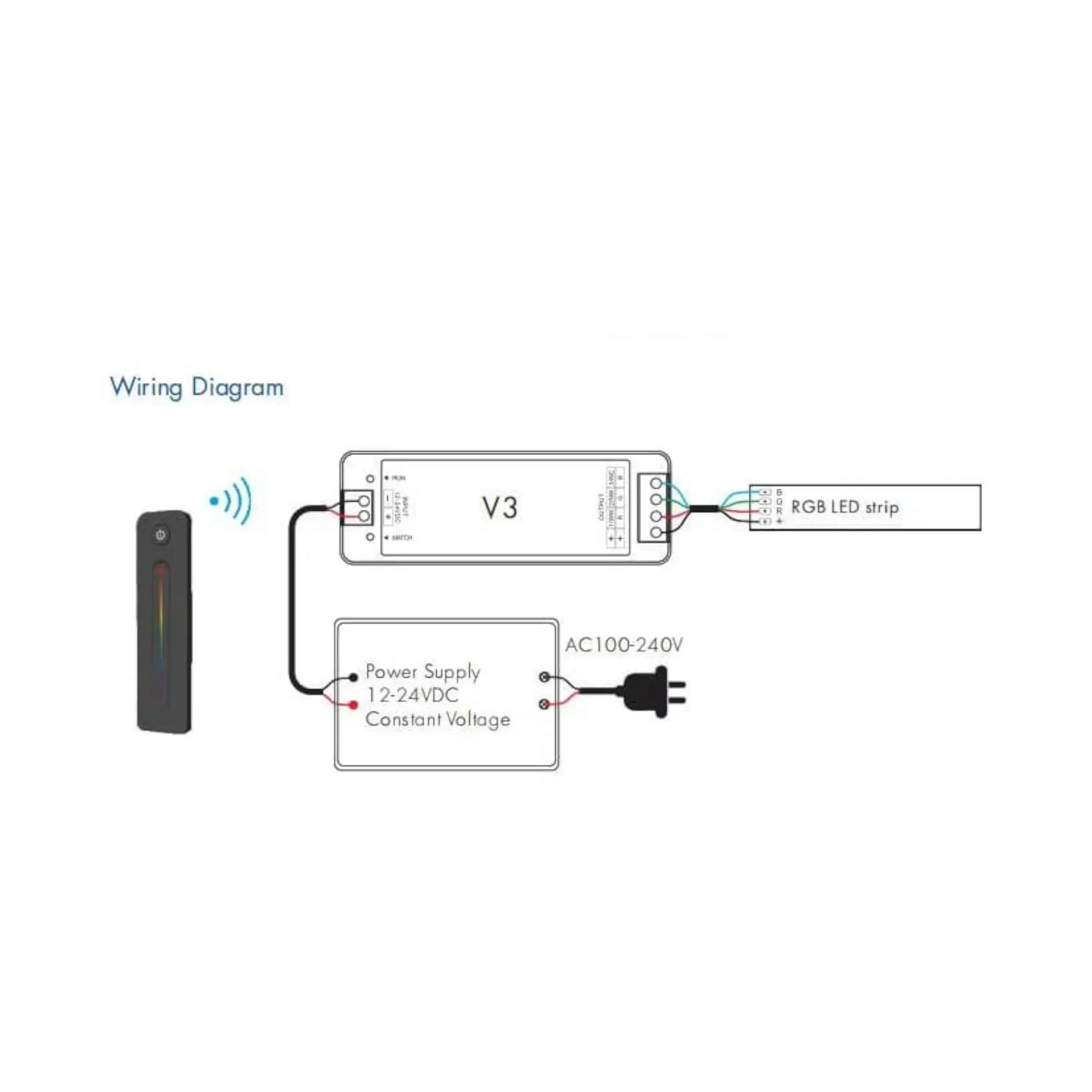

Difficulty: 3/5 (Moderate). Requires correct wiring of RGB/CCT channels and remote pairing. The controller has screw tabs for mounting (screws not included).
Features
- 3-channel output: RGB, CCT, or single colour
- 4096-level smooth PWM dimming
- 30m RF wireless range
- Auto-transmitting between controllers
- Sync multiple V3 controllers
- 10 built-in dynamic modes (jump, smooth and fade styles)
- Supports up to 10 RF remotes
- R13 colour touch-slide remote powered by a CR2032 battery
- Magnetic remote holder (screw or adhesive mount)
- Constant-voltage design (12V-24V)
- Reverse-polarity protection
- ABS housing with compact footprint
- -30ยฐC to +55ยฐC operating temperature

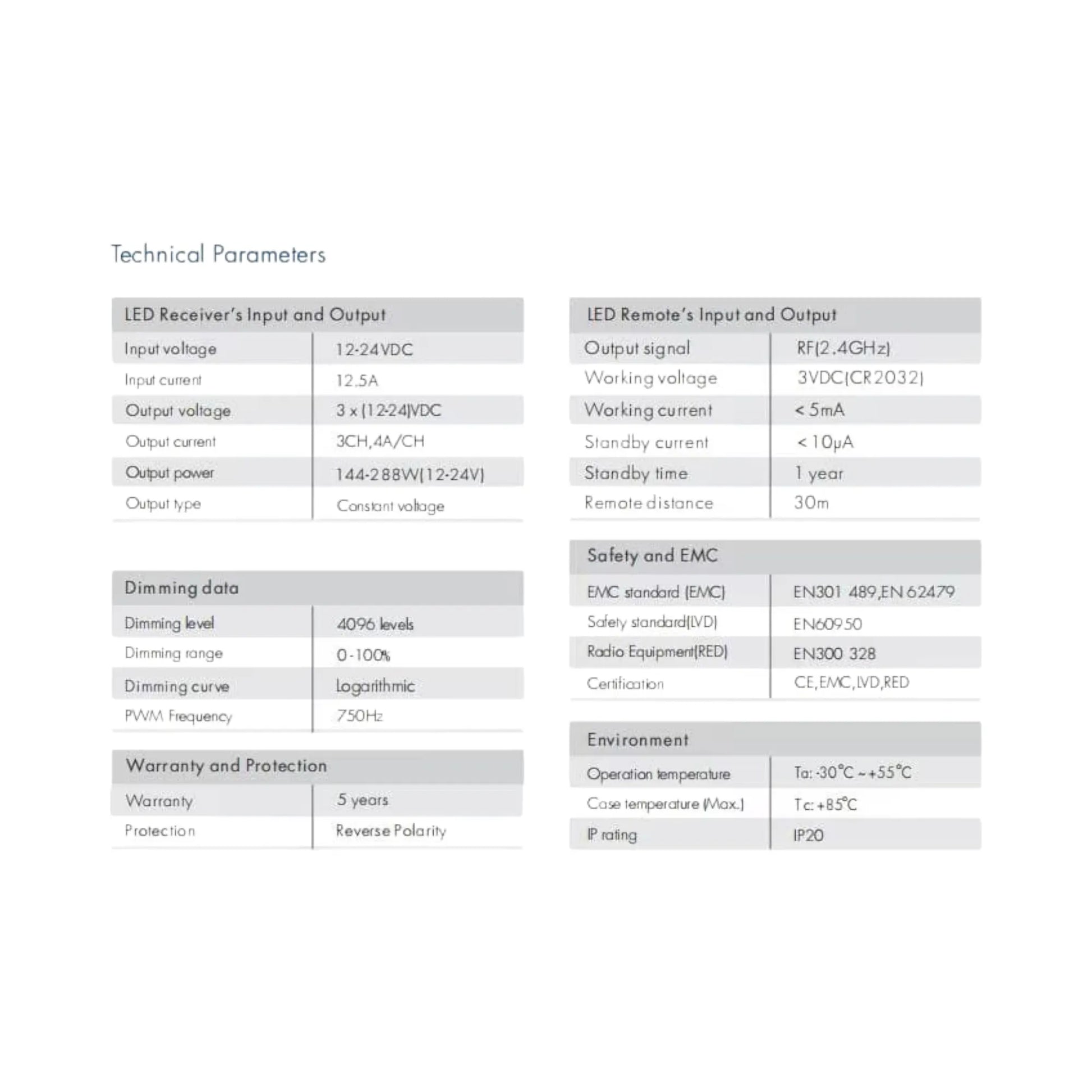

Specifications
| Model | V3 |
| Input Voltage | 12-24V DC |
| Input Current | 12.5A |
| Output Voltage | 3 x (12-24V) DC |
| Output Channels | 3 (RGB / CCT / Single Colour) |
| Output Current | 4A per channel |
| Total Load | Up to 12A |
| Output Power | 3 x (48-96)w, 144W @ 12V / 288W @ 24V |
| Output Type | Constant voltage |
| Dimming Range | 0-100% |
| Dimming Steps | 4096 |
| Dimming Curve | Logarithmic |
| PWM Frequency | 750Hz |
| Wireless Tech | 2.4GHz RF |
| Wireless Range | 30m (open area) |
| Remote Support | Up to 10 remotes |
| Remote Battery | CR2032 |
| Auto-Transmit | Yes |
| Sync Function | Yes |
| Dynamic Modes | 10, RGB jump, RGB smooth, 6-colour jump, 6-colour smooth, yellow/cyan/purple smooth, RGB fade in and out, red, green, blue and white fade in and out |
| Material | ABS |
| Operating Temperature | -30ยฐC to +55ยฐC |
| Case Temperature (Max) | +85ยฐC |
| Protection | Reverse-polarity |
| IP Rating | IP20 |
| Certification | CE, EMC, LVD, RED |
| Supported Lighting | RGB, CCT, Single Colour |

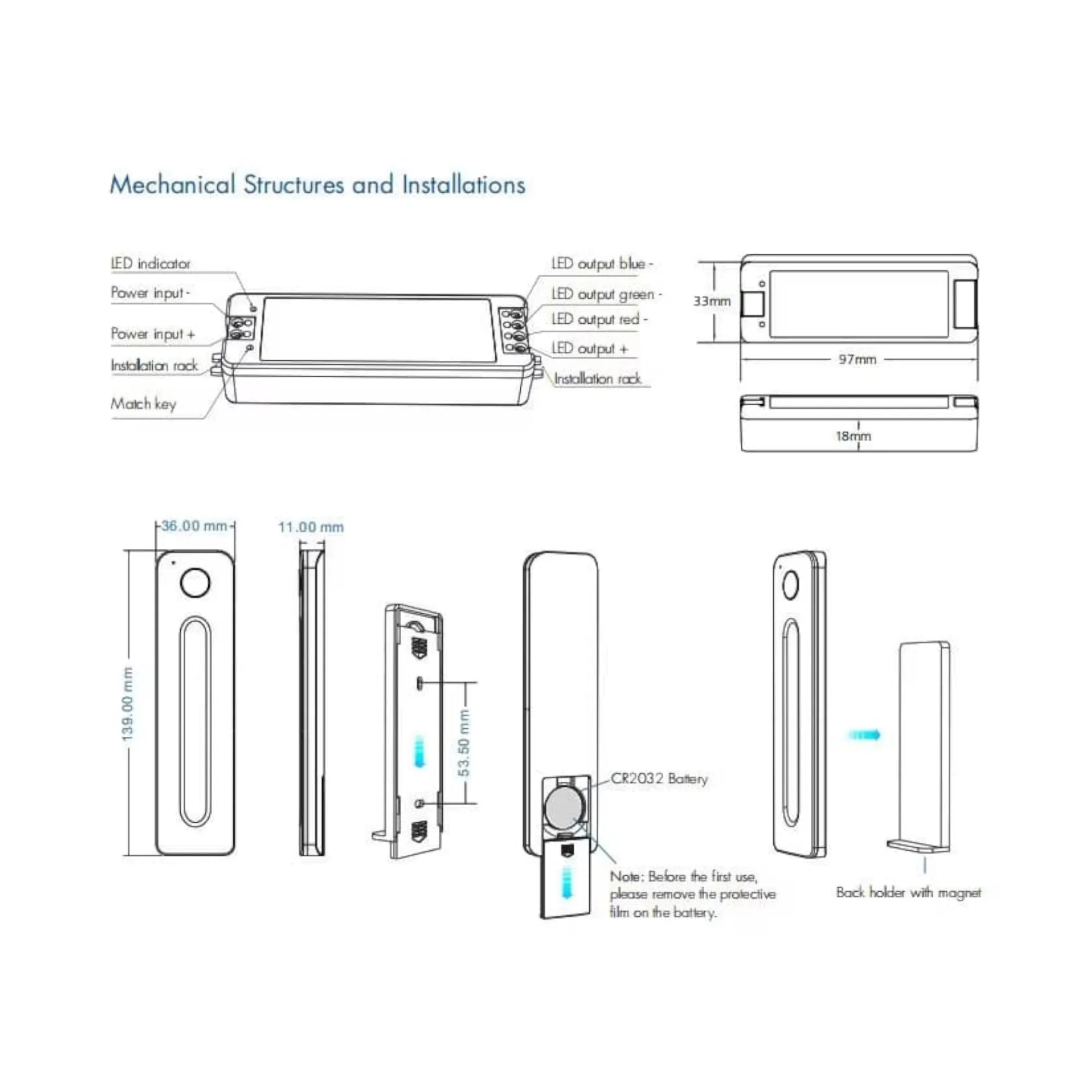

| Controller Dimensions | 108 x 35 x 18mm (including mounting tabs) |
| Remote Dimensions | 139 x 36 x 11mm |
| Magnetic Holder Hole Spacing | 53.5mm |
| Remote Sleep | Touch slide sleeps after 20s of inactivity |
