A stand-alone LED controller for expanding a Treklo lighting setup. Pair it with one of our remotes, or pick a starter kit if you need both the controller and the remote.
Why it works
- 3-in-1 control system: Supports single-colour, CCT dual-colour, and RGB LED strips.
- 4096-step dimming: Ultra-smooth 0-100% brightness with no flicker.
- Full RGB effects: Built-in dynamic modes including jump and gradual colour transitions.
- CCT temperature control: Adjust warm, neutral, and cool white tones.
- RF wireless control: Works with 2.4GHz single-zone and multi-zone remotes.
- Auto-transmitting: Signal relays automatically up to 30m.

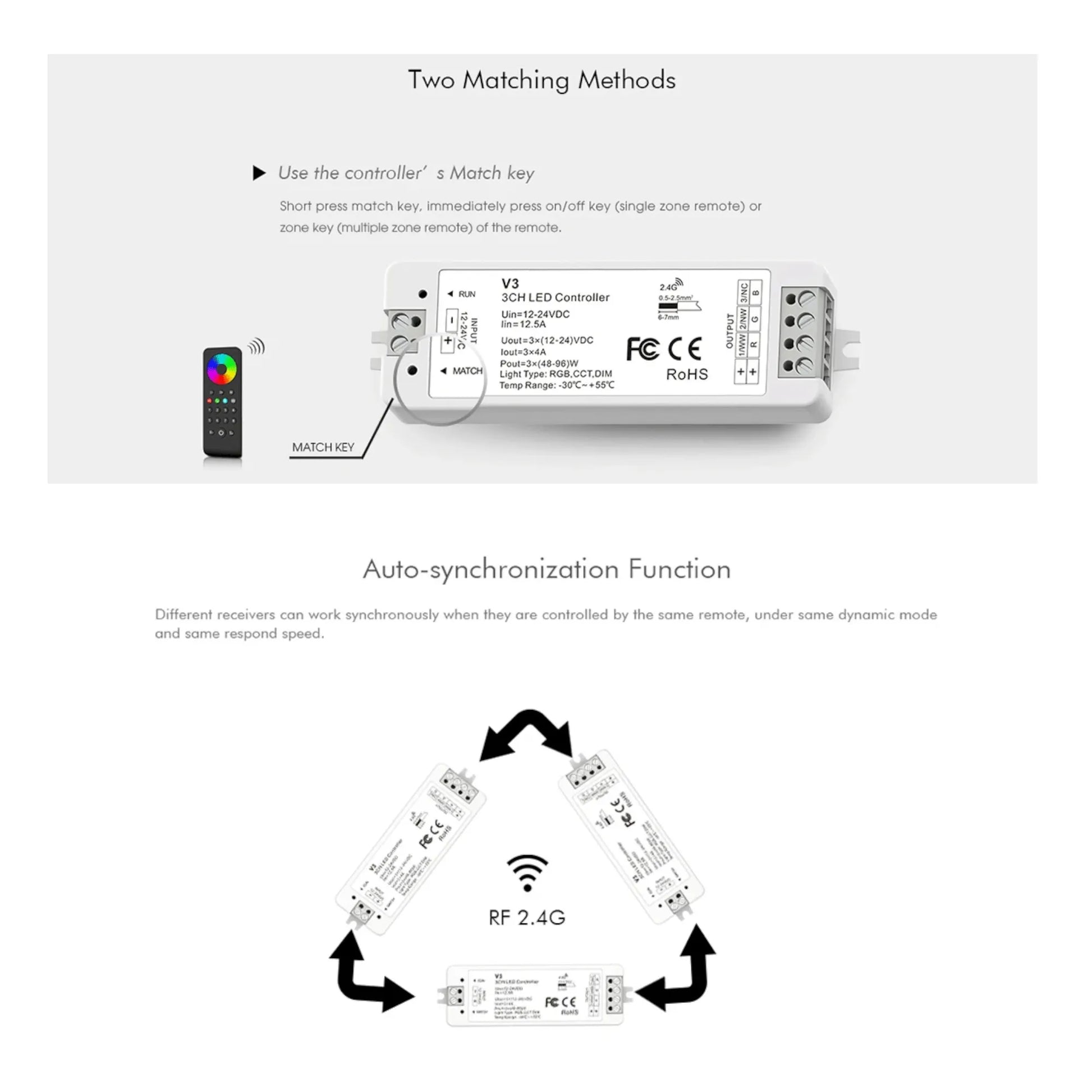

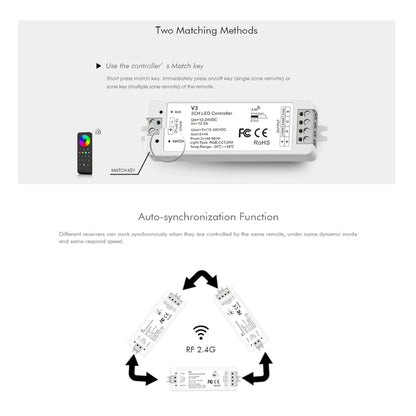

- Synchronisation ready: Multiple V3 controllers operate in perfect sync.

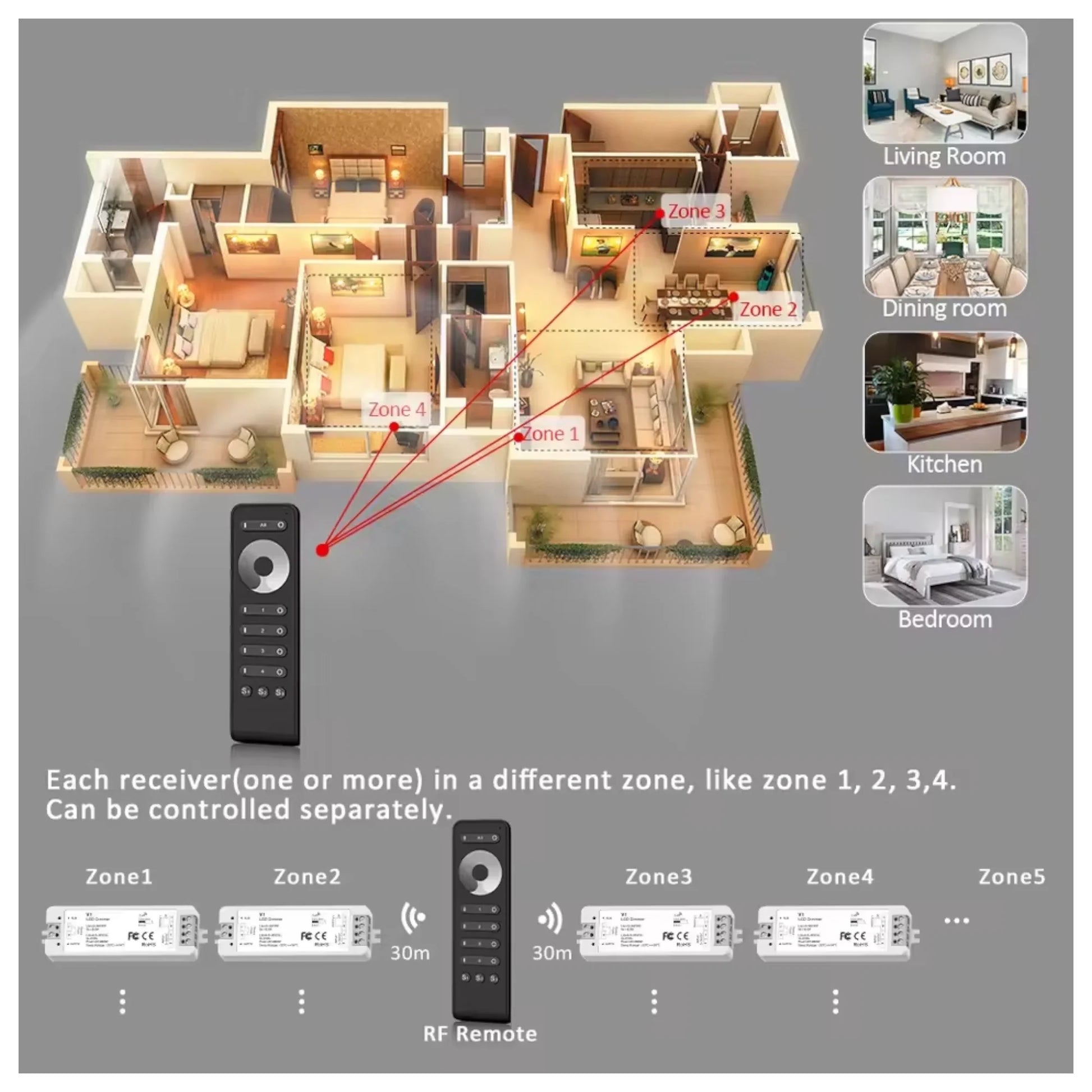

- Supports up to 10 remotes: Ideal for multi-room or multi-zone lighting setups.
What's in the box

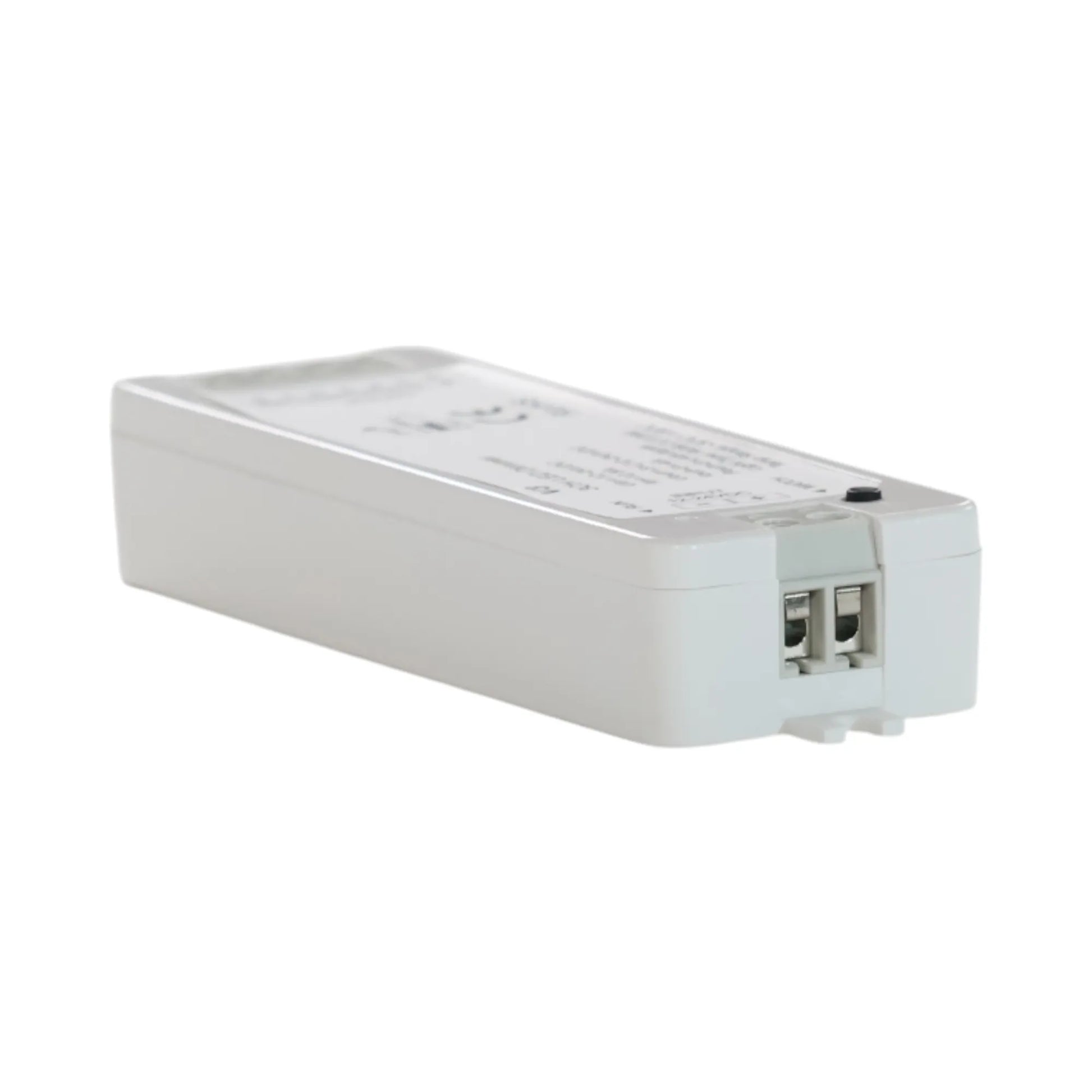

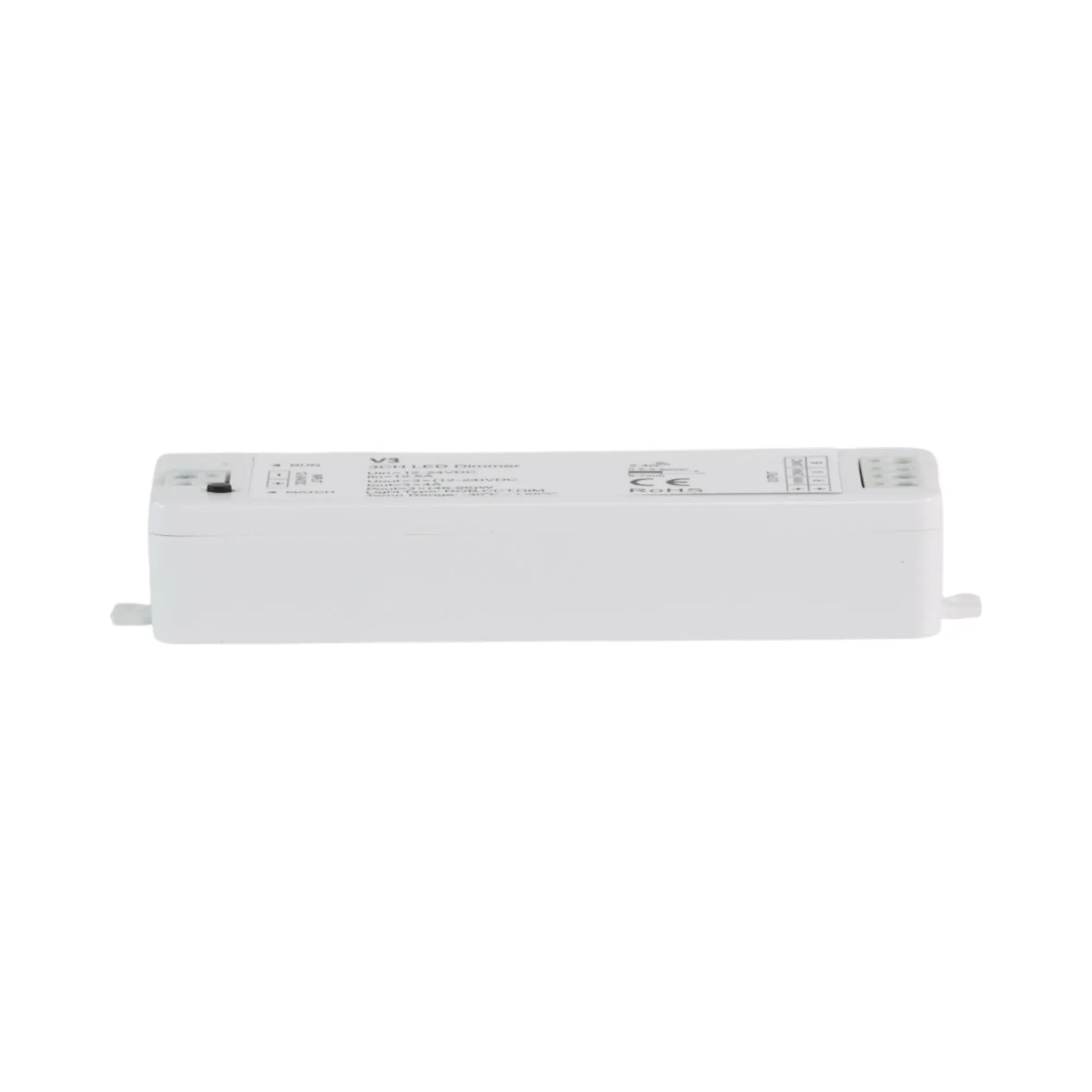

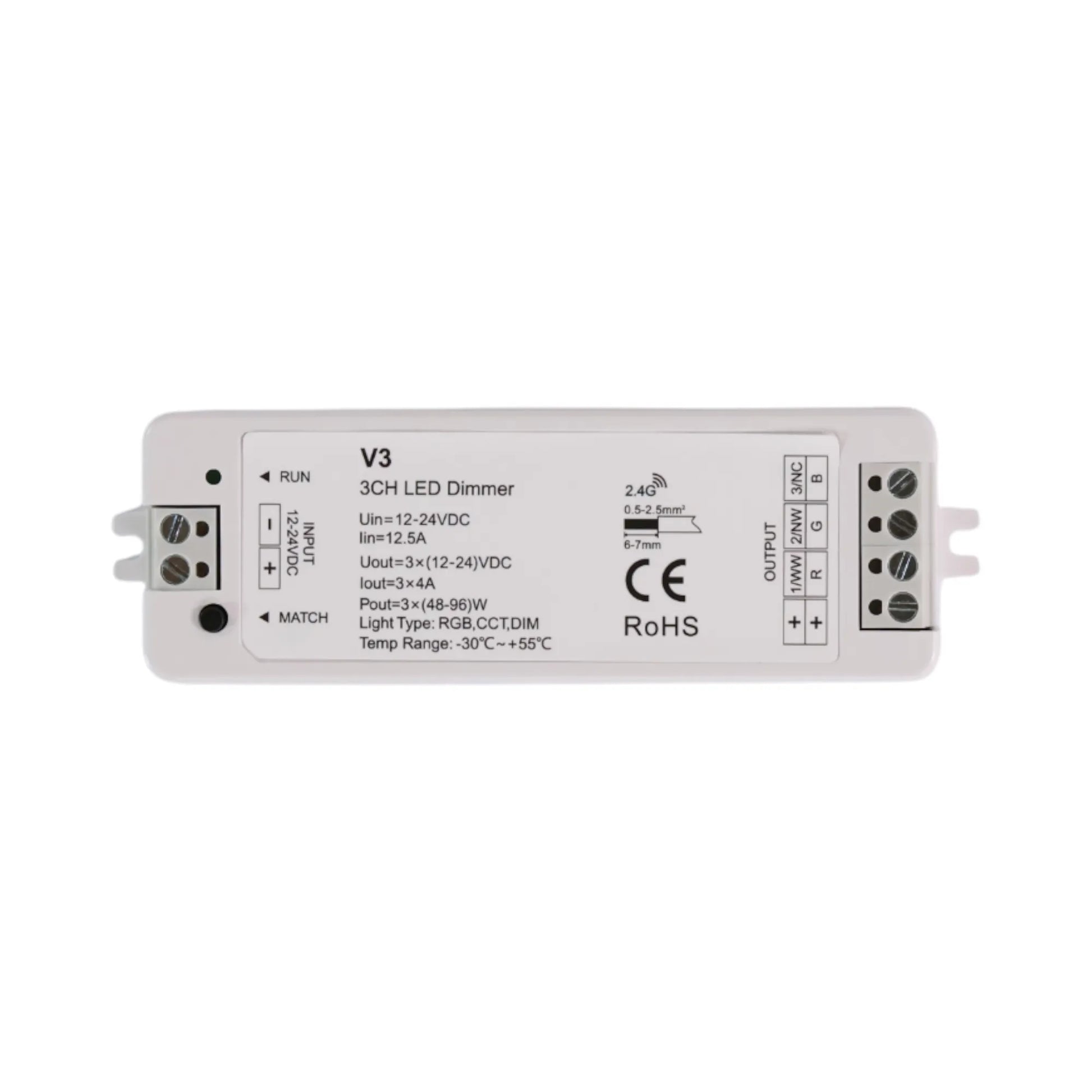

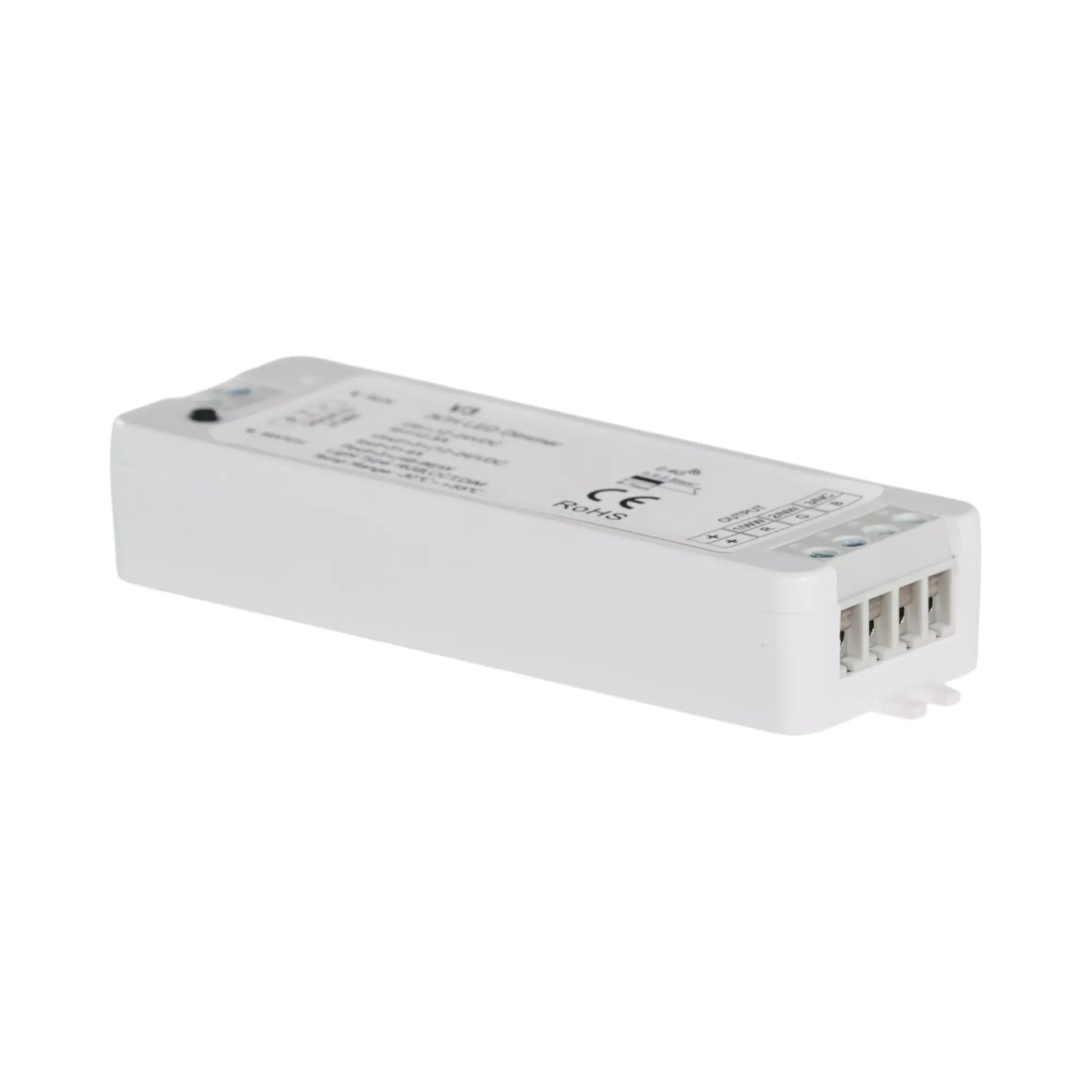

- 1 x V3 RGB/CCT/Dimming 3-Channel LED RF Controller
How it works
The V3 LED Controller is designed for maximum flexibility, supporting RGB, dual-colour CCT, and single-colour LED strips from the same unit. Whether you want adjustable warm/cool lighting, full-colour RGB effects, or simple dimming, the V3 handles it with ease.
With built-in 10 dynamic RGB modes (jump, fade, gradual transitions), smooth PWM dimming, and long-range 2.4GHz RF control, it offers professional-grade lighting capability for off-grid and 12V/24V environments.
What it suits
- RGB LED strips
- CCT (dual-colour) LED strips
- Single-colour LED strips
- 12V or 24V regulated DC systems
- 2.4GHz RF LED remotes (single & multi-zone)
- Vans, caravans, RVs, boats, cabins, indoor lighting
Fitting it

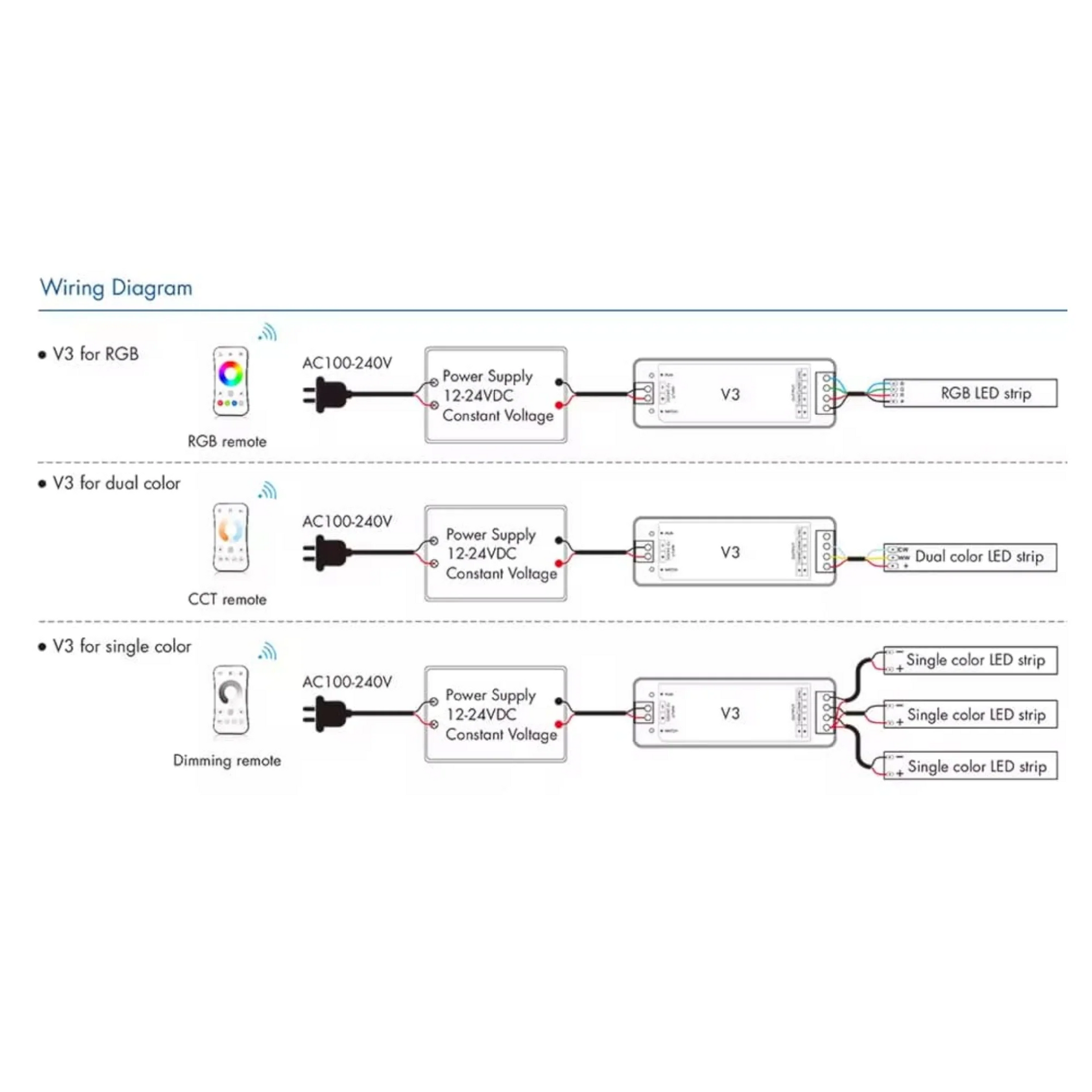

Difficulty: 3/5 (Moderate). Requires correct wiring for RGB/CCT channels and RF pairing.
Features
- 3-channel output (RGB / WW+CW / Single Colour)
- 4096-level PWM dimming (0-100%)
- 10 built-in RGB dynamic modes
- 30m RF wireless range (open area)
- Auto-transmitting between controllers
- Sync multiple controllers in one system
- Selectable 3-second fade-in/out
- Supports up to 10 remotes
- Compact ABS housing
- Constant-voltage design (12V-24V)

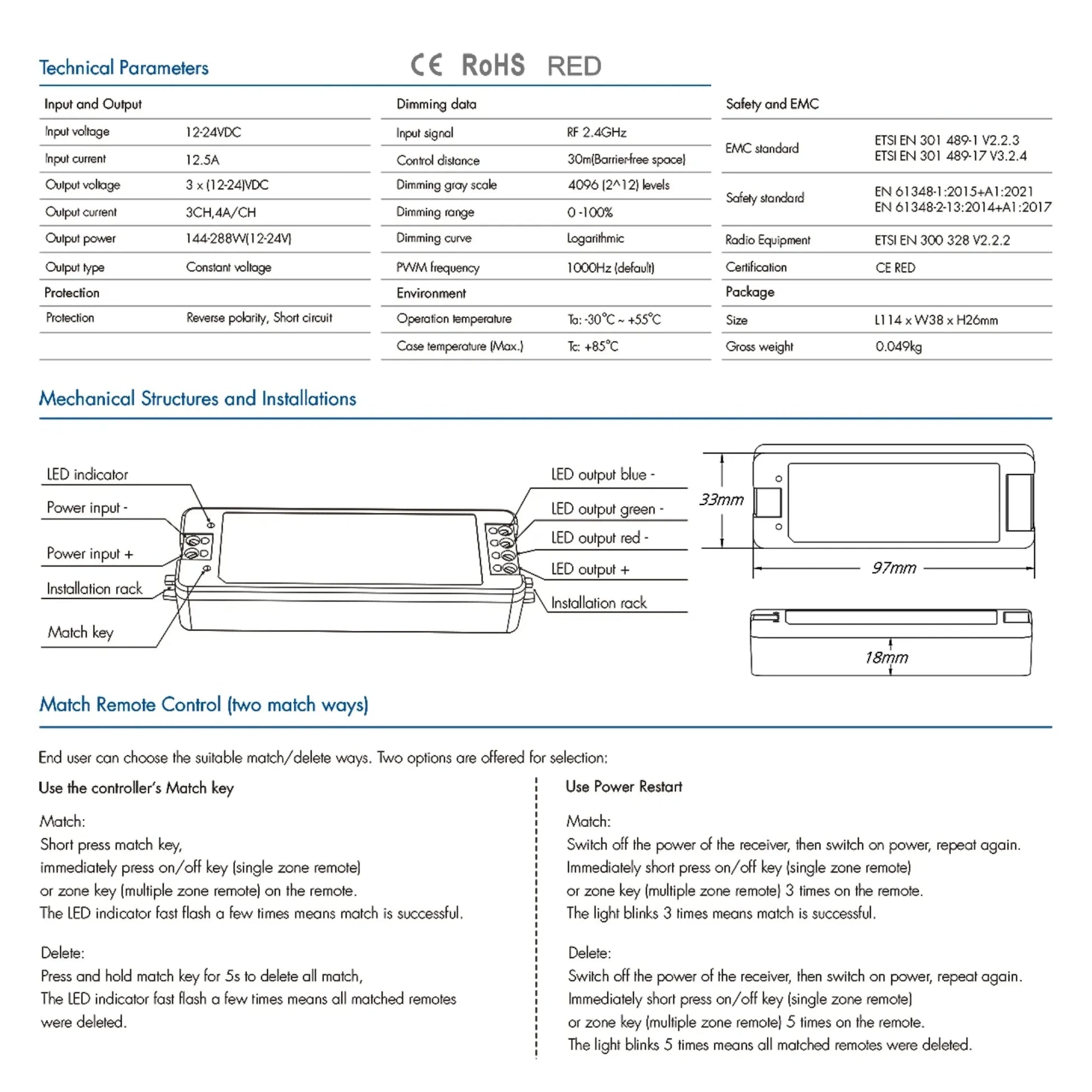

Specifications
| Model | V3 |
| Input Voltage | 12-24V DC |
| Output Channels | 3 Channels (RGB / CCT / Single Colour) |
| Output Current | 4A per channel |
| Maximum Load | 12A total (144W @ 12V / 288W @ 24V) |
| Dimming Range | 0-100% |
| Dimming Steps | 4096 levels |
| RGB Modes | 10 built-in dynamic effects |
| Wireless Technology | 2.4GHz RF |
| Wireless Range | 30m (open area) |
| Remote Support | Up to 10 paired remotes |
| Auto-Transmit | Yes |
| Sync Function | Yes |
| Material | ABS |
| Operating Temperature | -30°C to +55°C |
| Supported Lights | RGB, CCT, Single Colour |
| Dimensions | 108 x 35 x 18mm (including mounting tabs) |
