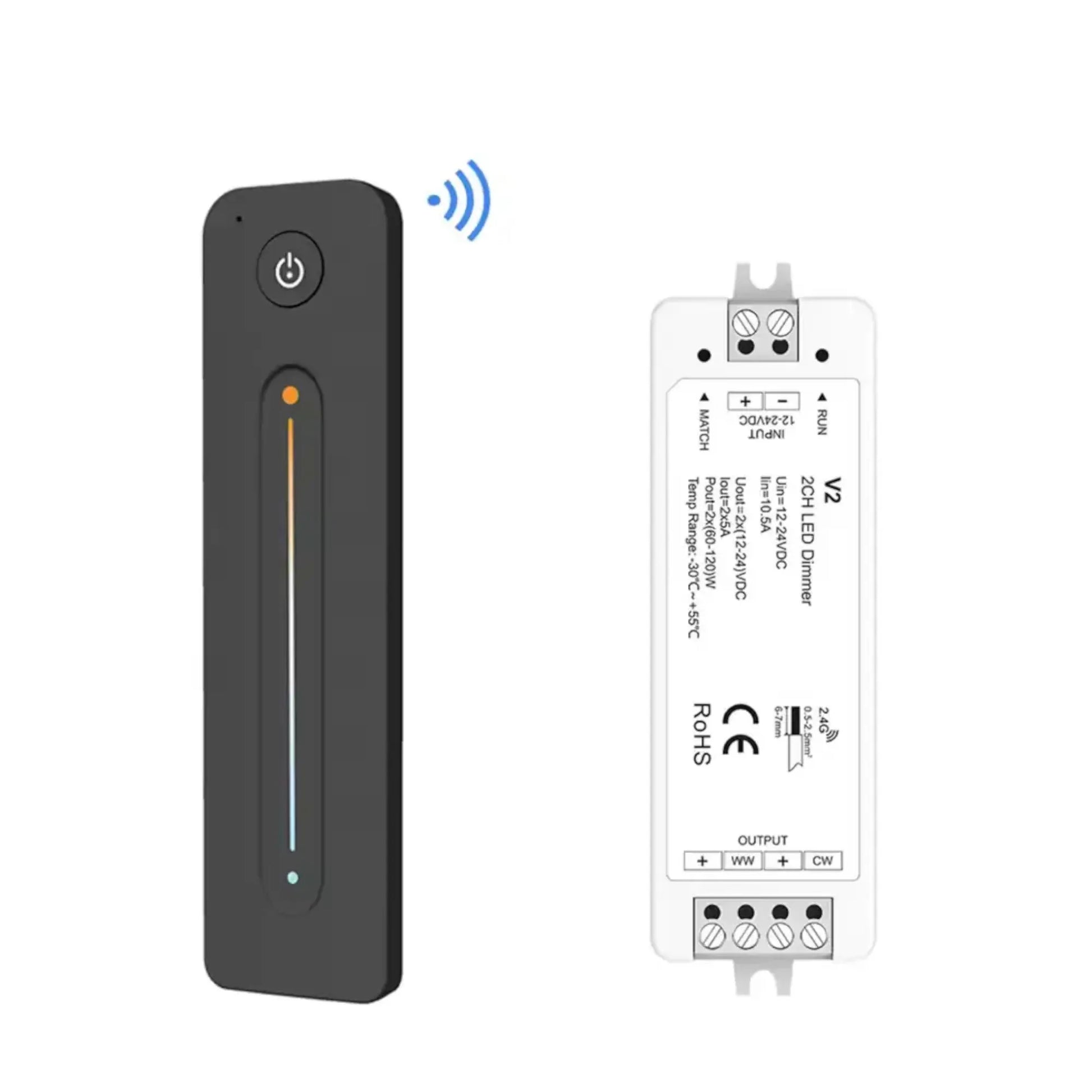

V2 + R12 Starter Kit | Dimmer and Remote

A controller and touch-slide remote for CCT LED strip lighting. Adjust brightness and slide between warm, neutral and cool white from anywhere in the van.

Why it works

• Includes both controller + R12 remote: Ready to install straight out of the box.
• Smooth 4096-level dimming: Flicker-free 0-100% brightness control.
• Full CCT adjustment: Switch between warm, neutral, and cool white modes.
• Touch-slide remote control: Intuitive brightness and colour-temperature adjustment.
• RF wireless operation: Stable 2.4GHz control up to 30m range.
• Pair up to 10 remotes: Perfect for multi-area or multi-user access.
• Auto-transmitting function: Controllers relay signals to each other wirelessly.
• Multiple controller sync: Keeps lighting consistent across entire builds.
• Selectable fade modes: Enable smooth fade-in and fade-out transitions.

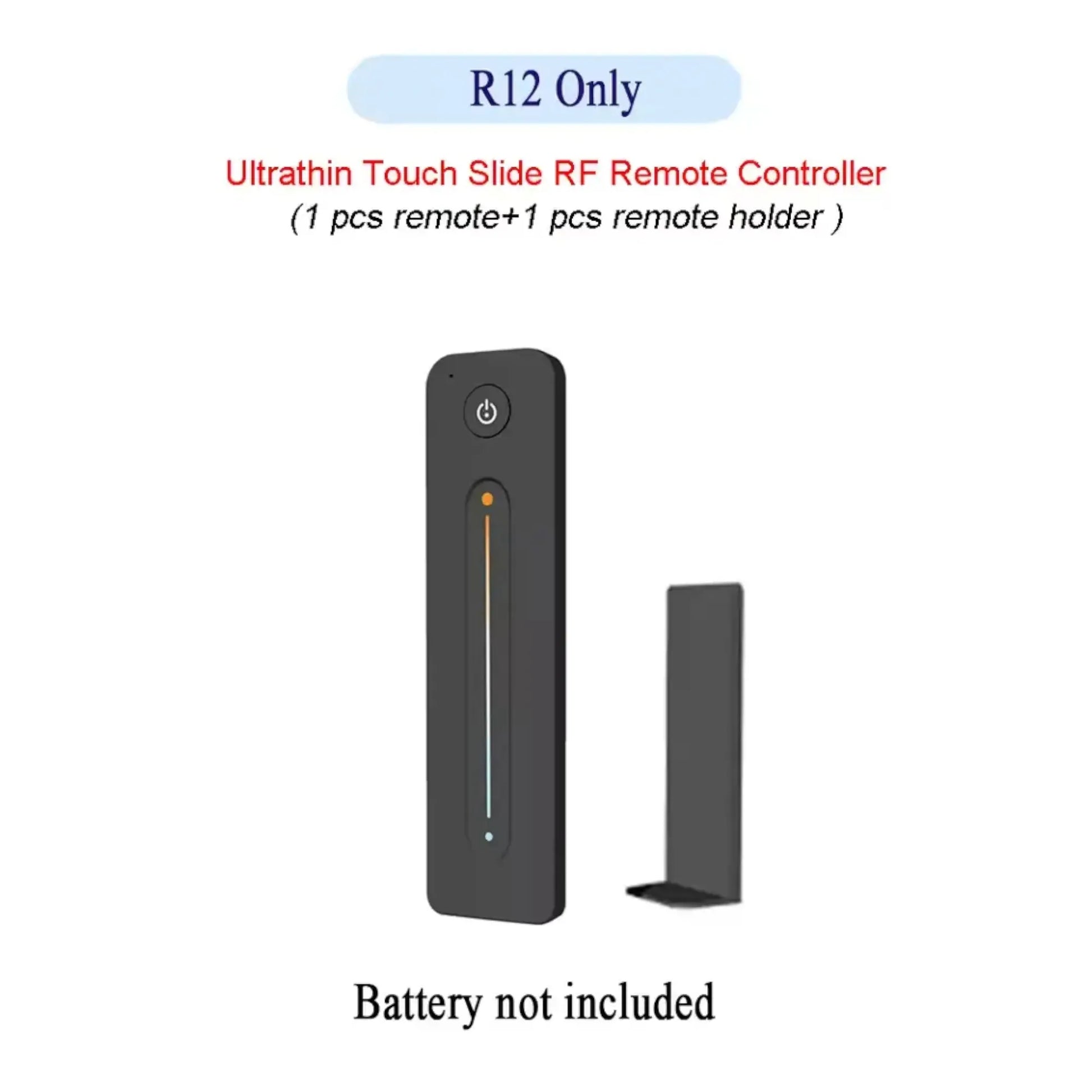

• Magnetic remote holder: The R12 sits in a magnetic holder that can be screwed to the wall or stuck on with the included adhesive pad.

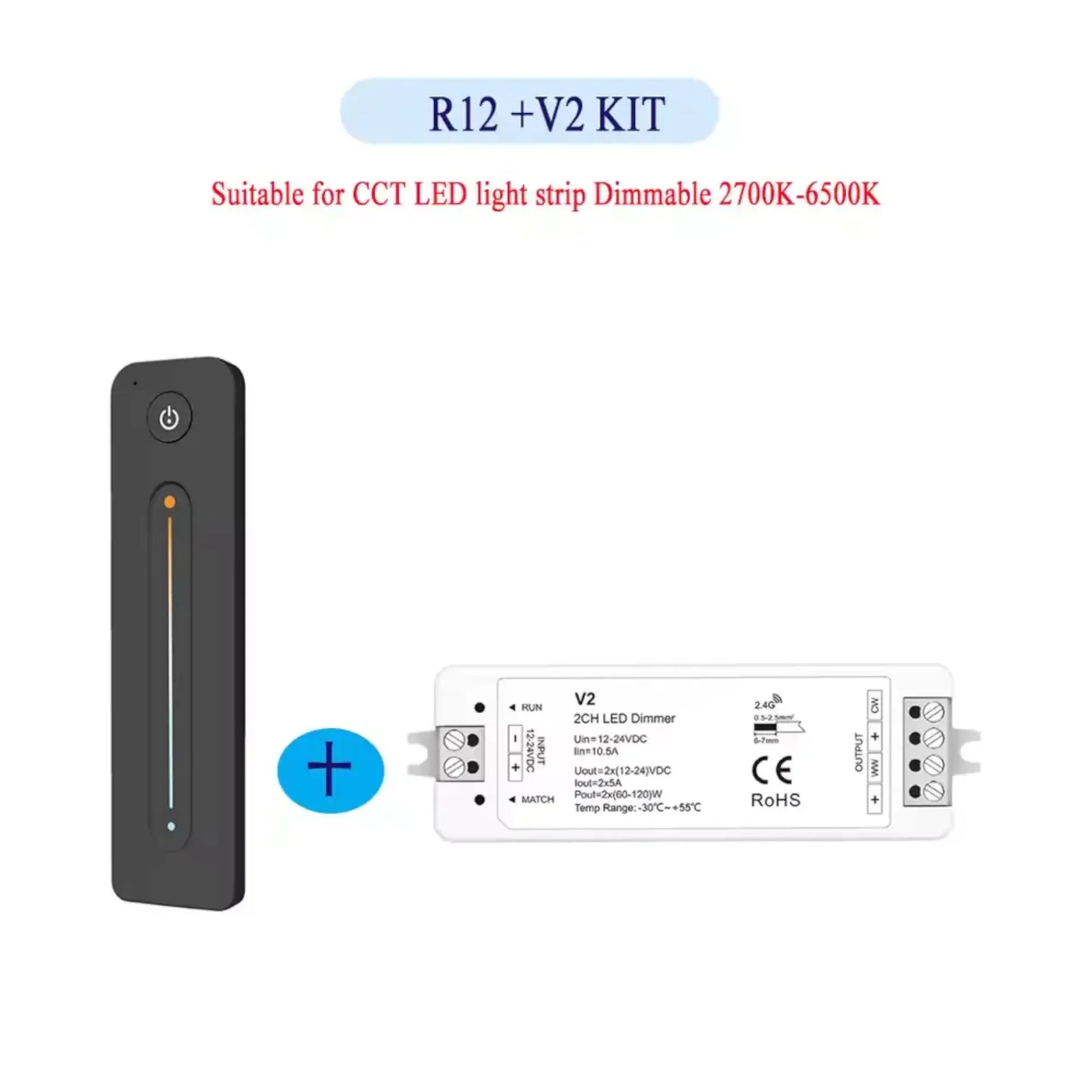

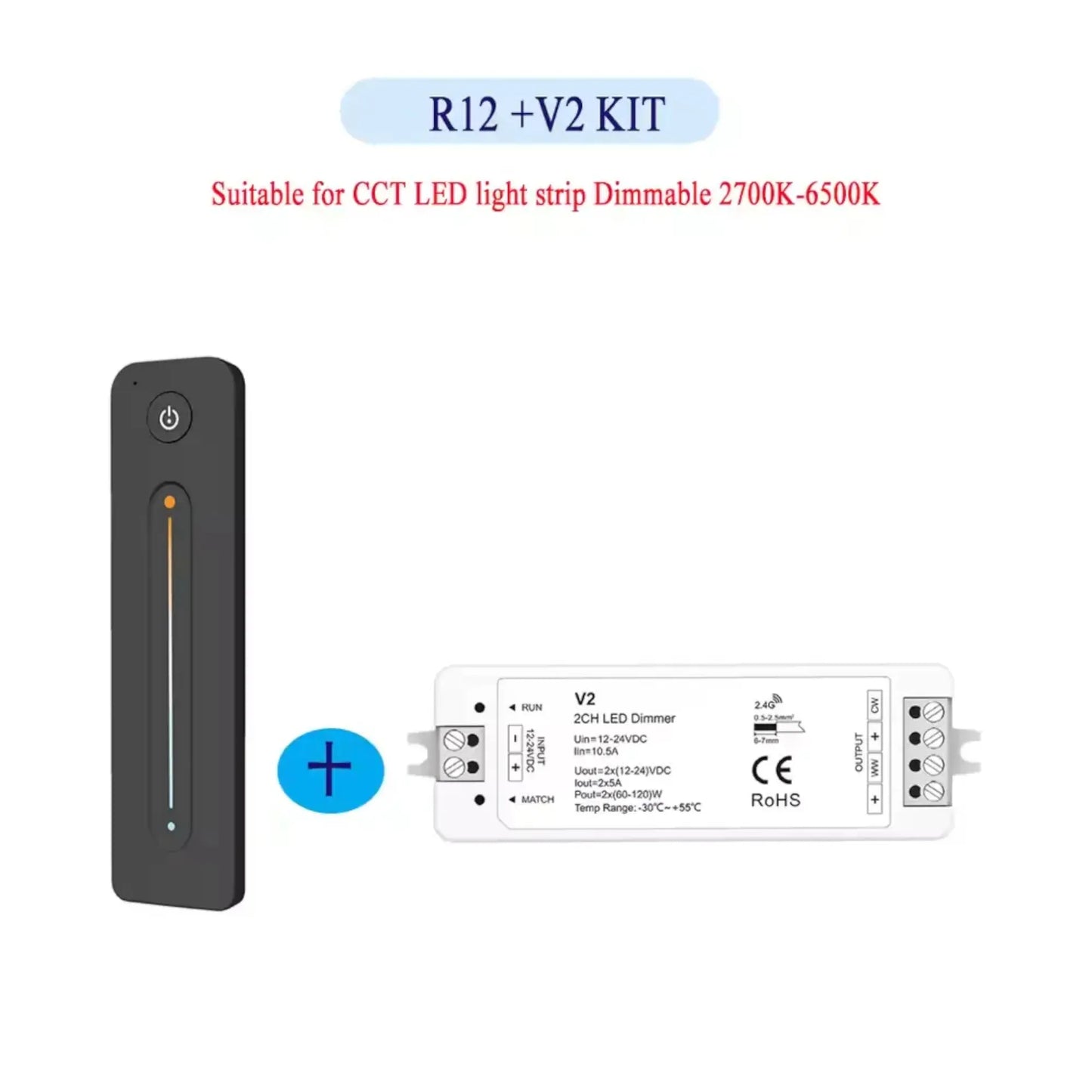

What's in the box

• 1 x V2 LED Controller
• 1 x R12 Touch-Slide RF Remote
• 1 x Magnetic Remote Holder
• 1 x Adhesive Pad (for the holder)
• 1 x User Manual

How it works

This kit combines the powerful V2 CCT LED Controller with the R12 RF remote to give you complete wireless lighting control. The R12 remote uses a responsive touch-slider for effortless colour-temperature adjustments, with up to 30 metres of barrier-free range.

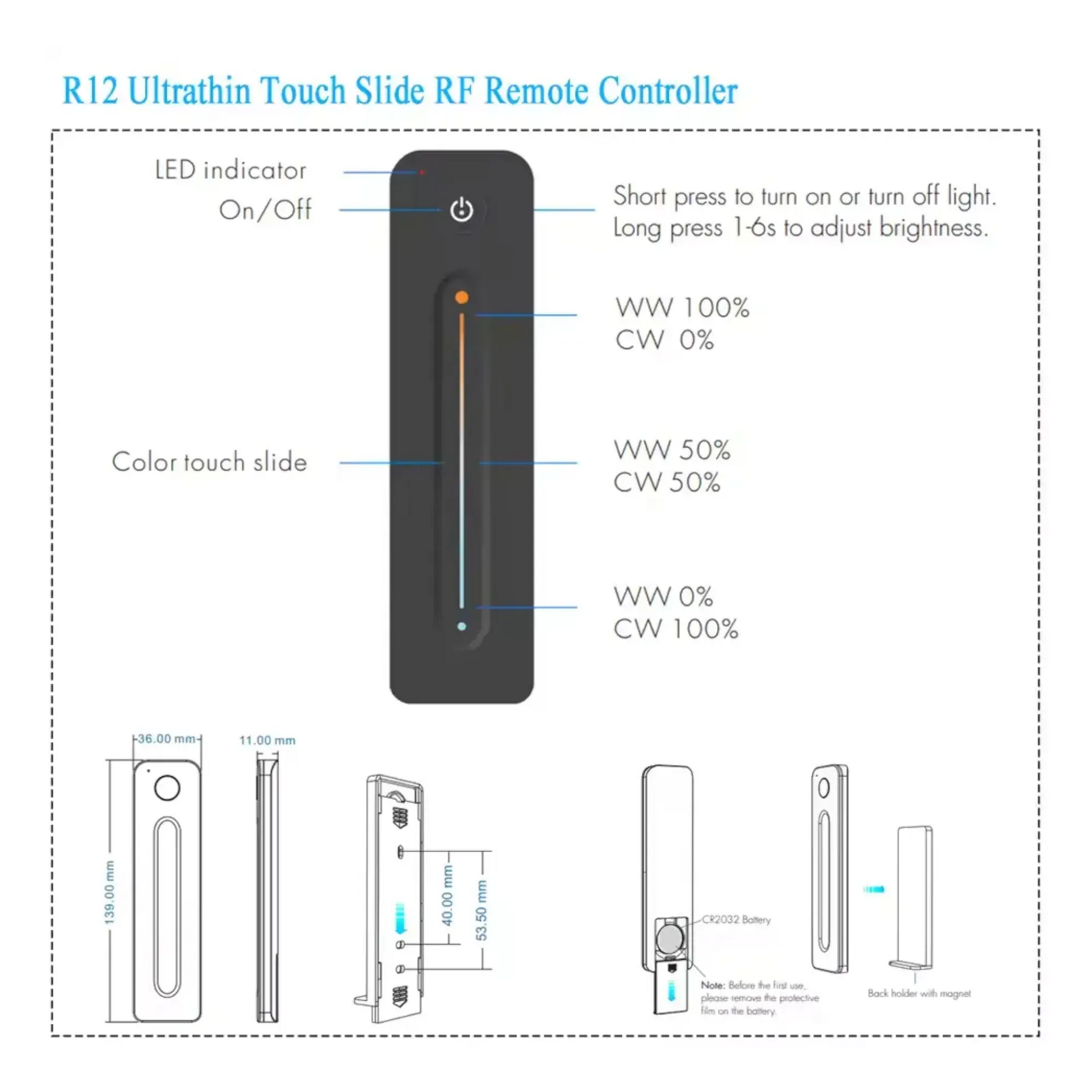

On the R12, a short press of the on/off key turns the lights on or off, and a long press (1-6 seconds) adjusts brightness. Slide your finger along the touch slide to move between warm and cool white. To extend battery life, the touch slide goes to sleep after 20 seconds without use.

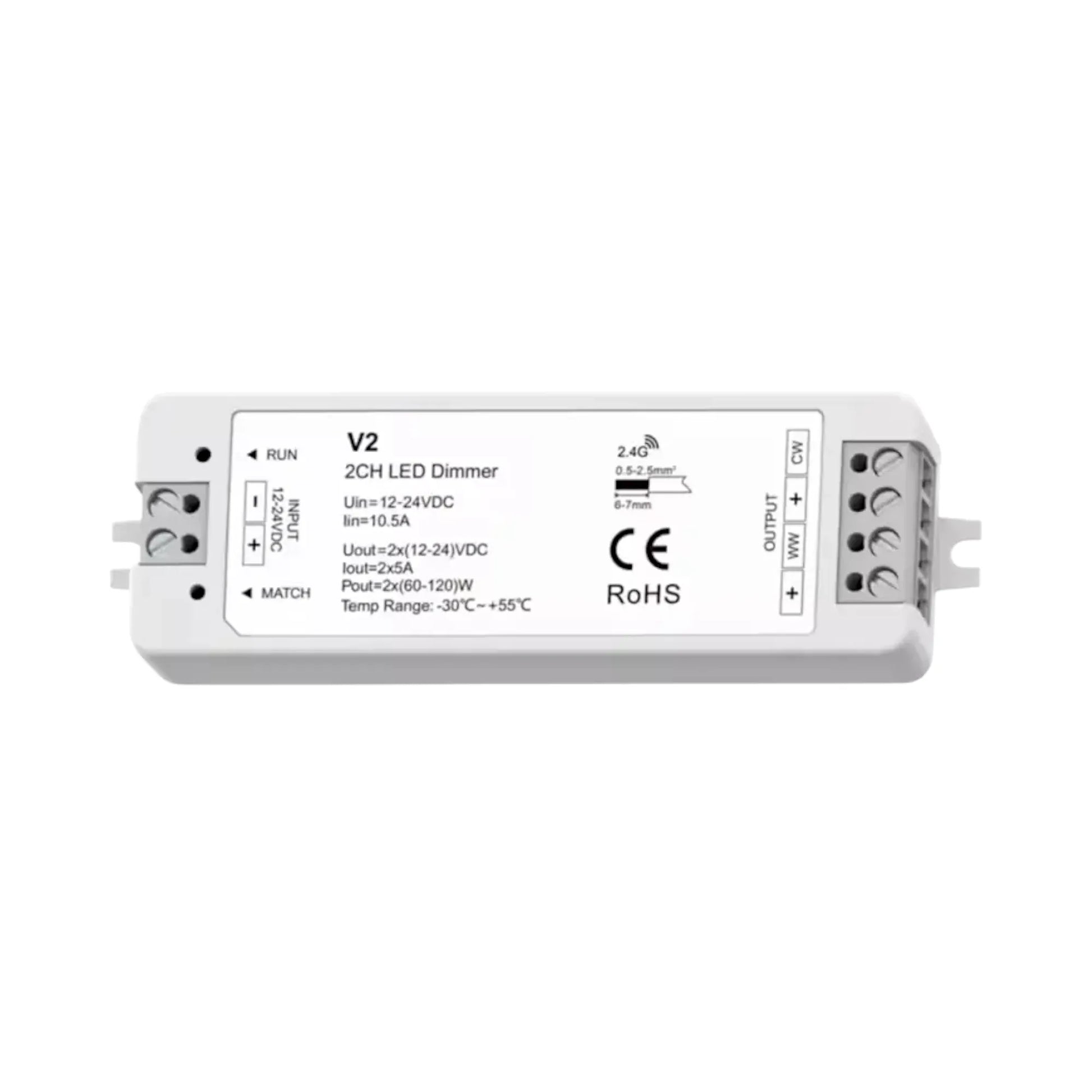

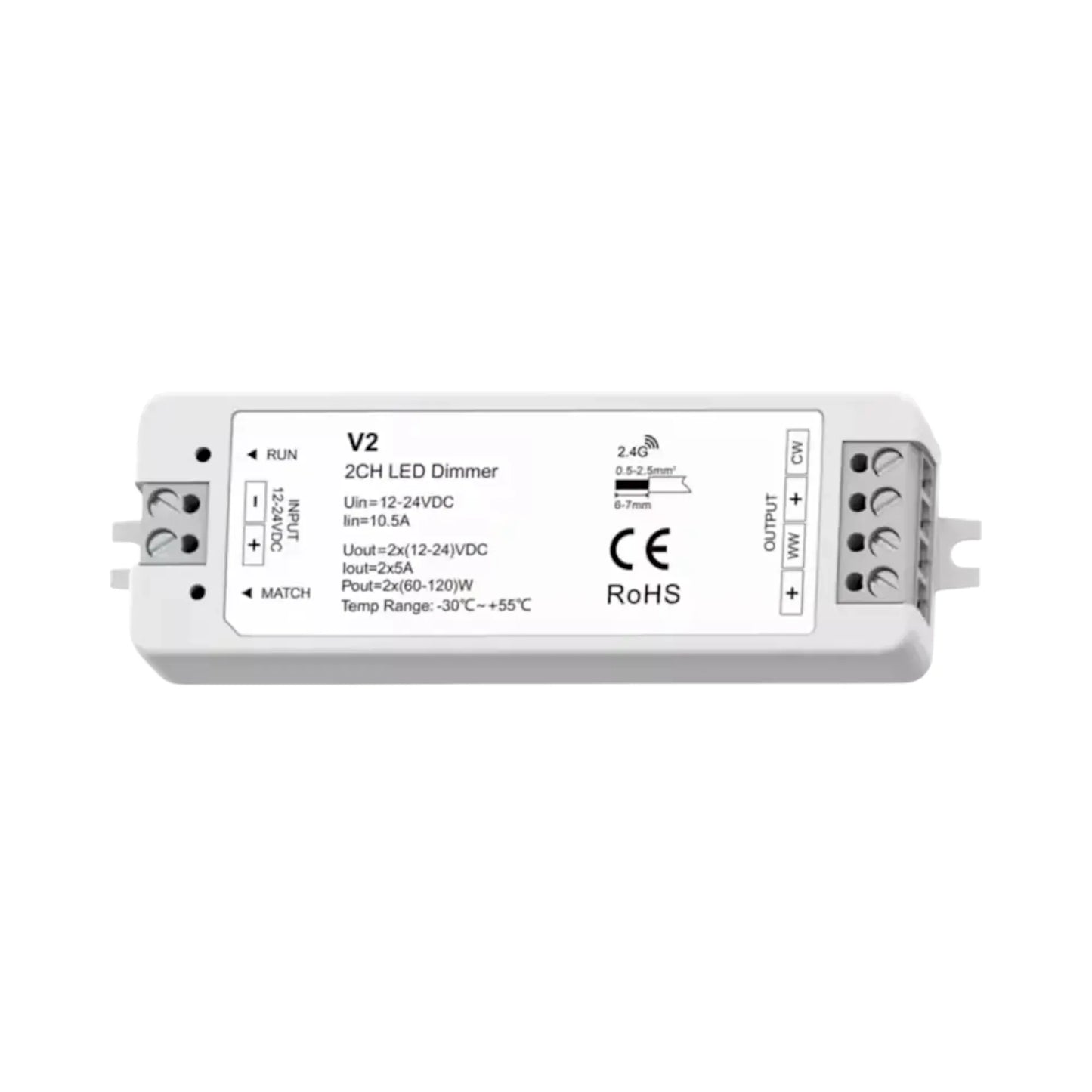

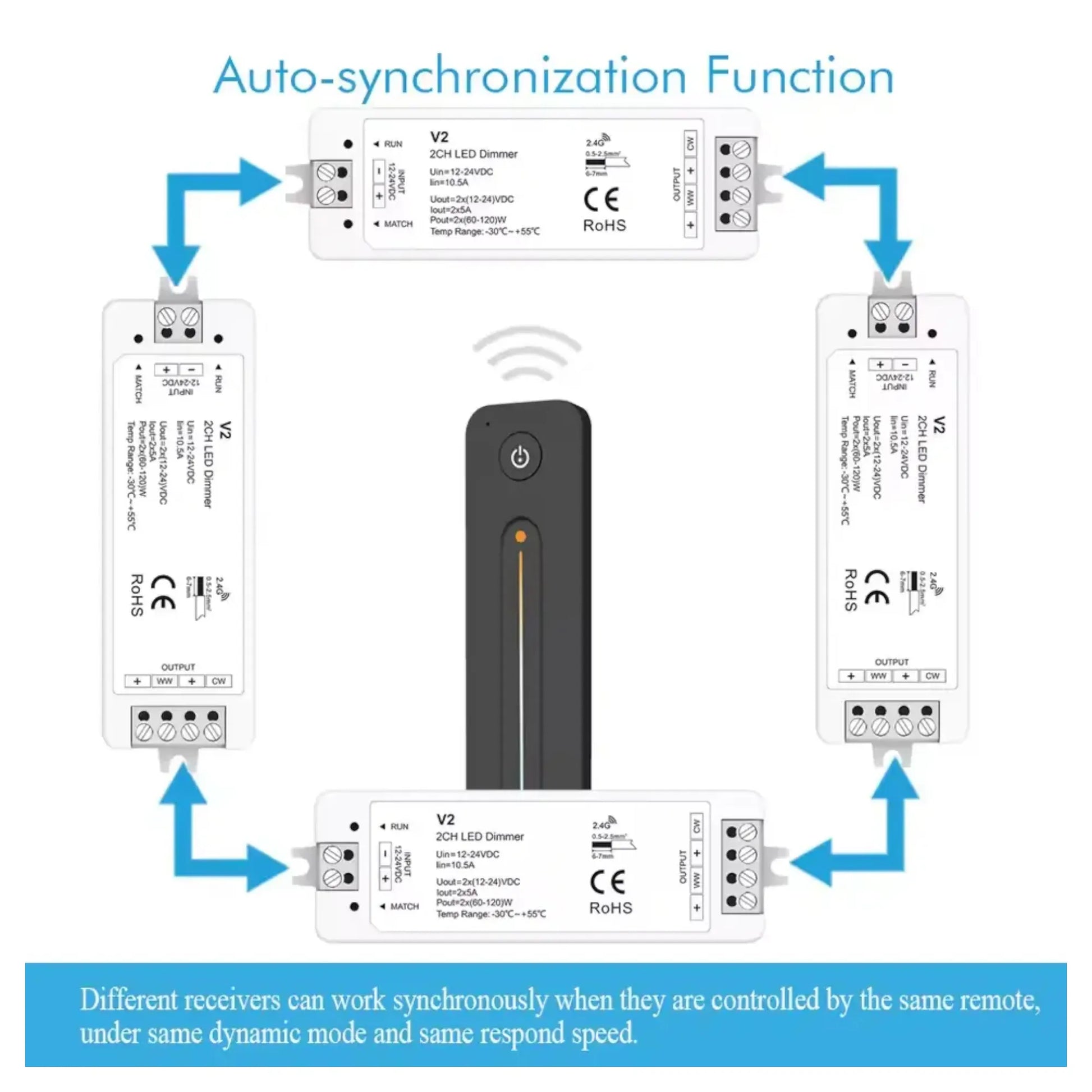

The V2 controller independently powers the warm-white and cool-white LED channels, allowing perfect CCT tuning depending on time of day or desired ambience. Auto-sync and auto-transmit functions ensure that multiple V2 units operate as one, ideal for larger vans or multi-zone lighting layouts. Each V2 can be controlled by up to 10 remotes, and one R12 can be paired with multiple V2 controllers.

You can also set three selectable CCT presets (WW / NW / CW) using the controller's power-cycling function. This preset mode is off by default and is turned on from the controller's match key. The last lighting state is remembered after a power cut.

What it suits

• CCT dual-colour LED strips (warm + cool white)
• 12V & 24V constant-voltage DC systems
• 2.4GHz RF remotes (R12 included, up to 10 per controller)
• Campervans, caravans, RVs, motorhomes
• Indoor lighting & cabinetry (IP20)
• Multi-controller installations requiring syncing

Fitting it

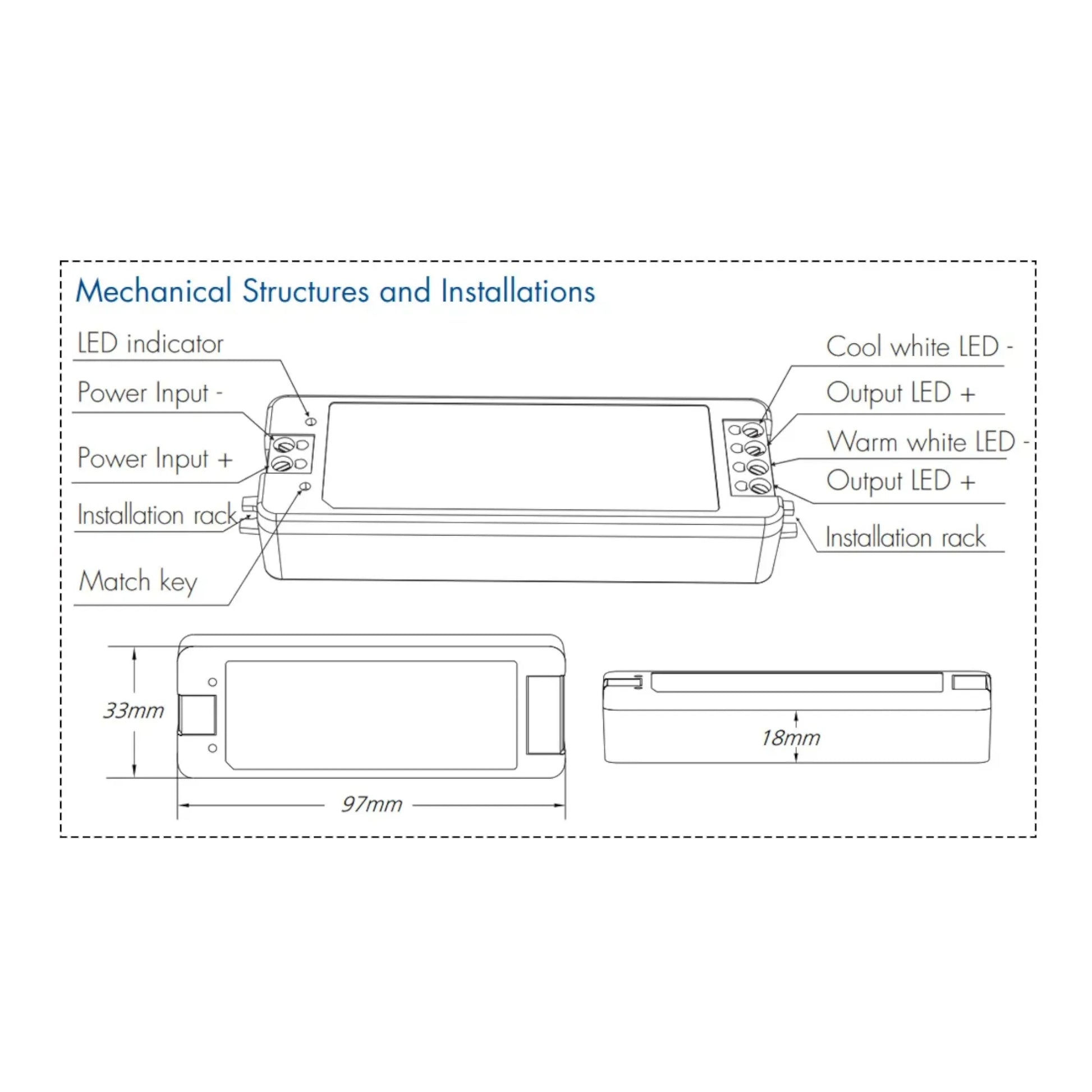

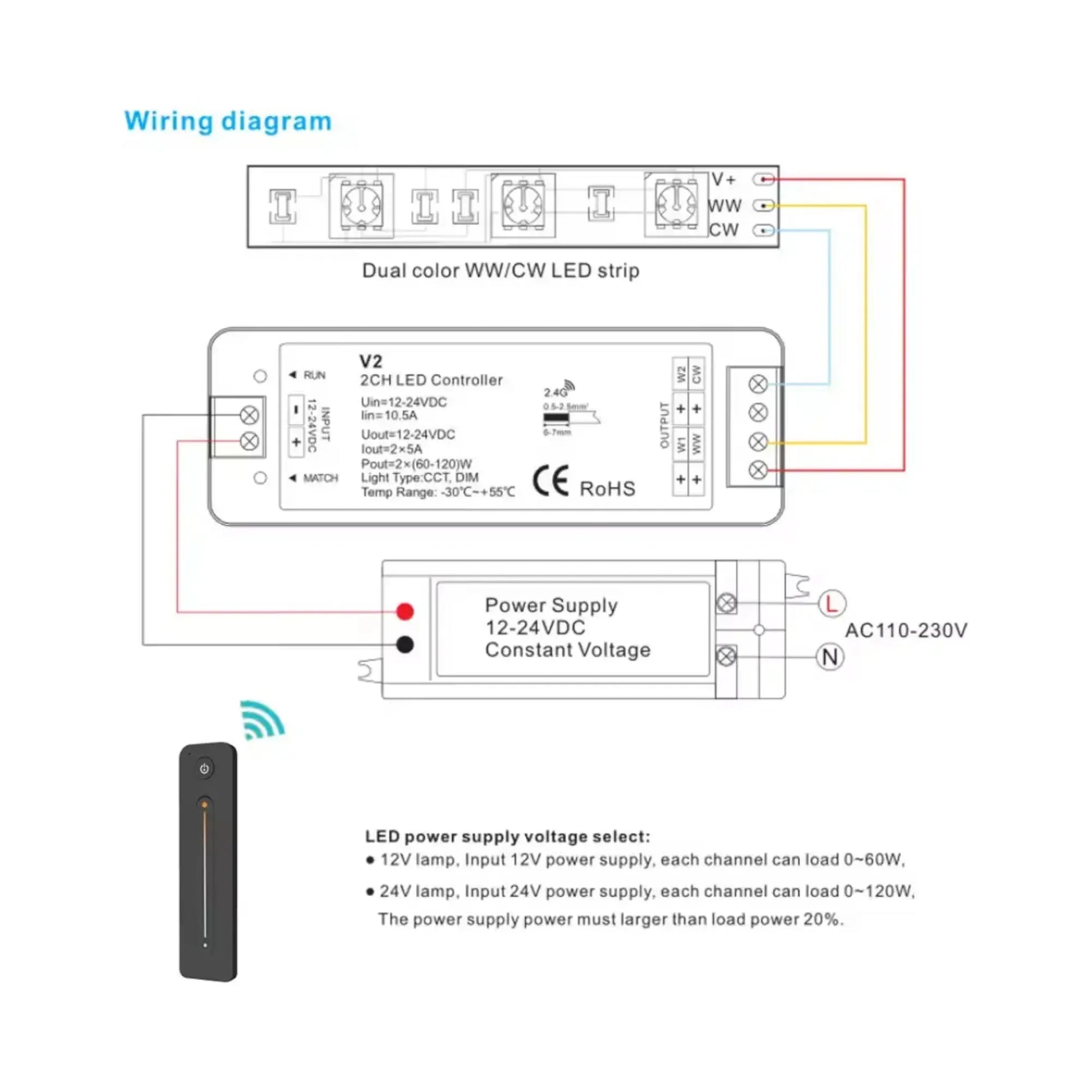

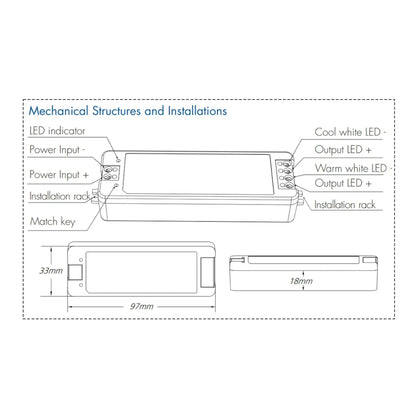

Difficulty: 3/5 (Moderate). Requires correct wiring of two LED channels (WW/CW) and RF pairing. The controller has screw tabs for mounting (screws not included).

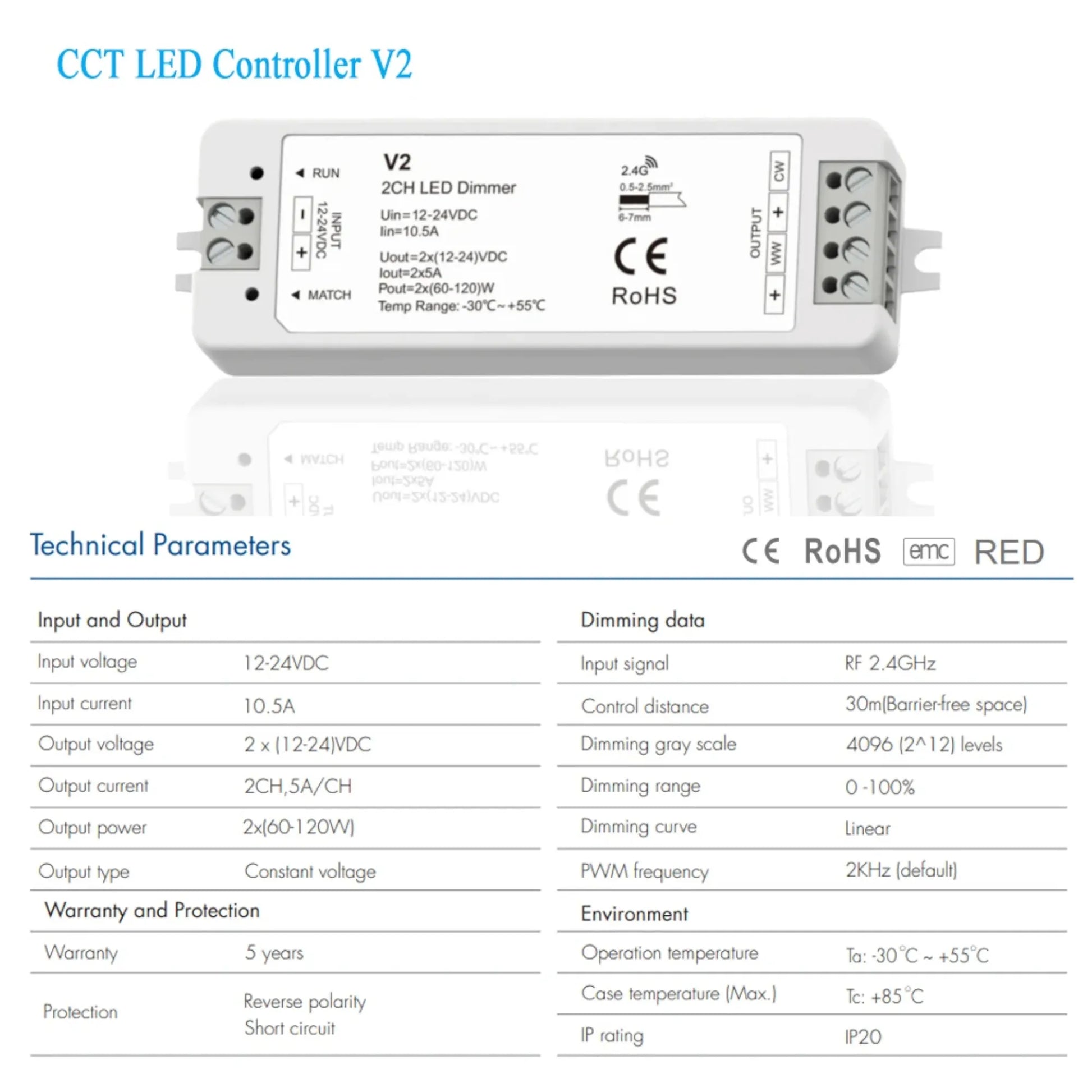

Features

• 4096-step PWM dimming
• Dual-channel WW + CW output
• Touch-slide R12 remote included (CR2032 battery)
• 30m wireless RF range
• Auto-transmitting signal relay
• Sync multiple controllers
• Selectable fade-in/out (0.5s or 3s)
• Supports up to 10 remotes
• Power-failure memory
• Magnetic remote holder (screw or adhesive mount)
• ABS housing with thermal spacing safety guidelines
• Reverse-polarity and short-circuit protection
• Requires ≥20cm spacing from power supplies & metal objects
