V2 Led Controller (Brightness + Temp)

Sold out SKU lit-dim-v2
$25.90inc. GST

Spend more, get more

Free Express
on orders over $130
Free 65W charger
on orders over $200
Order by 3pm AEST and it ships today
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices. How it works
  • Aussie warranty1 year, handled locally
  • Geelong supportReal people, real answers
  • Same day shippingOrder by 3pm AEST
$25.90Sold out
Details

The full rundown

A stand-alone LED controller for expanding a Treklo lighting setup. Pair it with one of our remotes, or pick a starter kit if you need both the controller and the remote.

Why it works

  • Smooth 4096-level dimming: 0-100% brightness control with no flicker.
  • Full CCT colour-temperature control: Warm, neutral, and cool white modes.
  • Dual-channel output: Independent WW/CW control for true CCT adjustment.
  • RF wireless control: Compatible with 2.4GHz single-zone & multi-zone remotes.
  • Auto-transmitting function: Signals automatically relay up to 30m.

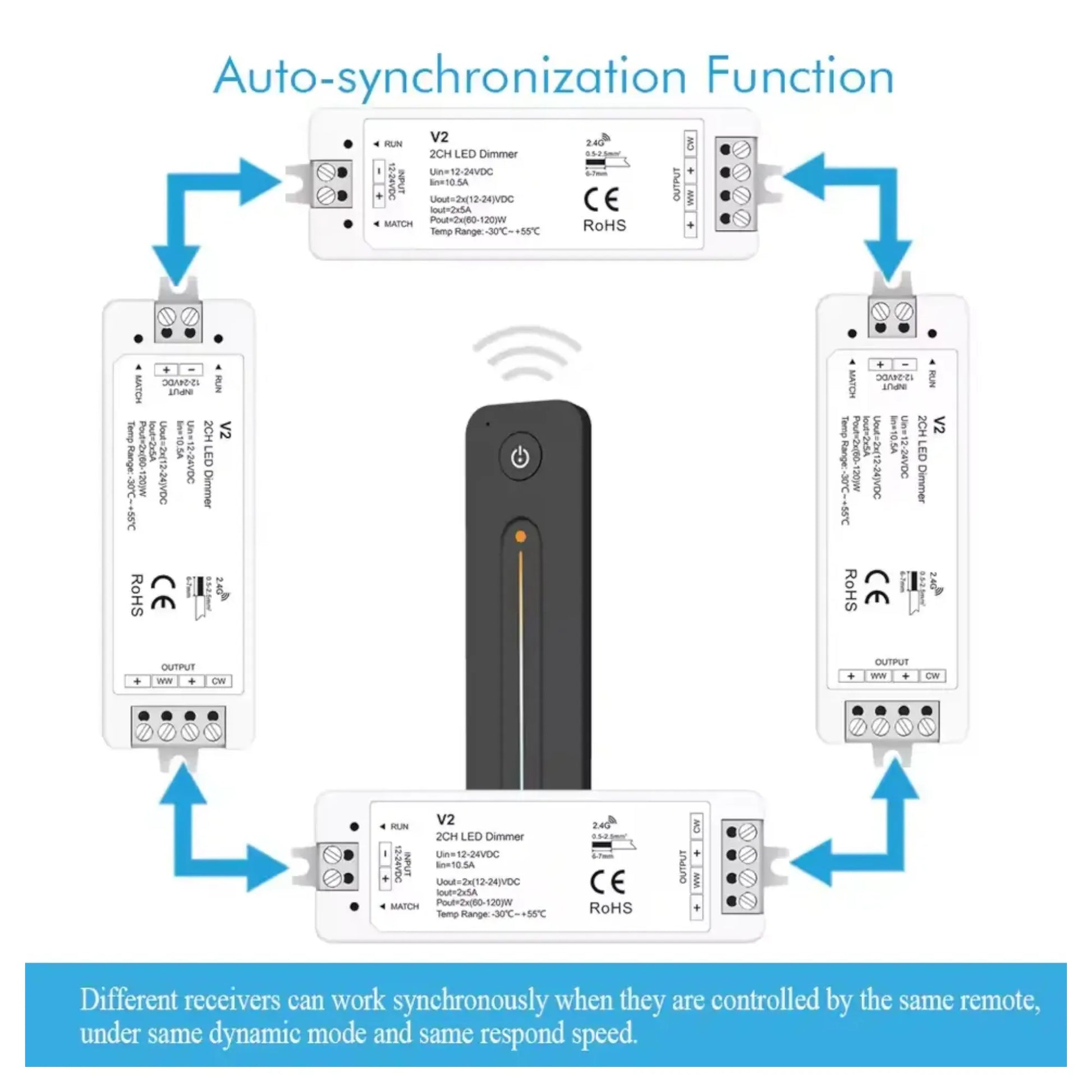

  • Multi-controller synchronisation: Keep lighting consistent across zones.
  • Selectable fade effects: Fade-in/out mode for smoother transitions.
  • Easy remote pairing: Supports up to 10 remotes per controller.

What's in the box

  • 1 x V2 LED Controller

How it works

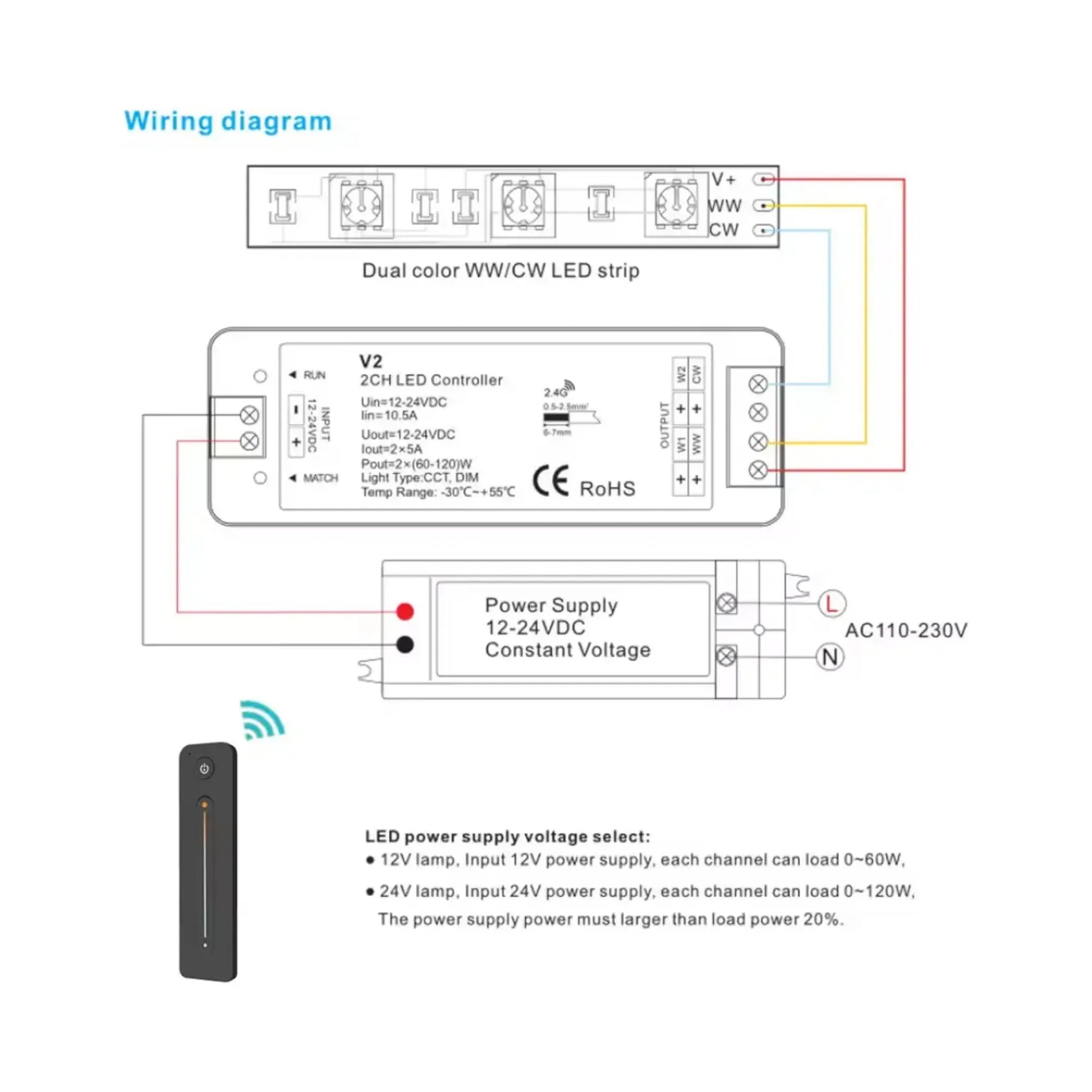

The V2 LED Controller is built for dual-colour CCT LED strips, offering independent control of warm and cool white channels. Users can smoothly dim brightness, adjust colour temperature, or activate fade transitions via 2.4GHz RF remotes. With auto-transmitting and wireless sync, multiple V2 controllers operate together seamlessly, even across large builds such as long-wheelbase vans or multi-room caravans.

What it suits

  • CCT dual-colour LED strips (WW/NW/CW)
  • 12V, 24V regulated DC systems
  • 2.4GHz RF remotes (single-zone & multi-zone)
  • Campervans, caravans, RVs, motorhomes
  • Indoor installations (IP20)
  • Multiple V2 controllers synced together

Fitting it

Difficulty: 3/5 (Moderate). Requires correct wiring of two LED channels and RF pairing.

Features

  • 4096-step PWM dimming
  • Dual-channel output (WW + CW)
  • 30m RF wireless range
  • Auto-transmitting between controllers
  • Supports up to 10 paired remotes
  • Selectable fade-in/fade-out
  • ABS housing, compact installation
  • Reverse-polarity and short-circuit protection
  • 12V-24V DC constant-voltage design

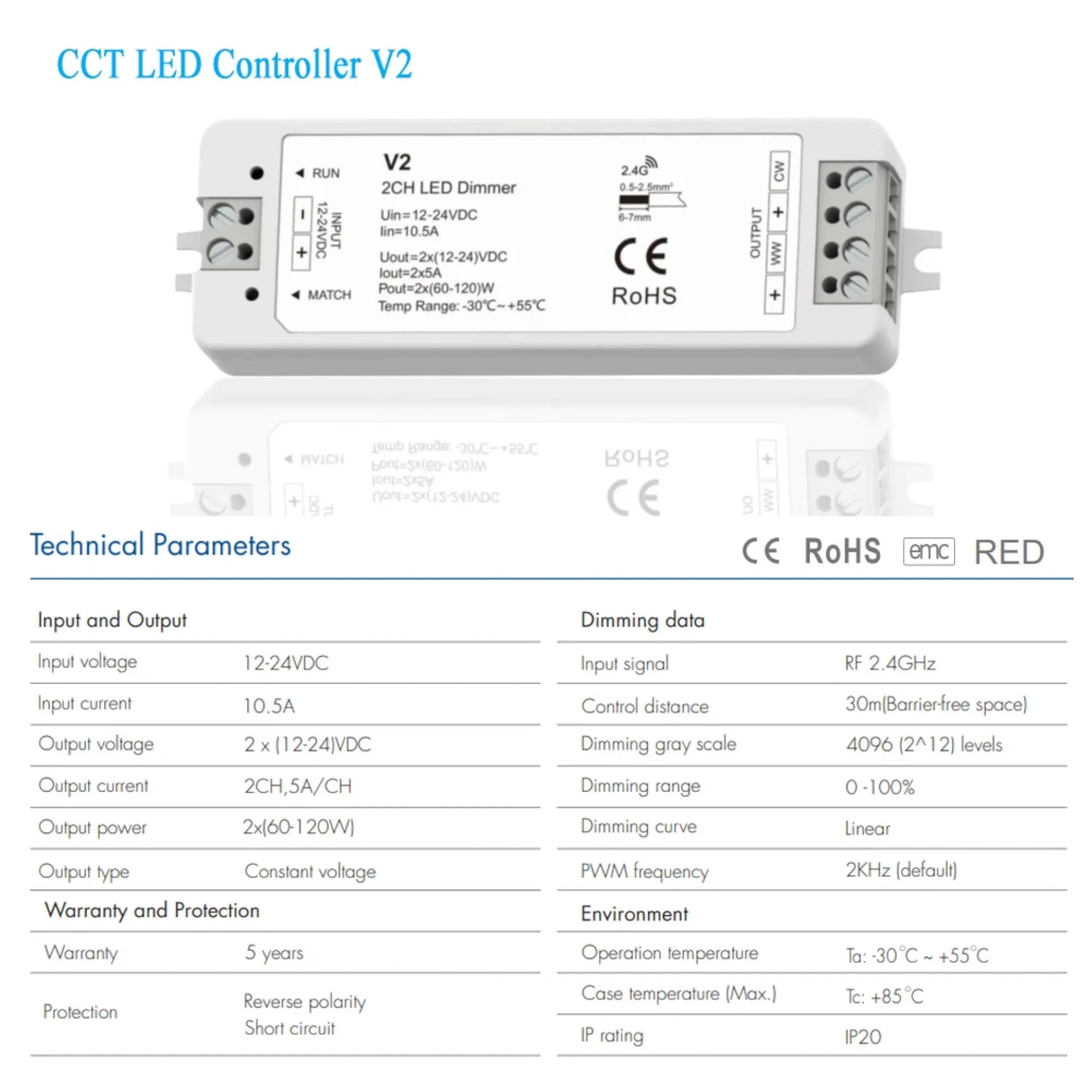

Specifications

Model V2
Input Voltage 12-24V DC
Output Channels 2 (WW + CW)
Output Current 5A per channel
Maximum Load 120W @ 12V / 240W @ 24V
Dimming Range 0-100%
Dimming Steps 4096 levels
Wireless Technology 2.4GHz RF
Wireless Range 30m (open area)
Material ABS
Operating Temperature -30°C to +55°C
Protection Reverse-polarity + short-circuit
Supported Lighting CCT dual-colour LED strips

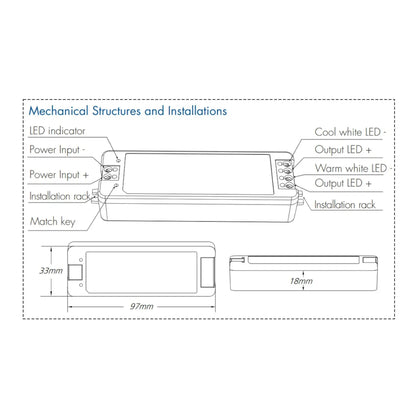

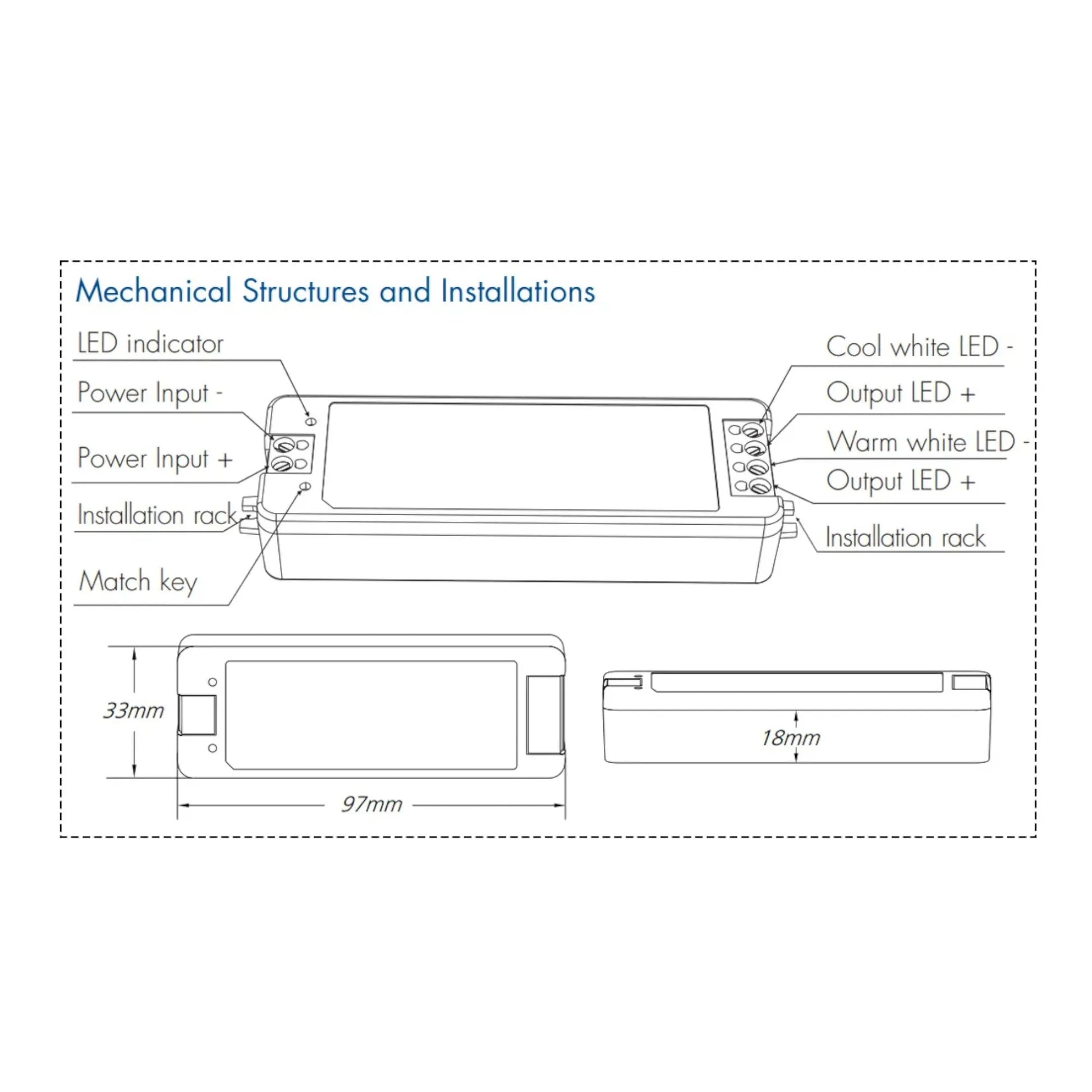

Dimensions 108 x 35 x 18mm (including mounting tabs)
