V3 Dimmer + RGB Remote Controller Kit

A compact 12V to 24V LED controller and remote for RGB lighting. The colour touch wheel makes picking a shade quick and easy.

Why it works

• RGB colour control: Adjust red, green, and blue channels to create millions of colours.
• Smooth flicker-free dimming: Delivers clean light adjustment without harsh stepping or flicker.
• RF 2.4GHz remote control: Stable wireless control with up to 30m range.
• 10 dynamic modes: Includes jump and gradual colour change effects.
• Independent channel dimming: Fine-tune each RGB channel for custom lighting output.
• Multi-controller synchronisation: Sync multiple controllers for larger lighting layouts.
• Compact controller design: Easy to hide inside cabinetry, panels, and electrical spaces.
• Save your favourite scene: Store a lighting setting and recall it with one press.

What's in the box

• 1 x V3 RGB LED controller
• 1 x RF RGB remote control
• 1 x Remote wall holder
• 1 x Adhesive pad (for the holder)

How it works

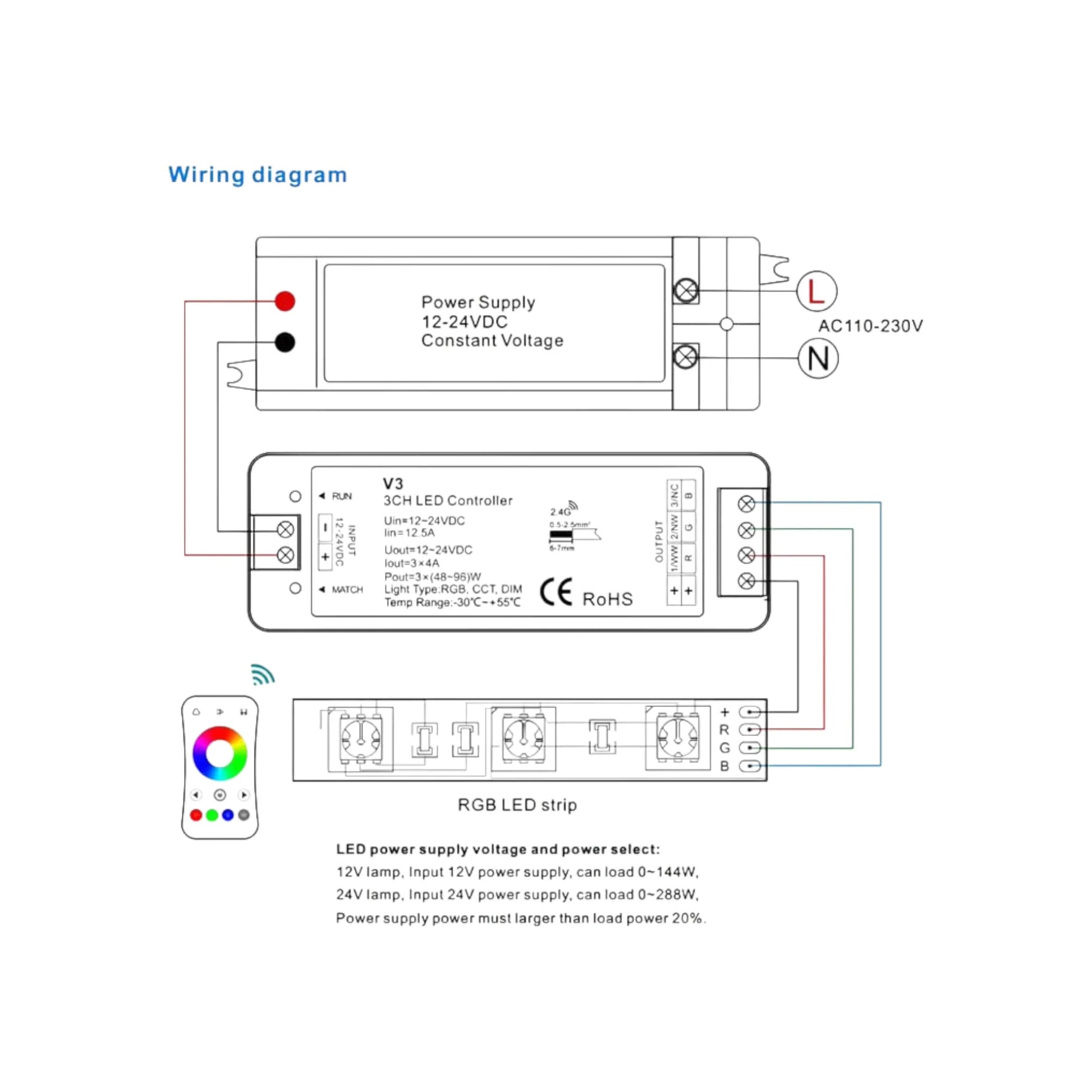

The V3 RGB controller connects between your 12-24V DC power supply and RGB LED strip or lighting circuit. It provides a 3-channel constant voltage output for red, green, and blue LED control.

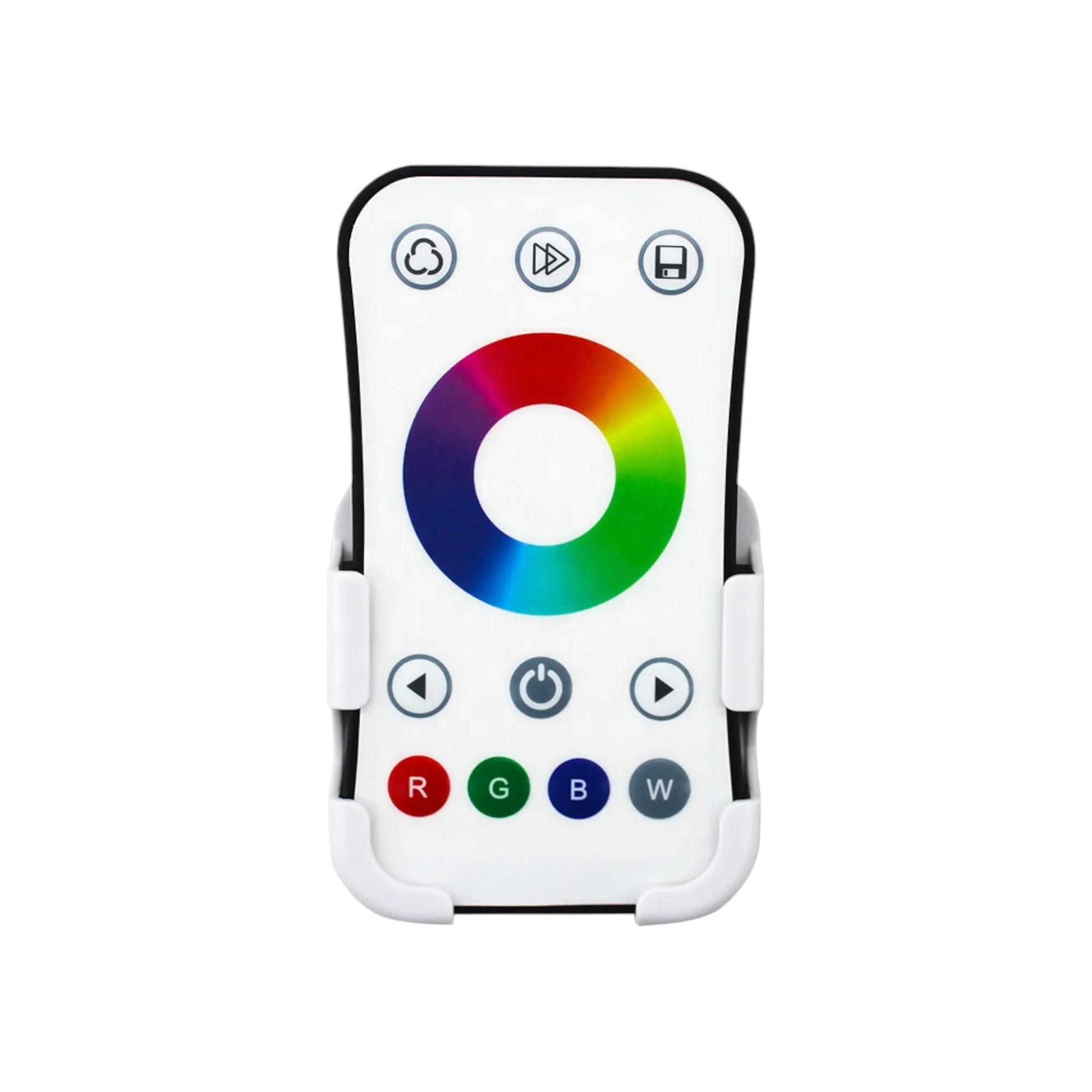

The included RF remote uses a sensitive colour touch wheel for fast colour selection, brightness adjustment, mode control, and on/off switching. Smooth dimming and a selectable fade time help create cleaner, more comfortable lighting transitions.

Remote keys: On/Off turns the light on or off. Touch the colour wheel to change colour or brightness. Bright +/- steps through 10 levels with a short press, or 256 levels with a long press. R / G / B / W give red, green, blue or white directly (white is mixed from the RGB channels), and a long press of 1-5 seconds adjusts that colour's brightness. Mode runs the next dynamic mode with a short press, or cycles through all modes with a 2-second press. Speed/Saturation adjusts the speed of a dynamic mode, or the saturation of a static colour. Scene recalls a saved scene with a short press, or saves the current scene with a long press.

The controller also supports auto-transmitting, allowing signal transfer between controllers within range for larger or multi-zone lighting systems.

What it suits

• 12V and 24V DC LED lighting systems
• RGB LED strip lighting
• Campervan, caravan, and RV interiors
• Marine and boat lighting setups
• Canopy, 4WD, and off-grid lighting systems
• Multi-zone lighting layouts using compatible controllers

Fitting it

Difficulty: 2/5 (Easy). Requires basic 12V wiring between power supply, controller, and RGB LED lighting. The controller has screw tabs for mounting (screws not included).

Features

• 3-channel RGB controller: Constant voltage output for RGB LED lighting
• Touch colour wheel remote: Simple colour selection and brightness control
• 4096 dimming levels: Fine brightness adjustment for smooth lighting control
• 0-100% dimming range: Full control from low ambient light to bright output
• 10 dynamic lighting modes: Jump and gradual colour change options
• RF 2.4GHz wireless technology: Stable signal with strong penetration
• Auto-transmitting function: Signal can pass between compatible controllers
• Multiple controller sync: Suitable for larger lighting systems
• Remote wall holder: Keeps the remote stored neatly when not in use; screw it to the wall or stick it on with the included adhesive pad
• Scene save and recall: Store a favourite lighting setting
• CR2032 battery remote: Slim remote with long standby time

Specifications
