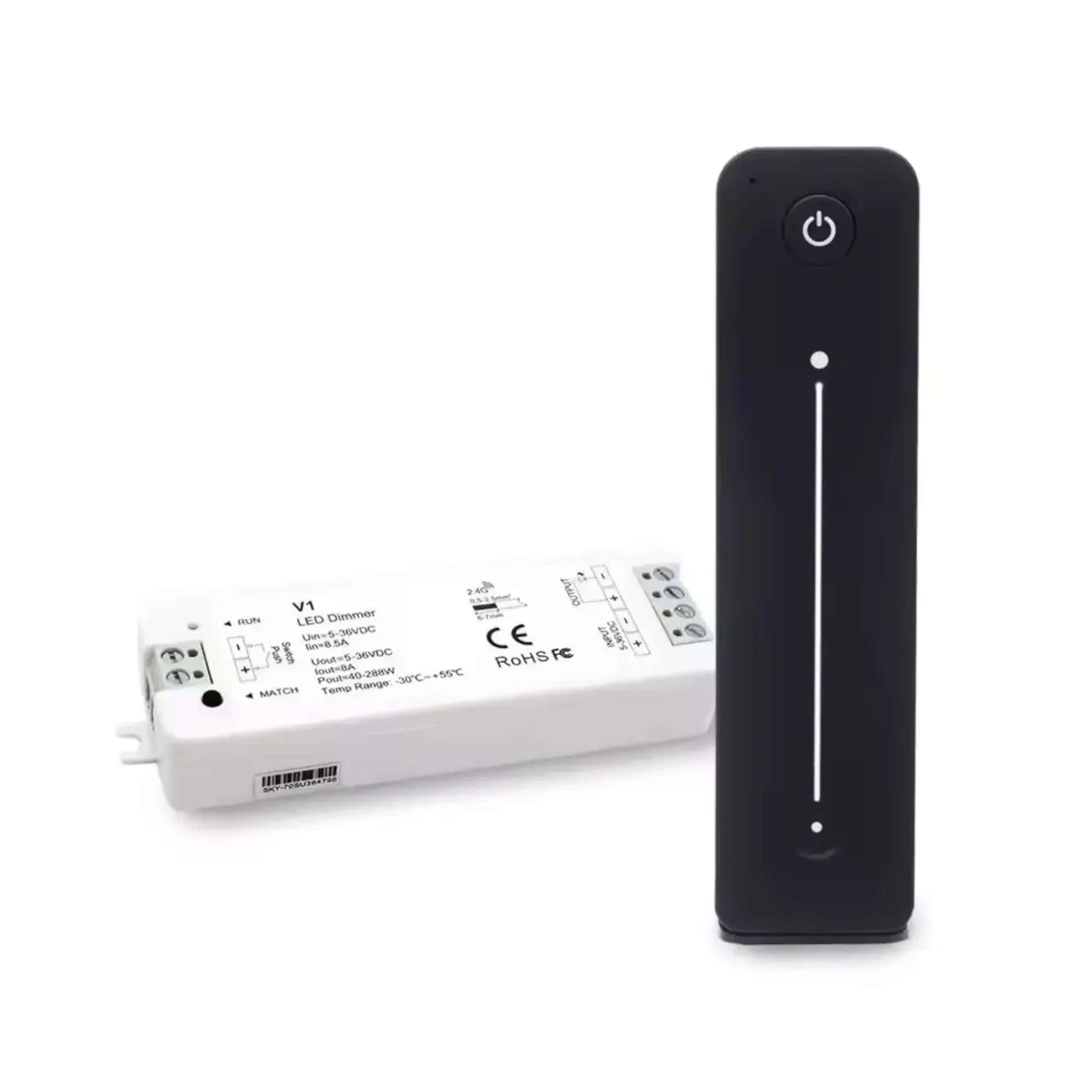

V1 + R11 Starter Kit | Dimmer and Remote

A controller and remote in one box for single-colour 12V LED lighting. You get smooth, step-less wireless dimming with long RF range, ready for campervans, caravans and RVs.

Why it works

• Includes controller + R11 remote: The full lighting control package in one kit.
• 4096-level step-less dimming: Ultra-smooth 0-100% brightness control with no flicker.
• 30m wireless control range: Reliable 2.4GHz RF signal for long-distance operation.
• Wide 5V-36V input range: Works with a huge variety of lighting and power systems.
• High output capability: Up to 288W depending on system voltage.
• Push switch input: Connect an optional momentary push switch for wired control alongside the remote.
• Auto-transmitting signal: Wirelessly relays commands to nearby V1 controllers.
• Multi-controller synchronisation: Keep lighting levels consistent across zones.
• Built-in protection: Reverse-polarity, over-heat, over-load and short-circuit protection.
• Compact and durable: Designed to perform from -30°C to +55°C.

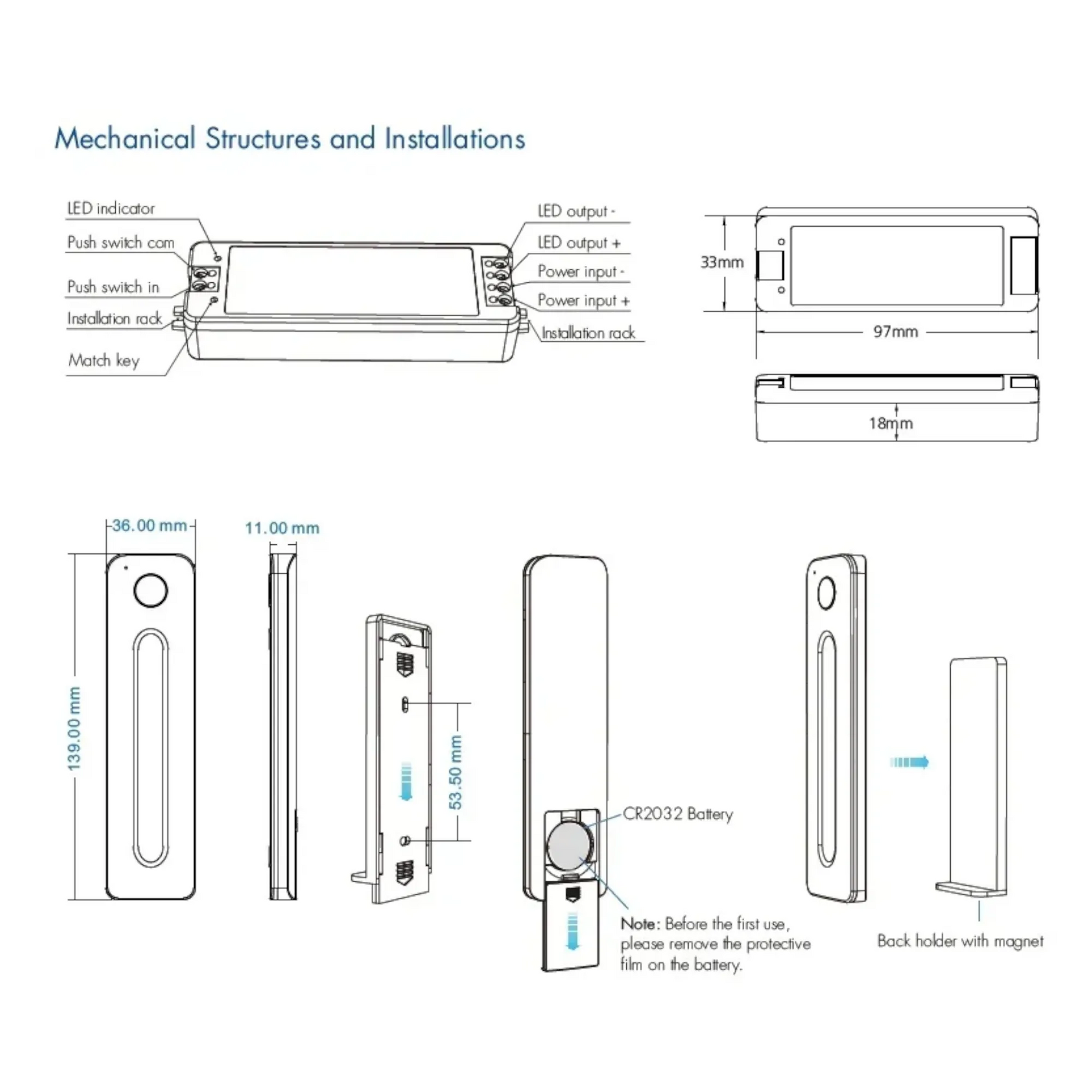

• Magnetic remote holder: The R11 sits in a magnetic holder that can be screwed to the wall or stuck on with the included adhesive pad.

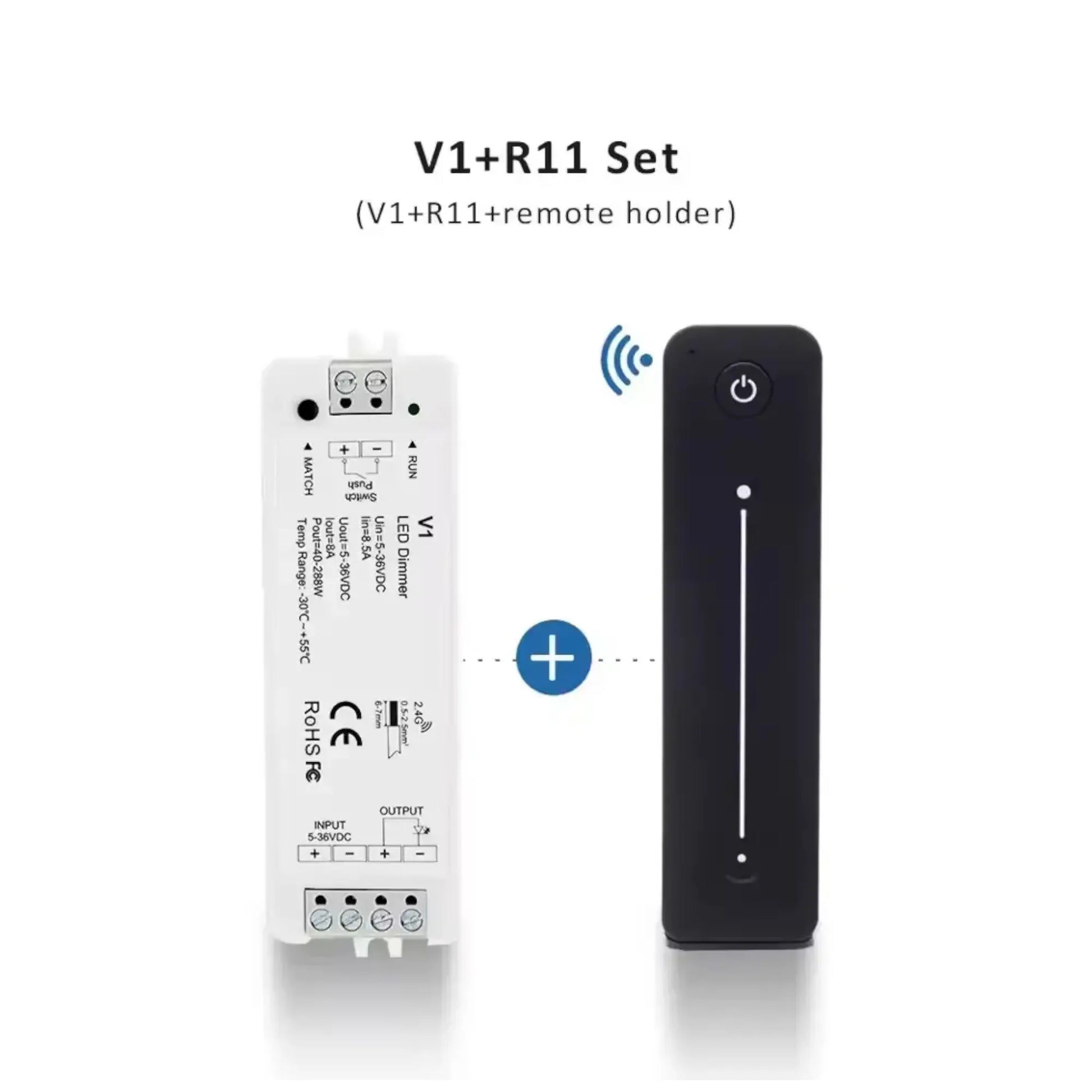

What's in the box

• 1 x V1 LED Controller
• 1 x R11 Wireless Remote
• 1 x Magnetic Remote Holder
• 1 x Adhesive Pad (for the holder)
• User Instructions

How it works

The V1 Controller provides flicker-free, ultra-fine brightness control using a digital 4096-step dimming engine with a logarithmic dimming curve. The included R11 remote communicates via 2.4GHz RF, offering responsive touch-slide brightness adjustment with up to 30 metres of barrier-free range.

On the R11, a short press of the on/off key turns the lights on or off, then slide your finger along the touch slide to dim. If the lights are already on, long press the on/off key for more than 1 second, then use the touch slide. To extend battery life, the touch slide goes to sleep after 20 seconds without use.

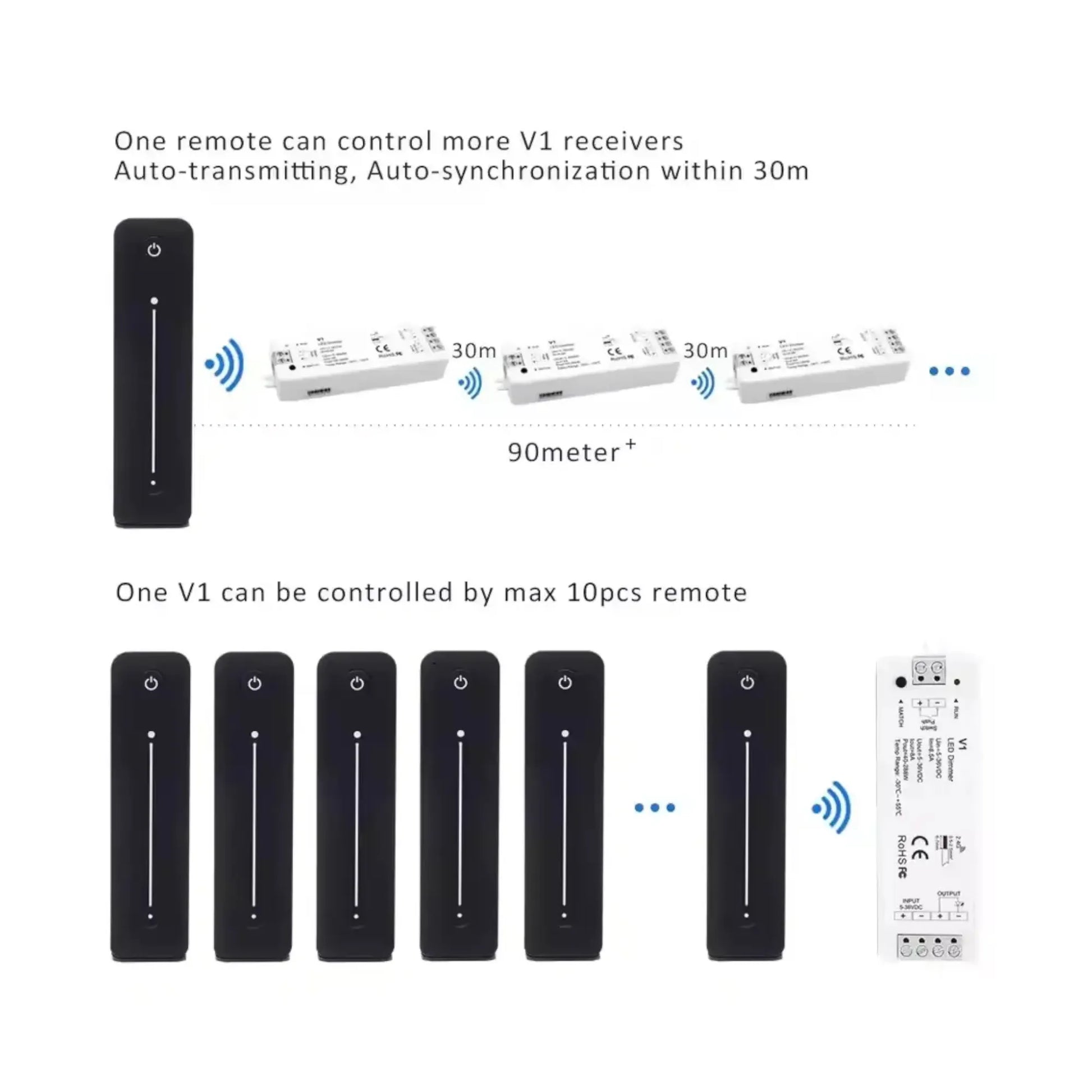

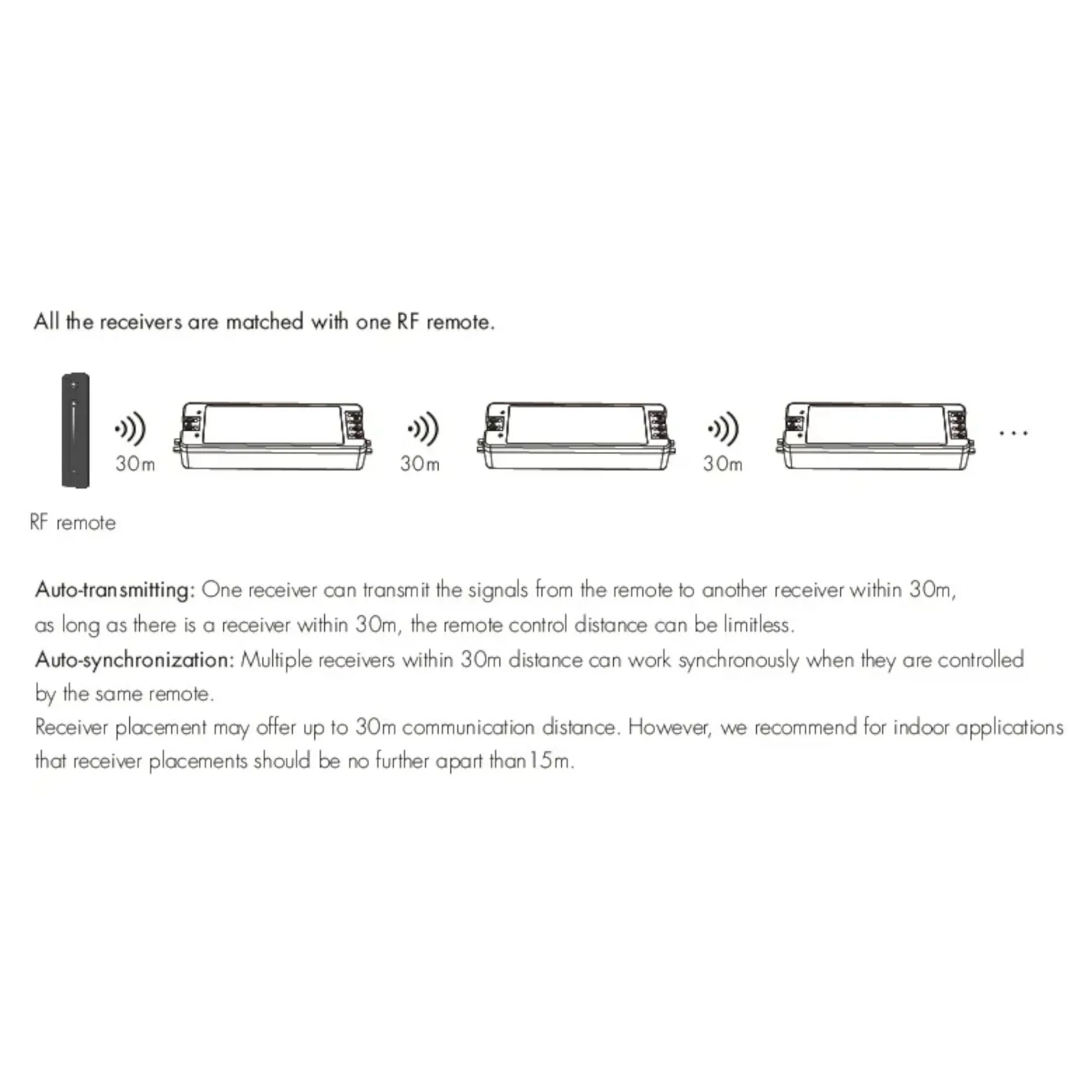

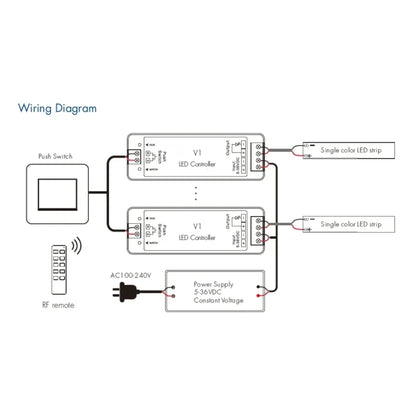

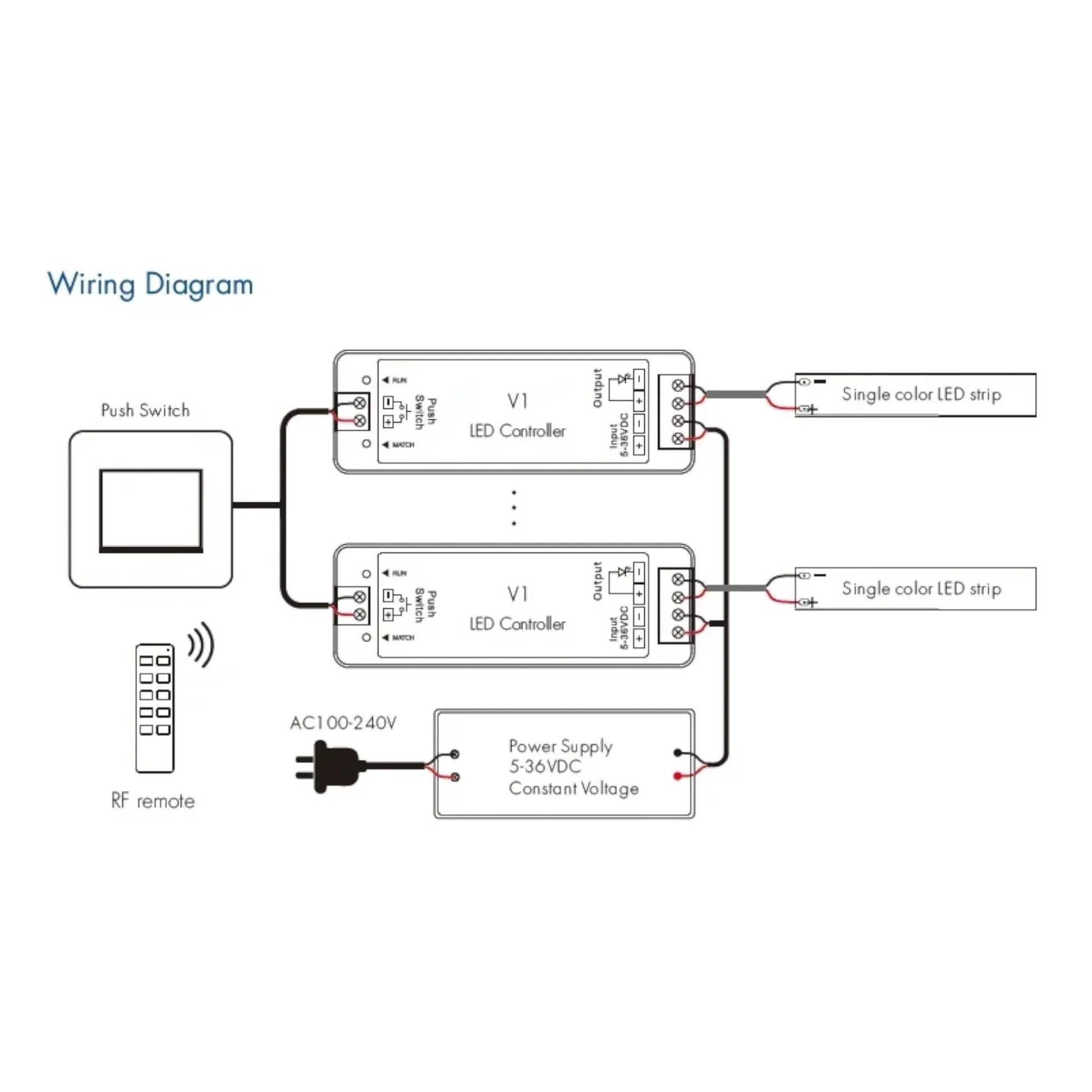

Thanks to auto-transmitting and syncing, multiple V1 controllers can work together seamlessly, ideal for multi-zone van builds or large lighting layouts. Each V1 can be controlled by up to 10 remotes, one R11 can be paired with multiple V1 controllers, and an optional momentary push switch can be wired in for wall control. The system is fully wireless once installed, requiring only a simple low-voltage wiring connection.

What it suits

• 12V & 24V single-colour LED strips
• COB strips, dotless strips, single-colour LED tapes
• 5V-36V regulated DC lighting systems
• R11 and compatible 2.4GHz RF remotes (up to 10 per controller)
• Optional wired momentary push switch
• Campervans, caravans, RVs, motorhomes
• Indoor installations (IP20)
• Multi-controller, multi-zone setups

Fitting it

Difficulty: 1/5 (Easy). Simple wiring and effortless RF pairing. The controller has screw tabs for mounting (screws not included).

Features

• Single-channel constant-voltage output
• 8A maximum output current
• Smooth 0-100% dimming with a logarithmic curve
• 4096-level PWM control
• Long-range 30m wireless operation
• Auto-transmit between controllers
• Multi-zone wireless synchronisation
• Momentary push switch input for wired control
• R11 touch-slide remote powered by a CR2032 battery
• Magnetic remote holder (screw or adhesive mount)
• IP20 indoor-rated enclosure
• Reverse-polarity, over-heat, over-load and short-circuit protection
• Wide input voltage: 5V-36V

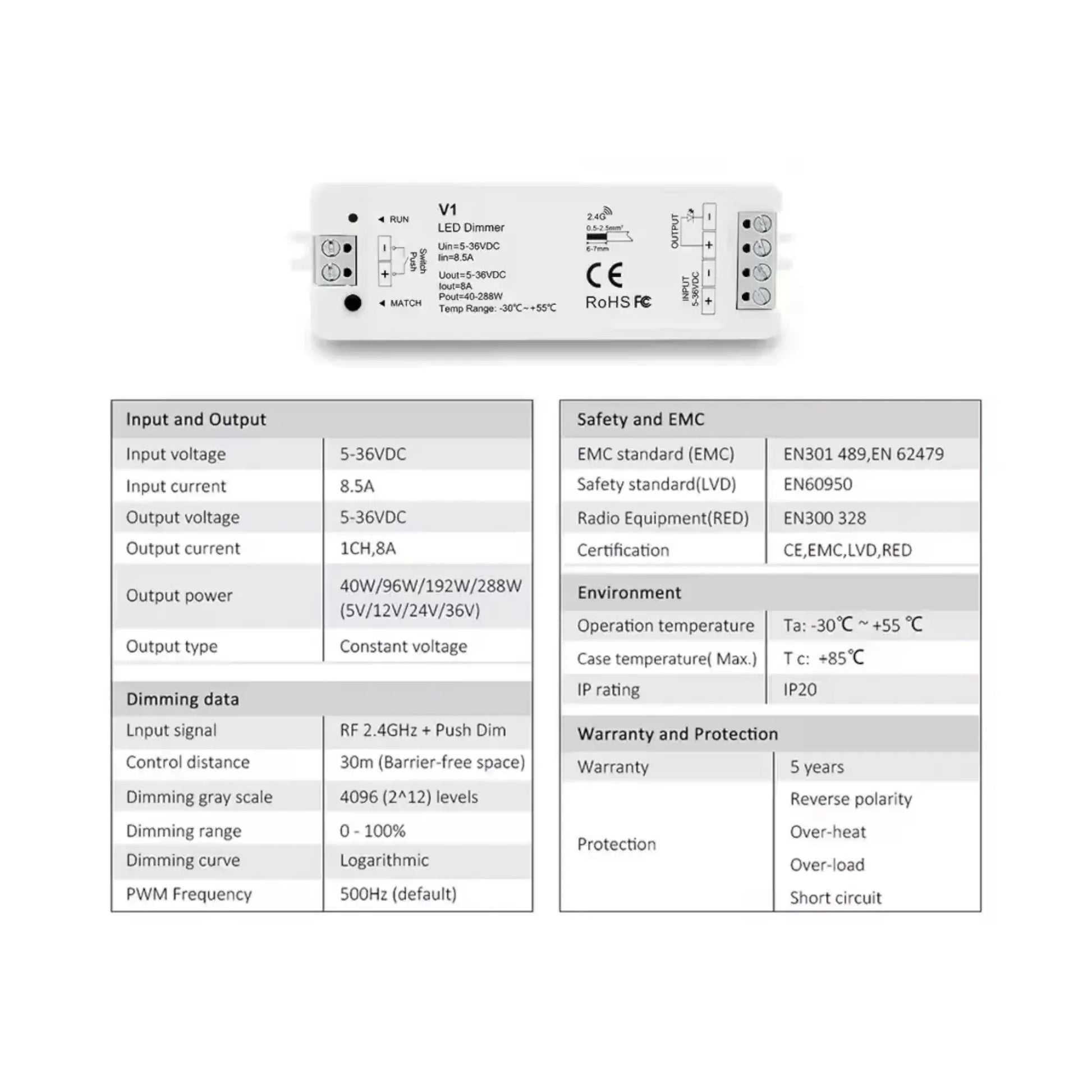

Specifications
