V1 Led Controller (Brightness)
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown
A stand-alone LED controller for expanding a Treklo lighting setup. Pair it with one of our remotes, or pick a starter kit if you need both the controller and the remote.
Why it works
- Step-less dimming: 4096-level brightness control for perfect lighting adjustment.
- Wide voltage compatibility: Operates from 5V-36V DC for maximum flexibility.
- High output power: Supports up to 288W depending on input voltage.
- Push switch input: Connect an optional momentary push switch for wired control.
- Wireless remote support: Compatible with RF 2.4GHz remotes up to 30m.

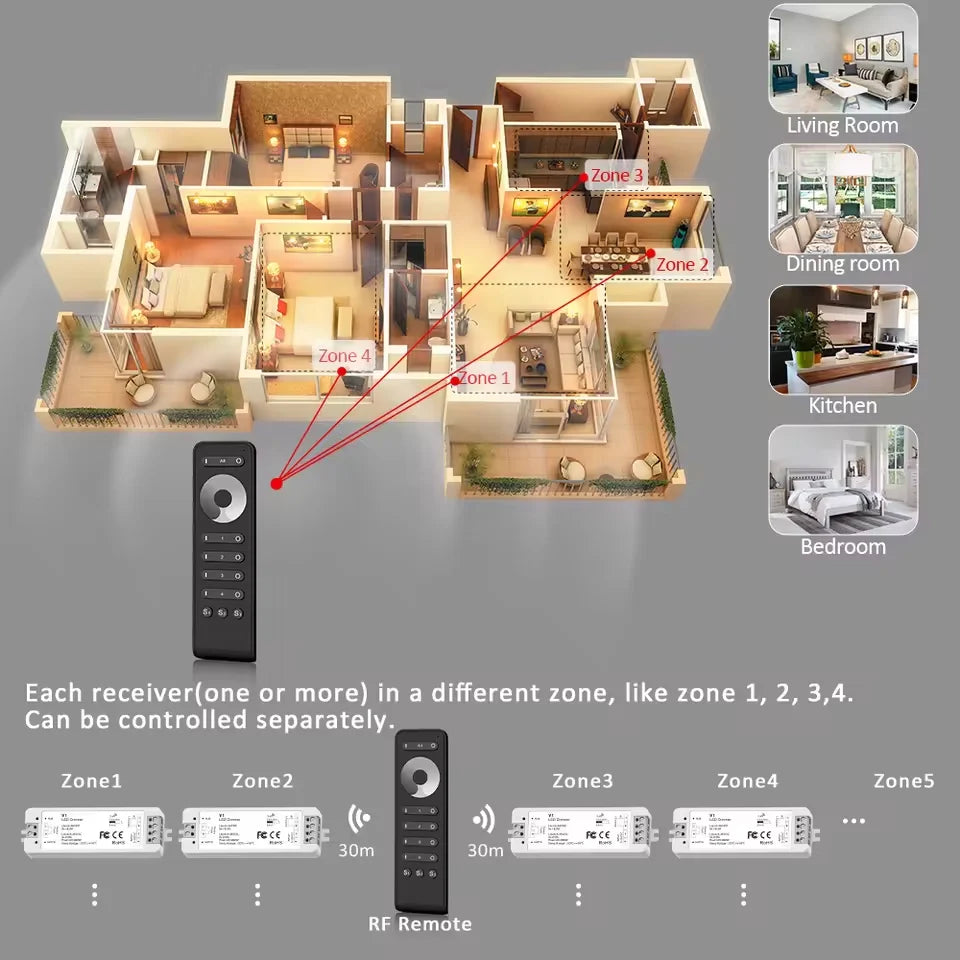

- Sync multiple controllers: Auto-transmitting allows multi-zone setups.
- Durable construction: Stable performance from -30°C to +55°C.
- Easy installation: Compact design with simple wiring terminals.
What's in the box

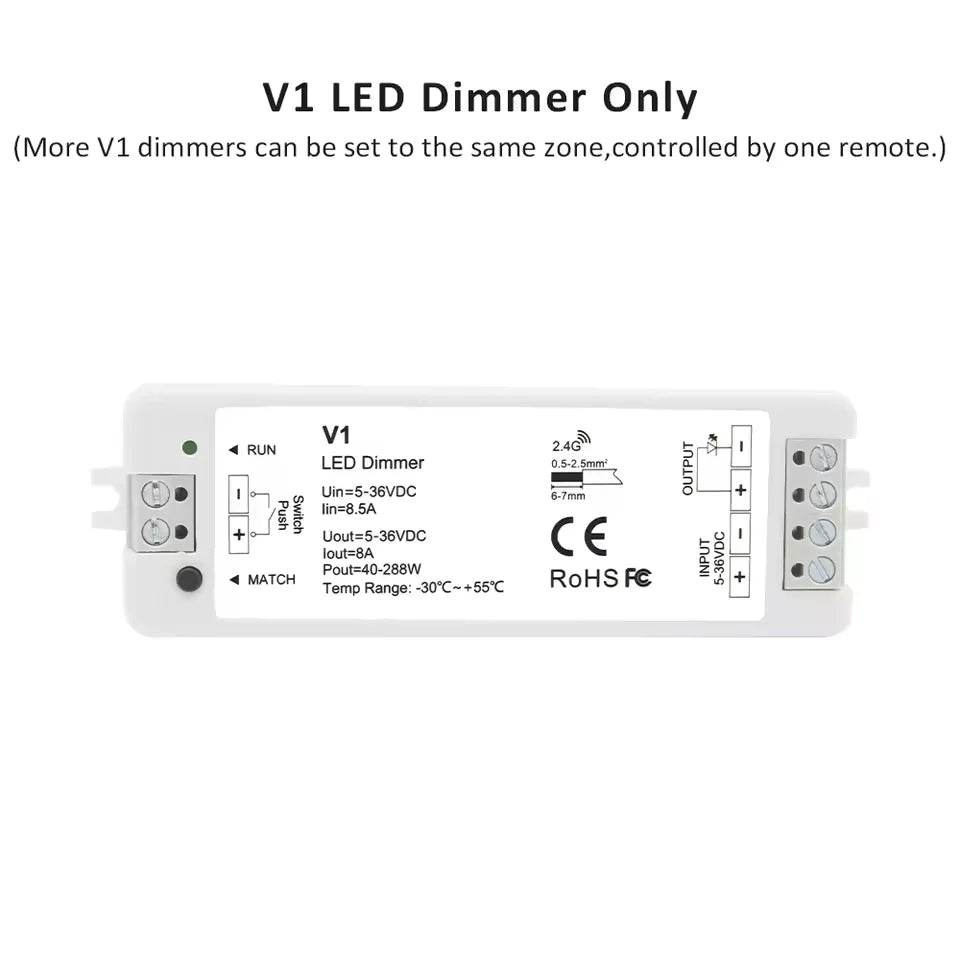

- 1 x V1 LED Controller
How it works
The V1 LED Controller delivers smooth, flicker-free brightness adjustment for any single-colour LED strip or LED lighting circuit. Its digital dimming engine offers 0-100% output with 4096 micro-steps, ensuring seamless transitions and perfect ambience for living spaces, work zones, and night lighting. The controller can also sync with other V1 units wirelessly, allowing whole-vehicle or multi-room installations to dim together.
What it suits
- 12V or 24V single-colour LED strips
- COB LED strips, dotless strips, and standard LED tapes
- Campervans, caravans, RVs, motorhomes
- 2.4GHz RF remotes (single-zone and multi-zone)
- Optional wired momentary push switch
- 5V-36V regulated DC power systems
- Indoor installations (IP20)

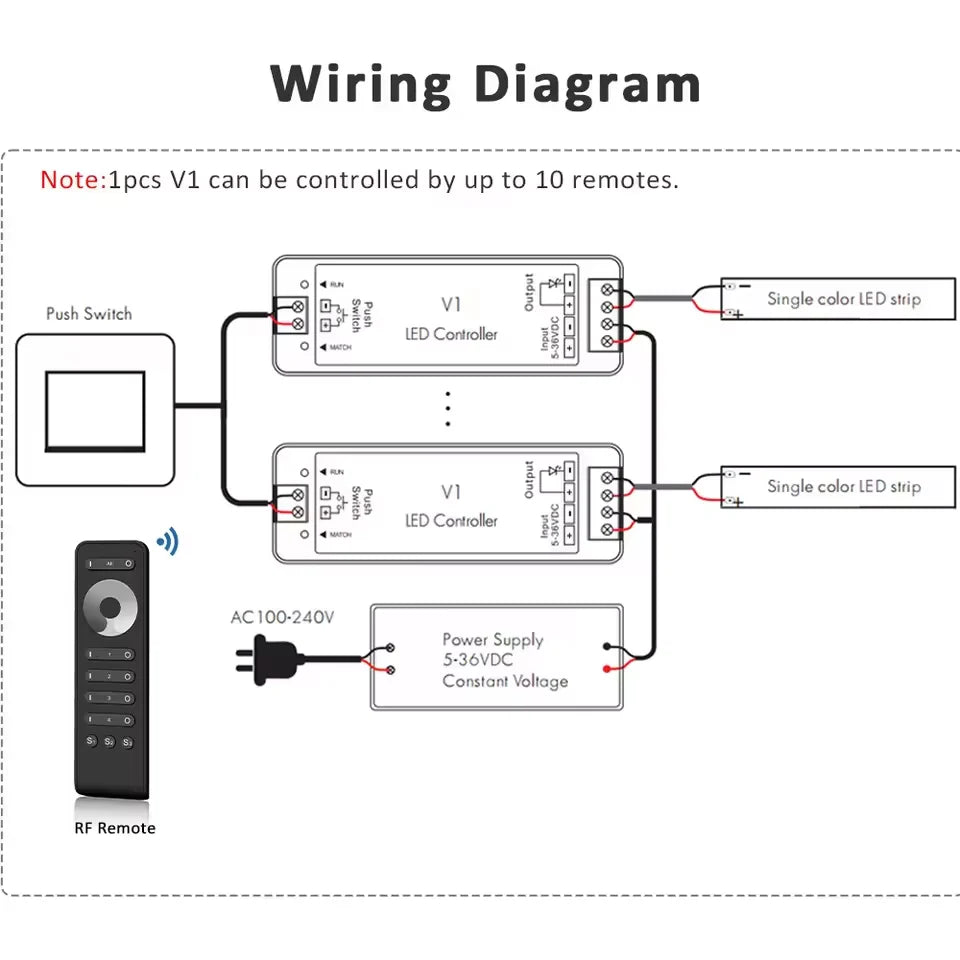

Fitting it
Difficulty: 1/5 (Easy). Basic wiring for 12V owners, with optional wireless remote pairing.
Features
- 1-channel constant-voltage LED output
- Up to 8A output current
- 2.4GHz wireless remote compatibility
- Sync and repeat signals across controllers
- Momentary push switch input for wired control
- Reverse-polarity protection

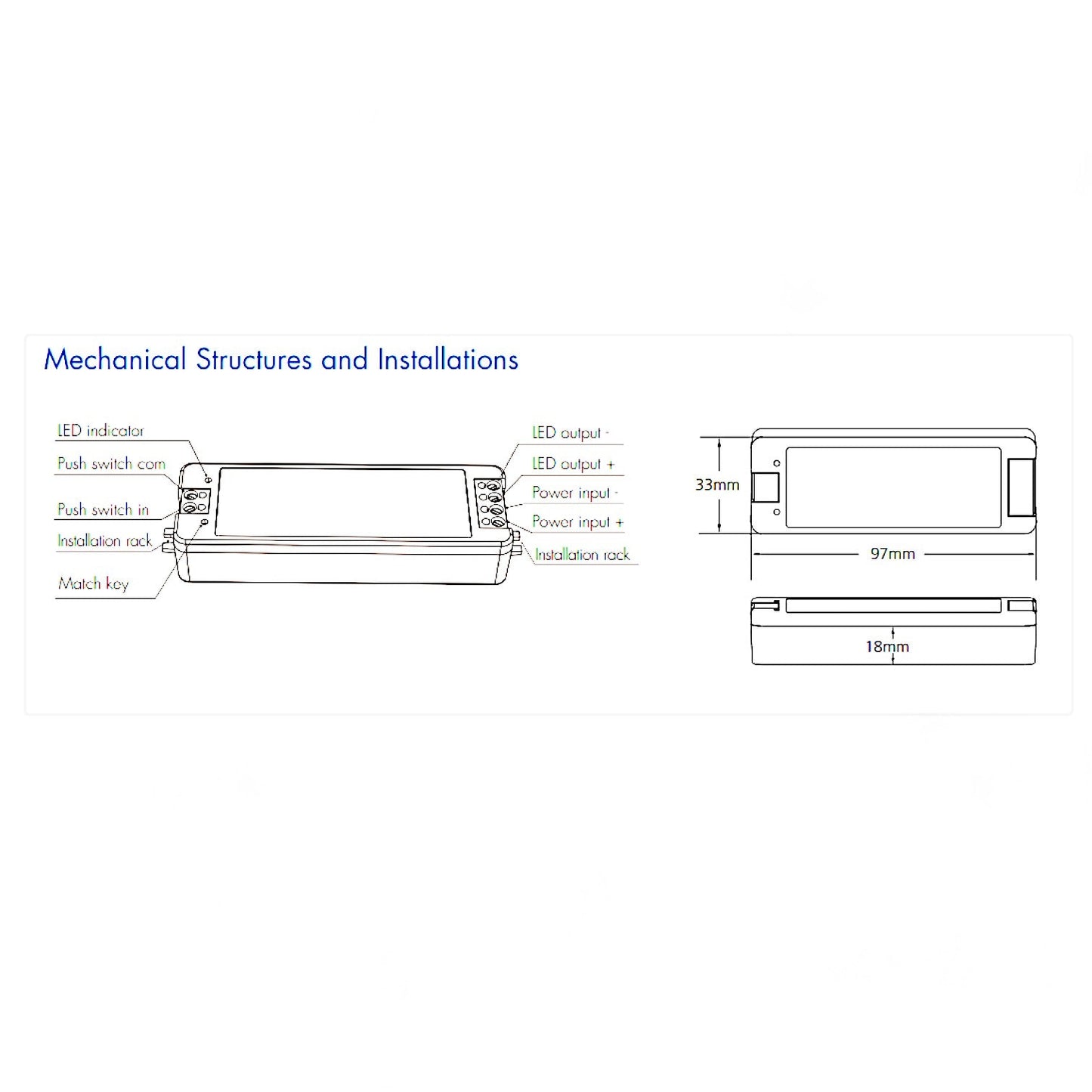

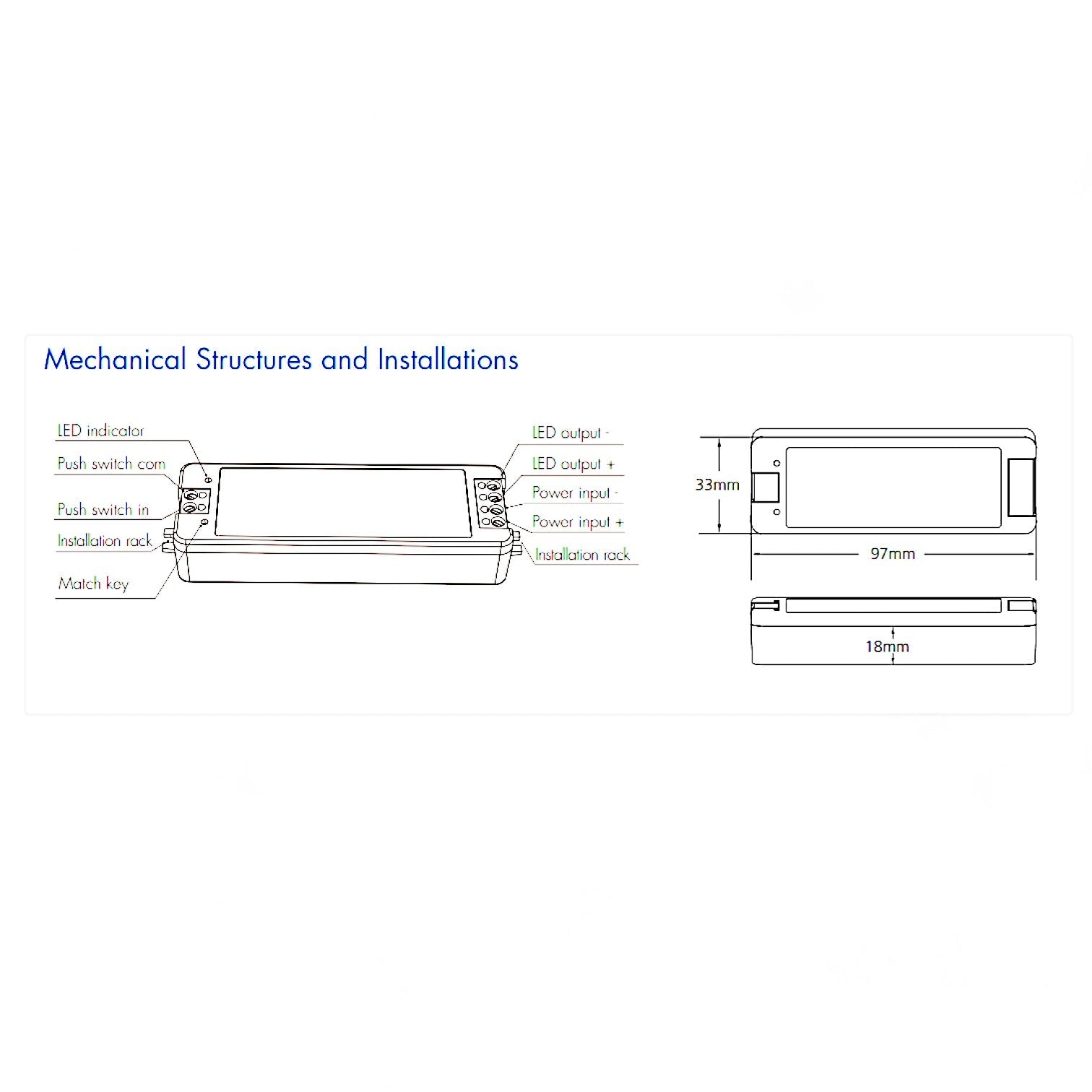

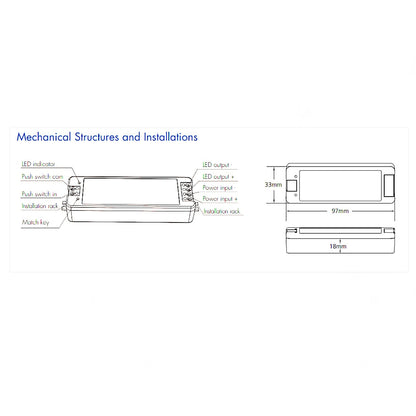

- Compact 108 x 35 x 18mm housing (including mounting tabs)
- IP20 indoor-rated enclosure
- 0-100% dimming range
- Operating temp -30°C to +55°C

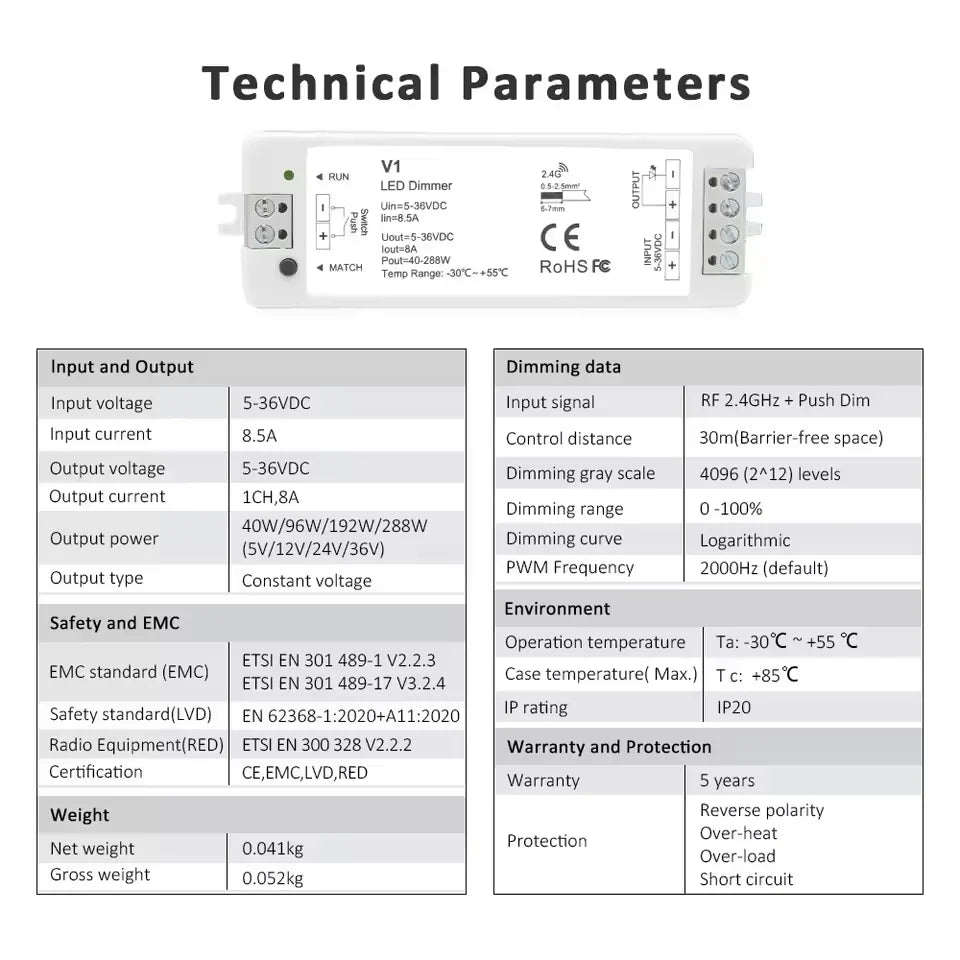

Specifications
| Input Voltage | 5-36V DC |
| Output Voltage | 5-36V DC |
| Output Channel | 1 channel (single colour) |
| Output Current | 8A max |
| Output Power | 40W/96W/192W/288W (5V/12V/24V/36V) |
| Input Signal | RF 2.4GHz + momentary push switch |
| Dimming Range | 0-100% |
| Dimming Steps | 4096 levels |
| Wireless Range | 30m (open area) |
| Operating Temperature | -30°C to +55°C |
| Protection | Reverse-polarity |
| IP Rating | IP20 (indoor) |
| Dimensions | 108 x 35 x 18mm (including mounting tabs) |
