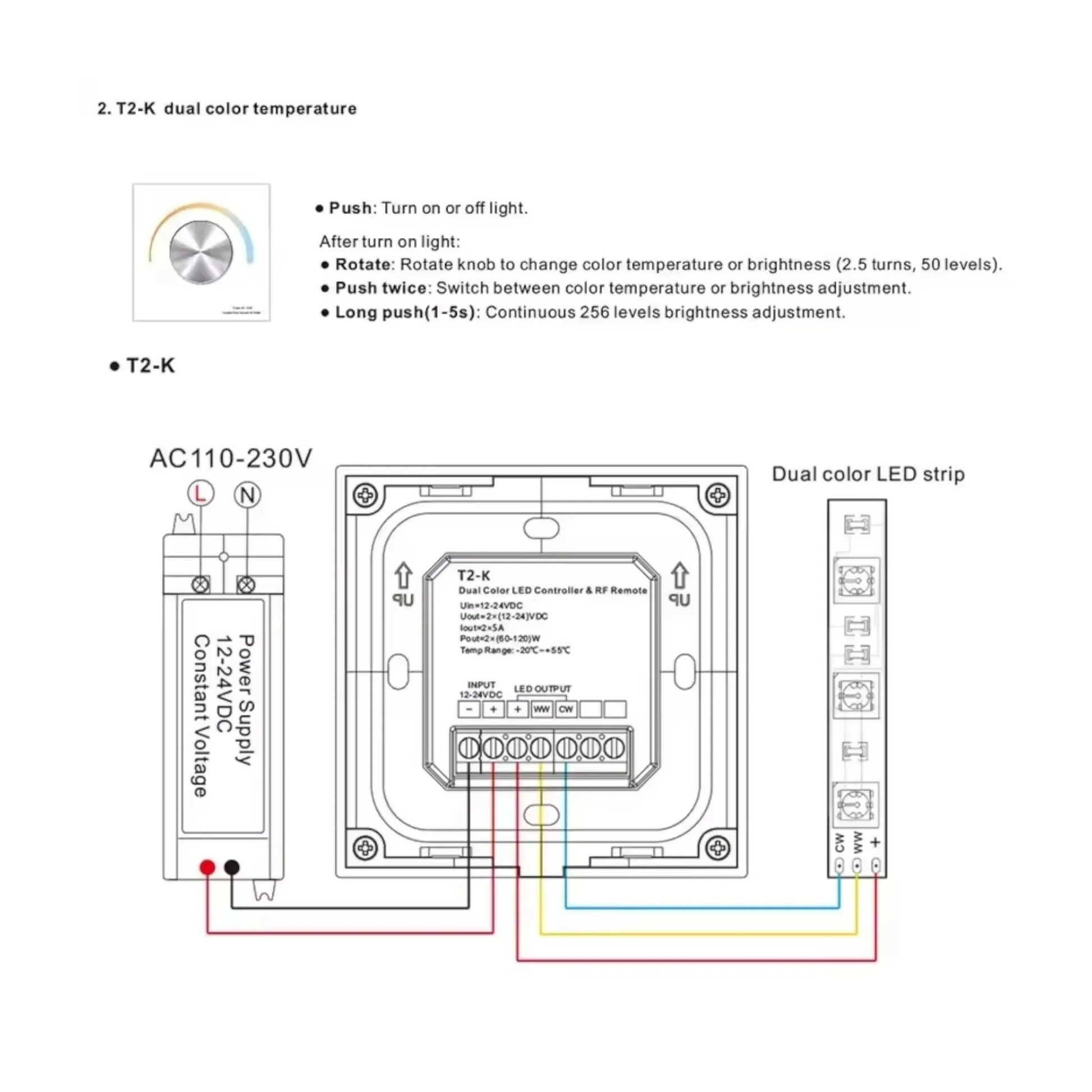

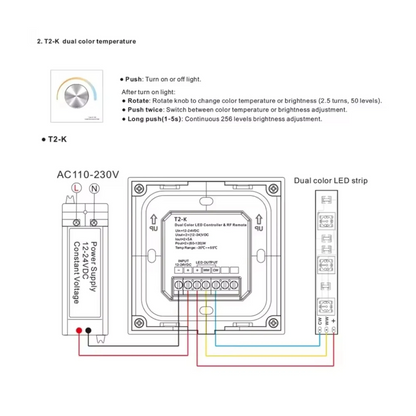

T2-K CCT rotary dimmer wiring diagram: battery or 12–48V power supply to a dual colour LED strip
T2-K black rotary dimmer controls: push on/off, push twice for colour temperature or brightness, rotate, long push

T2K (Black) Glass Modern | Dimmer

In stock SKU lit-dim-t2k-blk
$69.90inc. GST

Spend more, get more

Free Express
on orders over $130
Free 65W charger
on orders over $200
Order by 3pm AEST and it ships today
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices. How it works
  • Aussie warranty1 year, handled locally
  • Geelong supportReal people, real answers
  • Same day shippingOrder by 3pm AEST
$69.90Ships today by 3pm
Details

The full rundown

The T2-K is a glass rotary dimmer panel for dual-colour (CCT) LED lighting. Use it to set both brightness and colour temperature, from warm through to cool.

Why it works

  • Ultra-smooth rotary control: Rotate the knob through 2.5 turns for 50 levels of colour temperature or brightness, or long-press for continuous 256-level brightness adjustment.
  • Colour temperature and brightness: Push the knob twice to switch between adjusting colour temperature and brightness on dual colour LED strips.
  • Modern glass panel: Sleek black finish suits premium van, RV and home interiors.
  • Wide voltage range: Operates on 12-48V DC, ideal for van, RV, boat and home installations.
  • RF remote compatible: Pair with 2.4GHz remotes for full wireless control.
  • Reliable performance: Designed to run from -30°C to +55°C with stable, long-term operation.
  • Built-in protection: Over-heat, over-load and short-circuit protection that recovers automatically.
  • Camera-friendly lighting: Switch the PWM frequency to 8KHz for no visible flicker on video.

What's in the box

  • 1 x T2-K LED Rotary Panel (Black)
  • Mounting screws

How it works

The T2-K uses a precision rotary control system. Push the knob to turn the lights on or off, then rotate it through 2.5 full turns to adjust colour temperature or brightness across 50 levels. Push twice to switch between colour temperature and brightness adjustment. For finer control, long-press the knob (1-6 seconds) for continuous 256-level brightness adjustment. An LED indicator confirms each push and turn. It's ideal for ceiling strips, accent lighting, under-cabinet LEDs or soft interior lighting zones.

The two output channels (5A per channel) run one dual colour LED strip, with separate cool white and warm white channels, from a 12-48V DC constant voltage supply. A DIP switch on the back sets the PWM frequency to 2KHz or 8KHz. 8KHz is better suited to cameras with no flicker on video, while 2KHz gives higher output current.

The panel supports optional RF 2.4GHz single-zone or multi-zone remotes, paired directly from the knob, for wireless lighting control in compatible setups.

What it suits

  • Dual colour (CCT) LED strip lighting
  • 12V / 24V / 36V / 48V DC systems
  • Campervans, RVs, caravans, motorhomes
  • Boats and marine cabins
  • Home and indoor commercial lighting setups

Fitting it

Difficulty: 2/5 (Easy). Basic DC wiring; can be installed with the supplied hardware.

Features

  • Black glass faceplate
  • Colour temperature and brightness control (push twice to switch)
  • 50-level rotary adjustment over 2.5 turns
  • 256-level continuous dimming (long press)
  • Push on/off with LED indicator
  • 2-channel constant voltage output, 5A per channel
  • RF 2.4GHz remote support
  • Selectable 2KHz / 8KHz PWM frequency
  • Over-heat, over-load and short-circuit protection (auto-recovery)
  • Wide input range (12-48V DC)

Specifications

Model T2-K (Black)
Light Type Dual colour (CCT)
Input Voltage 12-48V DC
Input Current 10.5A
Output Voltage 2 x (12-48V DC)
Output Power 2 x (60-240W)
Output Current 2CH, 5A per channel
Output Type Constant voltage PWM
PWM Frequency 2KHz / 8KHz (selectable)
Operating Temp -30°C to +55°C
Case Temp (Max) +85°C
Protection Over-heat, over-load, short circuit (auto-recovery)
Control Method Push on/off; push twice to switch colour temperature / brightness; rotate 2.5 turns (50 levels); long press 1-6s (256 levels)
Remote Protocol RF 2.4GHz (single-zone or multi-zone)
Dimensions Approx 86mm W x 86mm H x 48mm D
Certification CE, EMC, RED
