Aluminium Starlink Mini Caravan Waterproof Wall Socket / Passthrough DC 5.5 x 2.1
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown

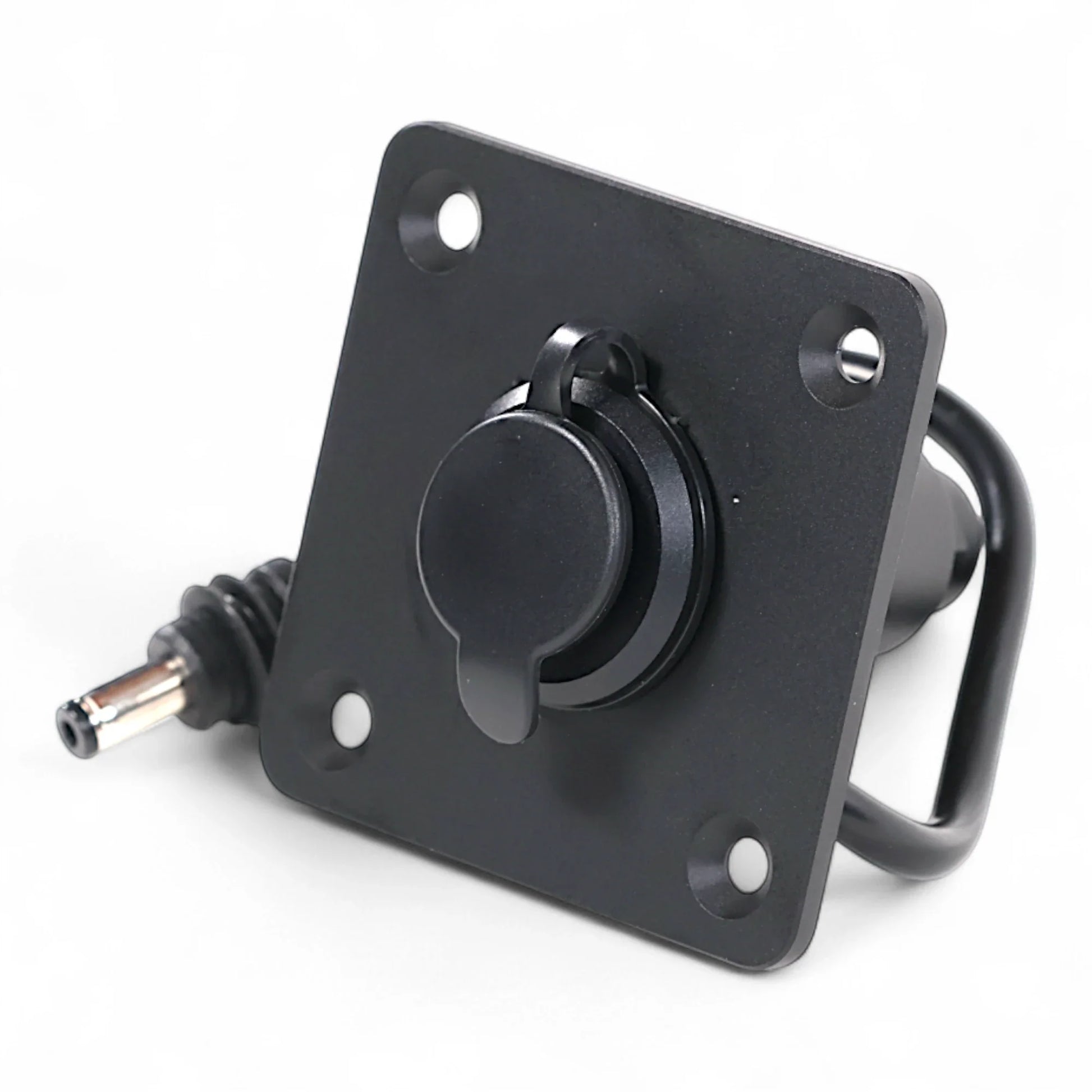

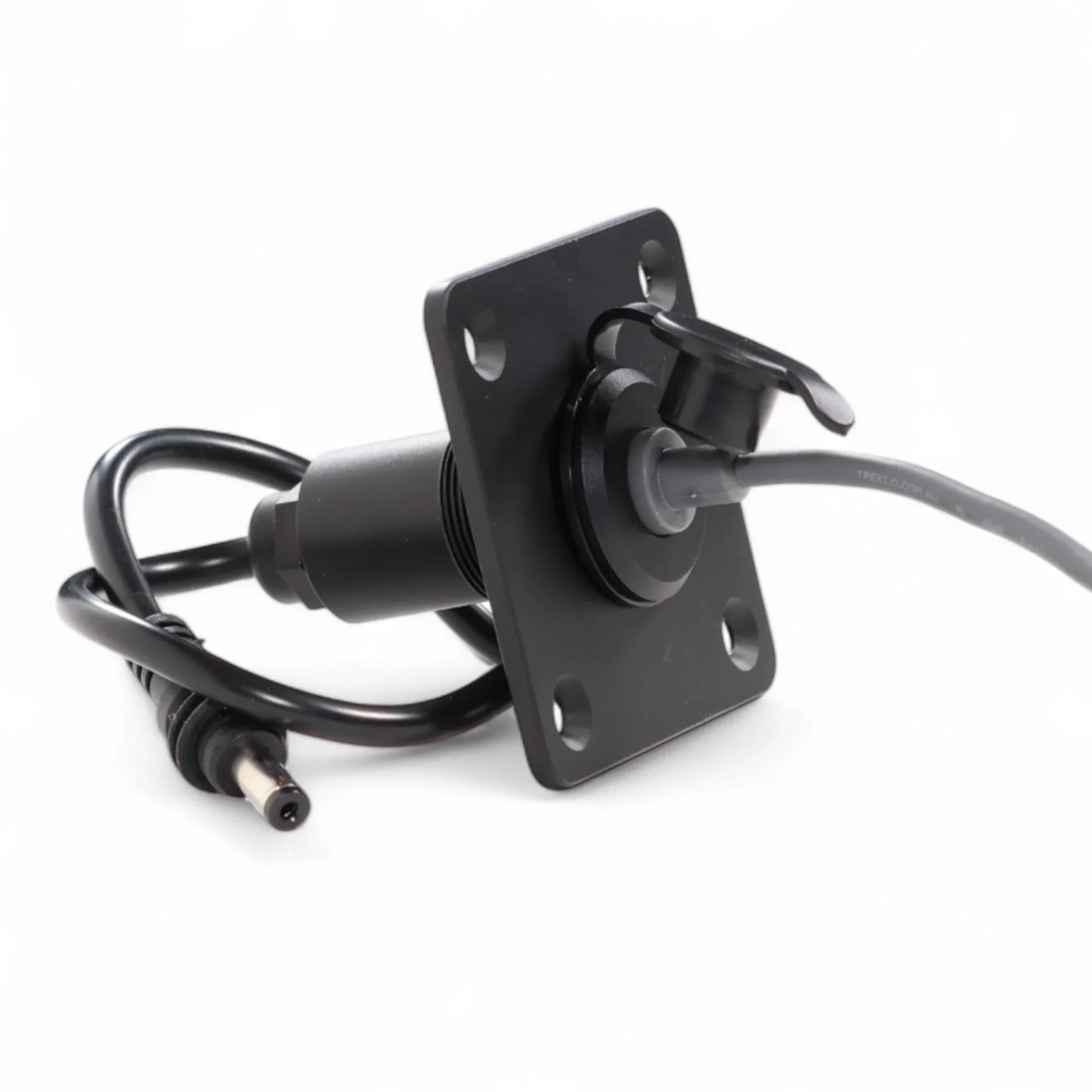

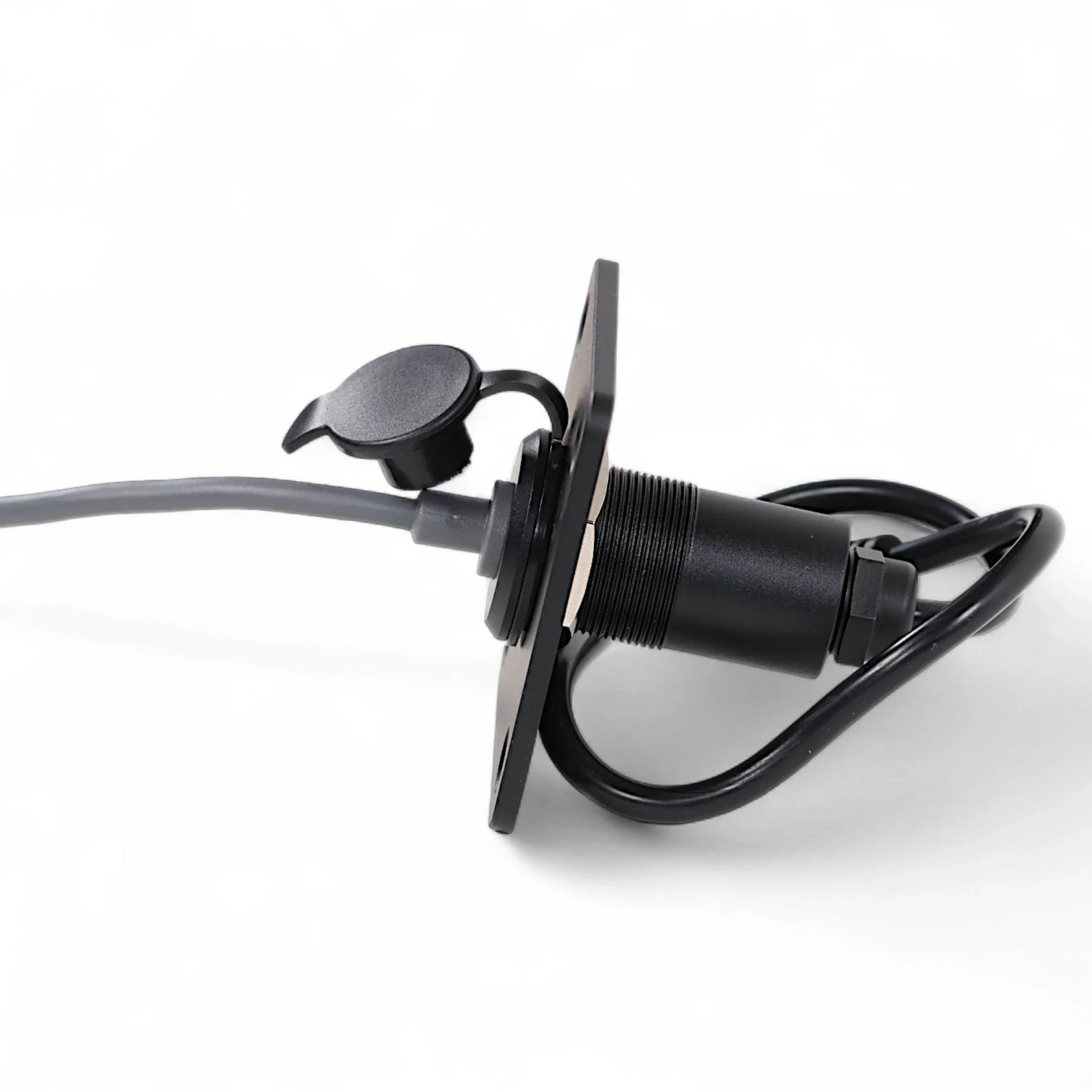

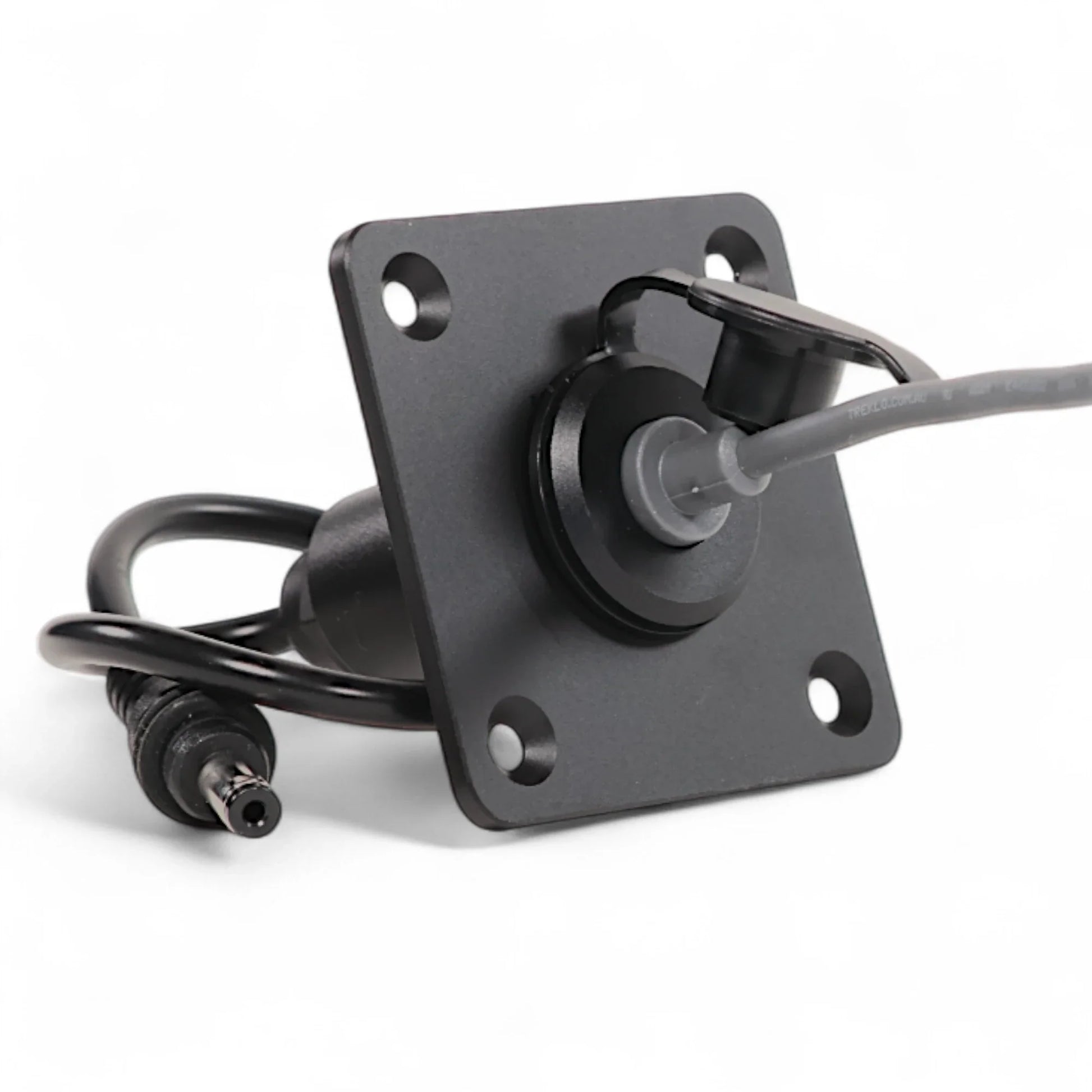

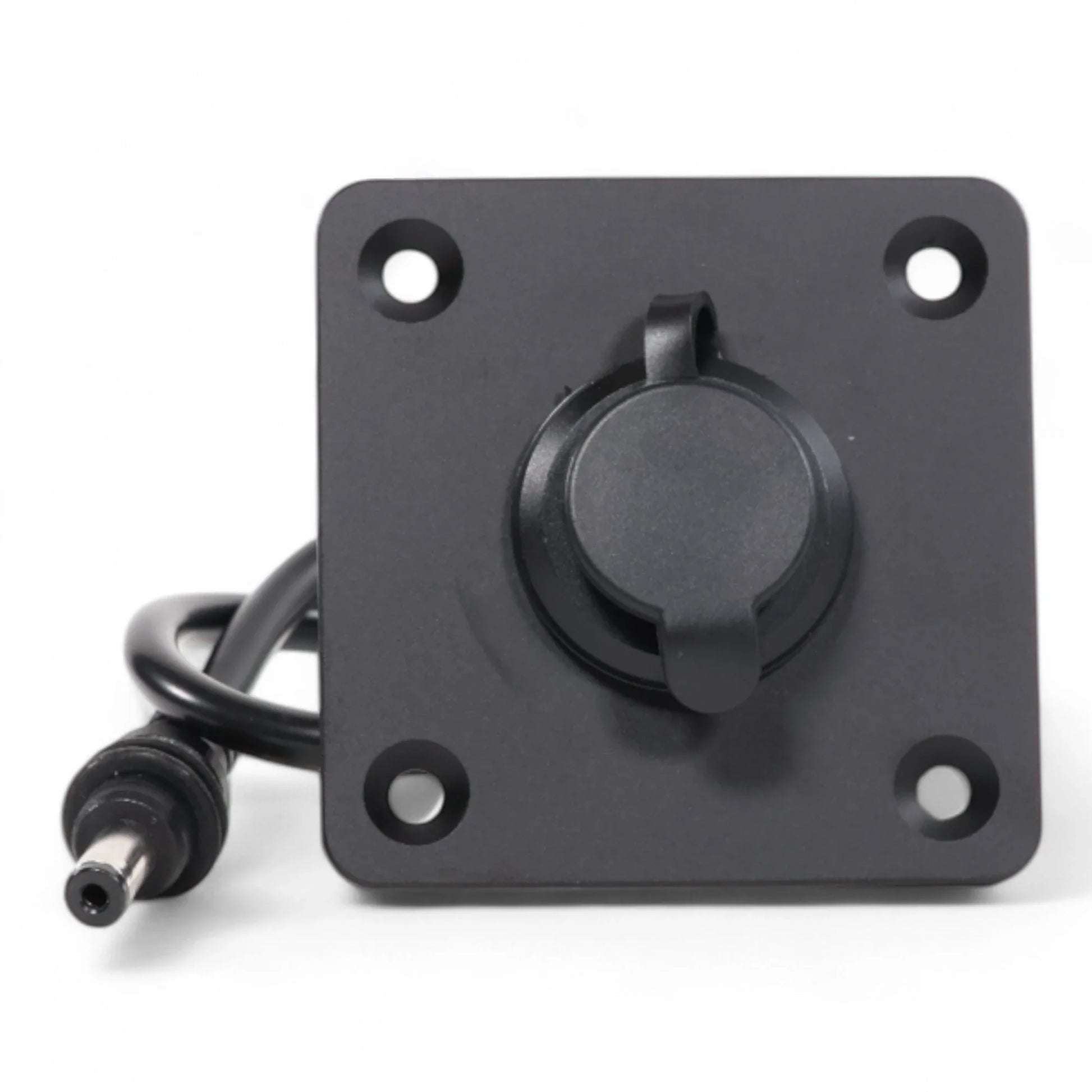

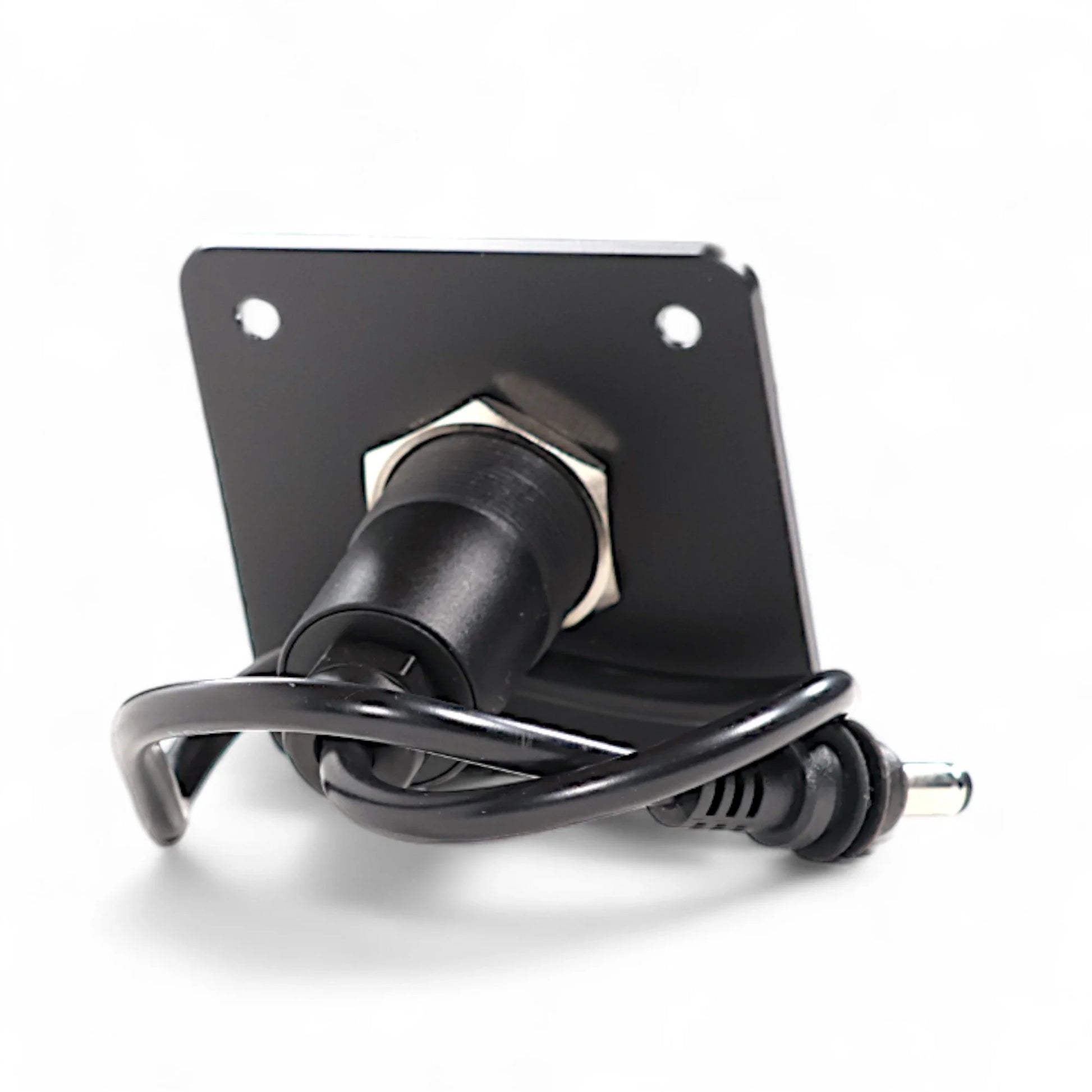

An aluminium waterproof wall socket for the Starlink Mini. It gives you a clean external power point, so the cable plugs in outside the van.
Why it works
- Clean external power point: Creates a tidy wall-mounted connection for Starlink Mini power.
- Aluminium housing: Provides a robust and precise fit for your installation needs.
- 5.5 x 2.1 female socket: Supports a reliable, quality connection for Starlink Mini power setups.
- Weatherproof cable sealing: Helps keep the connection protected from moisture, dirt and outdoor elements.
- Easy installation: Simple, straightforward installation with minimal tools required.
- Professional finish: Gives your campervan, caravan or motorhome Starlink setup a clean exterior connection point.

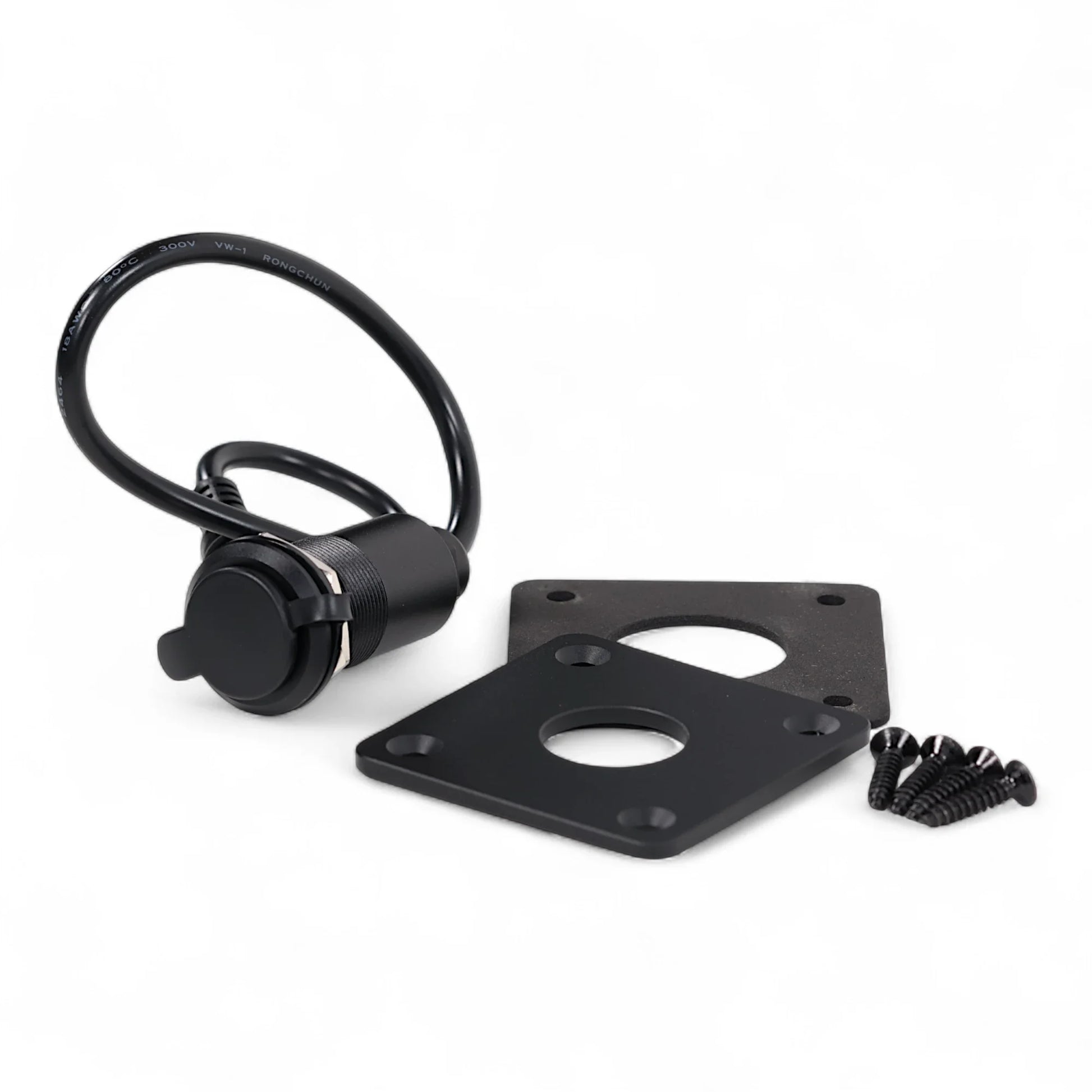

What's in the box
- 1 x aluminium wall plate
- 1 x copper 5.5 x 2.1 connector with approx 300mm cable
- 1 x weatherproof bung
- 1 x foam gasket
- Mounting screws
How it works
This wall socket allows you to connect 12V or higher to the internal side of the socket, creating an external connection point for your Starlink Mini power cable.
The aluminium wall plate mounts into your wall or panel, while the 5.5 x 2.1 female socket provides the external connection point. The supplied weatherproof bung should be installed when the socket is not in use to help protect the connection from moisture, dirt and outdoor conditions.
For best results, seal around the housing with silicone during installation to help create a watertight finish.
What it suits
- Starlink Mini power setups
- 12V or higher DC input setups
- Campervans, caravans, motorhomes and RVs
- Off-grid electrical systems
- Exterior wall and panel installations
- Compatible with suitable Starlink Mini power leads and adapters
Fitting it
Difficulty: 2/5 (Moderate). Requires drilling a wall or panel hole, securing the faceplate, connecting the internal power cable and sealing around the housing.
Features
- Aluminium wall plate
- 5.5 x 2.1 female socket
- Quality copper connector
- Approx 300mm cable length
- Weatherproof bung included
- Foam gasket included
- Recessed wall mount design
- Approx 50mm recessed depth into wall
- Hole size range approx 28-44mm
- 60mm x 60mm faceplate
- Suitable for clean exterior Starlink Mini power installs
Specifications
| Product Type | Starlink Mini DC waterproof wall socket |
| Socket Type | 5.5 x 2.1 female socket |
| Connector Material | Copper |
| Cable Length | Approx 300mm |
| Faceplate Material | Aluminium |
| Faceplate Size | Approx 60mm x 60mm |
| Recessed Depth | Approx 50mm into wall |
| Hole Size Required | Approx 28-44mm |
| Mounting Screw Size | 20mm screws included |
| Application | External Starlink Mini power connection |
| Installation Type | Recessed wall or panel mount |
