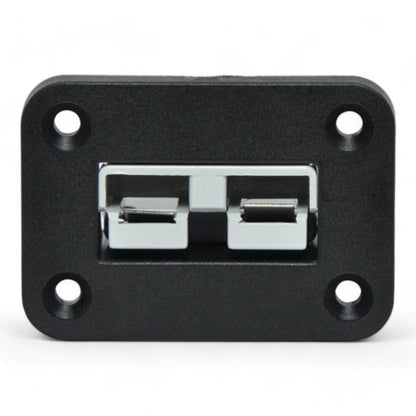

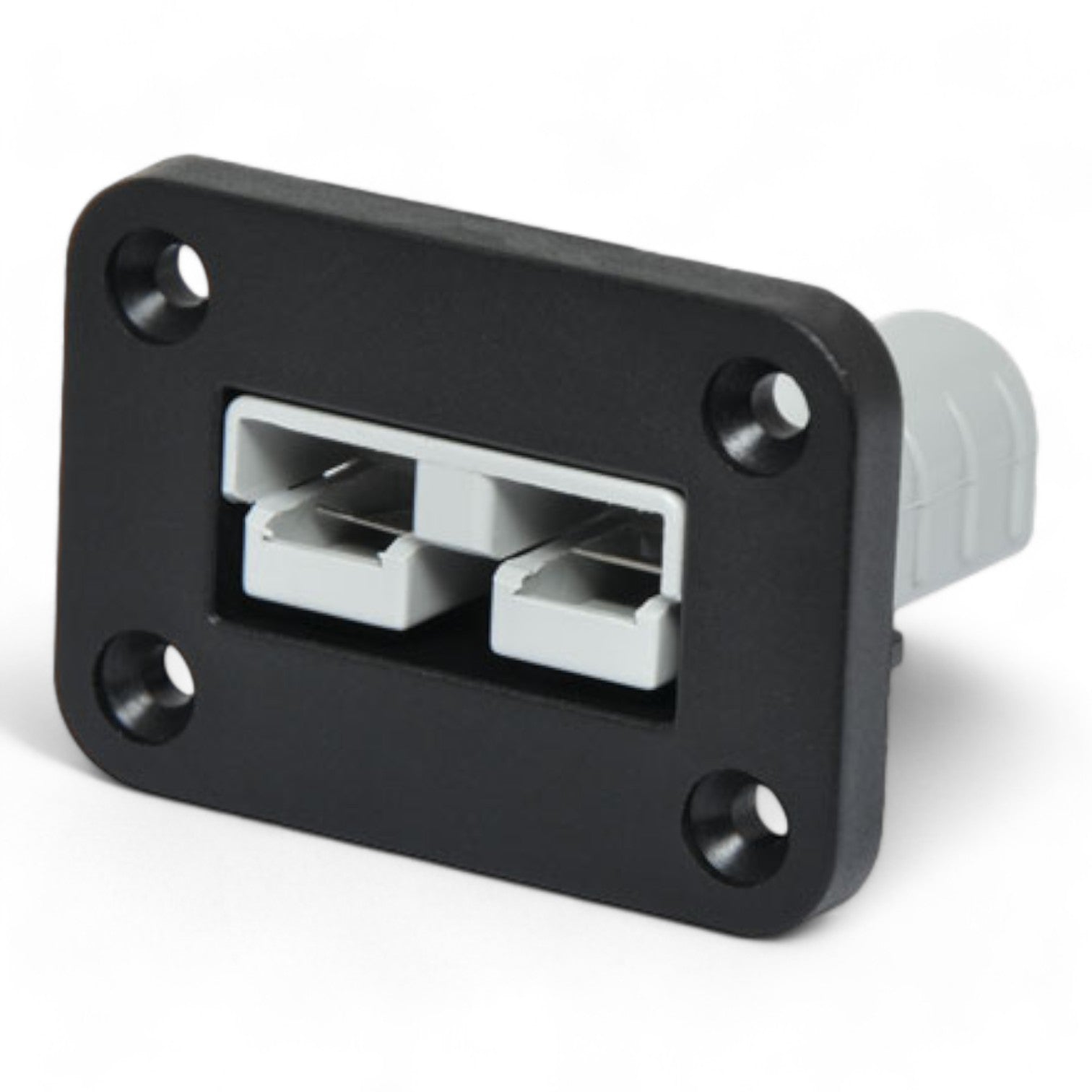

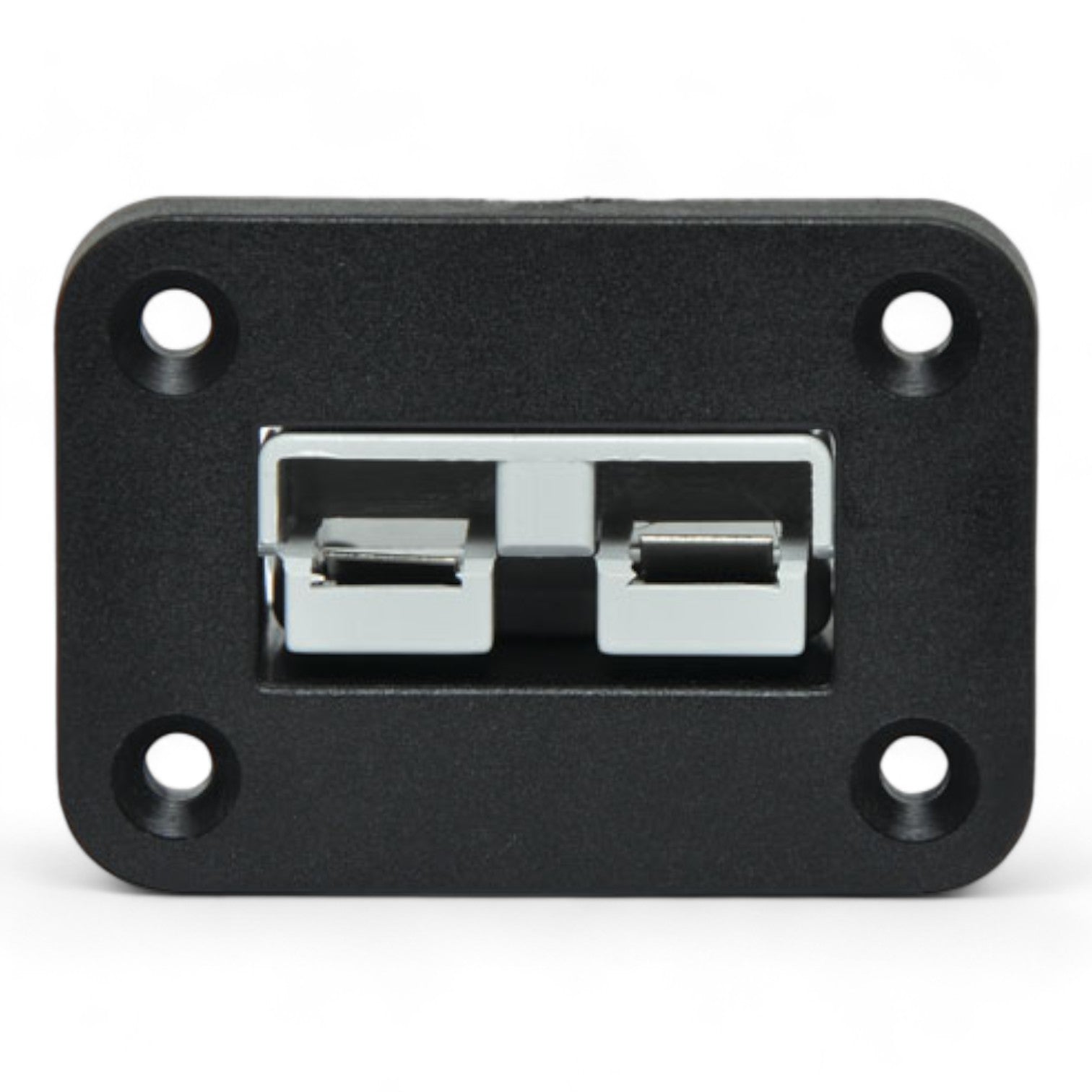

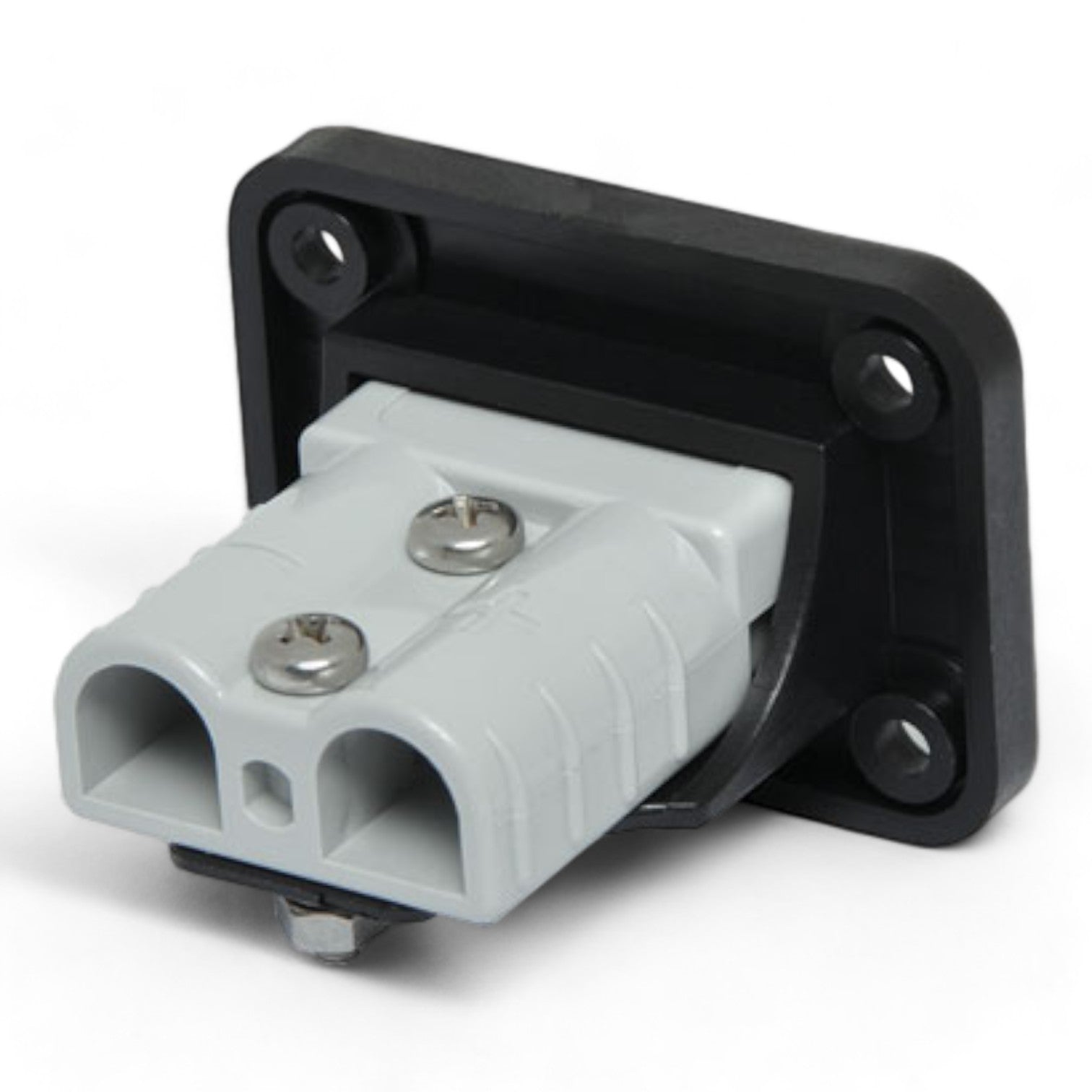

Single Anderson Plug (Surface Mount)

A single 50A Anderson style socket on a compact surface mount fascia. A tidy, integrated power point for caravans, 4x4s, boats and service vehicles.

Why it works

• Flush-mount design: Installs into trim or panels for a clean, low-profile appearance.
• Dedicated 50A connection: Provides a secure Anderson style socket for high-current loads.
• Wide system compatibility: Suitable for 12V and 24V electrical systems.
• Durable construction: Designed for harsh temperature conditions and mobile environments.
• Compact footprint: Small, tidy enclosure for tight installation spaces.
• Easy installation: Includes terminals and screws for fast mounting.

What's in the box

• 1 x Surface-Mount Anderson Style Socket
• 2 x Terminals
• 4 x Mounting Screws

How it works

This surface-mount Anderson socket provides a fixed 50A connection point for high-current DC accessories such as fridges, compressors, solar inputs, DC chargers, and auxiliary batteries. The flush fascia plate creates a clean, professional look, while the rugged enclosure ensures reliable performance in automotive, marine, and off-grid environments.

What it suits

• Works with all matching colour-keyed 50A Anderson style plugs
• Suitable for caravans, campervans, 4x4 vehicles, RVs, boats, and service bodies
• Supports 12V and 24V DC systems
• Ideal for solar panel inputs, battery charging, portable appliances, and auxiliary feed points

Fitting it

Difficulty: 1/5 (Easy). Cut the panel opening, mount the fascia plate, crimp the contacts, insert into the socket body, and secure with the included screws.

Features

• Flush-mount fascia plate
• 50A high-current Anderson style socket
• Durable black plastic housing
• Compact design
• Approx 40 x 21MM mounting hole
• Operating temperature -25°C to +80°C
• Includes mounting hardware

Specifications
