Right Angle 8-Slot Screw Down Blade Fuse Block
📝 8-Slot Positive Blade Fuse Block (1-In, 8-Out)
This 8-slot positive blade fuse block provides organised, reliable and compact power distribution for campervans, caravans, RVs, 4WDs, boats and custom wiring installations. With one main positive input and eight fused outputs, it is ideal for powering multiple accessories from a single feed while maintaining electrical safety and system clarity.
⭐ Essential Benefits
• 1-In, 8-out distribution – Power up to eight fused circuits from a single supply line.
• Compact, space-efficient design – Perfect for tight automotive and marine installations.
• Clear protective cover – Waterproof, dustproof and impact-resistant for long-term durability.
• Strong terminal hardware – Stainless M5 input stud + M4 fused output posts.
• Universal application – Suitable for all 12–24V DC electrical systems.
⚙️ Functionality

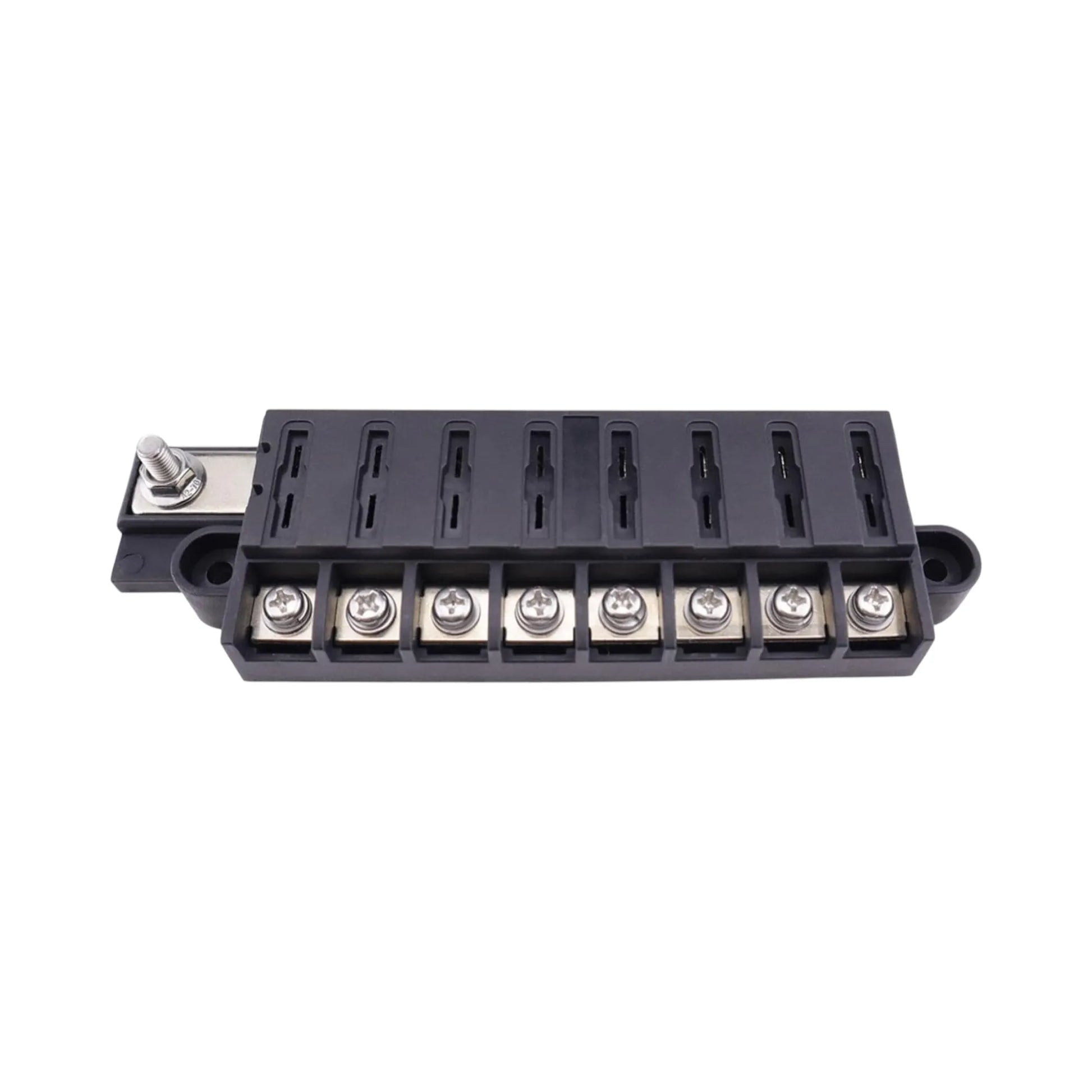

A single positive feed connects through the M5 stainless input stud, distributing power to eight individually fused outputs. Each output uses an M4 stainless terminal bolt for strong, vibration-resistant electrical connections. The transparent protective cover shields the unit from dust and moisture while keeping fuses visible.
🔌 Compatibility
• Works with 12v and 24v DC systems
• Uses standard ATC / ATO blade fuses
• Suitable for campervans, caravans, RVs, boats, 4WDs & custom installations
🧰 Installation Difficulty
🟢 2/5 (Easy)
Straightforward surface-mount installation using ring or fork terminals.
🔍 Features

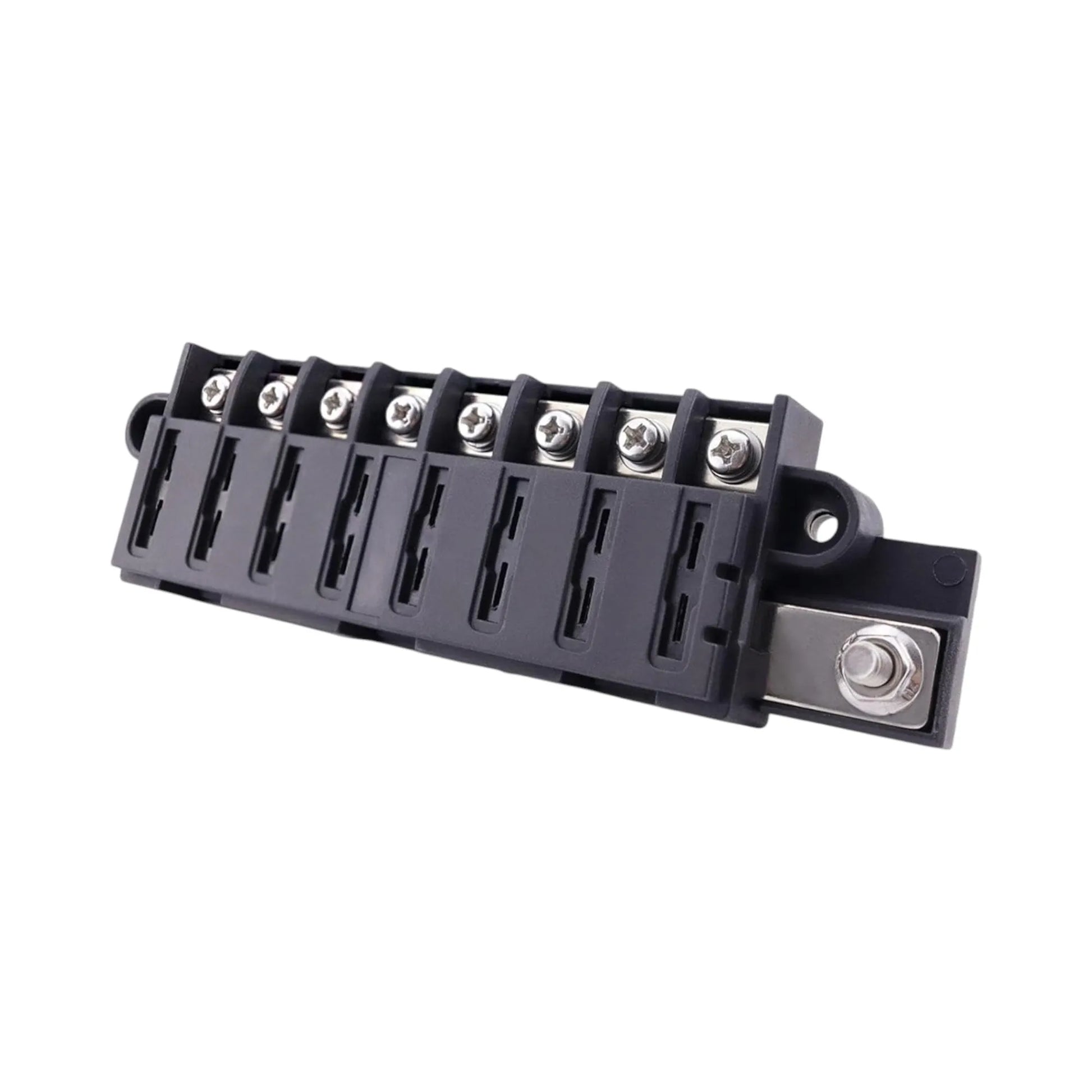

• M5 stainless positive input stud
• Eight M4 stainless fused output terminals

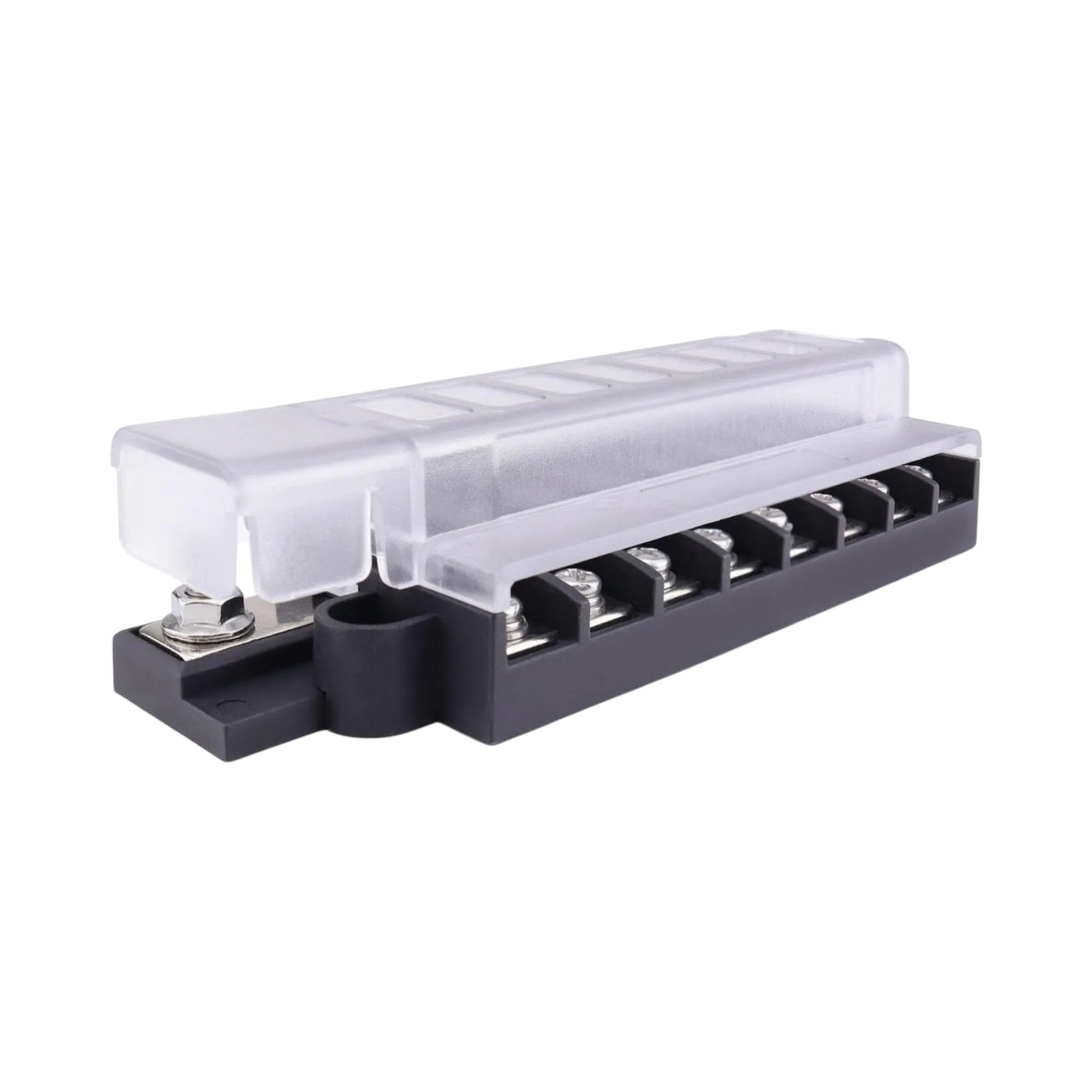

• Clear dustproof/waterproof cover
• ABS housing with tin-plated copper terminals
• Compact design for clean wiring layouts
• Accepts ATC / ATO blade fuses
📊 Specifications
| Specification | Value |
|---|---|
| Max Voltage | 32V DC |
| Circuits | 8 |
| Fuse Type | ATC / ATO |
| Dimensions | 147mm × 44mm × 32mm (with cover) |

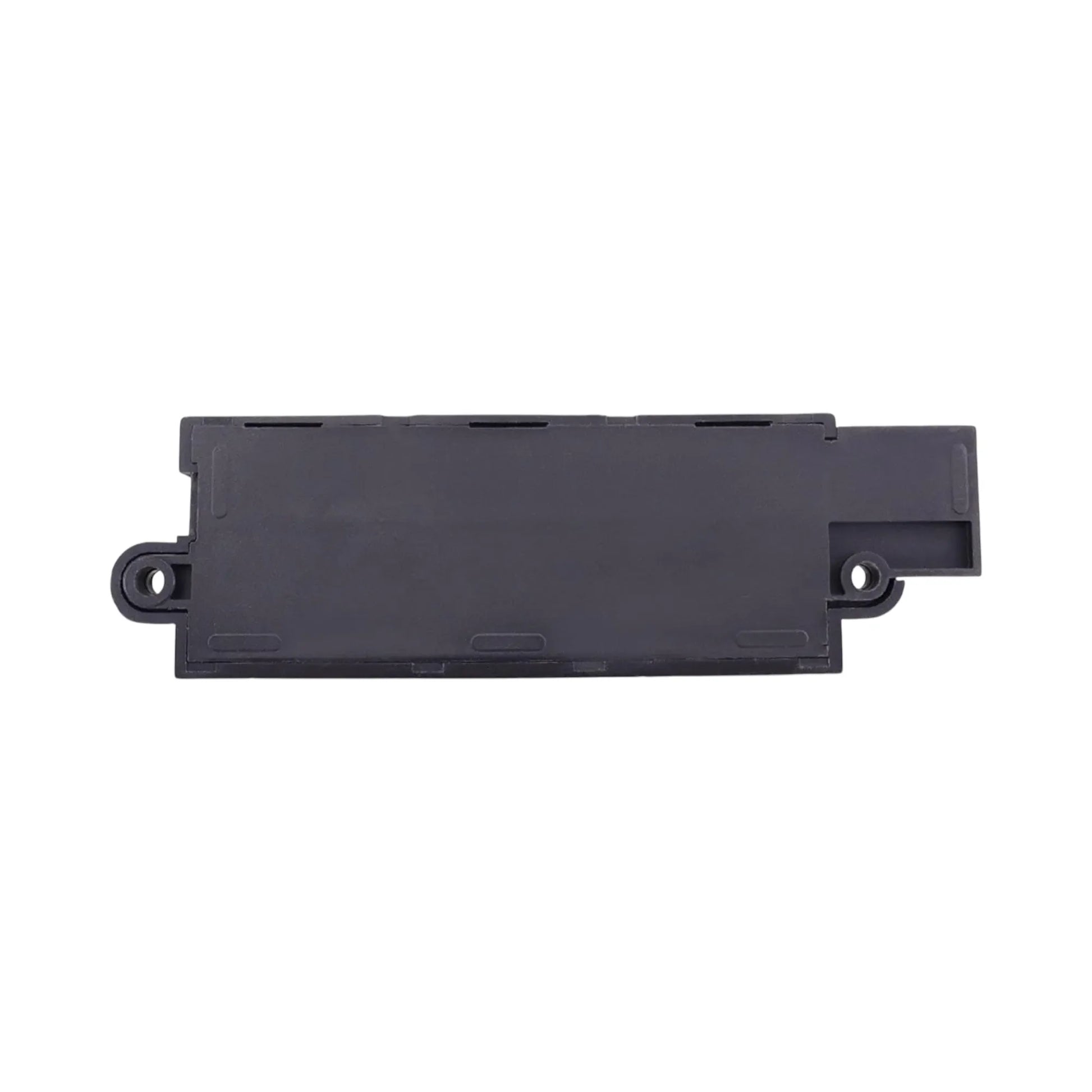

| Mount Hole Centres | 65mm |
| Input Post | M5 stainless stud |
| Output Terminals | M4 stainless bolts |
| Housing Material | ABS body + clear protective cover |
| Terminals | Tin-plated copper |
| Weight | ~0.20kg |
📦 What’s Included

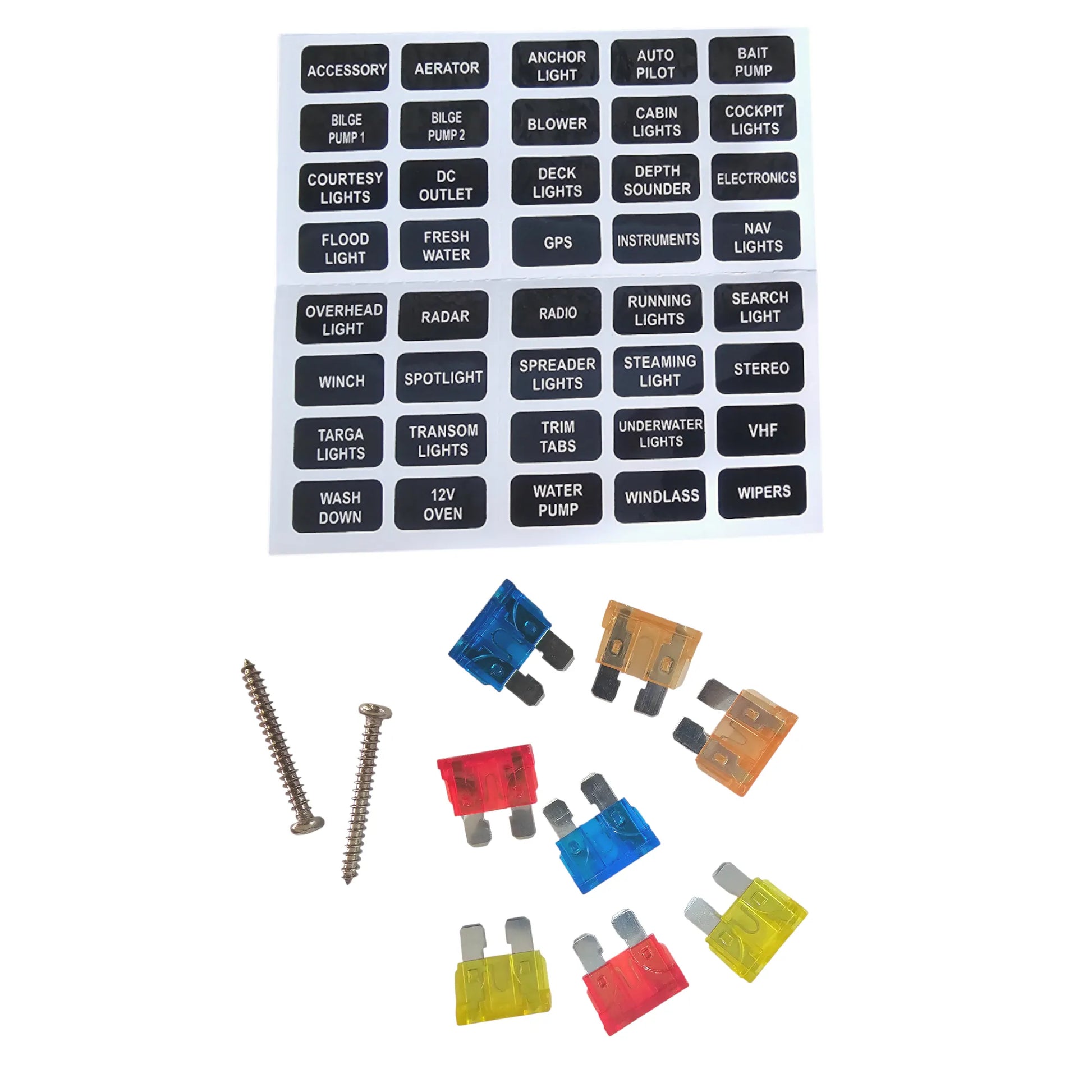

• 1 × 8-slot positive blade fuse block with cover
• 4 × Mounting screws
🙌 Why Choose This Product?
This fuse block provides safe, organised power distribution with eight fused circuits in a compact, waterproof-protected layout. Built with durable ABS housing and stainless hardware, it’s perfect for off-grid builds, marine use and multi-accessory installations.
