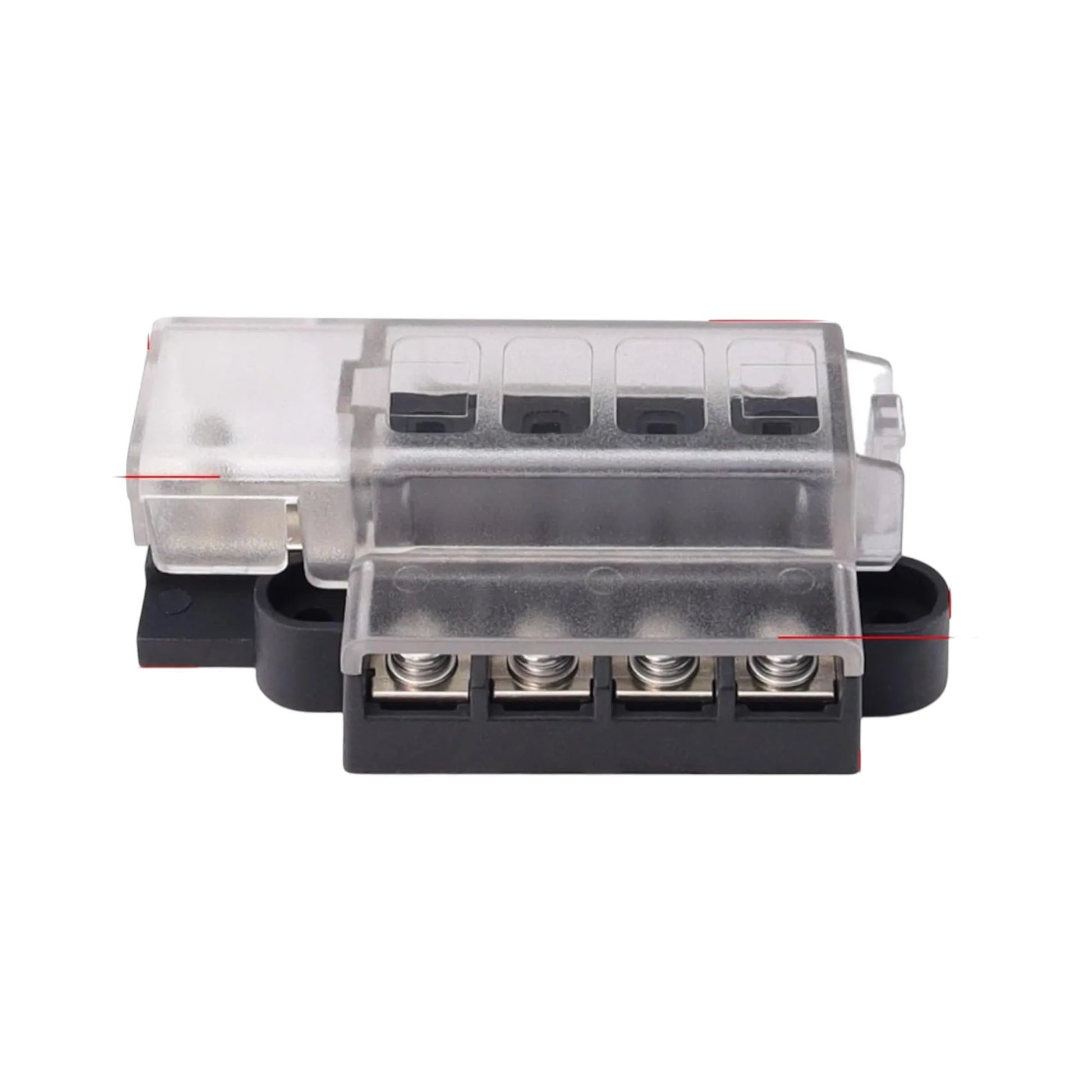

right angle 4 slot screw down blade fuse block for 12v systems

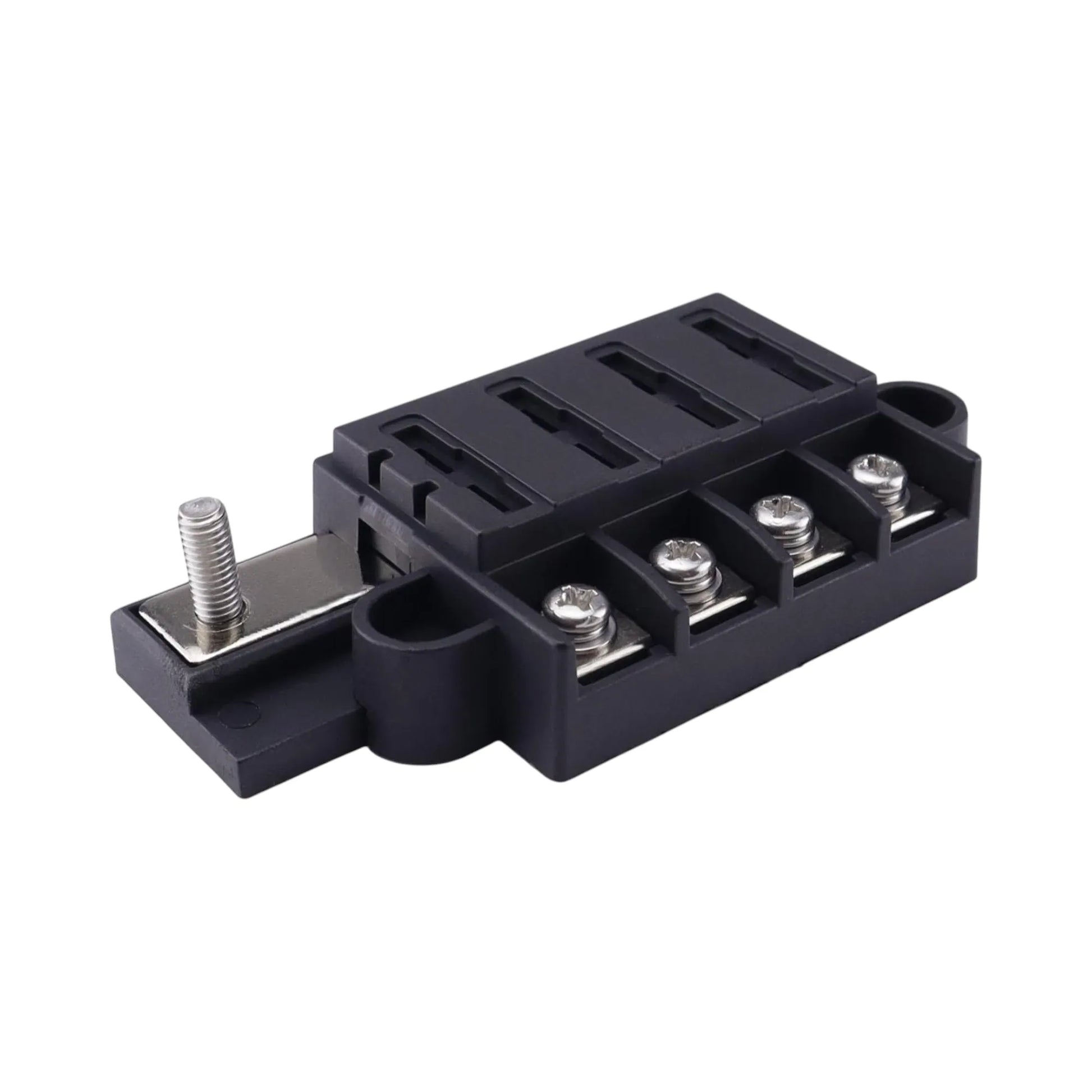

4 way right angle blade fuse block with screw terminals

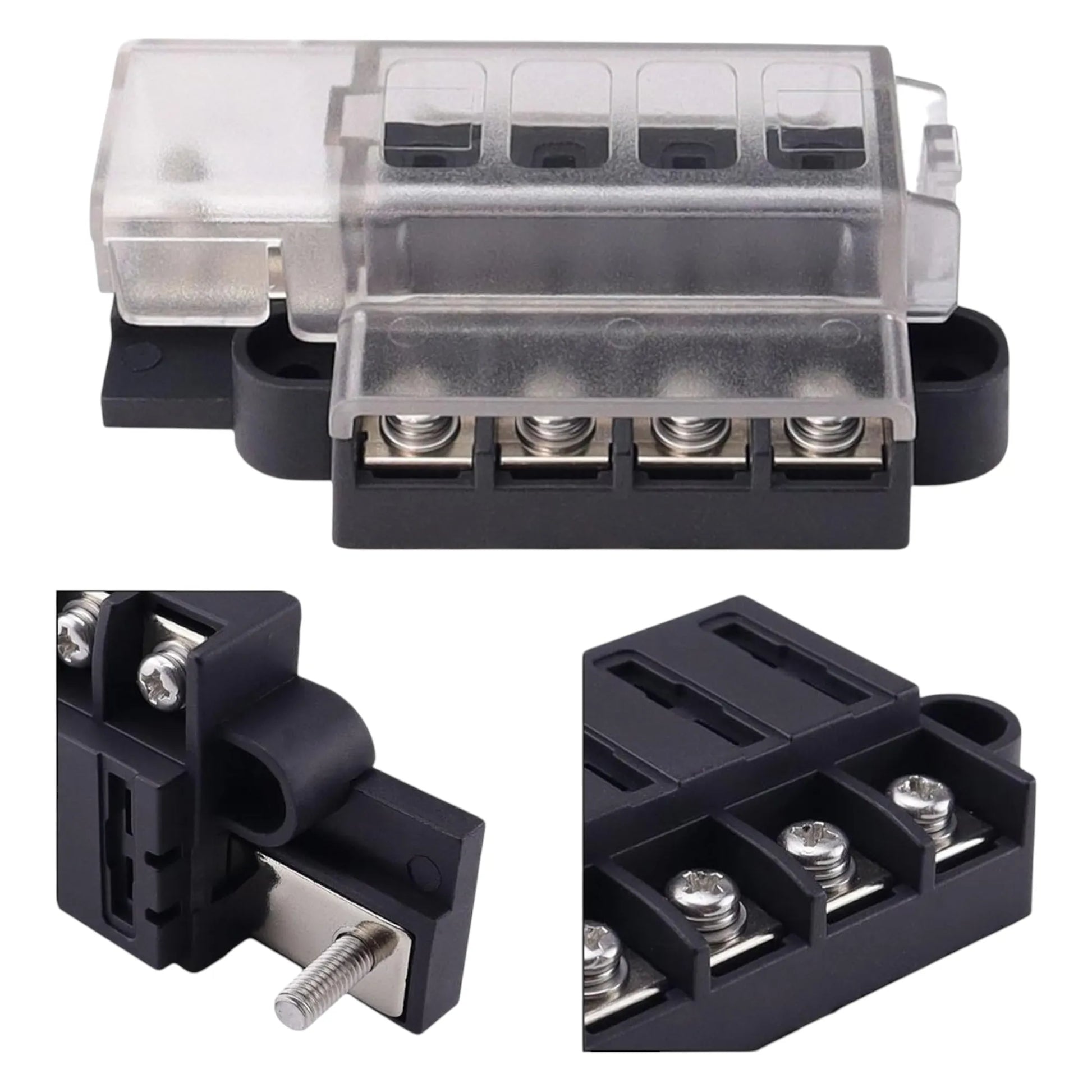

campervan right angle fuse block for tidy wiring installs

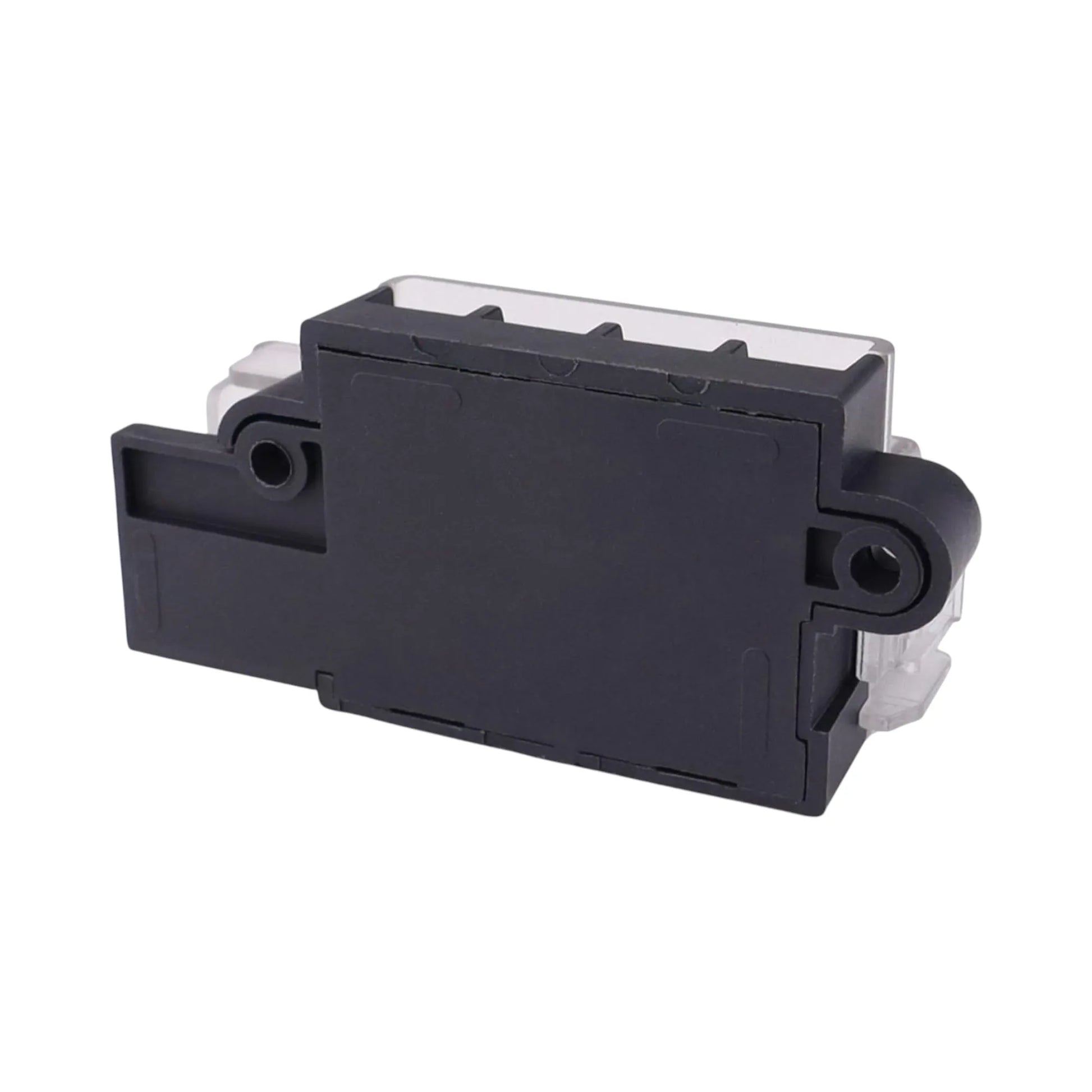

caravan 4 slot blade fuse block with right angle layout

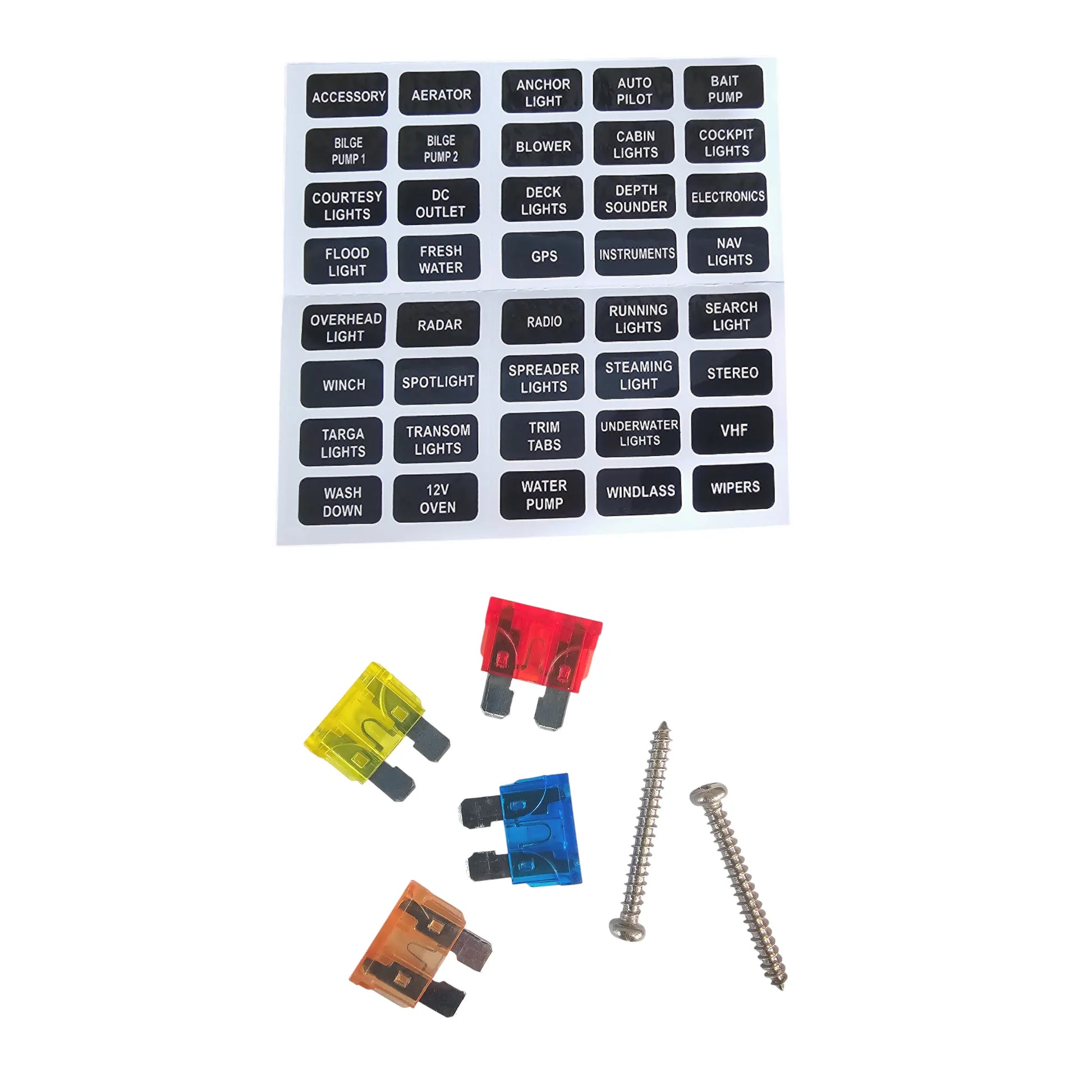

compact right angle fuse distribution block for van conversions

Right Angle 4-Slot Screw Down Blade Fuse Block

In stock SKU fuse-block-screw-RA-4slot
$29.90inc. GST

Spend more, get more

Free Express
on orders over $130
Free 65W charger
on orders over $200
Order by 3pm AEST and it ships today
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices. How it works
  • Aussie warranty1 year, handled locally
  • Geelong supportReal people, real answers
  • Same day shippingOrder by 3pm AEST
$29.90Ships today by 3pm
Details

The full rundown

A 4-slot blade fuse block with one positive input and four fused outputs. A simple, compact way to distribute power in a camper, 4WD or boat.

Why it works

  • 1-in, 4-out design: Distribute one power feed safely across four circuits.
  • Compact footprint: Fits tight installs without taking up valuable space.
  • Clear protective cover: Waterproof, dustproof and insulated for long service life.
  • Secure terminal hardware: Includes stainless M5 input stud and M4 output bolts.
  • Wide application range: Suitable for automotive, marine and off-grid builds.

What's in the box

  • 1 x 4-slot positive blade fuse block with cover
  • 4 x Mounting screws

How it works

The fuse block accepts a single positive supply through an M5 stainless stud, then distributes it to four fused outputs using robust M4 terminals. The clear clip-on cover shields the fuses from moisture and debris while allowing quick visual inspection and easy access for maintenance. Compatible with standard ATC/ATO automotive fuses.

What it suits

  • Suitable for 12V and 24V DC systems
  • Compatible with ATC / ATO blade fuses
  • Ideal for cars, 4WDs, campervans, caravans, RVs, trailers, boats & small circuits

Fitting it

Difficulty: 2/5 (Easy). Surface-mount install with simple positive feed and four-circuit distribution.

Features

  • 1 x M5 stainless main input stud
  • 4 x M4 stainless fused output terminals
  • Waterproof, dustproof clear cover
  • Accepts standard ATC / ATO fuses
  • Strong black ABS housing
  • Compact size for small panel areas

Specifications

Max Voltage 32V DC
Circuits 4
Fuse Type ATC / ATO
Approx Dimensions 93mm x 44mm x 32mm (with cover)
Mount Hole Centres 65mm
Input M5 stainless threaded stud
Output Terminals M4 stainless bolts
Housing Material ABS body + clear protective cover
Terminals Tin-plated copper
