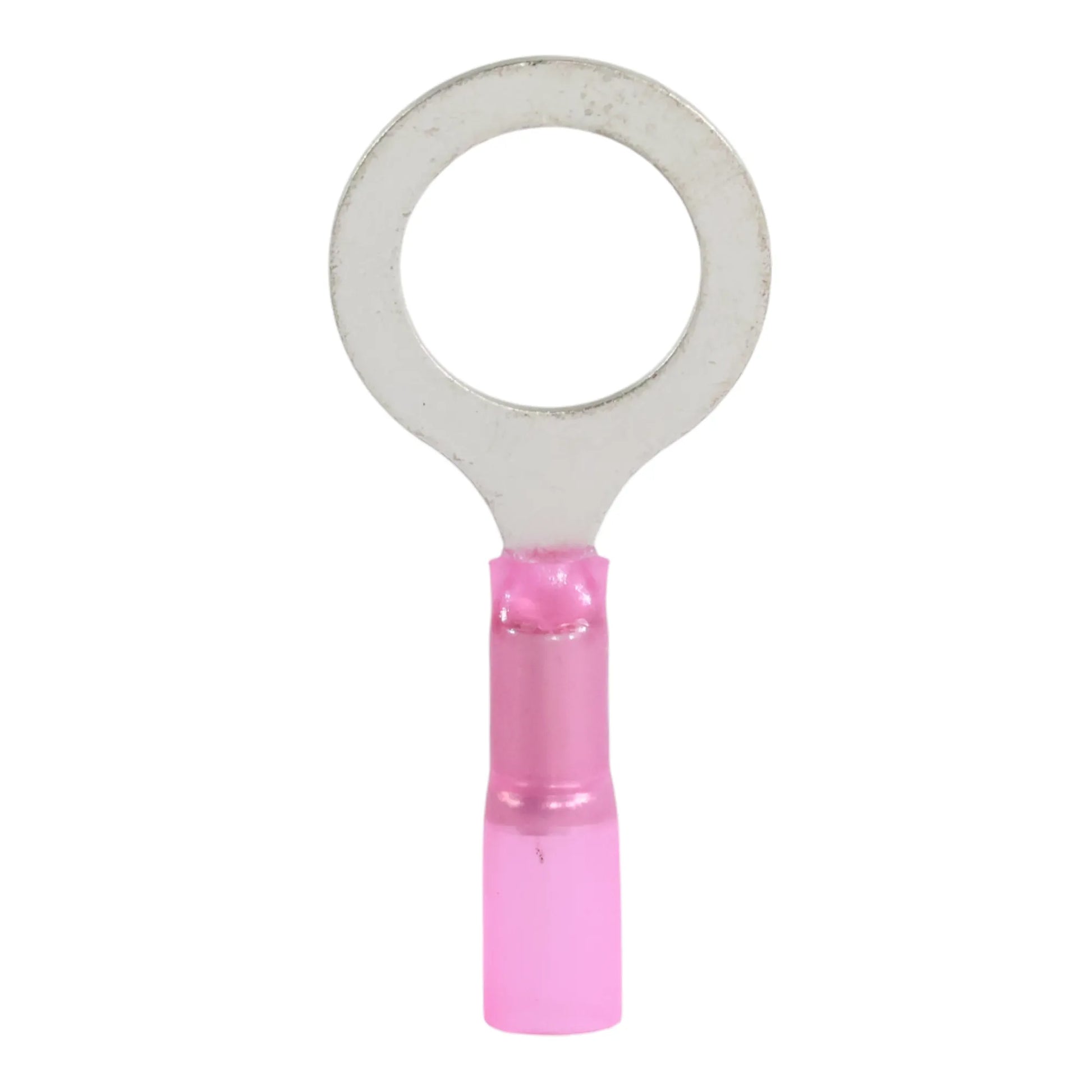

Red Heat Shrinkable Insulated Ring Terminal M12 (100 Pack)
Red Heat Shrinkable Insulated Ring Terminal M12 (100 Pack)
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Red Heat Shrinkable Insulated Ring Terminal M12 (100 Pack)
📝 Red Heat Shrink Ring Terminal M12 (100 Pack)
These red heat shrink ring terminals are designed for maximum protection and long-term reliability in automotive, campervan, caravan, marine, and off-grid 12v–48v systems.
Built to suit 0.5–1.5mm² cable (AWG 22–16) and featuring an M12 ring size to suit 12mm studs/bolts, they provide a secure, sealed crimp connection for circuits rated up to 19A.
The heat shrink insulation forms a protective seal when heated, delivering superior vibration resistance, moisture protection, and strain relief compared to standard vinyl or nylon terminals.
⭐ Essential Benefits
• Heat shrink insulation – creates a sealed, moisture-resistant connection.
• 19A max current rating – ideal for low-current DC circuits.
• 105°C temperature rating – suitable for demanding environments.
• Superior vibration resistance – perfect for mobile and marine applications.
• Secure crimp connection – ensures reliable electrical performance.
⚙️ Functionality
Once crimped with a suitable ratchet crimp tool, the heat shrink sleeve is activated using a heat gun. The insulation shrinks tightly around the cable insulation, forming a sealed barrier against moisture, dust, and corrosion.
This makes them ideal for under-chassis wiring, battery connections, marine use, and any application exposed to vibration or environmental elements.
🔌 Compatibility
• Suits 0.5–1.5mm² cable.
• AWG 22–16.
• Fits M12 studs/bolts.
• Suitable for 12v, 24v and 48v DC systems.
• Rated up to 19A max current.
🧰 Installation Difficulty
🟢 1/5 (Easy)
Requires a suitable ratchet crimp tool and heat gun for proper installation.
🔍 Features
• Red heat shrink insulation.
• 105°C temperature rating.
• Sealed moisture-resistant design.
• Designed for DC automotive, marine, and off-grid systems.
• Supplied in bulk 100 pack.
📊 Specifications
| Specification | Value |
|---|---|
| Terminal Type | Heat shrink ring terminal |
| Stud Size | M12 |
| Cable Size | 0.5–1.5mm² |
| AWG | 22–16 |
| Maximum Current | 19A |
| Temperature Rating | 105°C |
| Insulation Type | Heat shrink |
| Pack Size | 100 Pack |
| Voltage Suitability | 12v–48v DC systems |
📘 DC Crimp Terminal Insulation Comparison
| Material | Pros | Typical Use Case |
|---|---|---|
| Vinyl | Low cost, Easy to crimp, Suitable for light-duty circuits | Interior dry areas, Basic accessory wiring, Lighting circuits, Low-current applications, Budget-focused builds |
| Nylon | Tougher insulation, Higher temperature resistance, Flexible, Better vibration resistance, Improved strain relief | Campervan 12v systems, Fuse blocks, DC-DC chargers, Solar controllers, General distribution wiring |
| Heat Shrink | Sealed insulation when heated, Excellent strain relief, High vibration resistance, Corrosion protection, Professional finish | Battery cables, Inverter feeds, Solar inputs, External wiring runs, Under-chassis wiring, Marine or damp environments |
📦 What’s Included
• 100 × Red heat shrink ring terminals M12
🙌 Why Choose This Product?
These heat shrink terminals are the premium solution for exposed or high-vibration wiring. They provide a sealed, corrosion-resistant crimp that is ideal for campervan builds, marine systems, and serious off-grid installations.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid electrical accessories.
