R11 Remote Dimmer Control

A stand-alone wireless remote for our Treklo LED controllers. Use it as a spare, or add one so the lights can be controlled from a second spot. If you need the controller too, look at our starter kits.

Why it works

• Control from multiple areas: Add it as an extra remote so you can control your lighting from either end of your campervan or caravan.
• Expands your V1 setup: Each V1 controller takes up to 10 remotes, and one R11 can run multiple V1 controllers.
• Wireless 2.4GHz control: Adjust lighting from up to 30m away in open spaces.
• Ultra-sensitive touch slider: Smooth, precise brightness control using the V1's 4096-level dimming.
• Long battery life: CR2032 battery delivers up to 1 year of standby.

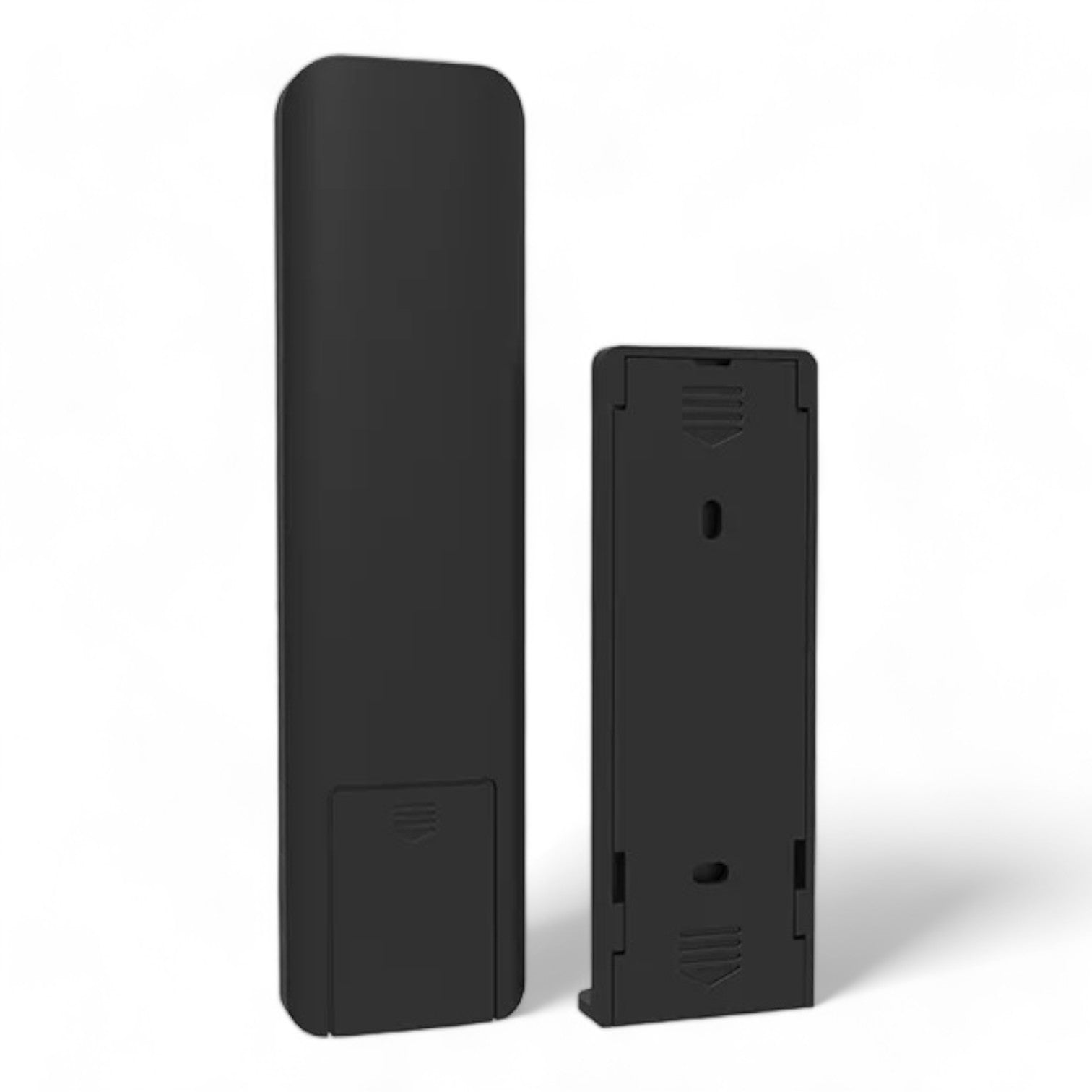

• Magnetic remote holder: The R11 sits in a magnetic holder, so it's always in the same spot and lifts straight off when you need it.
• Flexible mounting: Stick the holder in place with the included adhesive pad, or screw it to the wall.
• Wide temperature tolerance: Reliable from -30°C to +55°C.

What's in the box

• 1 x R11 Wireless Remote
• 1 x Magnetic Remote Holder
• 1 x Adhesive Pad (for the holder)
• 1 x CR2032 Battery

How it works

The R11 Remote uses a sensitive touch-slide interface, allowing you to swipe your finger to increase or decrease LED brightness with exceptional accuracy. It pairs with the V1 LED Controller, providing wireless dimming for single-colour lights across multiple zones.

A short press of the on/off key turns the lights on or off, then slide your finger along the touch slide to dim. If the lights are already on, long press the on/off key for more than 1 second, then use the touch slide. To extend battery life, the touch slide goes to sleep after 20 seconds without use.

Each V1 can be controlled by up to 10 remotes, and one R11 can be paired with multiple V1 controllers. Auto-transmit on the V1 ensures that if one controller receives a signal, it can forward it to others, maintaining consistent lighting throughout your vehicle or interior setup.

What it suits

• Treklo V1 LED Controller (Brightness)
• Treklo V1 + R11 Starter Kit
• Single-colour 12V/24V LED lighting systems
• Campervans, caravans and RV interiors
• Boats, marine cabins and trailers
• Tiny homes and off-grid lighting setups

Fitting it

Difficulty: 1/5 (Easy). Pair it with your V1, then mount the magnetic holder with the adhesive pad or screws.

Features

• 2.4GHz RF wireless signal
• 30m control distance (open space)
• Touch-slide dimming interface
• Short press on/off, long press then slide to dim
• Touch slide sleeps after 20 seconds to save battery
• CR2032 battery powered
• Magnetic remote holder
• Wall-mount compatible
• Up to 10 remotes per V1 controller
• Compact ergonomic design
