Quad Channel MIDI Fuse Block with LED Indicators
📝 Quad Channel MIDI Fuse Block With LED Indicators

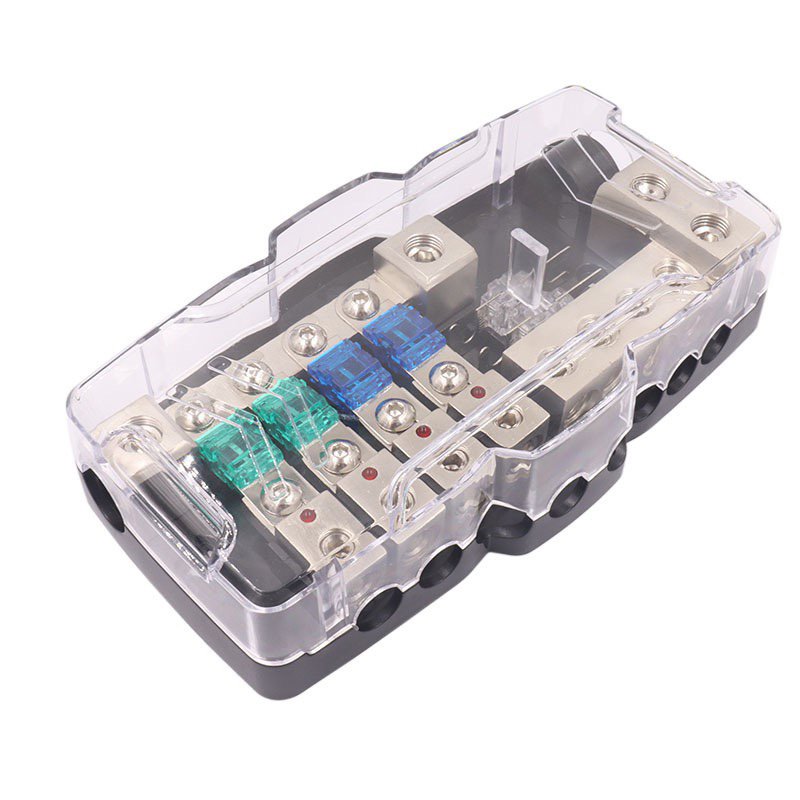

This quad-channel MIDI fuse block provides high-current protection with built-in LED blown-fuse indicators, plus both positive and negative distribution bars for clean, organised wiring. Designed for campervans, caravans, RVs, 4WDs and marine systems, it delivers dependable protection for heavy-duty 12–48V circuits in a compact, installer-friendly package.
⭐ Essential Benefits

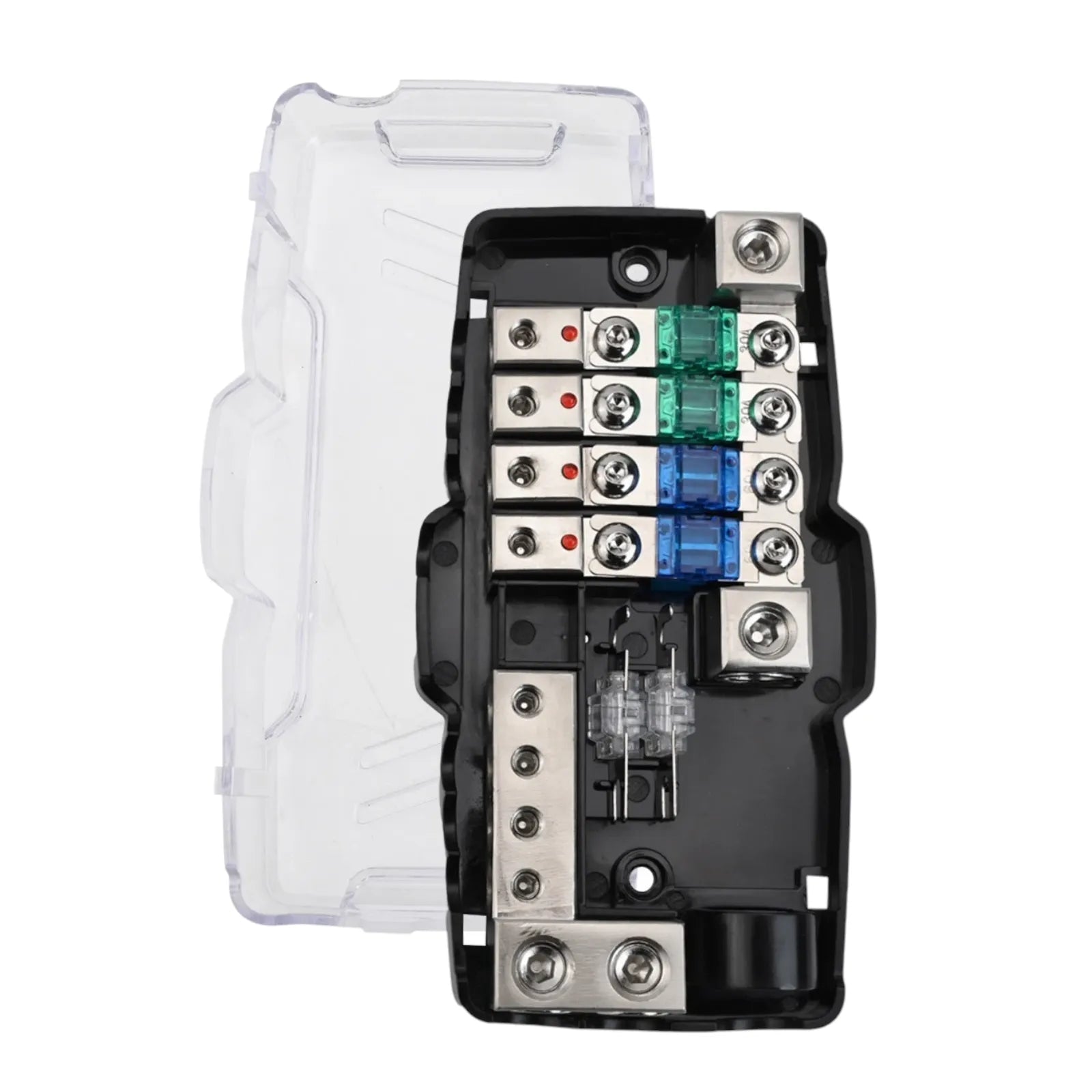

• Instant LED fault indication – LEDs illuminate when a fuse blows for fast troubleshooting.
• Quad-channel protection – Four MIDI fuse circuits for high-current accessory systems.

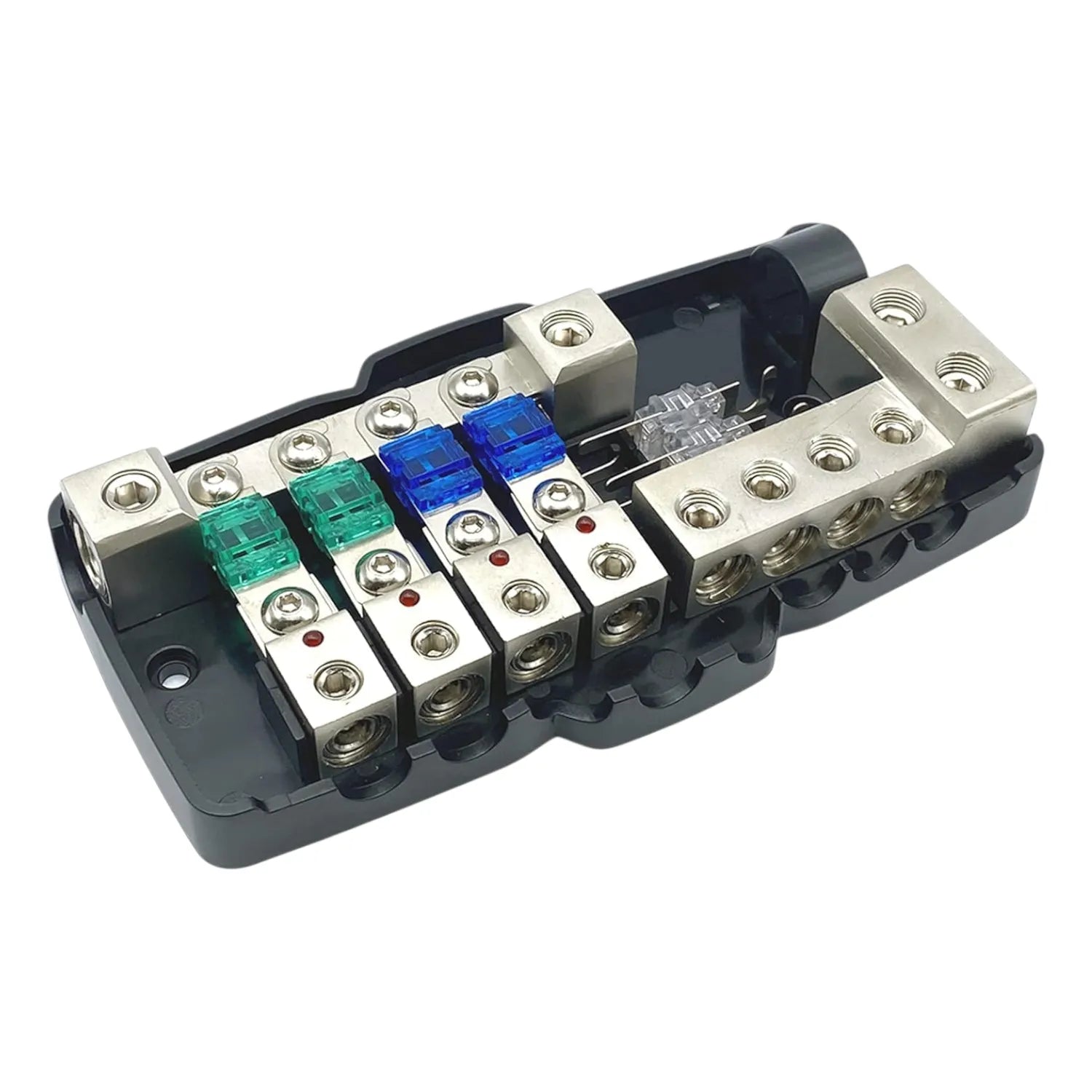

• Dual distribution bars – Includes both positive and negative bars for tidy, consolidated wiring.
• Wide voltage range – Suitable for 12V, 24V and up to 48V DC systems.
• Compact, rugged housing – Built to withstand off-grid, marine and vibration-heavy environments.
• Easy pin-style terminations – Simple, secure electrical connections during installation.
⚙️ Functionality

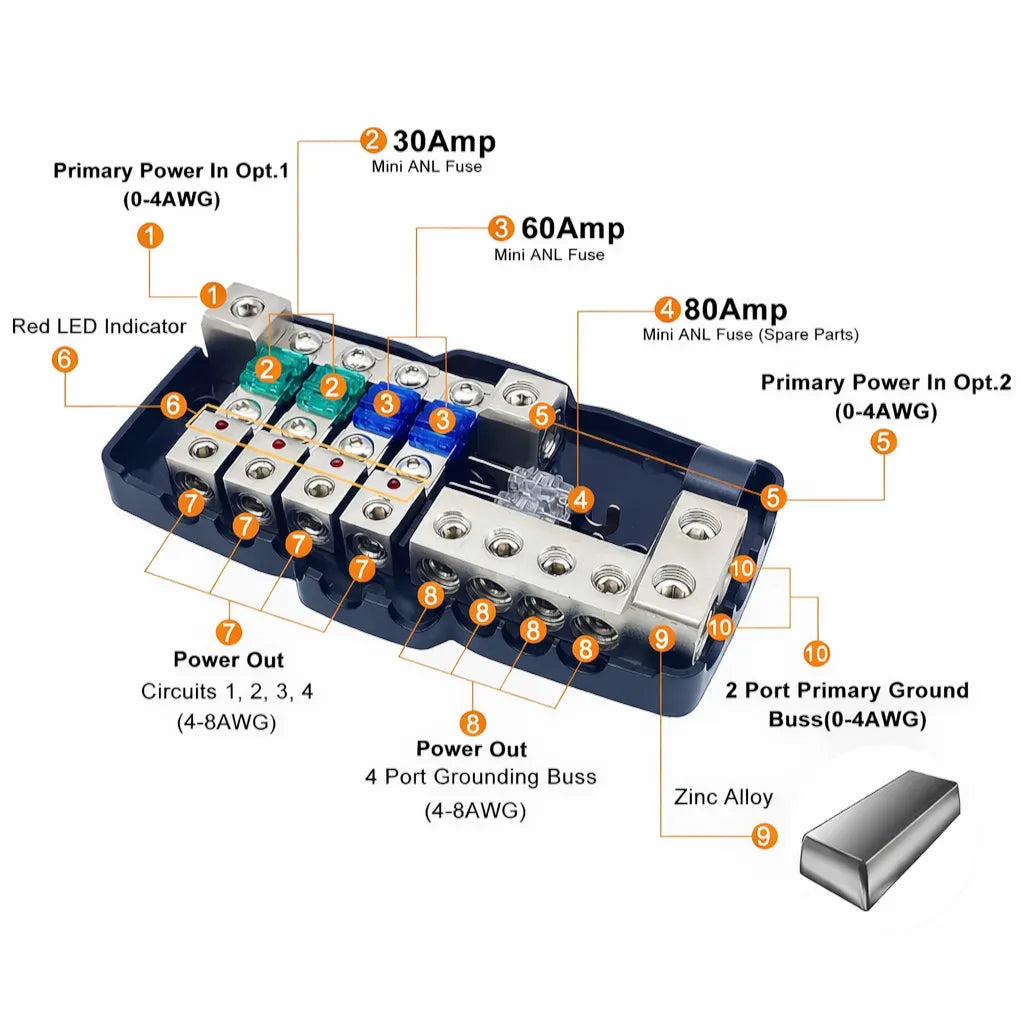

A single input feeds the fuse block through a heavy-duty terminal, distributing power to four individual MIDI-fused circuits. Each circuit includes an LED indicator that lights when its fuse fails. Integrated positive and negative busbars simplify wiring layouts by centralising all connections in one location.
🔌 Compatibility
• Works with 12v–48v DC systems
• Suits campervans, caravans, RVs, boats, 4WDs and auxiliary systems
• Accepts standard MIDI fuses
• Supports heavy-gauge input cables up to 50mm² (0AWG)
🧰 Installation Difficulty
🟢 2/5 (Easy)
Surface-mount installation with straightforward high-current cable termination.
🔍 Features
• LED indicators for blown fuses
• 4-way positive distribution bar
• 4-way negative distribution bar
• Compact heavy-duty housing

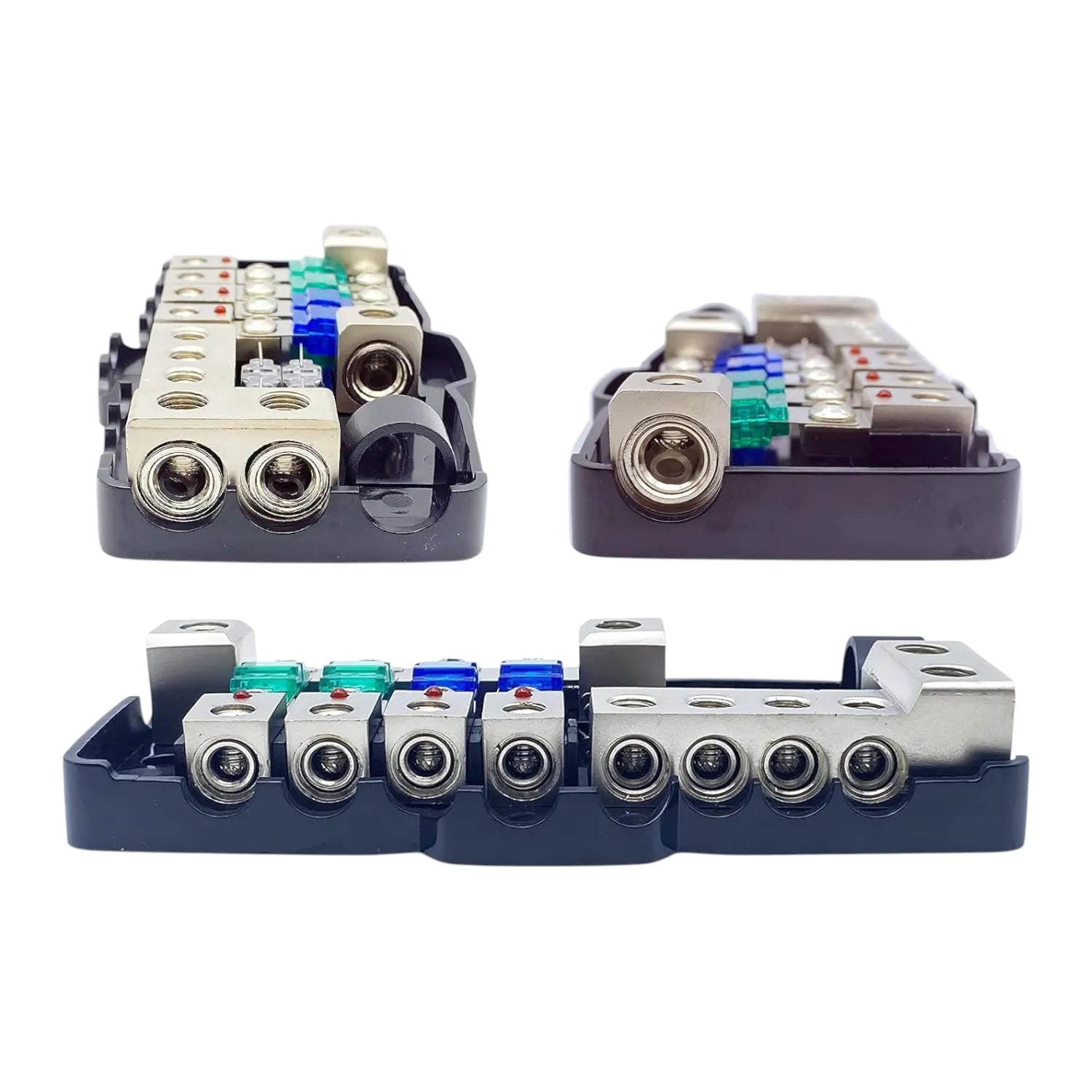

• Pin-style output connections
• Vibration-resistant design
📊 Specifications
| Specification | Value |
|---|---|
| Max Voltage | 48V DC |
| Circuits | 4 (MIDI fused) |

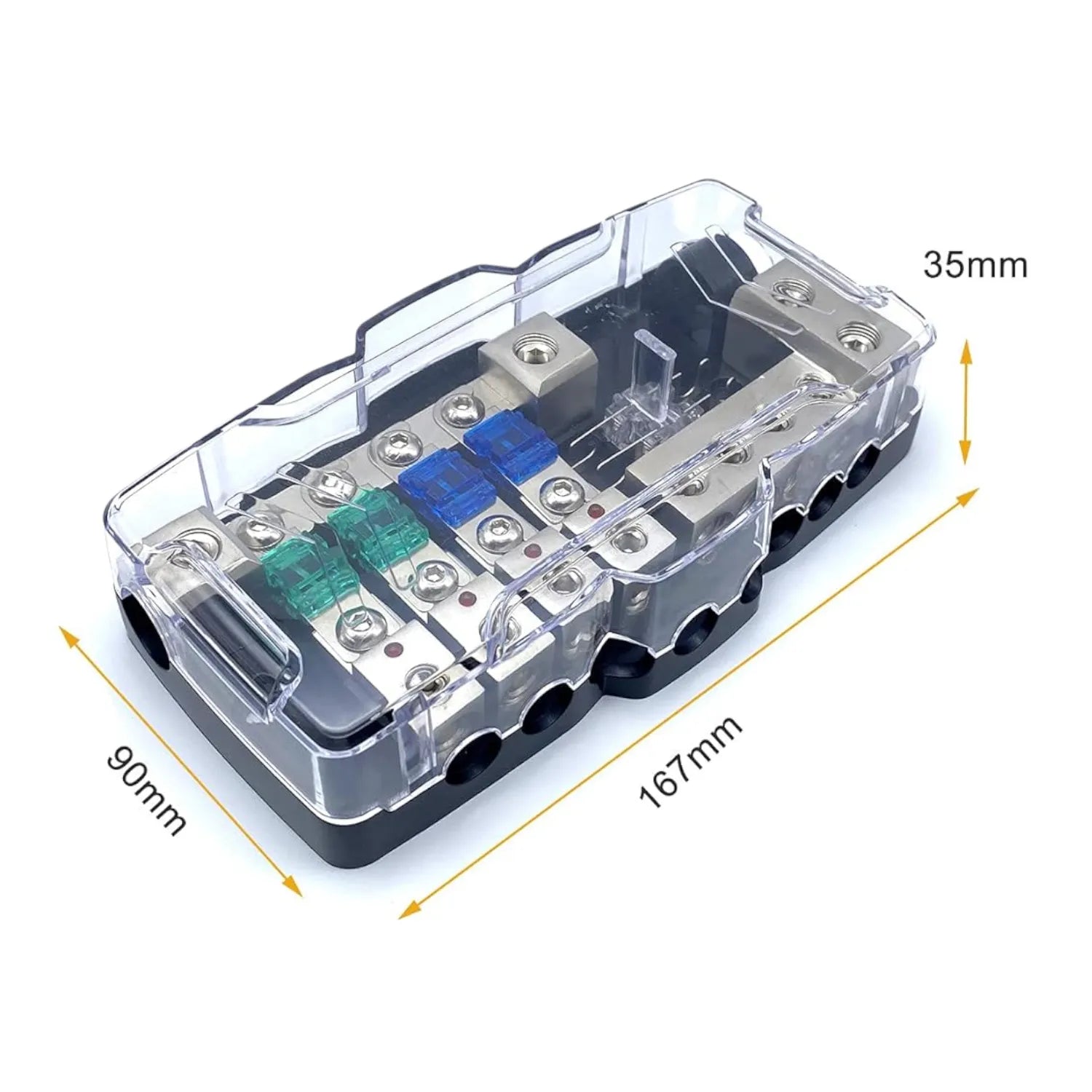

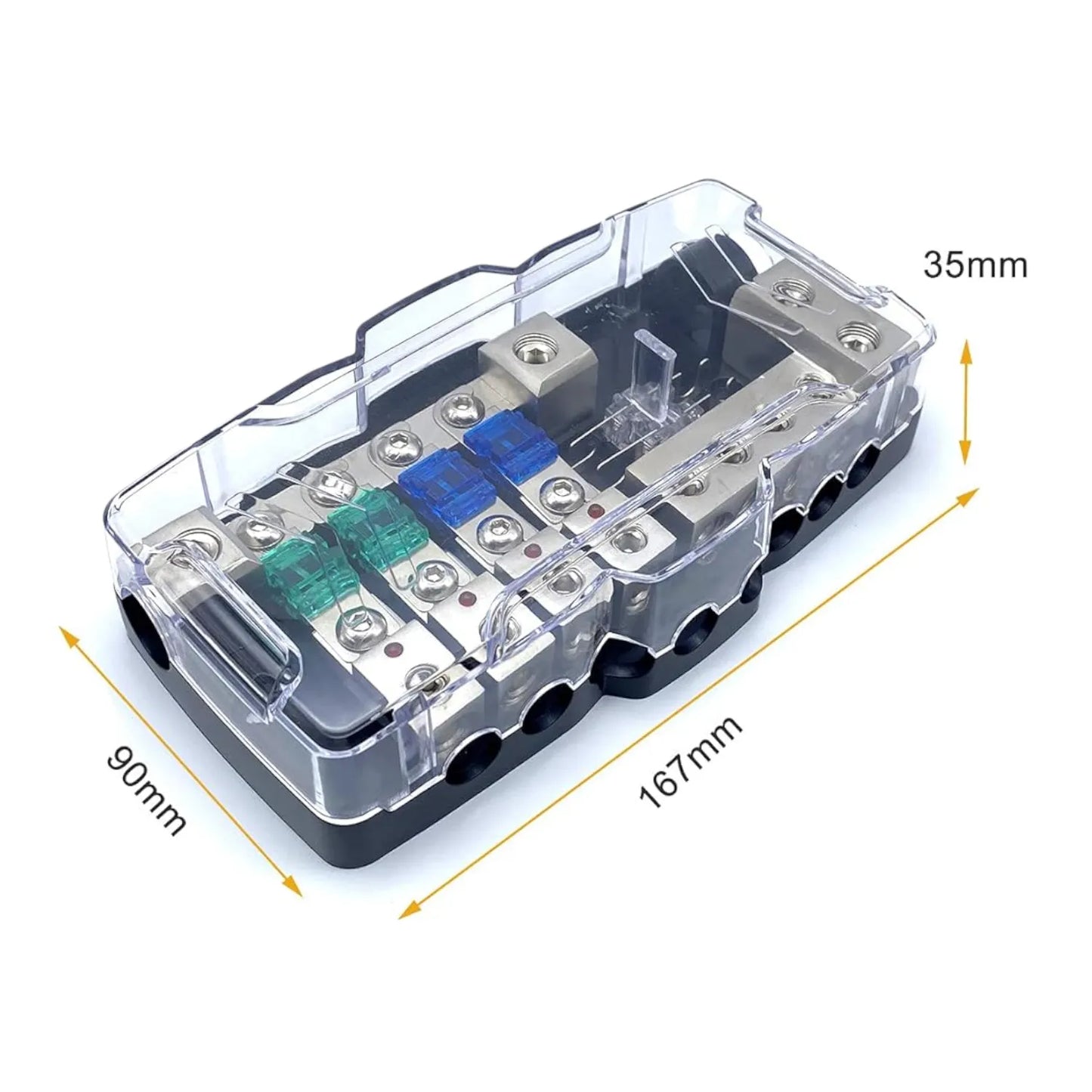

| Dimensions | 167 × 90 × 35mm |
| Input Cable Size | Max 8mm / 50mm² / 0AWG |
| Output Cable Size | Max 5mm / 16mm² / 4AWG |
| LED Indication | Yes – lights when fuse is blown |
| Housing Material | Durable composite housing |
📦 What’s Included
• 1 × Quad channel MIDI fuse block with LED indicators
• Mounting hardware
🙌 Why Choose This Product?
This fuse block delivers high-current protection, LED diagnostics, and integrated busbars in one rugged, compact package. Ideal for complex off-grid or dual-battery setups, it keeps wiring organised and makes troubleshooting effortless.
