Modular Fuse Holder for AMI/MIDI fuses - Stackable 1/2/3/4/5/6
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown

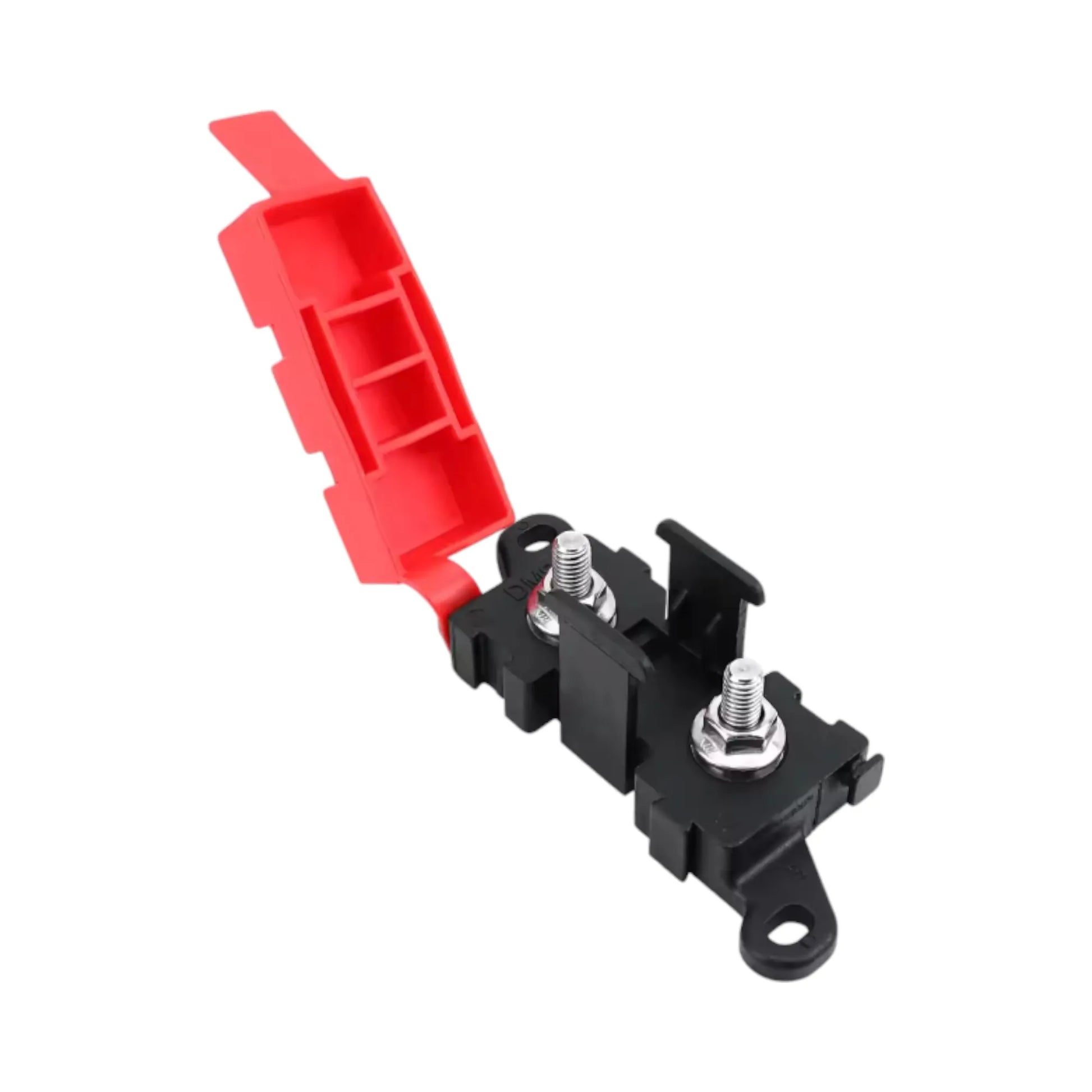

A modular holder system for AMI/MIDI fuses. The modules lock together, so you can build a linked block of one to six fuses for high-current 12V and 24V installs.
Why it works

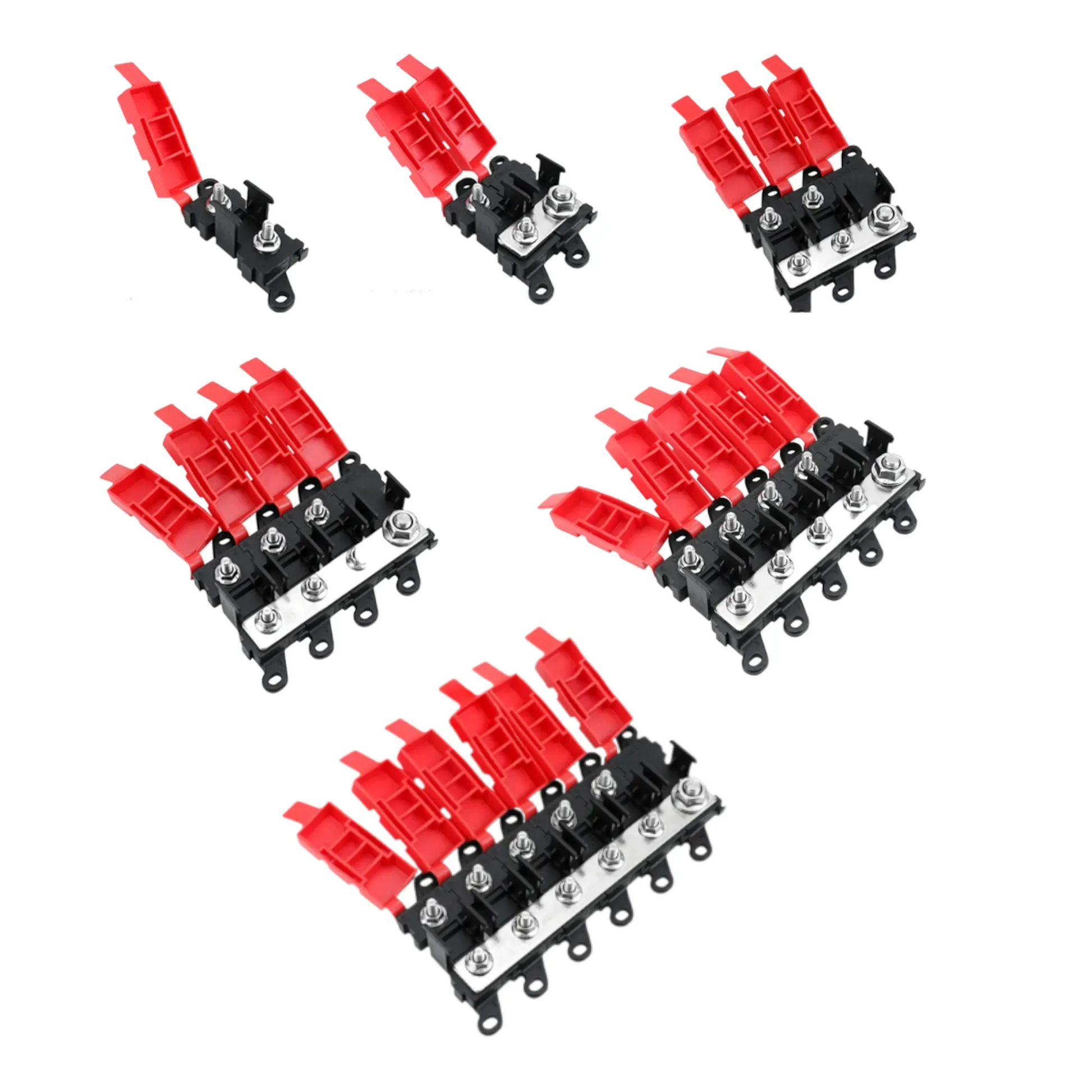

- Stackable modular design: Configure 1 to 6 fused circuits from a single input.
- High-current capability, Each module rated to 200A, with up to 400A continuous combined when bussed.
- Single-input busbar: Efficient power distribution using one M8 primary feed.
- Rugged construction: Built from high-temperature, wear-resistant thermoplastic.
- Splash-resistant protection: Removable cover shields fuses and studs from moisture and debris.
- Universal MIDI/AMI compatibility: Supports all industry-standard MIDI/AMI fuses.
What's in the box
- 1 x Selected Variant of Modular AMI/MIDI fuse holder
(Stack additional units as required, fuses not included)
How it works

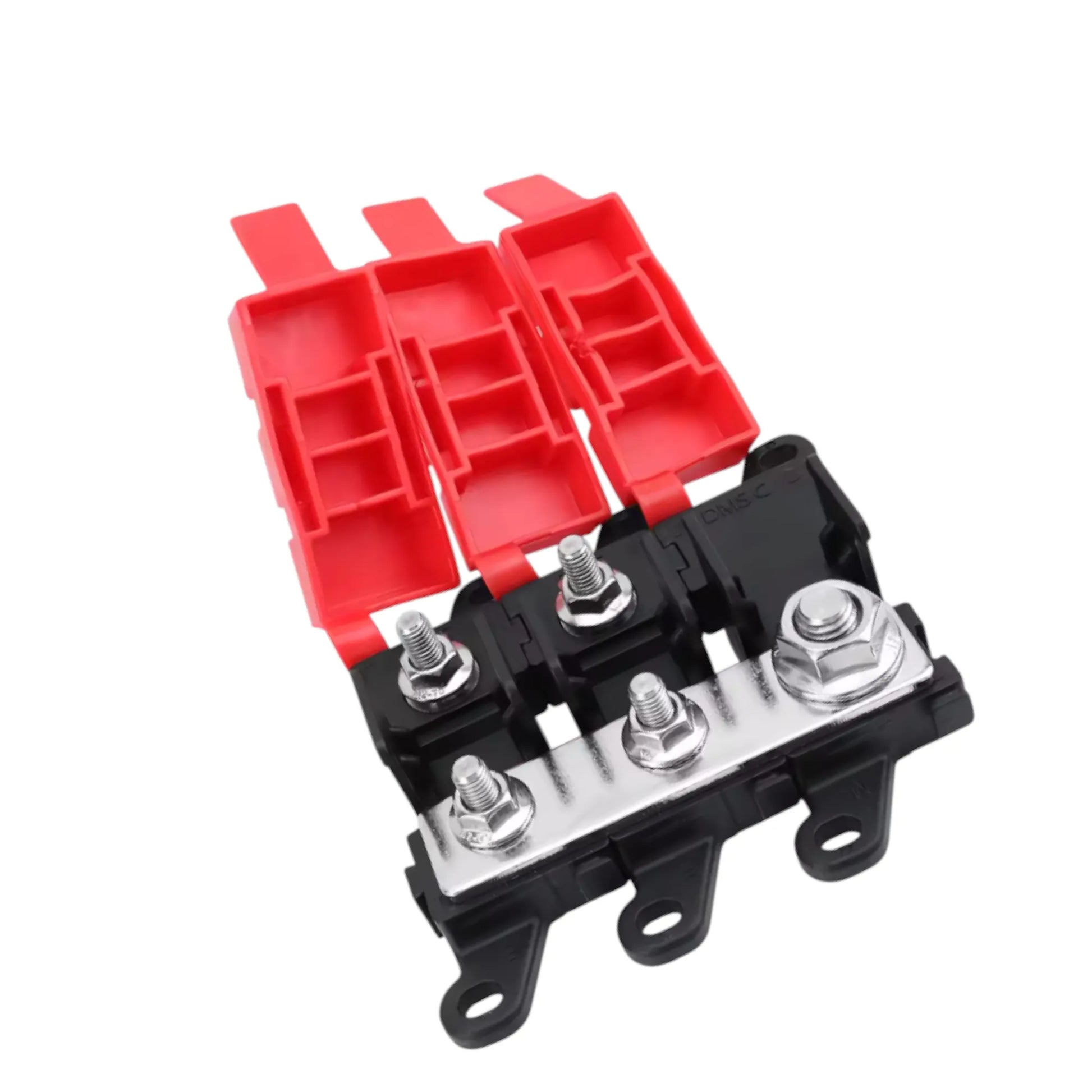

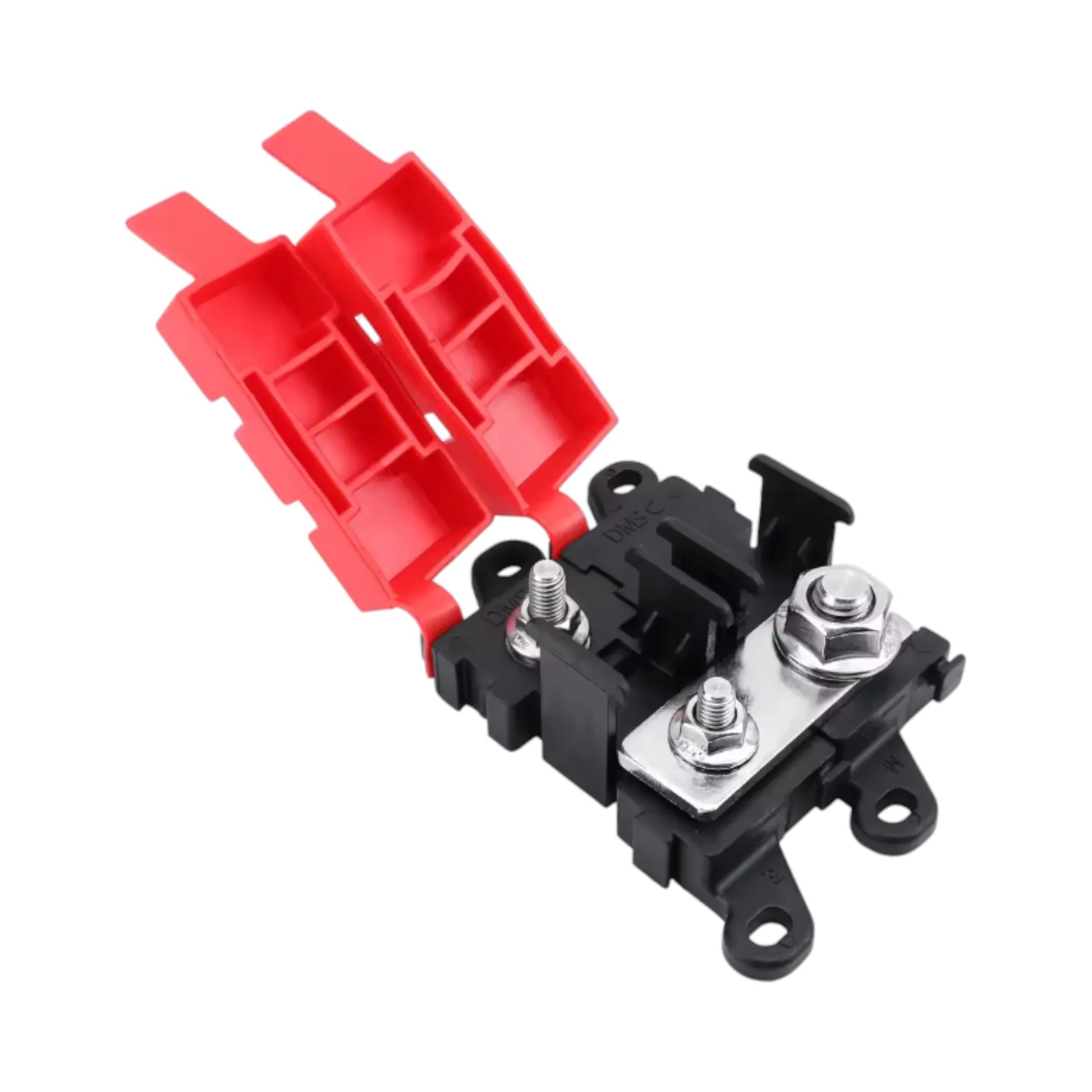

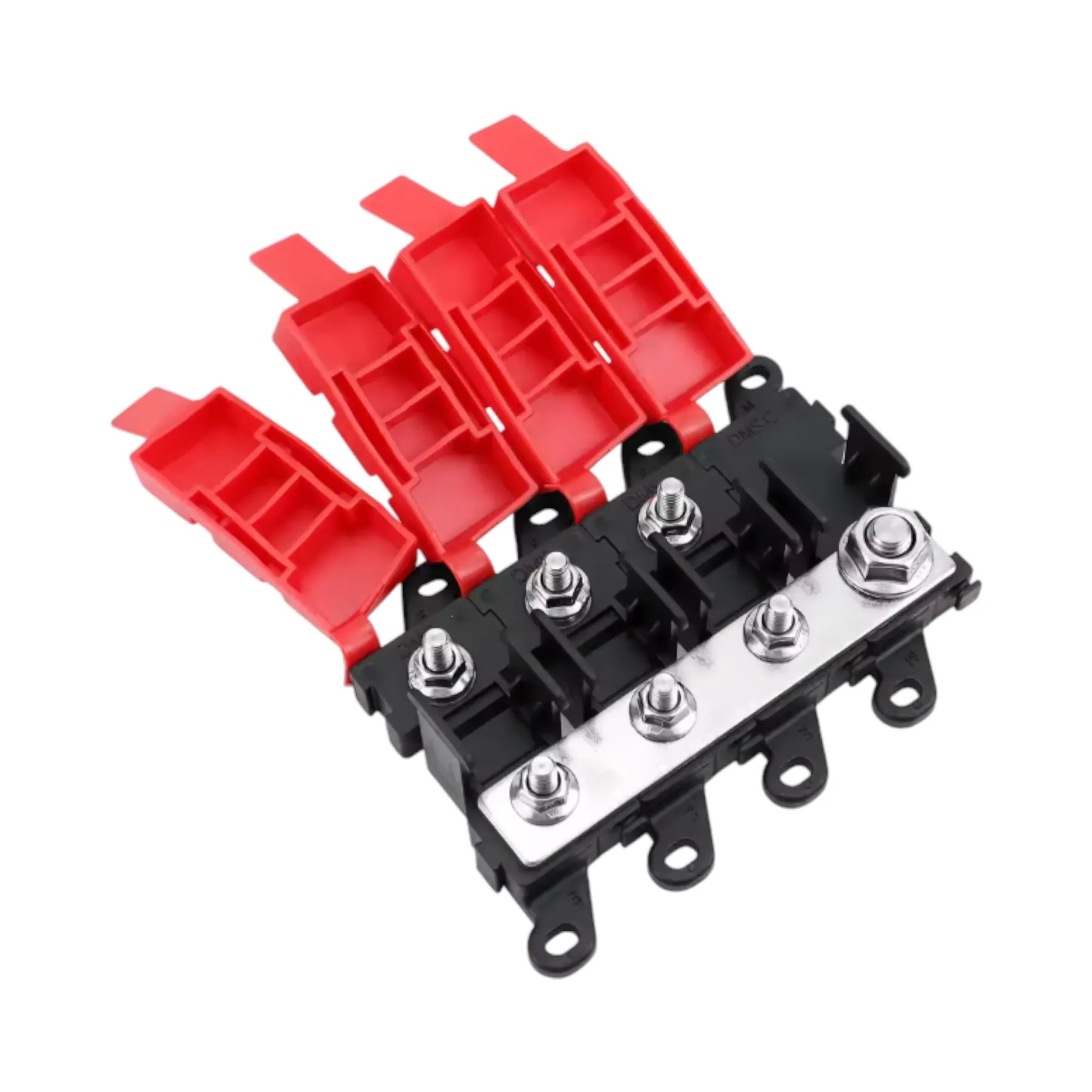

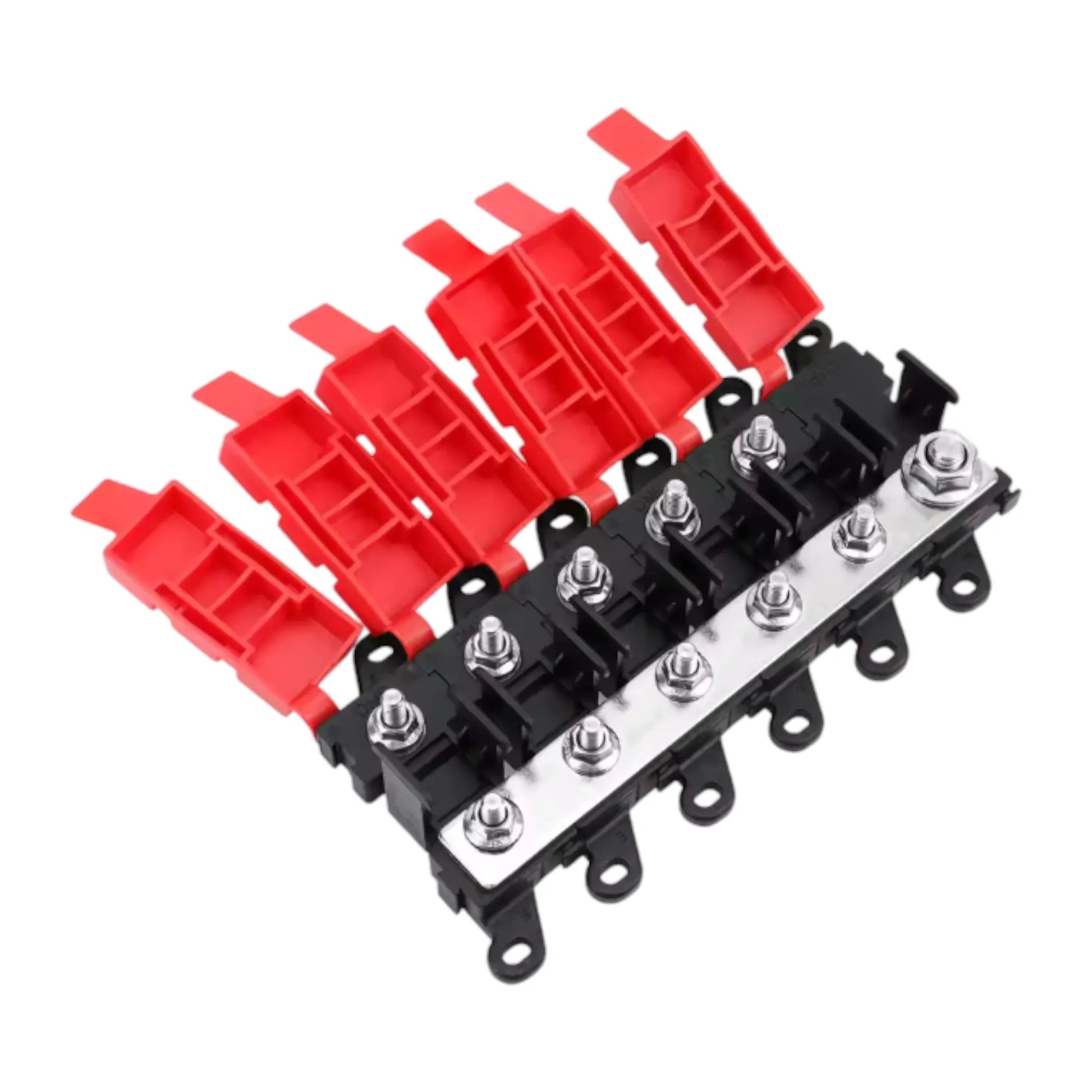

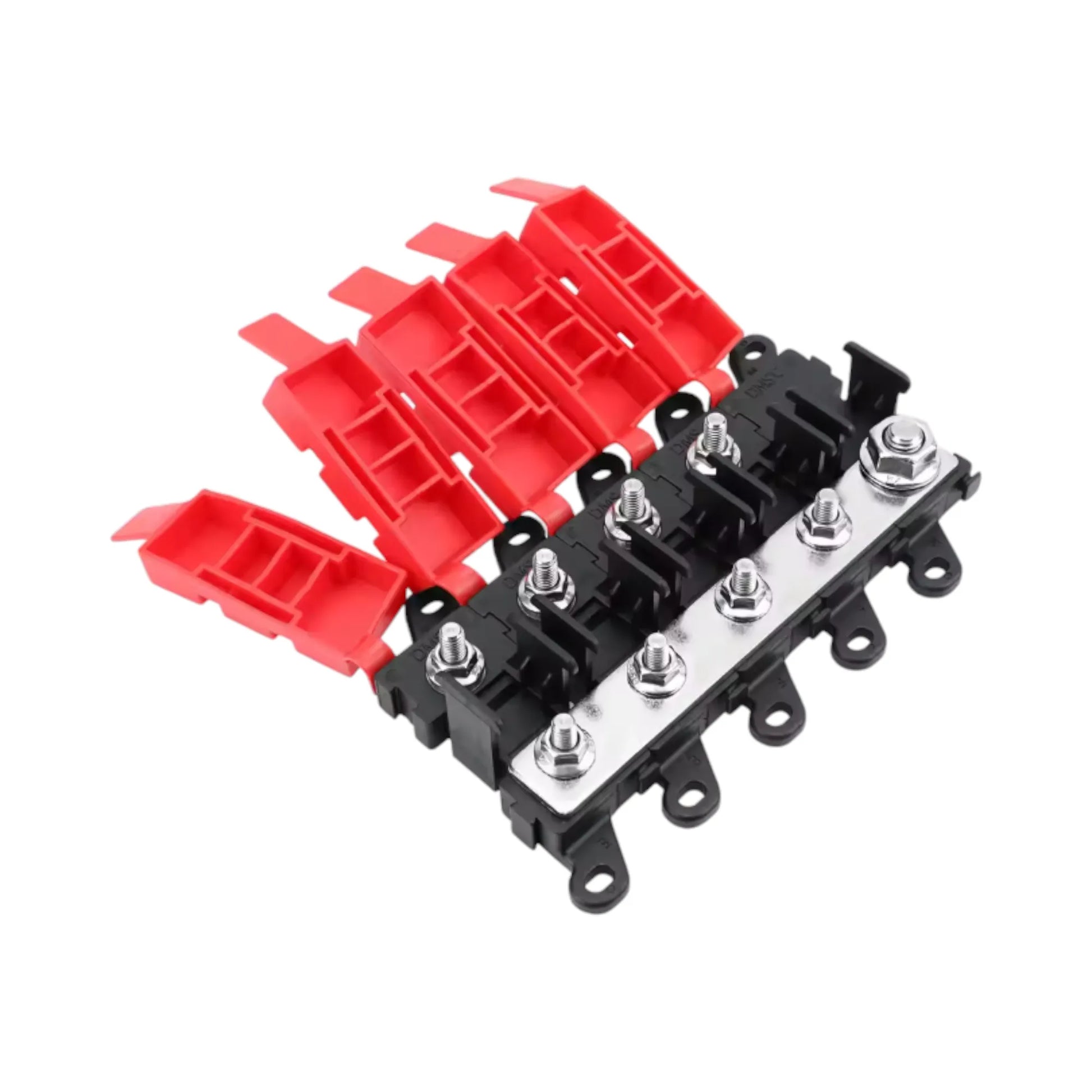

Each module includes a stainless-steel M5 fuse stud pair and interlocking housing design, allowing modules to be stacked side-by-side. When joined, the internal busbar links the modules, distributing power from a single M8 input terminal to multiple fused outputs. This allows clean, scalable fusing for DC-DC chargers, inverters, compressors, auxiliary batteries, distribution panels and high-current accessories.
What it suits
- Works with 12V & 24V DC systems
- Accepts MIDI / AMI high-current fuses
- Ideal for boats, marine engine bays, 4WDs, campervans, RVs, industrial and agricultural systems
- Suitable for under-hood and harsh-environment installations
Fitting it
Difficulty: 2/5 (Easy). Surface-mount installation with standard M8 feed and M5 fuse stud wiring.
Features
- Stackable 1-6 modular design
- M8 stainless input stud
- M5 stainless fuse studs
- High-temperature UL-94V0 housing
- Red EPDM/Santoprene splash-resistant cover
- Interlocking housing system
- Up to 400A total continuous when stacked
- Wear-resistant, sturdy, high-durability construction
Specifications
| Max Voltage | 32V DC |
| Fuse Type | AMI / MIDI |
| Module Rating | 200A each |
| Combined Rating | Up to 400A continuous |
| Temperature Range | -40°C to 85°C |
| Input Stud | M8 stainless steel |
| Fuse Studs | M5 stainless steel |
| Housing Material | HTN UL-94V0 thermoplastic |
| Cover Material | Red EPDM/Santoprene |

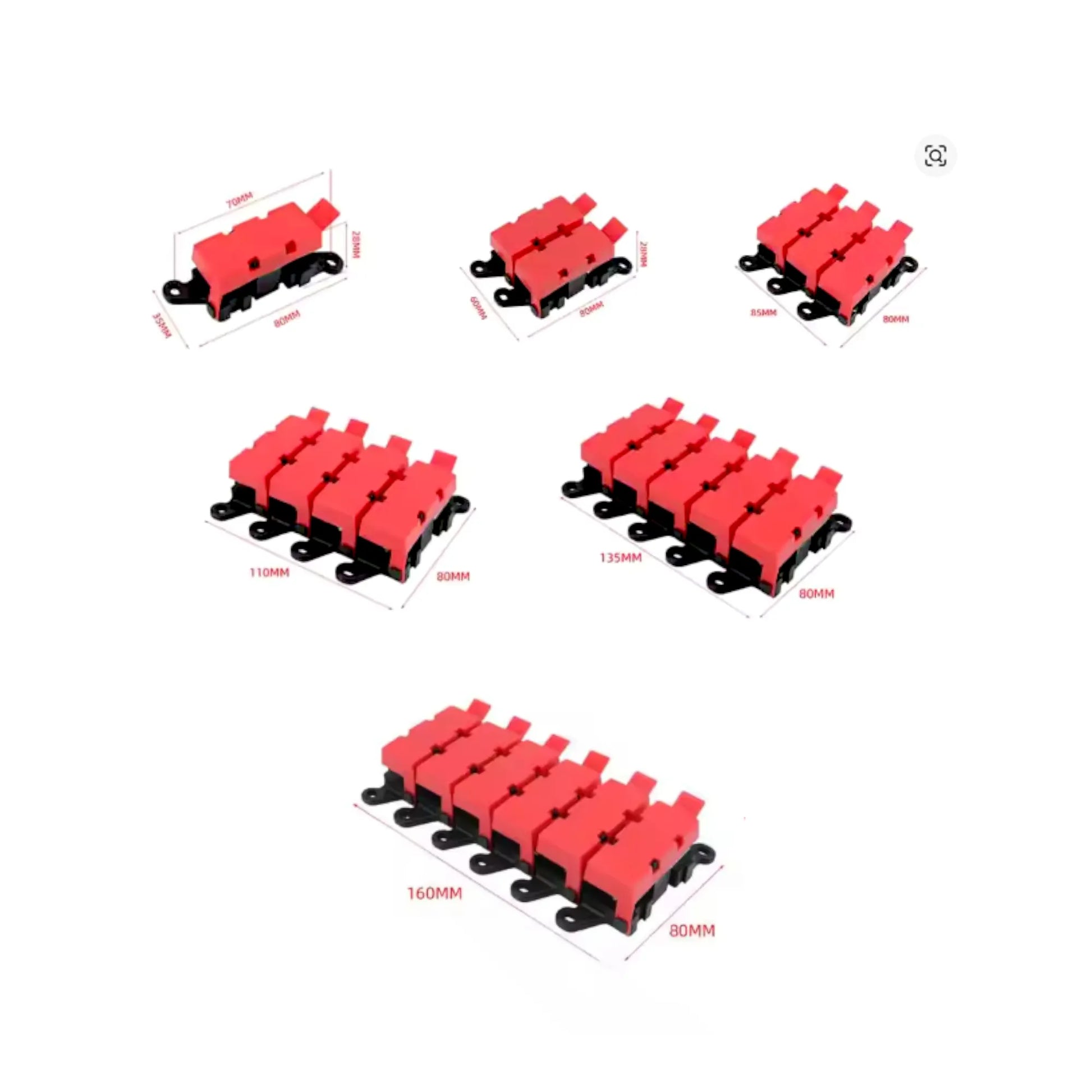

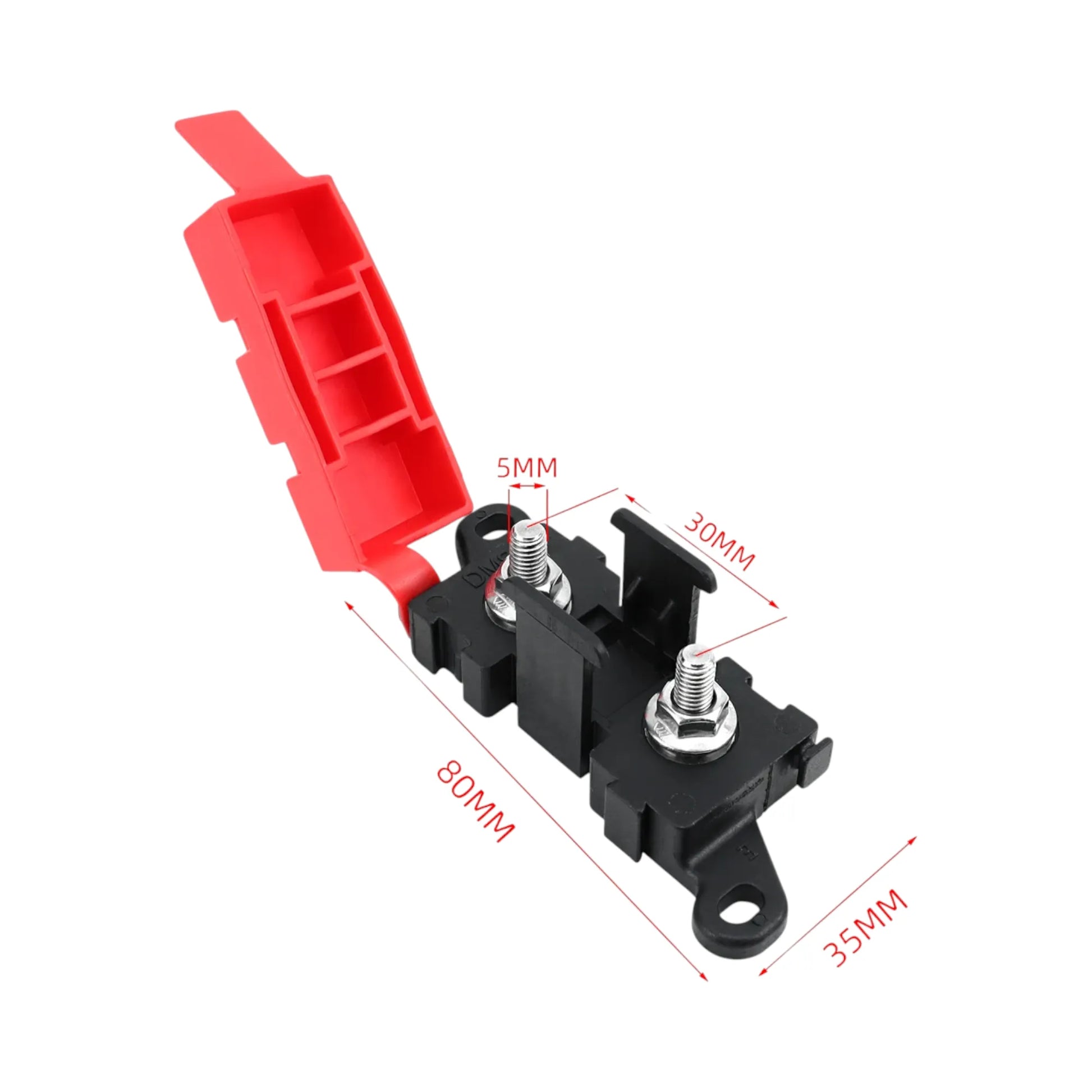

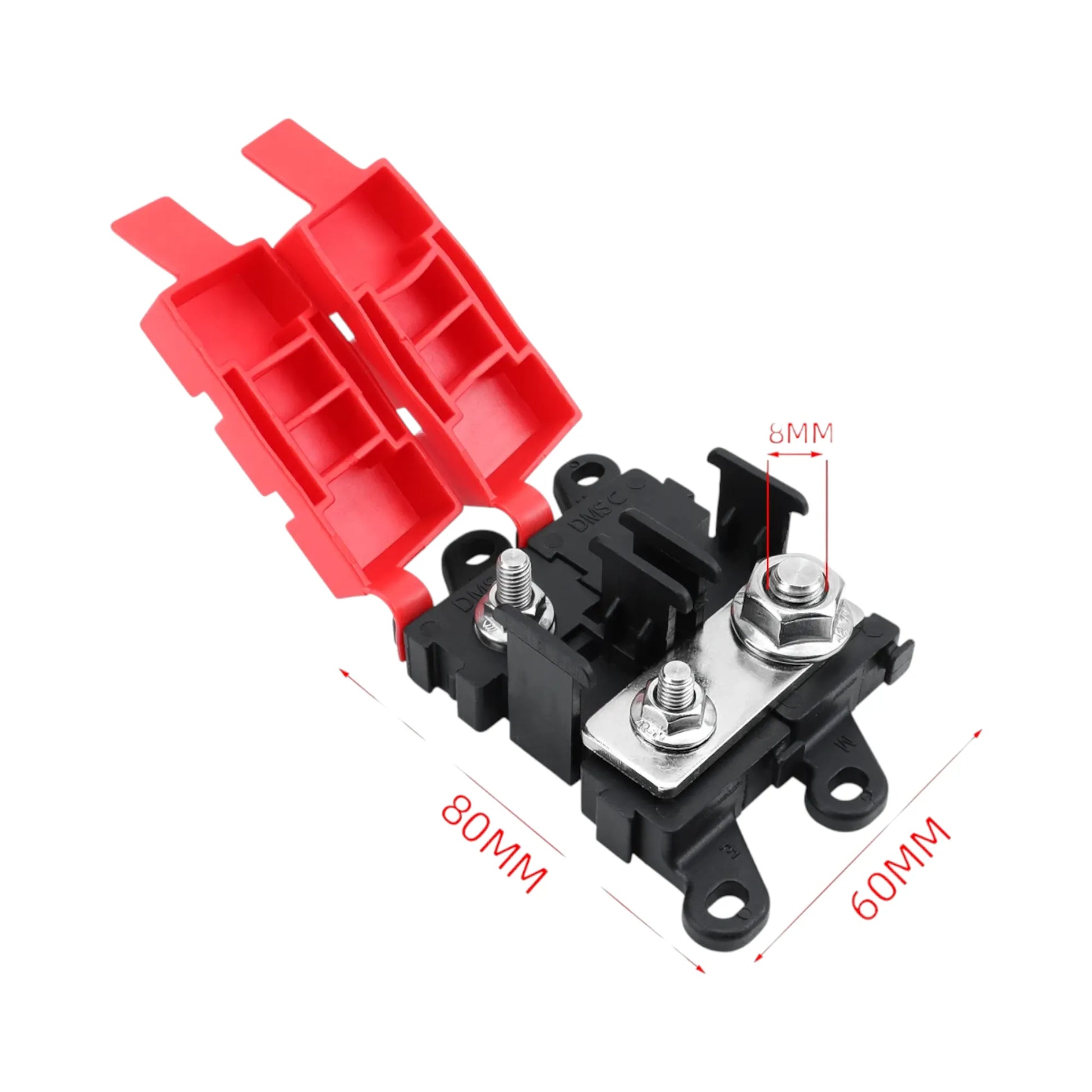

| Dimensions (single module) | 80 x 35 x 28mm (approx) |
| Mounting Hole Spacing | 70mm (approx) |
