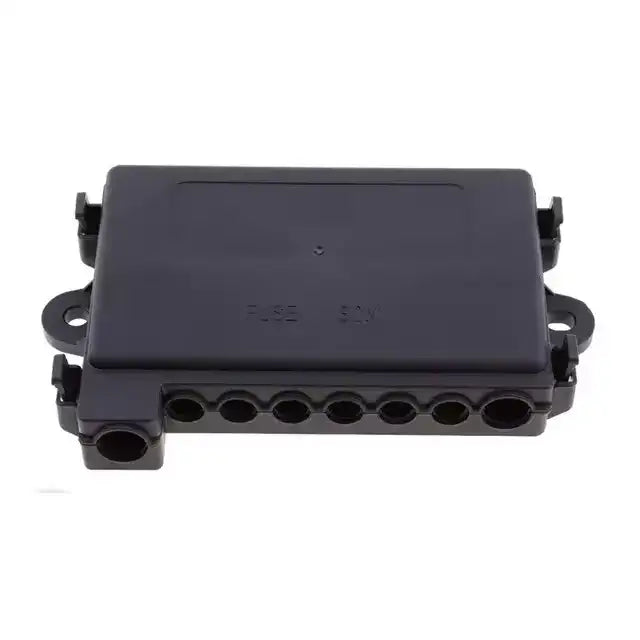

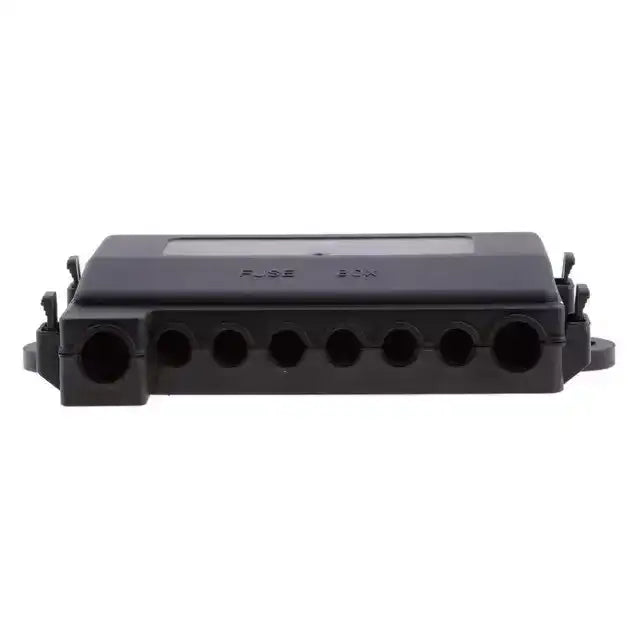

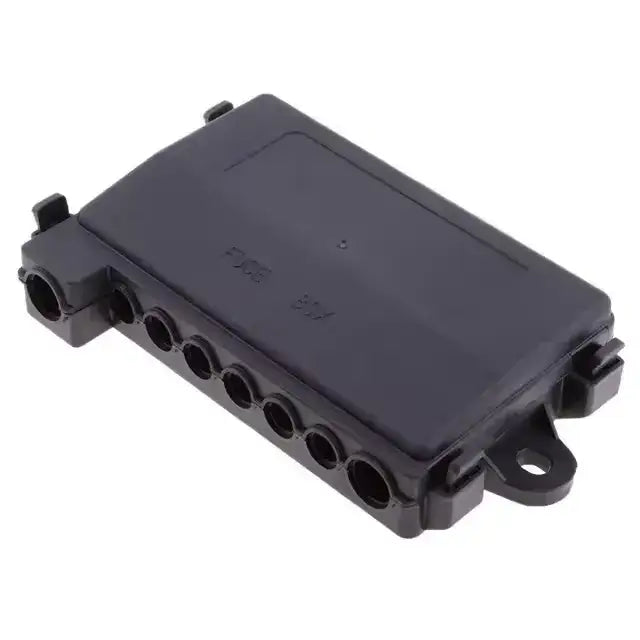

Mega - Midi Distro Box 1-7

A distribution box with one Mega fuse on the main feed and seven MIDI-fused outputs off a solid internal busbar. Room to grow for high-current 12V and 24V systems.

Why it works

• Mega fuse main protection: Secures your primary feed from dangerous overcurrent faults.
• Seven MIDI-fused outputs: Distributes safe, protected power to multiple subsystems.
• High-current copper busbar: Ensures strong, stable and efficient power flow.
• Expanded circuit capacity: Great for complex multi-accessory installations.
• Heavy-duty composite housing: Dust-resistant and built for harsh off-road and marine environments.
• 32V DC compatible: Suitable for both 12V and 24V setups.

What's in the box

• 1 x Mega-MIDI 1-in, 7-out distribution block

How it works

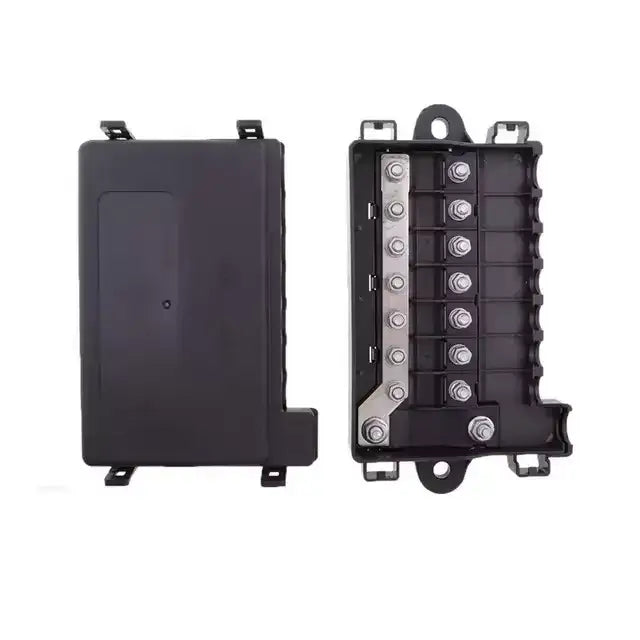

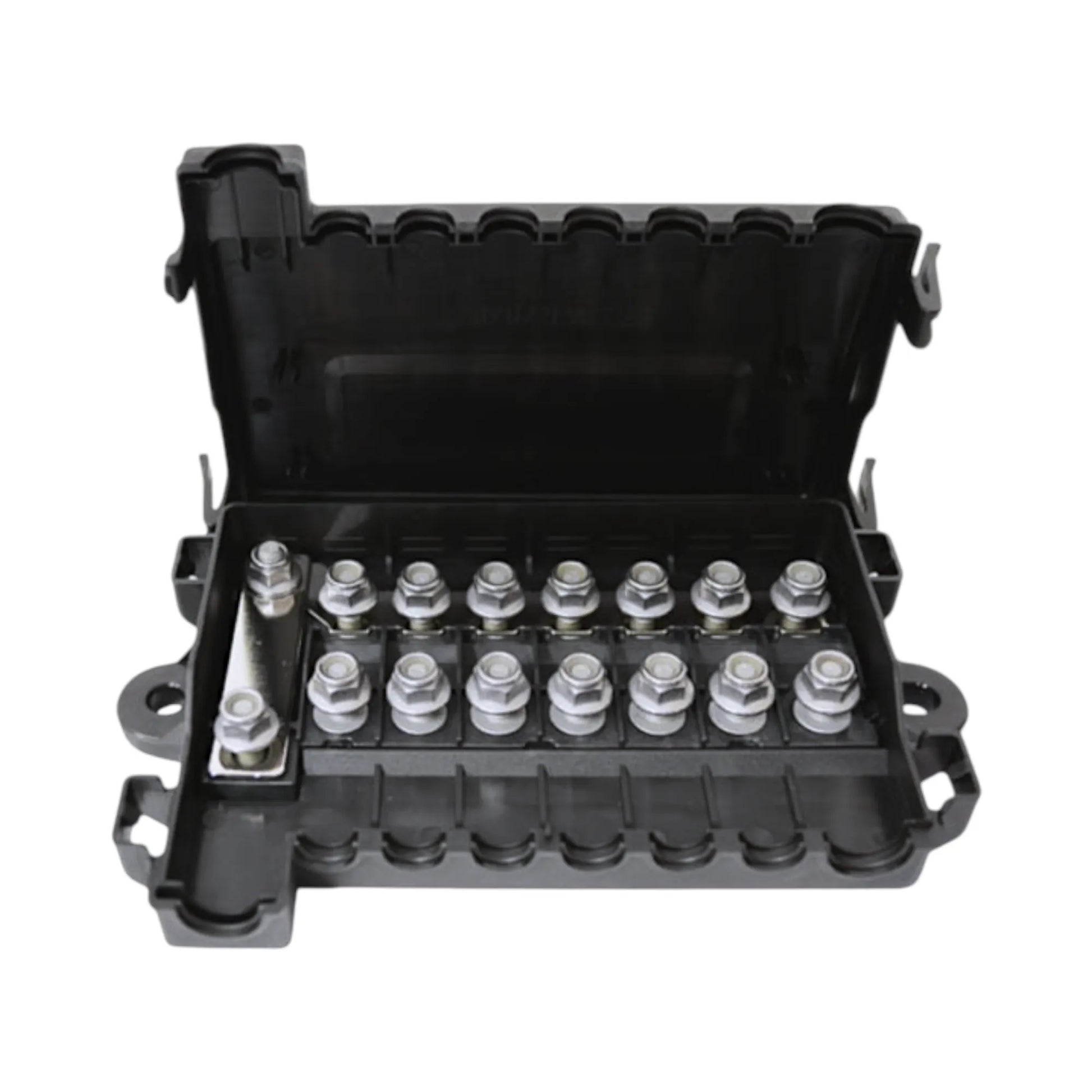

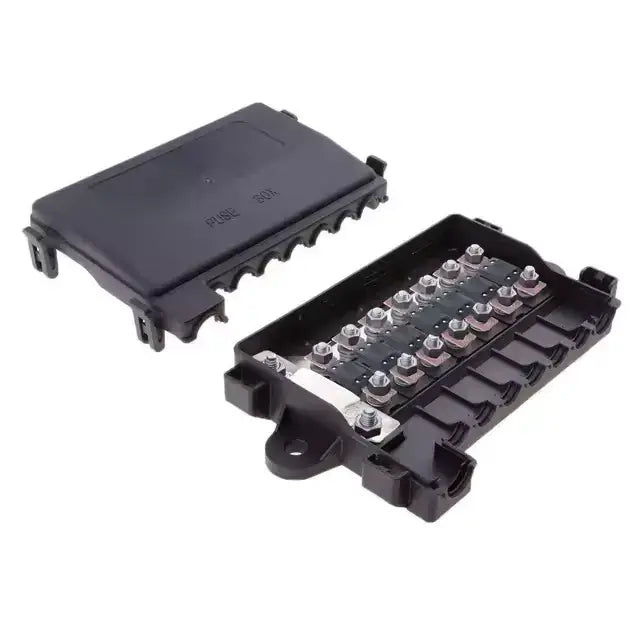

A single heavy-gauge feed enters through the Mega fuse, providing system-wide protection. From there, the internal copper busbar distributes clean, stable power to seven individually fused MIDI output circuits. Ideal for powering inverters, fridges, pumps, lighting, chargers, compressors, lithium systems and other demanding accessories.

What it suits

• Works with 12V and 24V DC systems
• Accepts Mega (AMG) and MIDI (AMI) fuses
• Perfect for campervans, caravans, RVs, 4x4s, boats, mining, industrial and auxiliary power systems
• Suitable for high-current accessories and complex builds

Fitting it

Difficulty: 2/5 (Easy). Straightforward surface-mount install with simple Mega input and MIDI output wiring.

Features

• 1 x Mega fuse input/output
• 7 x MIDI output circuits
• High-current copper busbar for efficient distribution
• Rugged composite housing
• 32V DC maximum voltage rating
• Clean, compact multi-circuit layout
• Ideal for professional-grade 12-24V installations
