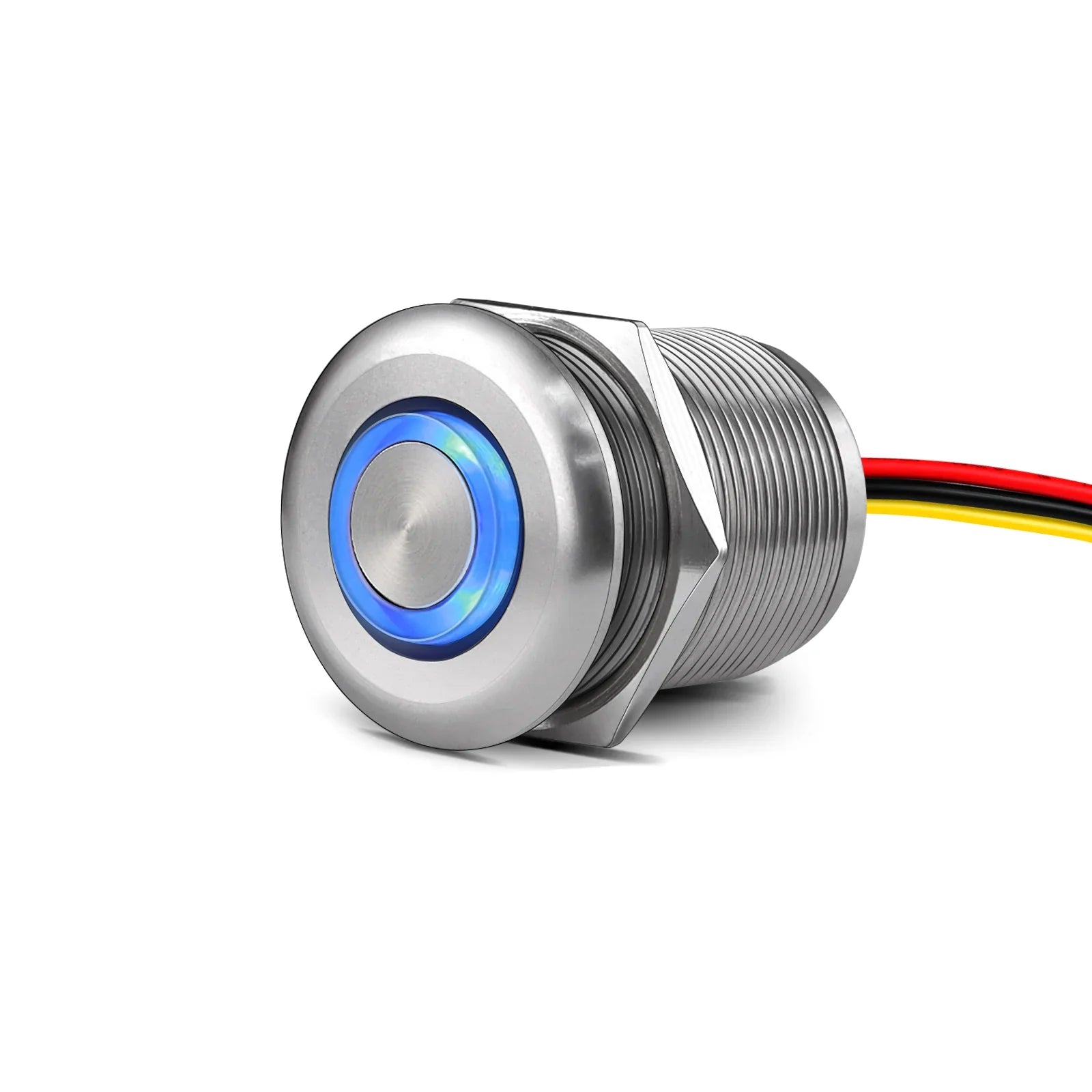

LED Aluminum Silver Dimmer Switch
📝 LED Aluminum Silver Dimmer Switch
⭐ Essential Benefits
• Premium all-aluminium build – cnc-milled housing for durability, strength and long-term reliability.
• Push-button dimming control – short-press for on/off, long-press for smooth brightness adjustment.
• Blue locator backlight – subtle glow helps you find the switch in the dark without overpowering your eyes.
• Smooth pwm dimming – flicker-free brightness adjustment from 3% to 100%.
• Brightness memory – automatically returns to your last used dimming level.

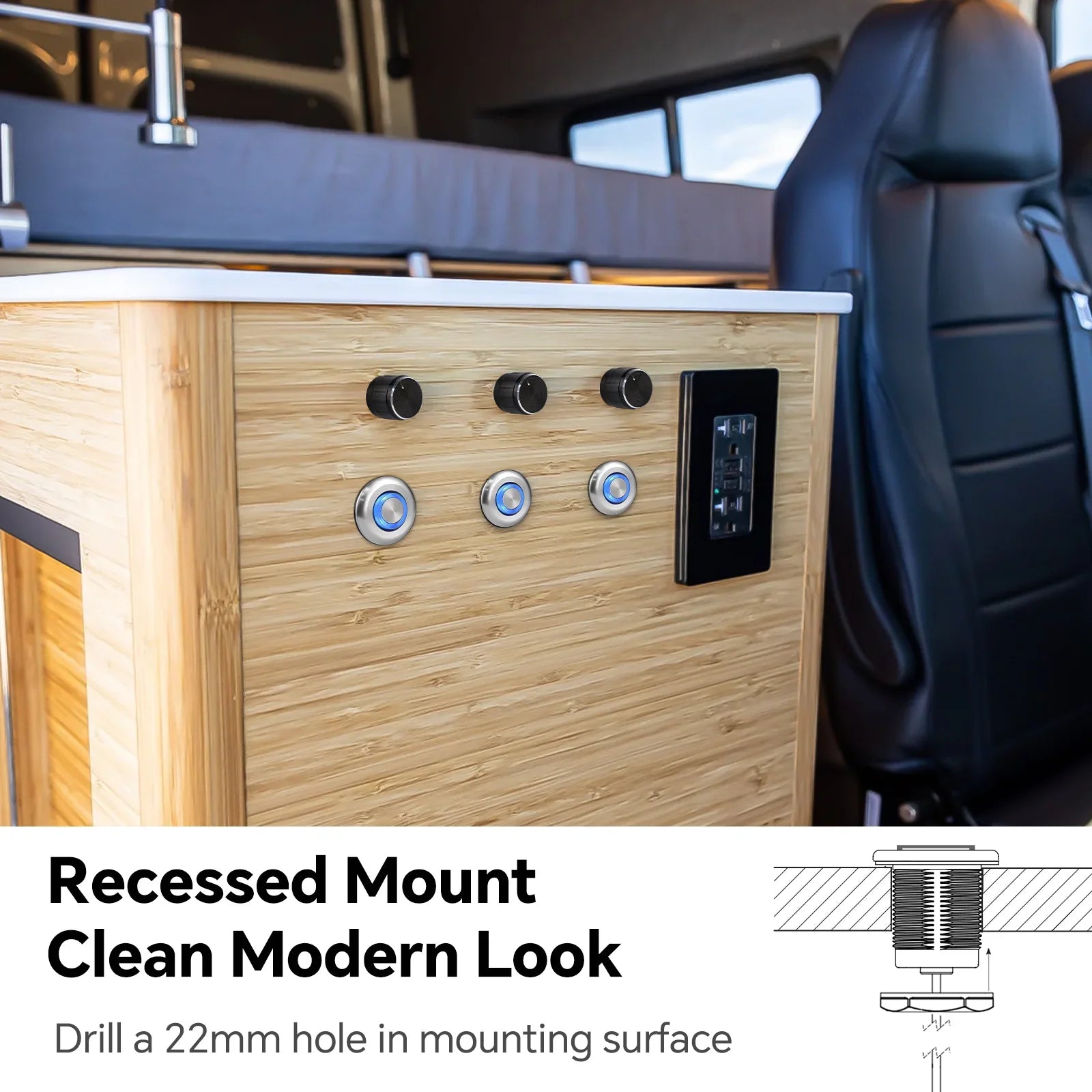

• Recessed mounting design – fits cleanly into any control panel with a 22mm cut-out.
• Versatile 12v compatibility – ideal for led strip lights, downlights, dome lights and more.
⚙️ Functionality

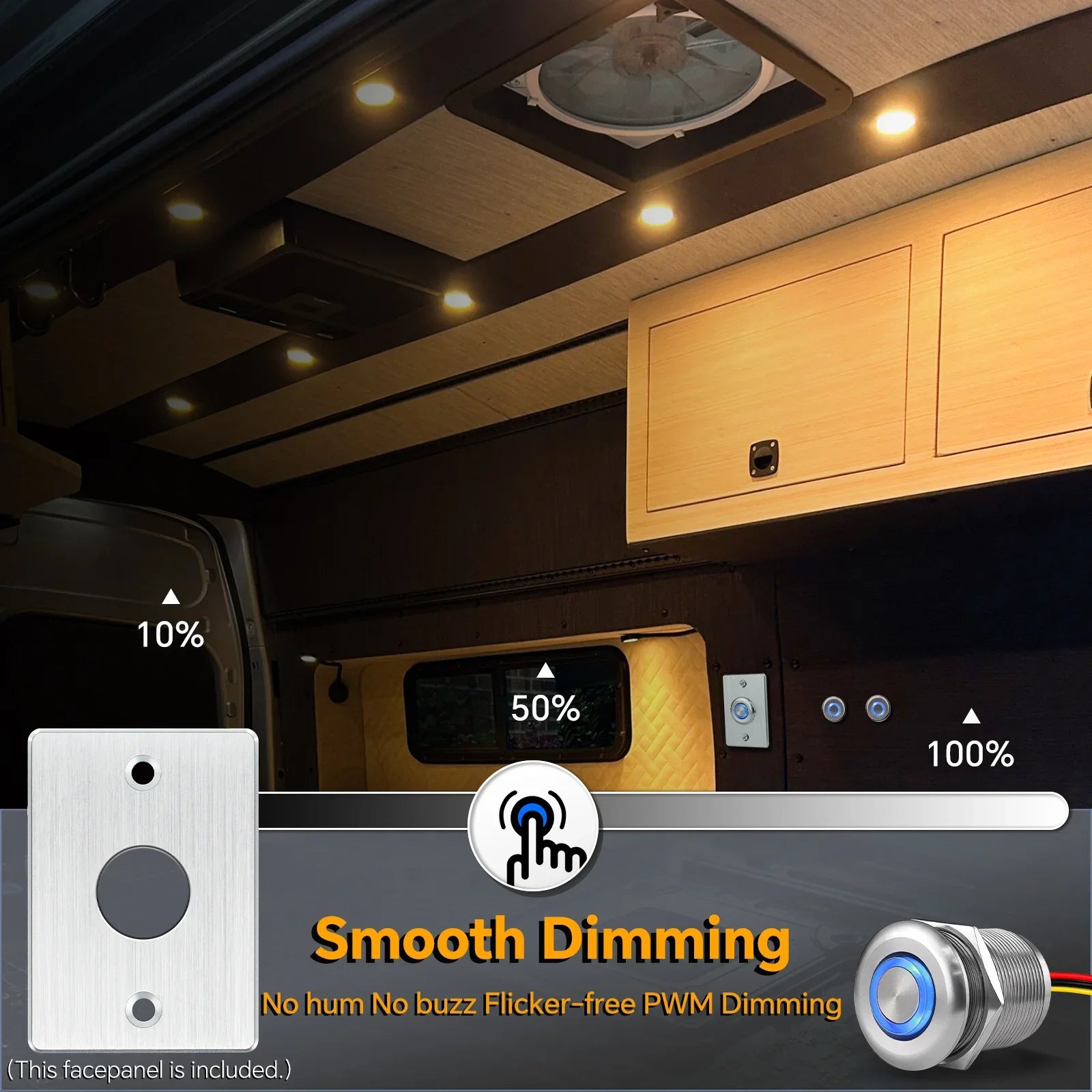

This dimmer switch uses advanced pwm technology to deliver flicker-free, stepless brightness control. Simply tap the button to turn your lights on or off, or hold it to smoothly cycle through the dimming range. The integrated memory function ensures the light returns to the same brightness level each time you turn it back on.

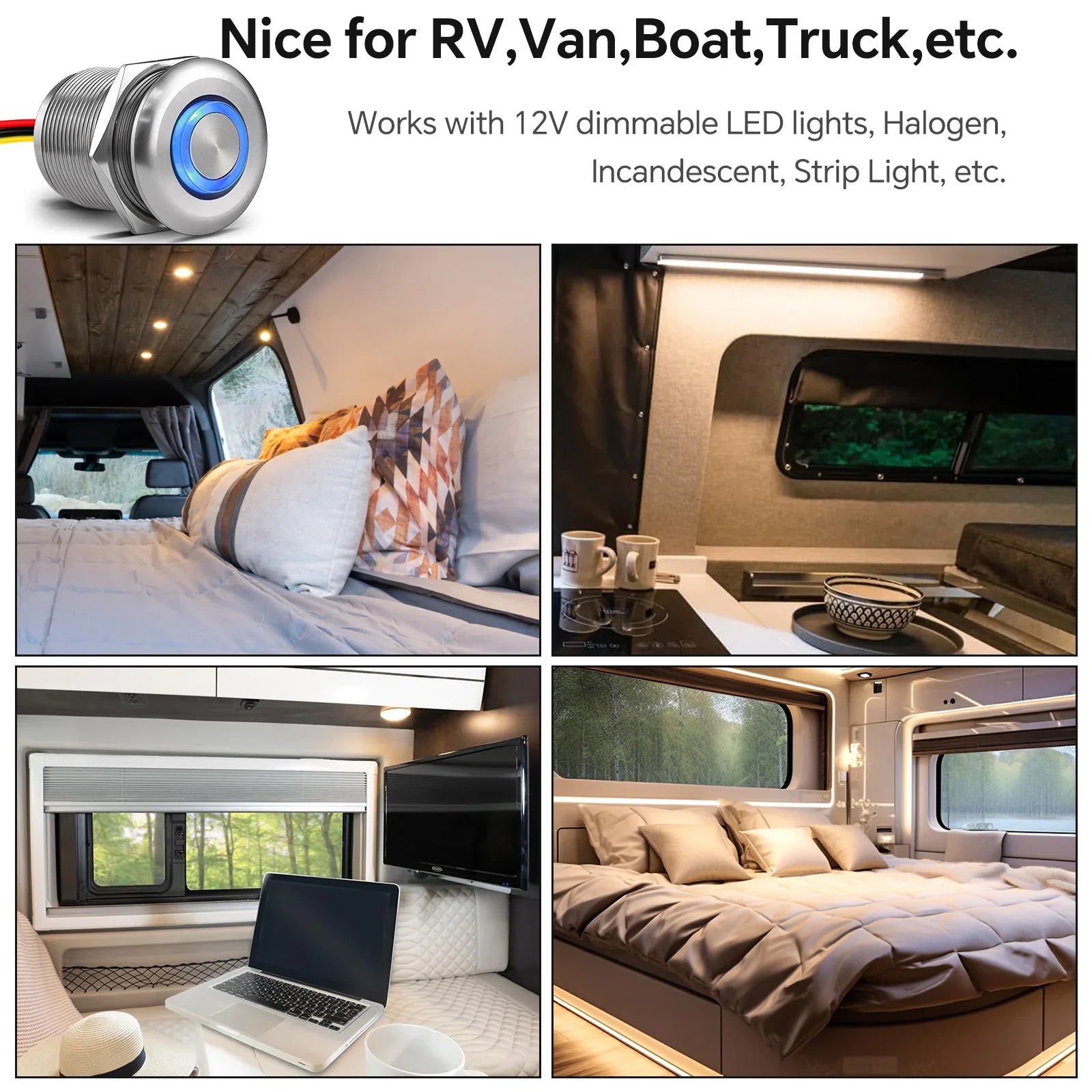

🔌 Compatibility
• 12v led lighting systems
• Campervans, caravans and RVs
• Boats, marine cabins and bus conversions
• Trucks, trailers and canopy builds
• Under-cabinet and interior panel lighting
• Halogen, incandescent and dimmable 12v led fixtures
🧰 Installation Difficulty

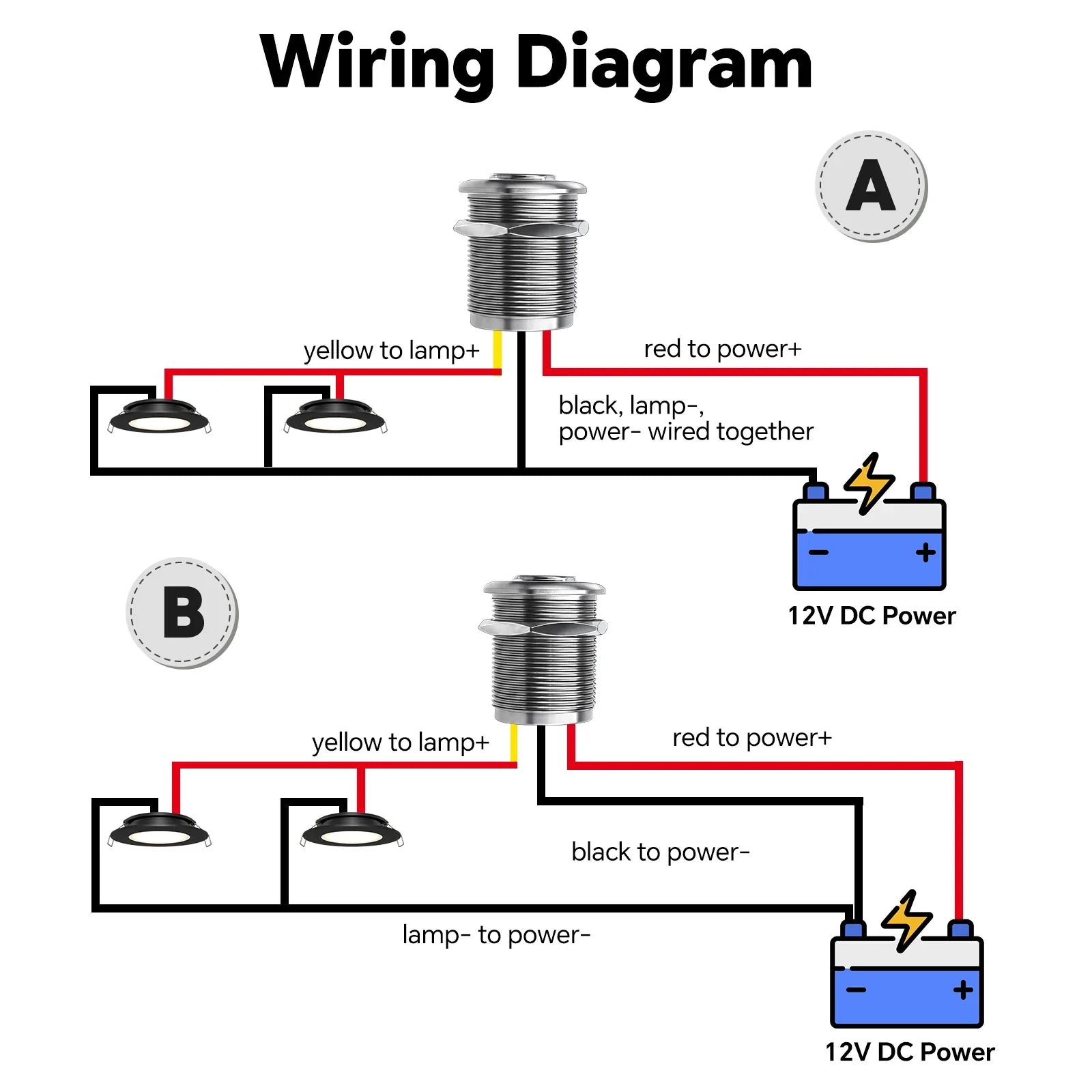

🟢 1/5 (Easy) – Requires a 22mm mounting hole and basic 12v wiring.

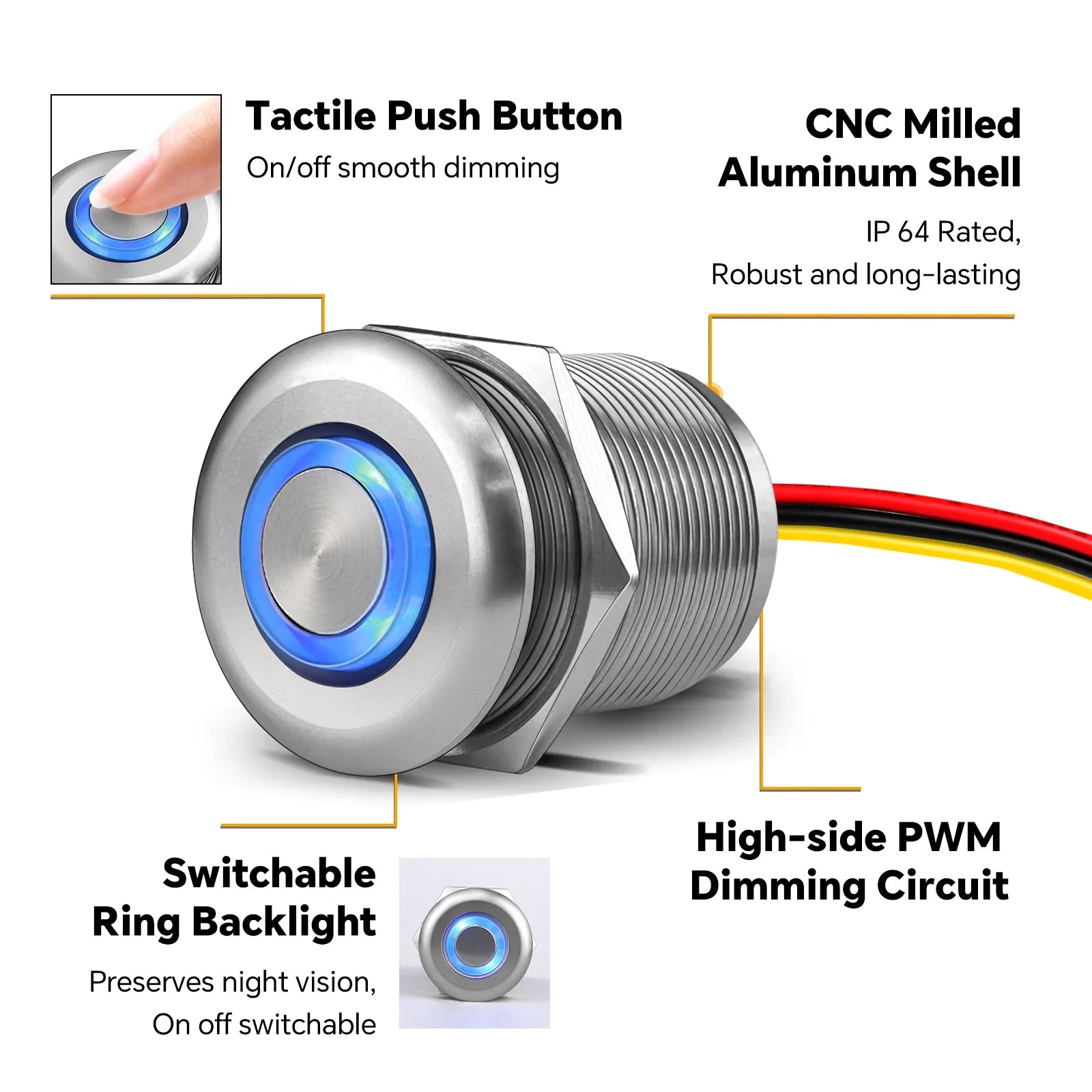

🔍 Features
• Push-button on/off + dimming
• Blue ring locator light
• CNC-machined aluminium housing
• Recessed 22mm panel mount
• PWM flicker-free dimming (3%–100%)
• 6A maximum output
• Stability-focused heat dissipation
• IP64 rated (indoor use)

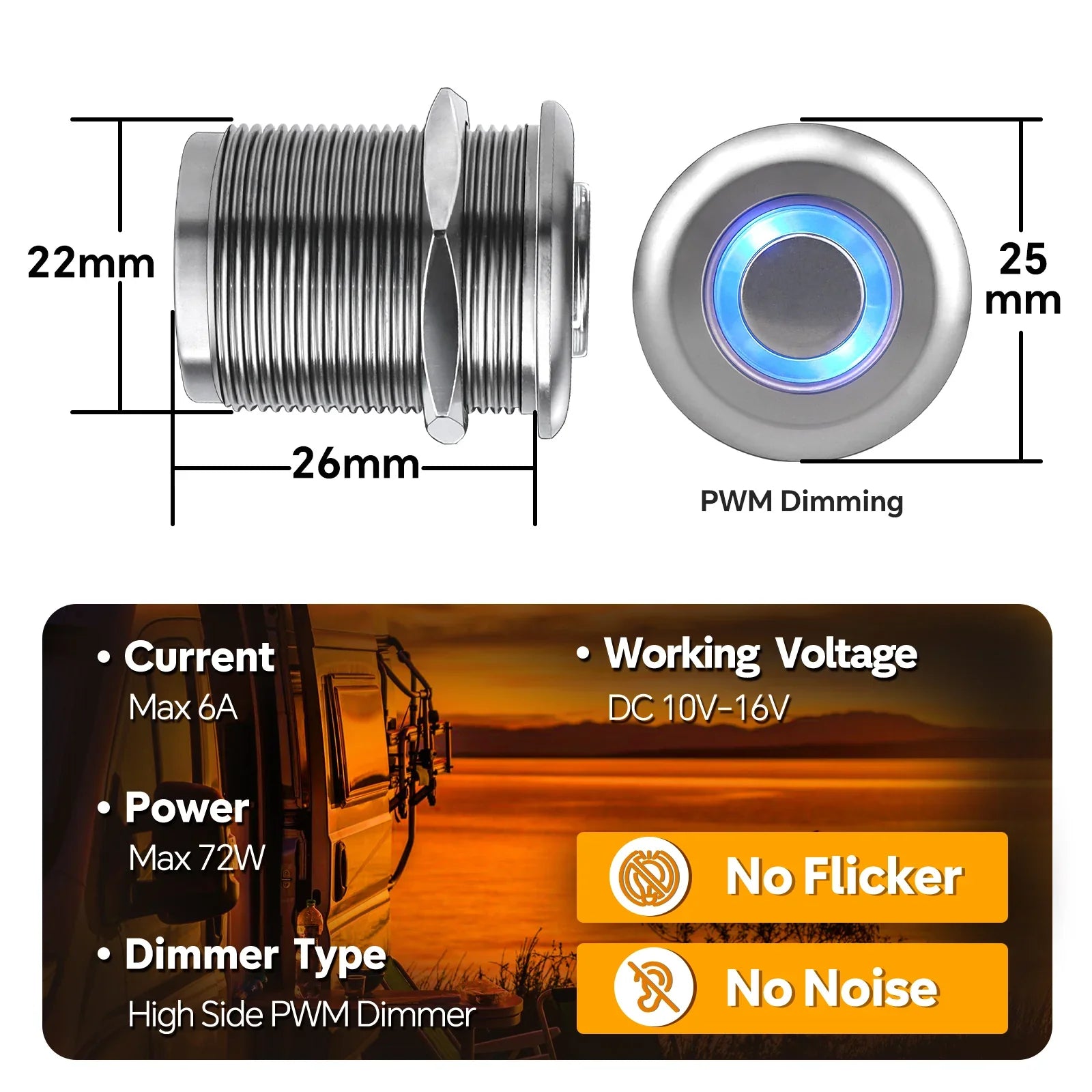

📊 Specifications
| Specification | Detail |
|---|---|
| Operation Voltage | DC 10–16V |
| Output Current | Max 6A |
| Dimming Range | 3%–100% |
| Drill Cut-Out | 22mm |
| Installation Depth | 25mm |
| Housing Material | CNC-milled aluminium |
| Back Plate | 50 × 70 mm brushed aluminium |
| IP Rating | IP64 (indoor) |
| Switch Type | Push-button pwm dimmer |
📦 What’s Included
• 1 × Aluminium LED Dimmer Switch (Silver)

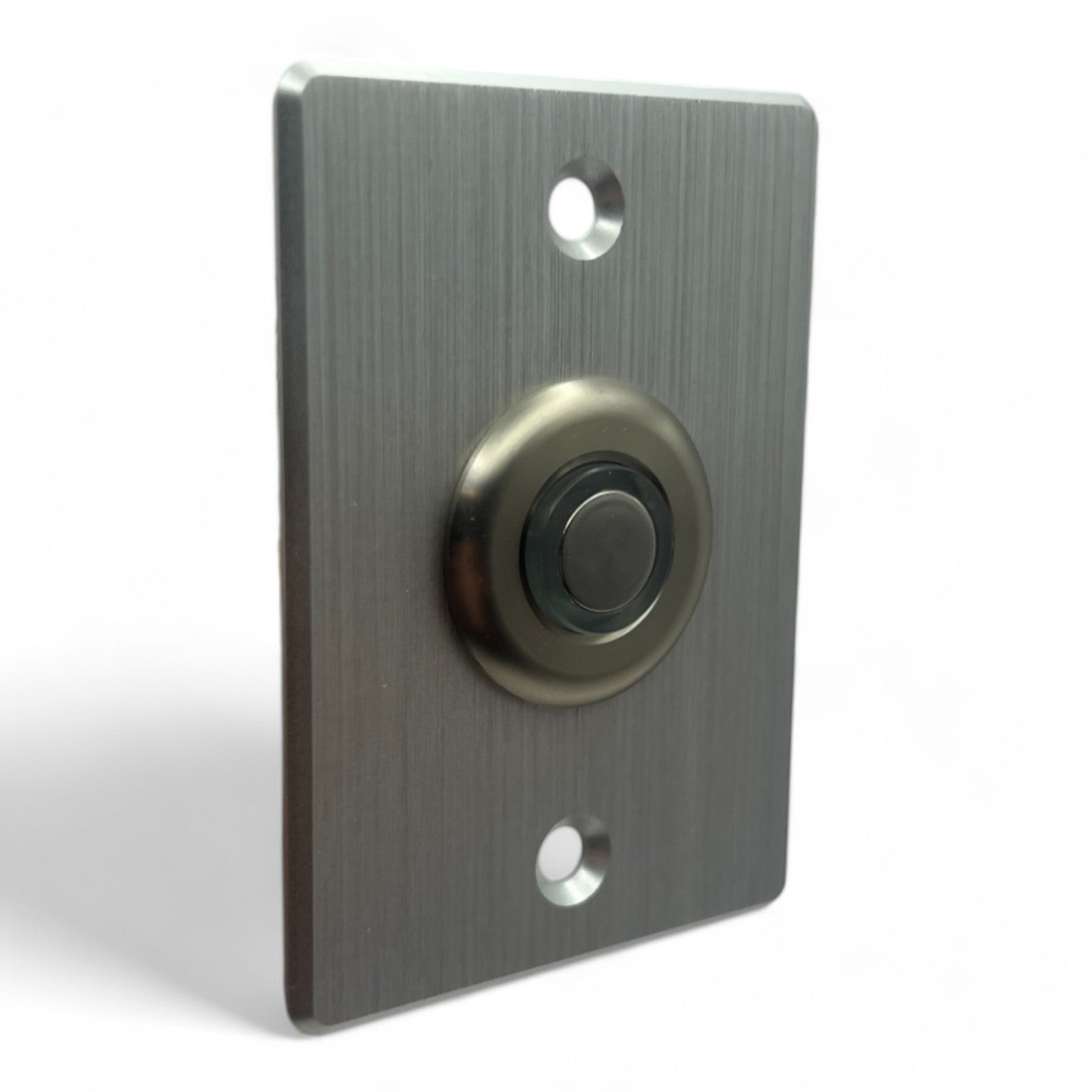

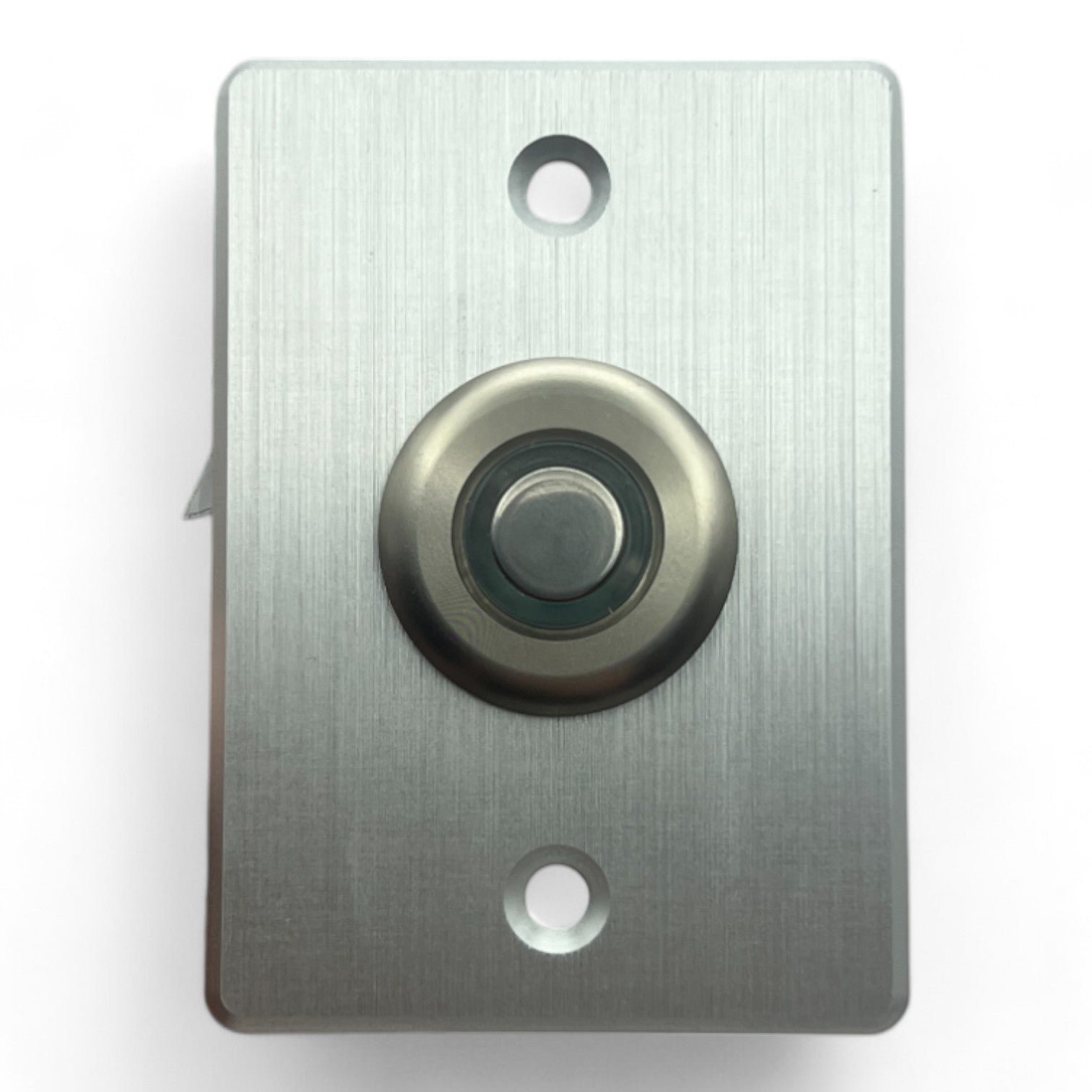

• 1 × Brushed Aluminium Backing Plate (50 × 70 mm)
• 1 × Locking Nut
• 2 × Mounting Screws
🙌 Why Choose This Product?
This aluminium dimmer switch delivers premium looks, reliable pwm dimming and a modern, low-profile finish perfect for custom van, RV, marine and off-grid builds. It’s robust, stylish and built to last—making it a smart upgrade for any 12v lighting system.
