Black Dotless LED Strips (RGB) 12v WS2812B IC WLED
Black Dotless LED Strips (RGB) 12v WS2812B IC WLED
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Black Dotless LED Strips (RGB) 12v WS2812B IC WLED
📝 5M Dotless RGB LED Strip – 12V WS2812B WLED (Black PCB)
Transform your campervan, RV, or motorhome lighting with this premium 5-metre Dotless RGB LED Strip featuring 630 LEDs per metre and a sleek black PCB. Designed for smooth, neon-style illumination with zero visible dots, it is fully compatible with WLED controllers for complete colour and animation customisation. Ideal for feature lighting, cabinetry, bulkheads, and premium interior installations.
⭐ Essential Benefits

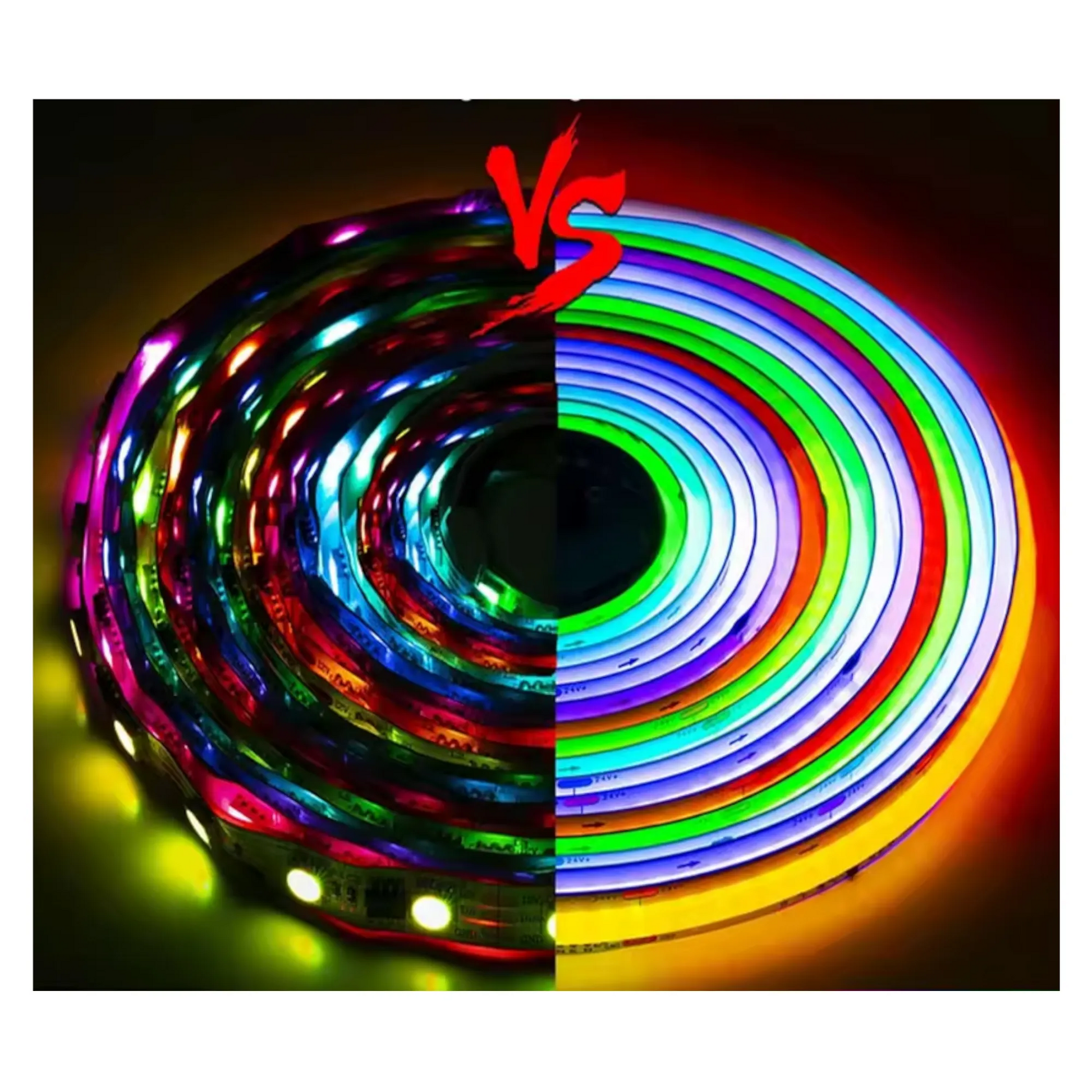

• Dotless illumination – ultra-smooth neon-style lighting with no visible LED hotspots
• Individually addressable – full WLED control for colours, animations, and effects
• Ultra-high LED density – 630 LEDs per metre for premium soft-glow output

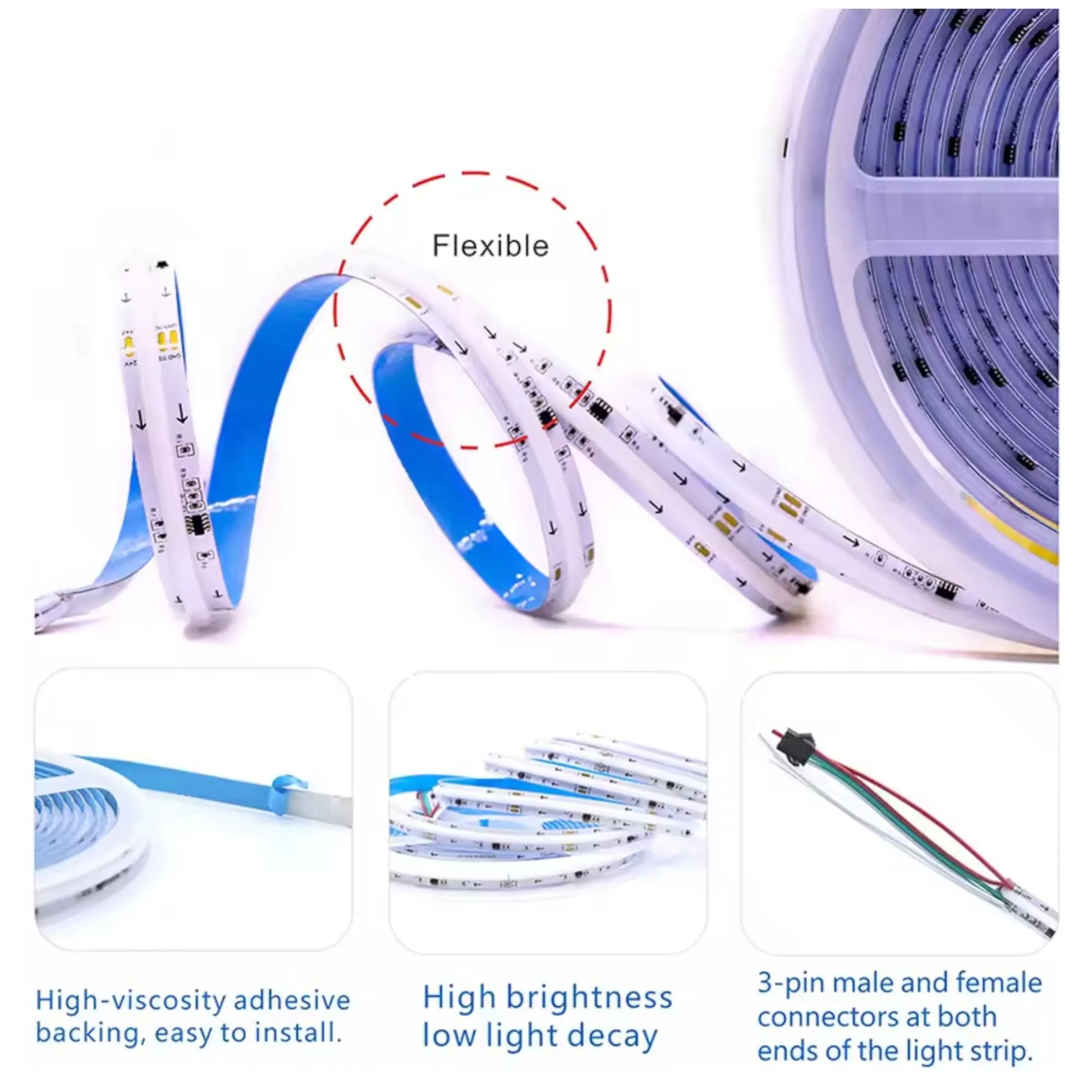

• Flexible black PCB – modern aesthetic with excellent bend radius for tight spaces
• Cuttable every 71mm – simple customisation for any install
• Safe 12v operation – ideal for RV, campervan, boat, and off-grid electrical systems
⚙️ Functionality

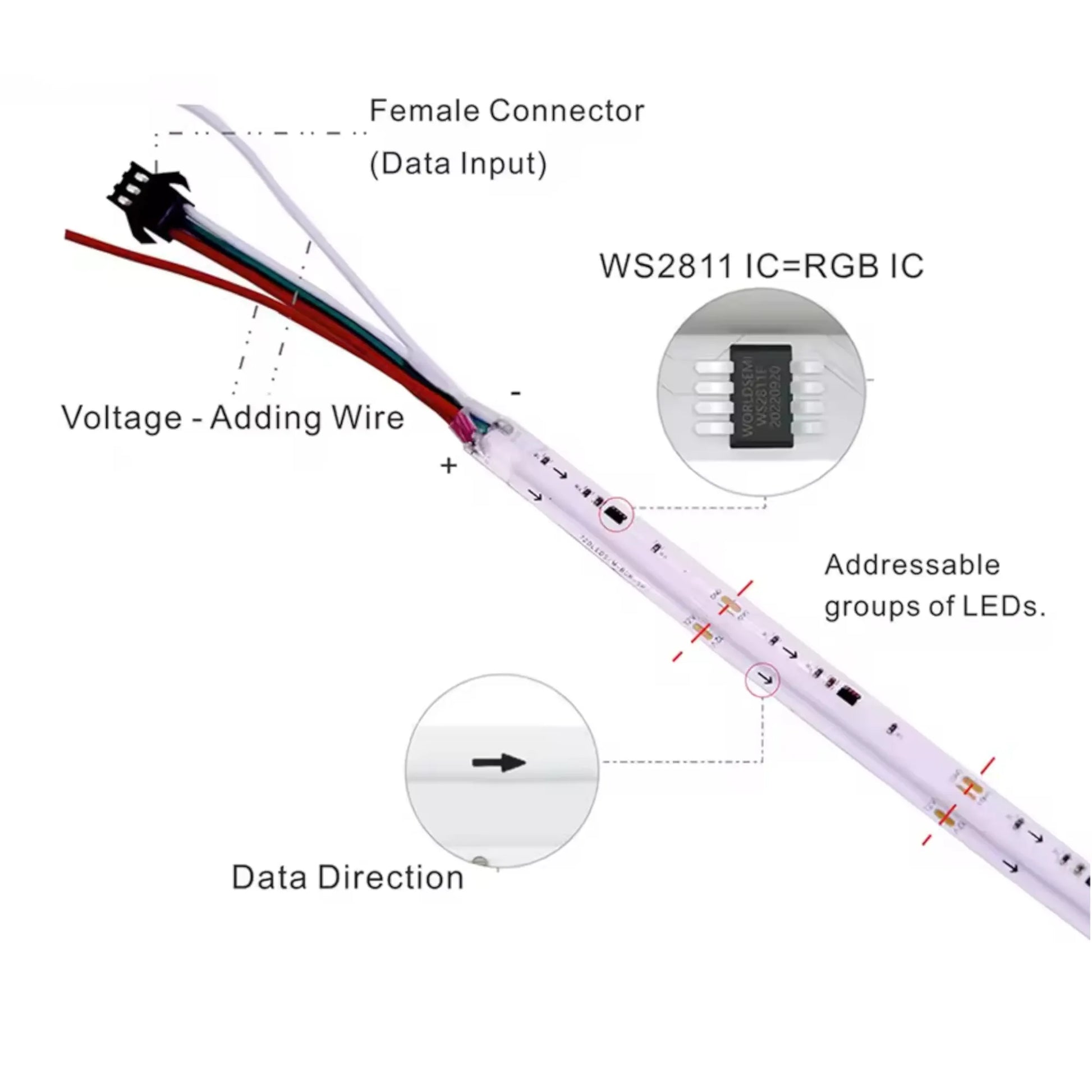

This 12v dotless strip uses WS2812B/WS2811 IC technology, giving you precise control of every 71mm LED segment through any WLED controller. Its high-density FCOB layout eliminates hotspots, providing continuous, diffused illumination perfect for accent lighting, soffits, interior trims, or architectural light features. The flexible black PCB ensures a clean, modern look in any installation.
🔌 Compatibility
• WLED controllers (5–24v compatible units)
• 12v campervan, RV, 4WD, marine, and off-grid systems
• Interior lighting applications including cabinetry, ceilings, coves, and feature lighting
• Standard 12v LED power supplies (sold separately)
🧰 Installation Difficulty
🟢 1/5 (Easy) – Simple peel-and-stick installation with basic 12v wiring.
🔍 Features

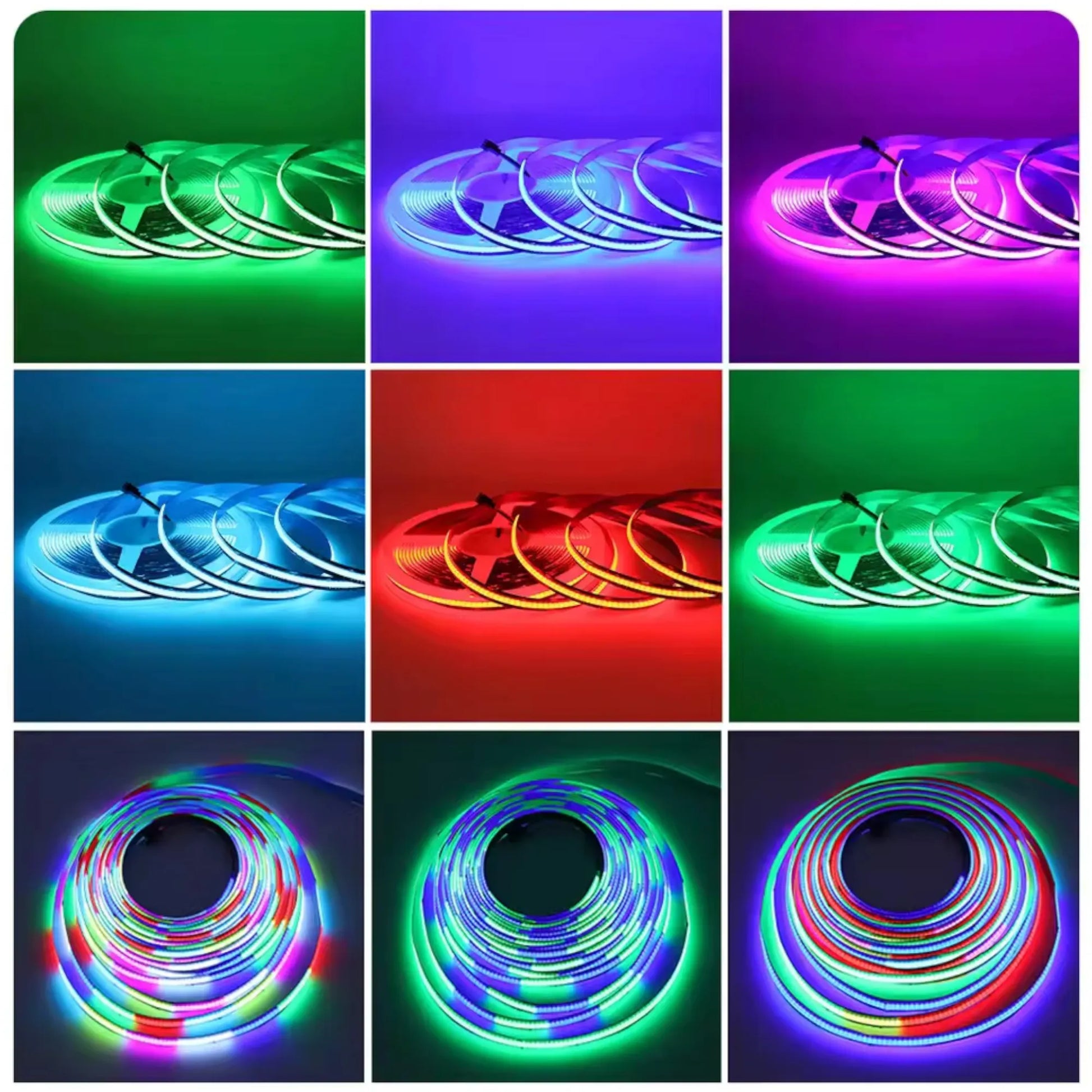

• Dotless continuous RGB illumination
• WS2812B/WS2811 addressable IC
• 630 LEDs per metre for maximum smoothness
• 180° beam angle for soft, even lighting

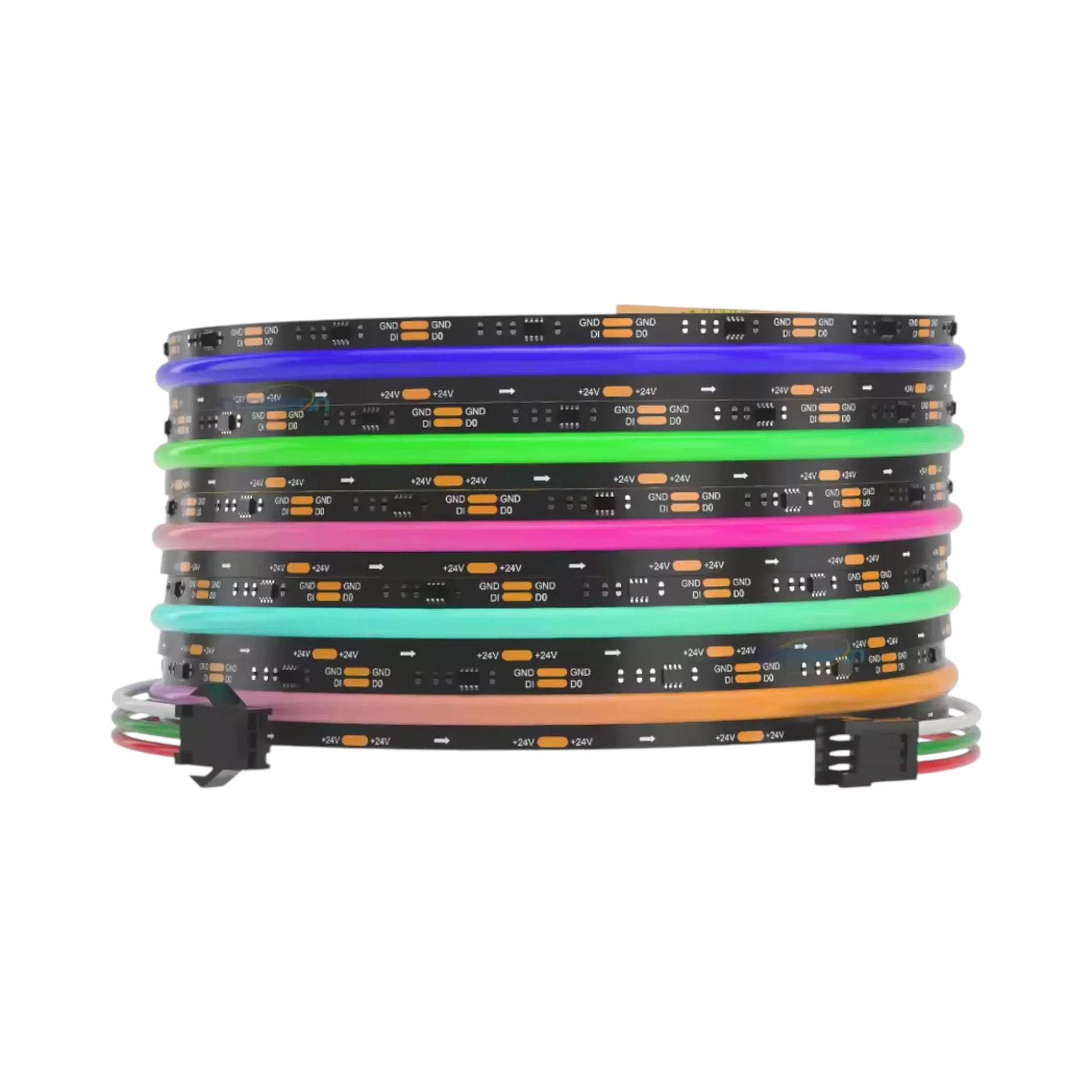

• Black PCB for a premium modern finish
• Cuttable every 71mm for precise fitment
• Strong adhesive backing for secure mounting
• CRI > 90 for natural colour accuracy
📊 Specifications
| Specification | Detail |
|---|---|
| Input Voltage | DC 12v |
| IC Type | WS2812B / WS2811 (Dotless FCOB RGB) |
| LED Quantity | 630 LEDs per metre |
| Power Consumption | 8W per metre |
| PCB Width | 10mm (Black PCB) |
| Cut Length | Every 71mm |
| Addressable Segments | Yes (per 71mm) |
| Beam Angle | 180° |
| CRI | Ra > 90 |
| Operating Temperature | –20°C to +45°C |
| Storage Temperature | –20°C to +60°C |
| Ingress Rating | IP30 (Non-Waterproof) |
| Power Draw | 30W–90W (Typical Range) |
| Strip Length | 5 metres |
📦 What’s Included
• 1 × 5-metre Dotless RGB LED Strip (12v, Black PCB)
🙌 Why Choose This Product?
This dotless RGB LED strip delivers ultra-smooth, high-density lighting perfect for premium van conversions and custom interior projects. With WLED compatibility, a flexible black PCB, and individually addressable segments, it offers endless colour effects, animations, and ambient lighting options with professional-grade smoothness.
🚀 OUR PROMISE
Order today for same-day dispatch and explore our full range of off-grid lighting and electrical accessories.
