Blue Vinyl Insulated Ring Terminal M6 (100 Pack)
📝 Blue Vinyl Insulated Ring Terminal M6 (100 Pack)

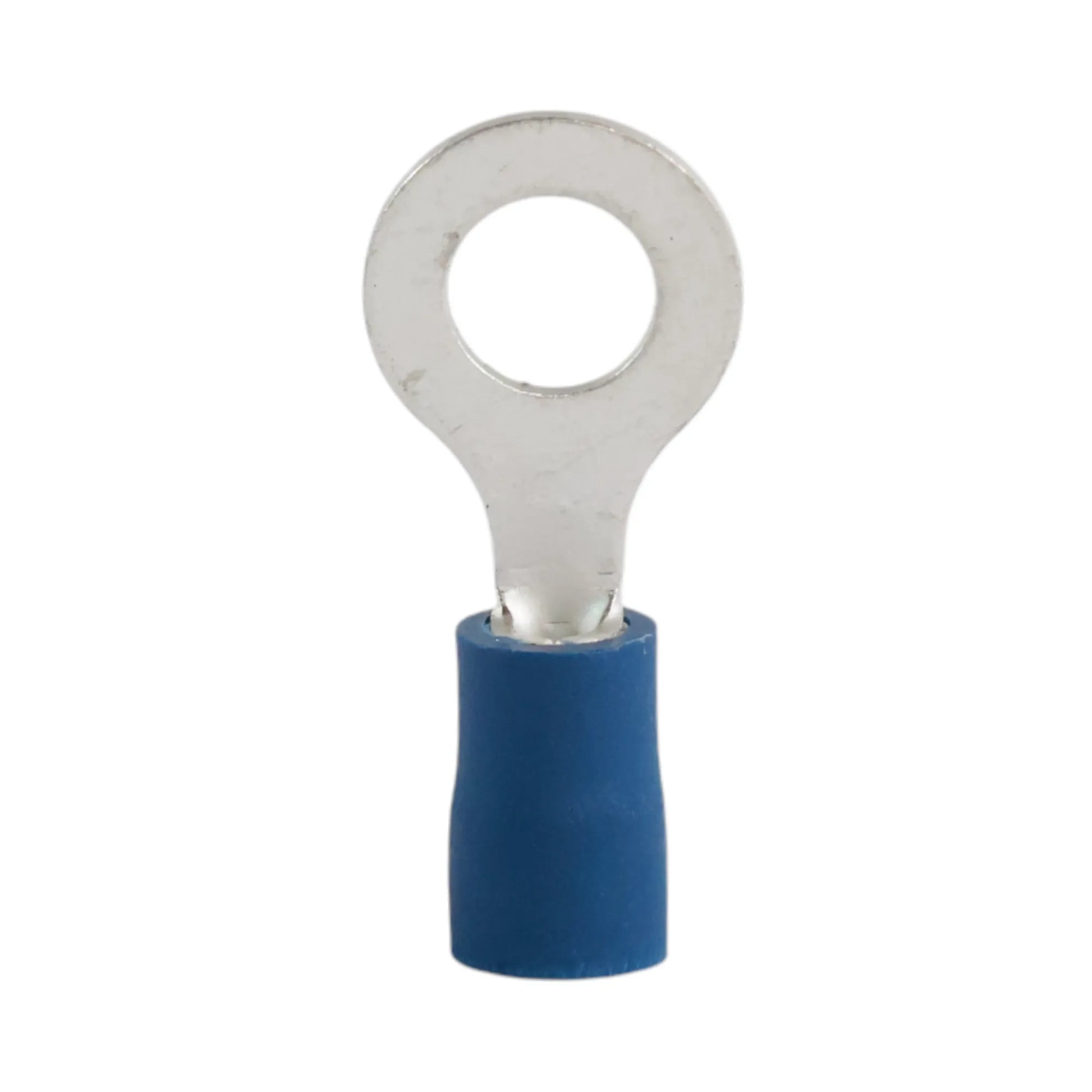

These blue vinyl insulated ring terminals are designed for reliable DC wiring in automotive, campervan, caravan, and off-grid 12v–48v systems.
Built to suit 1.5–2.5mm² cable (AWG 16–14) and featuring an M6 ring size to suit 6mm studs/bolts, they provide a secure, vibration-resistant crimp connection for circuits rated up to 27A.

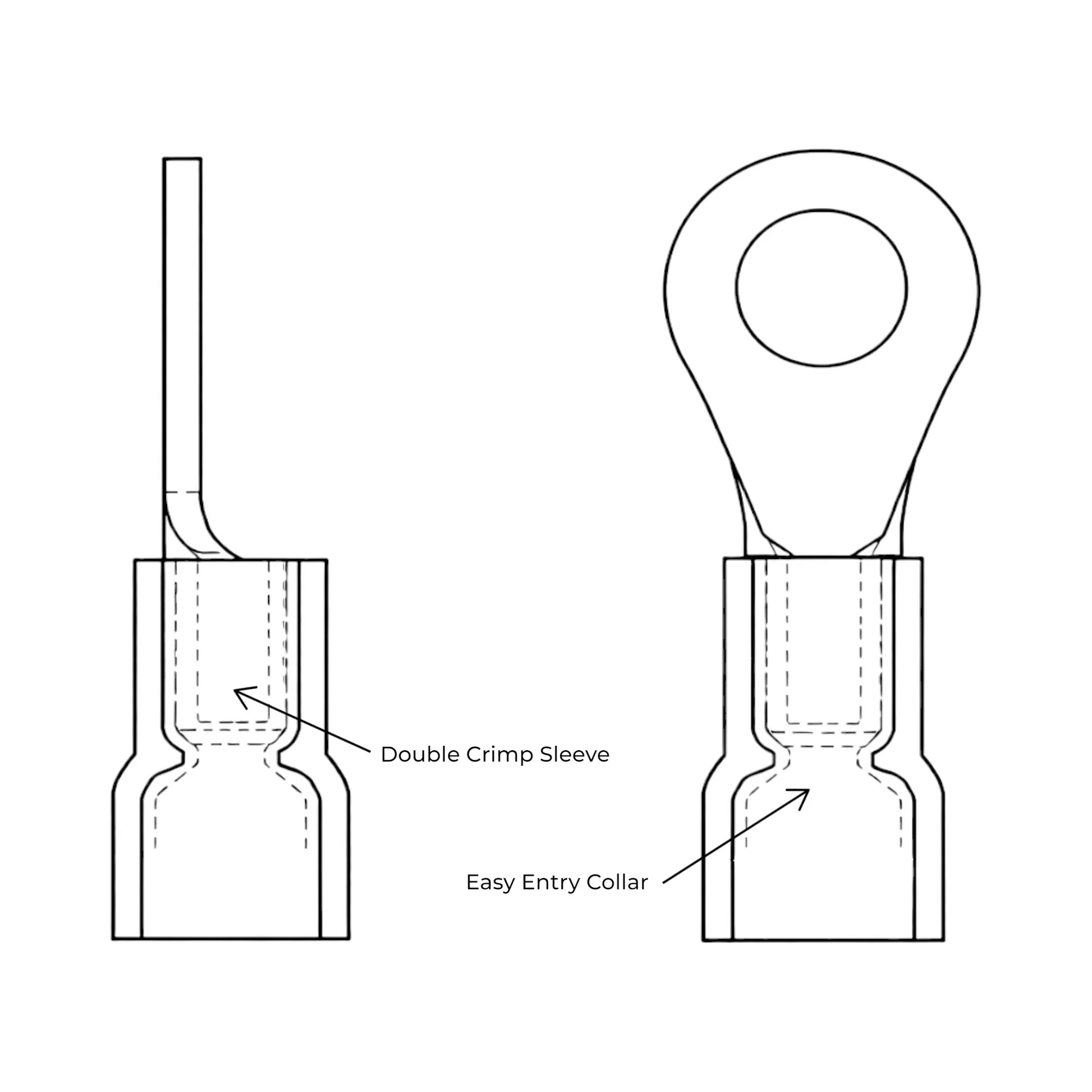

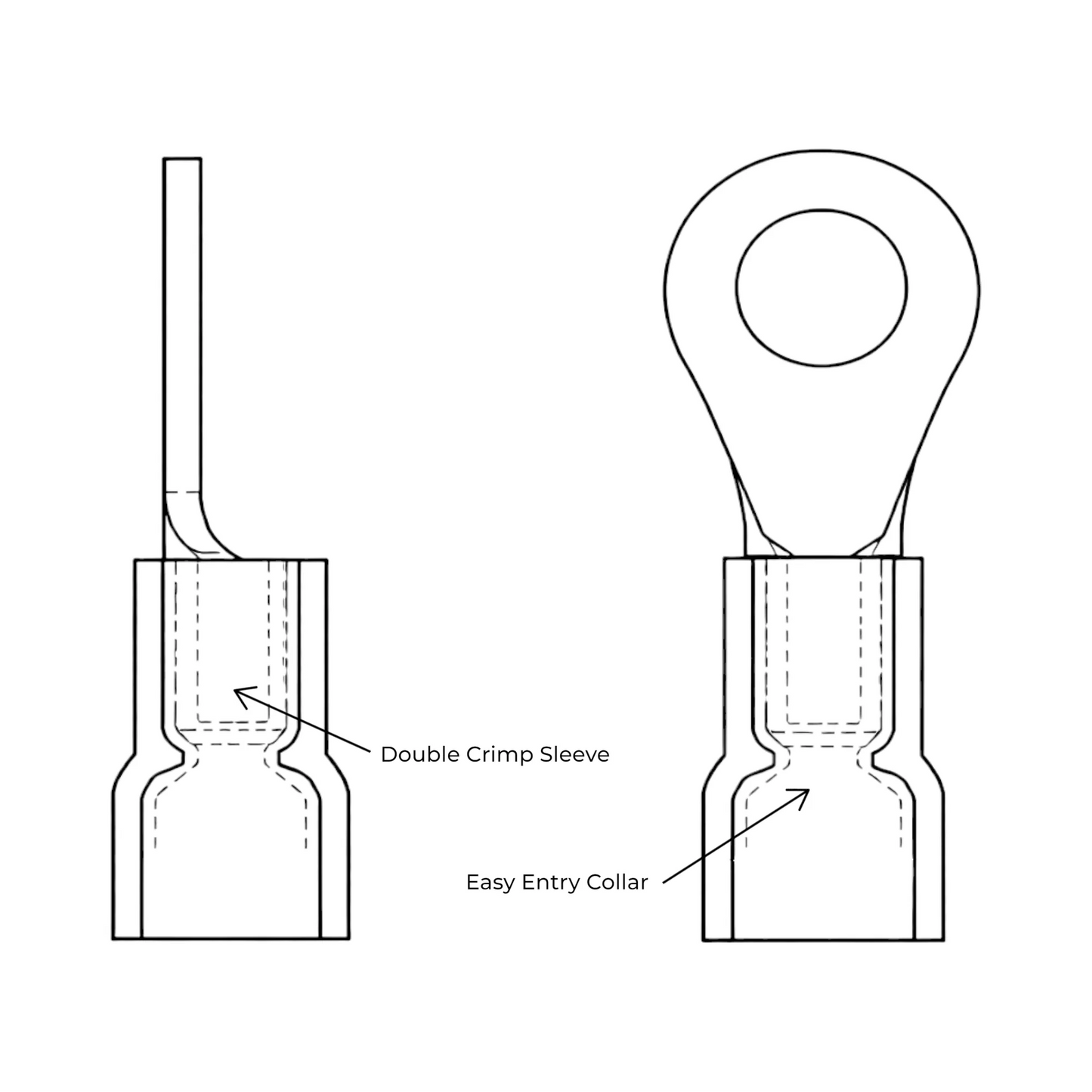

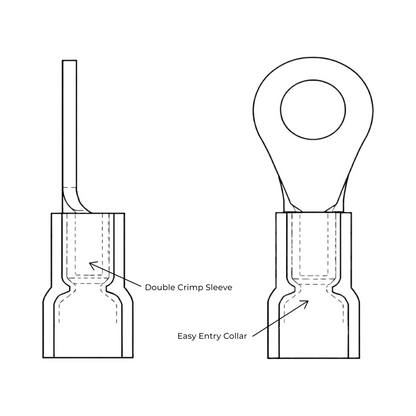

Designed with an easy-entry collar and double crimp sleeve, these terminals deliver a stronger, longer-lasting connection than typical off-the-shelf retail terminals.
⭐ Essential Benefits
• Easy entry collar – guides cable smoothly into the barrel for faster, cleaner installations.
• Double crimp sleeve design – improves mechanical strength and long-term connection stability.
• 27A max current rating – ideal for light-to-medium DC circuits.
• 75°C temperature rating – reliable performance in standard electrical environments.
• Higher-grade construction – engineered for better fit, improved crimp strength, and long service life.
⚙️ Functionality
The vinyl insulation sleeve provides electrical protection and strain relief for light-duty circuits. The internal barrel compresses securely around the conductor when crimped with a suitable tool, forming a low-resistance mechanical and electrical bond.
Ideal for accessory wiring, lighting circuits, fuse blocks, control wiring, and general DC distribution.
🔌 Compatibility
• Suits 1.5–2.5mm² cable.
• AWG 16–14.
• Fits M6 studs/bolts.
• Suitable for 12v, 24v and 48v DC systems.
• Rated up to 27A max current.
🧰 Installation Difficulty
🟢 1/5 (Easy)
Requires a suitable ratchet crimp tool designed for insulated terminals.
🔍 Features
• Blue vinyl insulated sleeve.
• Easy-entry collar for simplified cable insertion.
• Double crimp barrel for improved security.
• Designed for DC automotive and off-grid applications.
• Supplied in bulk 100 pack.
📊 Specifications
| Specification | Value |
|---|---|
| Terminal Type | Ring terminal |
| Stud Size | M6 |
| Cable Size | 1.5–2.5mm² |
| AWG | 16–14 |
| Maximum Current | 27A |
| Temperature Rating | 75°C |
| Insulation Type | Vinyl |
| Pack Size | 100 Pack |
| Voltage Suitability | 12v–48v DC systems |
📘 DC Crimp Terminal Insulation Comparison
| Material | Pros | Typical Use Case |
|---|---|---|
| Vinyl | Low cost, Easy to crimp, Suitable for light-duty circuits | Interior dry areas, Basic accessory wiring, Lighting circuits, Low-current applications, Budget-focused builds |
| Nylon | Tougher insulation, Higher temperature resistance, Flexible, Better vibration resistance, Improved strain relief | Campervan 12v systems, Fuse blocks, DC-DC chargers, Solar controllers, General distribution wiring |
| Heat Shrink | Sealed insulation when heated, Excellent strain relief, High vibration resistance, Corrosion protection, Professional finish | Battery cables, Inverter feeds, Solar inputs, External wiring runs, Under-chassis wiring, Marine or damp environments |
📦 What’s Included
• 100 × Blue vinyl insulated ring terminals M6
🙌 Why Choose This Product?
These blue insulated terminals are designed for clean, secure, and reliable crimp connections in smaller DC wiring circuits — ideal for campervan builds, upgrades, and accessory installations.
🚀 Our Promise
Order today for same-day dispatch and explore our full range of off-grid electrical accessories.
