Blue Nylon Insulated Fork Terminal M4 (100 Pack)
📝 Blue Nylon Fork Terminal M4 (100 Pack)
Upgrade your 12v wiring with blue nylon fork terminals designed for secure screw-down connections in campervans, caravans, motorhomes, and off-grid builds. This M4 version features a double crimp sleeve design and easy-entry collar, combined with tougher nylon insulation for higher-temperature DC environments.
⭐ Essential Benefits
• Fork (spade) design – allows quick removal without fully removing the mounting screw.
• Easy entry collar – guides cable smoothly into the barrel for faster, cleaner installations.

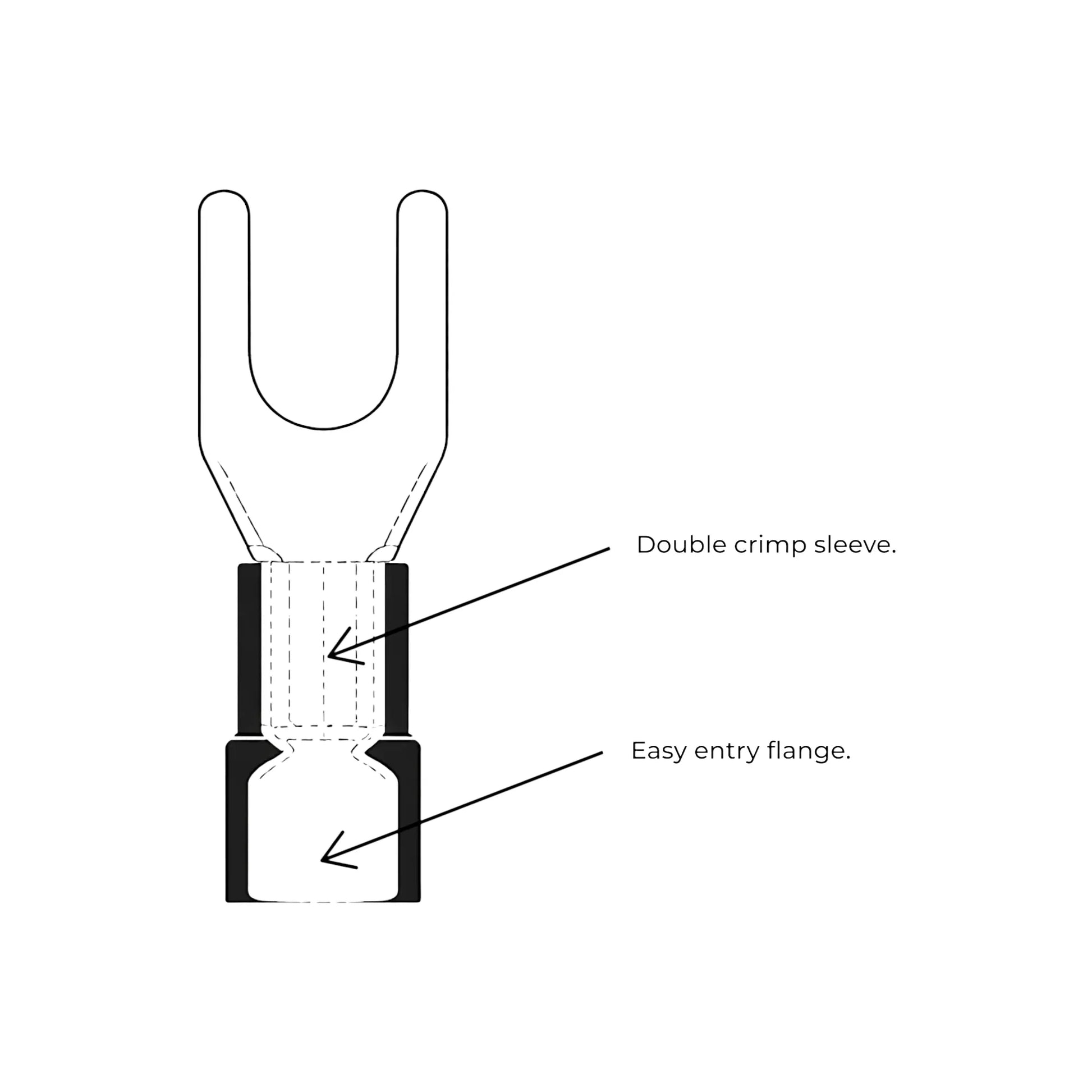

• Double crimp sleeve design – improves mechanical strength and long-term connection stability.
• 48A max current rating – suitable for medium-current DC circuits.
• 105°C temperature rating – higher heat resistance than vinyl for demanding installations.
⚙️ Functionality
These fork terminals are designed to crimp onto cable ends and secure under M4 screw terminals on fuse blocks, busbars, relays, switches, and distribution points. Strip the cable, insert into the easy-entry collar, then crimp using the double crimp sleeve design to create a secure mechanical and electrical connection suitable for 12v–48v DC systems.
🔌 Compatibility
• DC wiring – in campervans, caravans, RVs, 4WDs, trailers, and marine-style installs.
• Mounting size – suits M4 screw or stud terminals.
• Cable size range – 1.5mm²–2.5mm² (AWG 16–14).
🧰 Installation Difficulty
🟢 1/5 (Easy) – simple strip and crimp installation with standard crimping tools.
🔍 Features

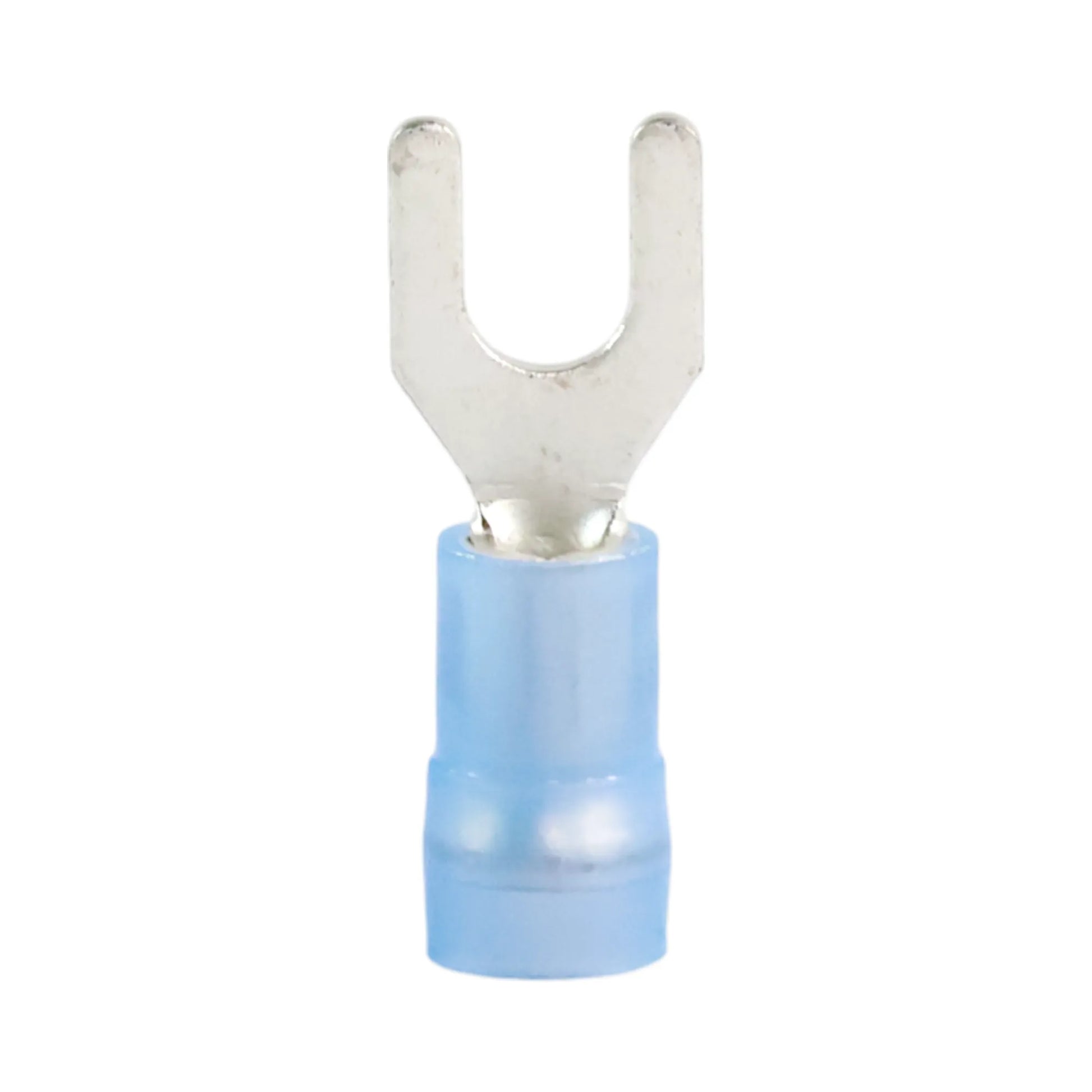

• Blue nylon insulated terminal – fork/spade style.
• M4 fork opening – suits 4mm screw or stud terminals.
• Easy entry collar – guides cable smoothly into the barrel.
• Double crimp sleeve design – improves strength and connection stability.
• 105°C heat rating – suited to higher-temperature DC environments.
📊 Specifications
| Specification | Detail |
|---|---|
| Color | Blue |
| Insulation Type | Nylon |
| Terminal Type | Fork (spade) |
| Stud Size | M4 |
| Cable Size Range | 1.5mm²–2.5mm² |
| AWG Range | 16–14 |
| Max Current | 48A |
| Temperature Rating | 105°C |
| System Compatibility | 12v–48v DC (typical applications) |
📦 What’s Included
• 100 × blue nylon fork terminals (M4)
🙌 Why Choose This Product?
Nylon fork terminals provide improved heat resistance compared to vinyl while still allowing easy servicing and secure screw-down connections in compact 12v distribution setups.
