Auto Reset 5 Amp Breaker 12 - 24V

In stock SKU cbar5
$18.50inc. GST

Spend more, get more

Free Express
on orders over $130
Free 65W charger
on orders over $200
Order by 3pm AEST and it ships today
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices. How it works
  • Aussie warranty1 year, handled locally
  • Geelong supportReal people, real answers
  • Same day shippingOrder by 3pm AEST
$18.50Ships today by 3pm
Details

The full rundown

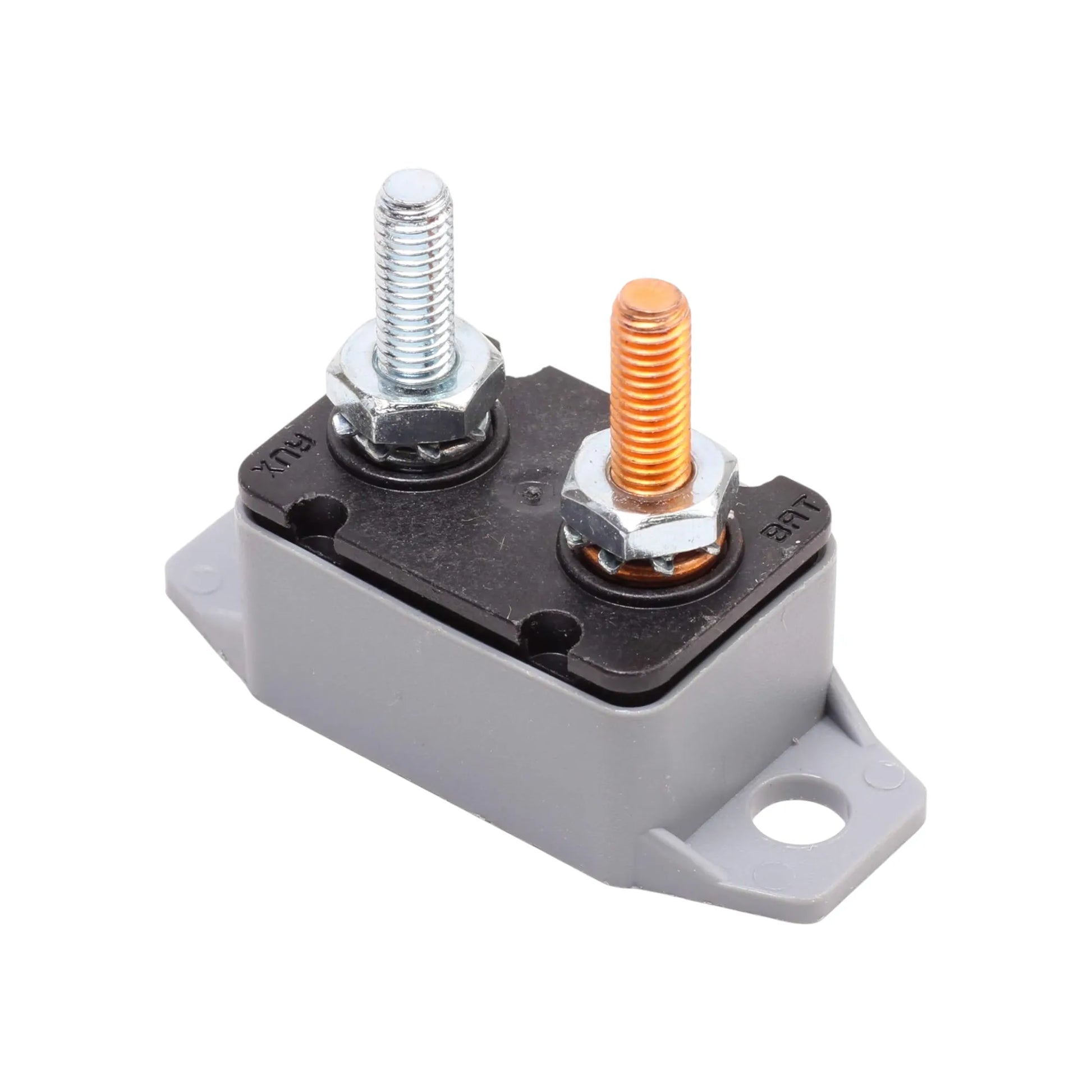

A 5A auto reset circuit breaker for low-current 12V and 24V circuits. It trips on overload, then restores power on its own once it cools, so there are no fuses to replace.

Why it works

  • Thermal auto-reset protection: Automatically resets after overload, no fuse replacement needed.
  • 5 amp rating: Ideal for low-current accessory and control circuits.
  • Suitable for 12V-24V systems: Common automotive and marine voltages.
  • Red vinyl protective cover: Reduces corrosion and helps prevent accidental shorts.
  • Trip-free cycling design: Continues to protect even during repeated fault conditions.
  • Compact, sealed construction: Suitable for harsh environments.

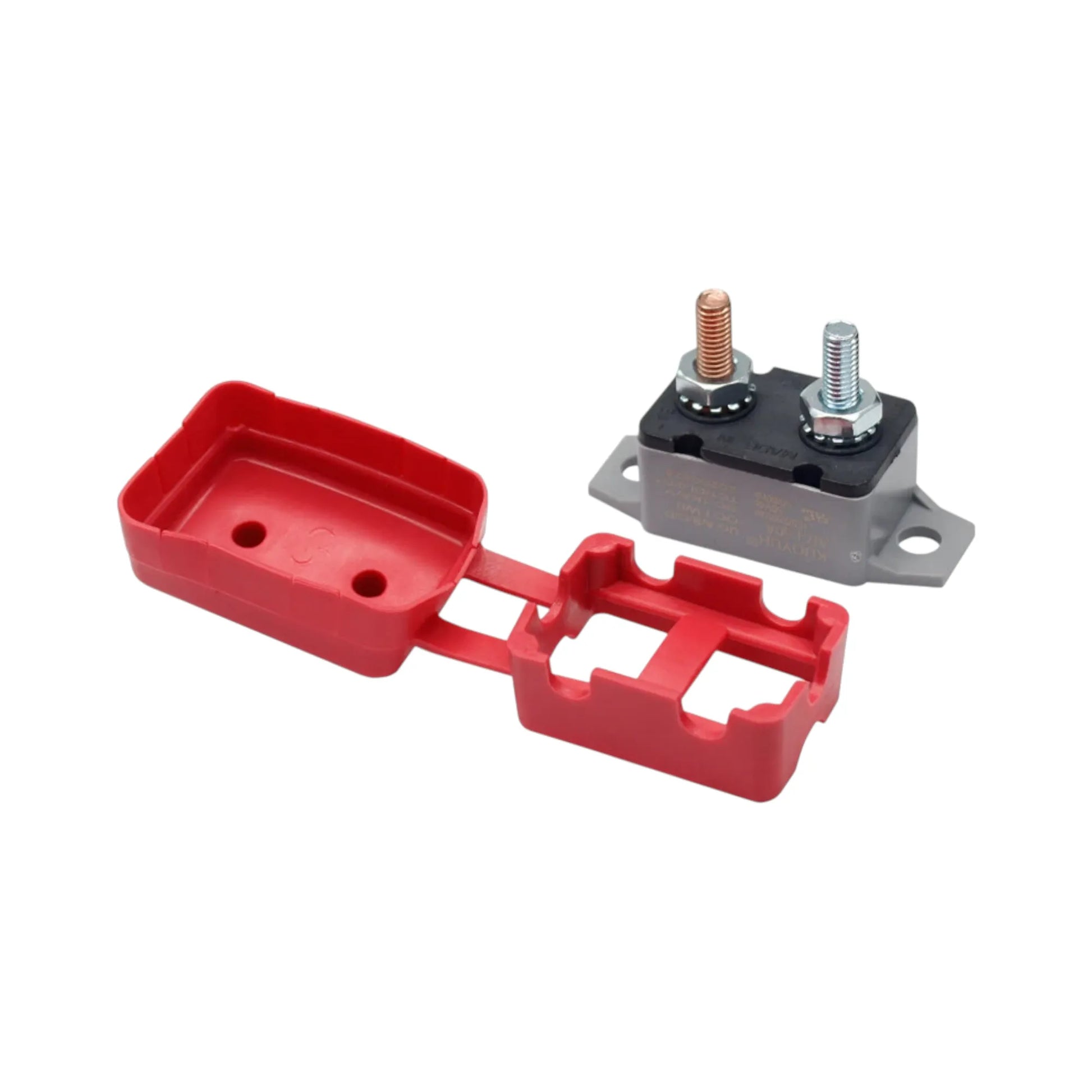

What's in the box

  • 1 x auto reset 5 amp circuit breaker
  • 2 x lock nuts

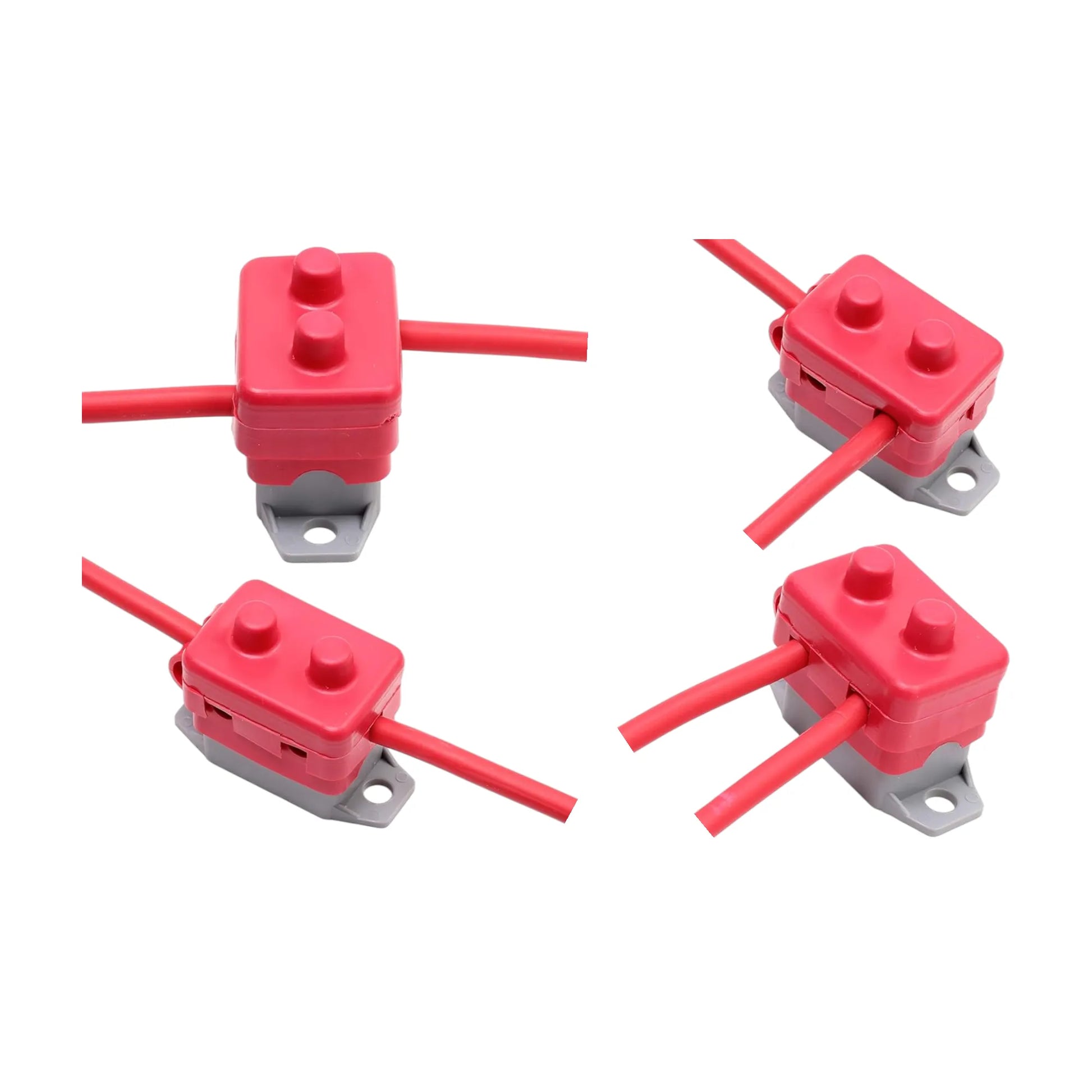

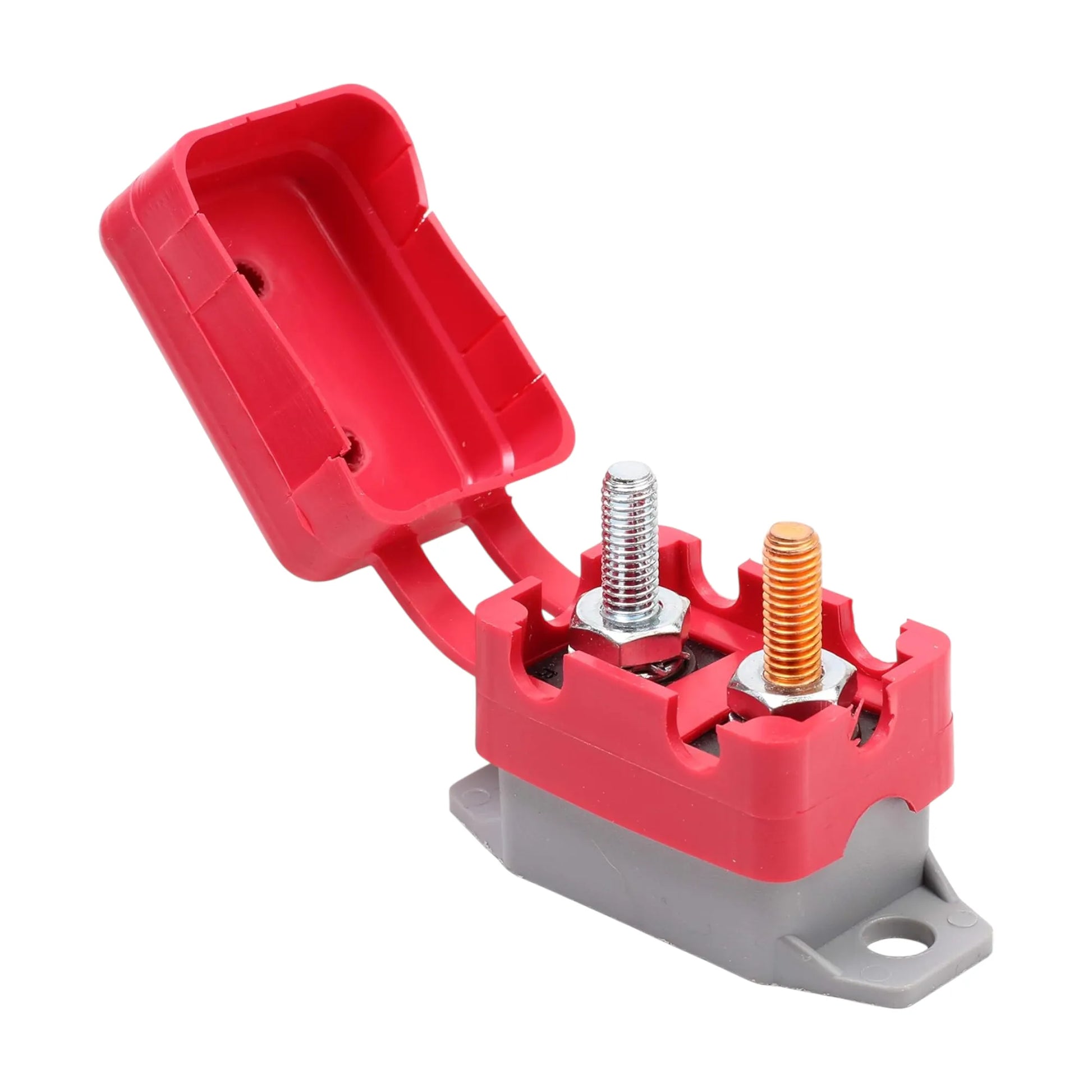

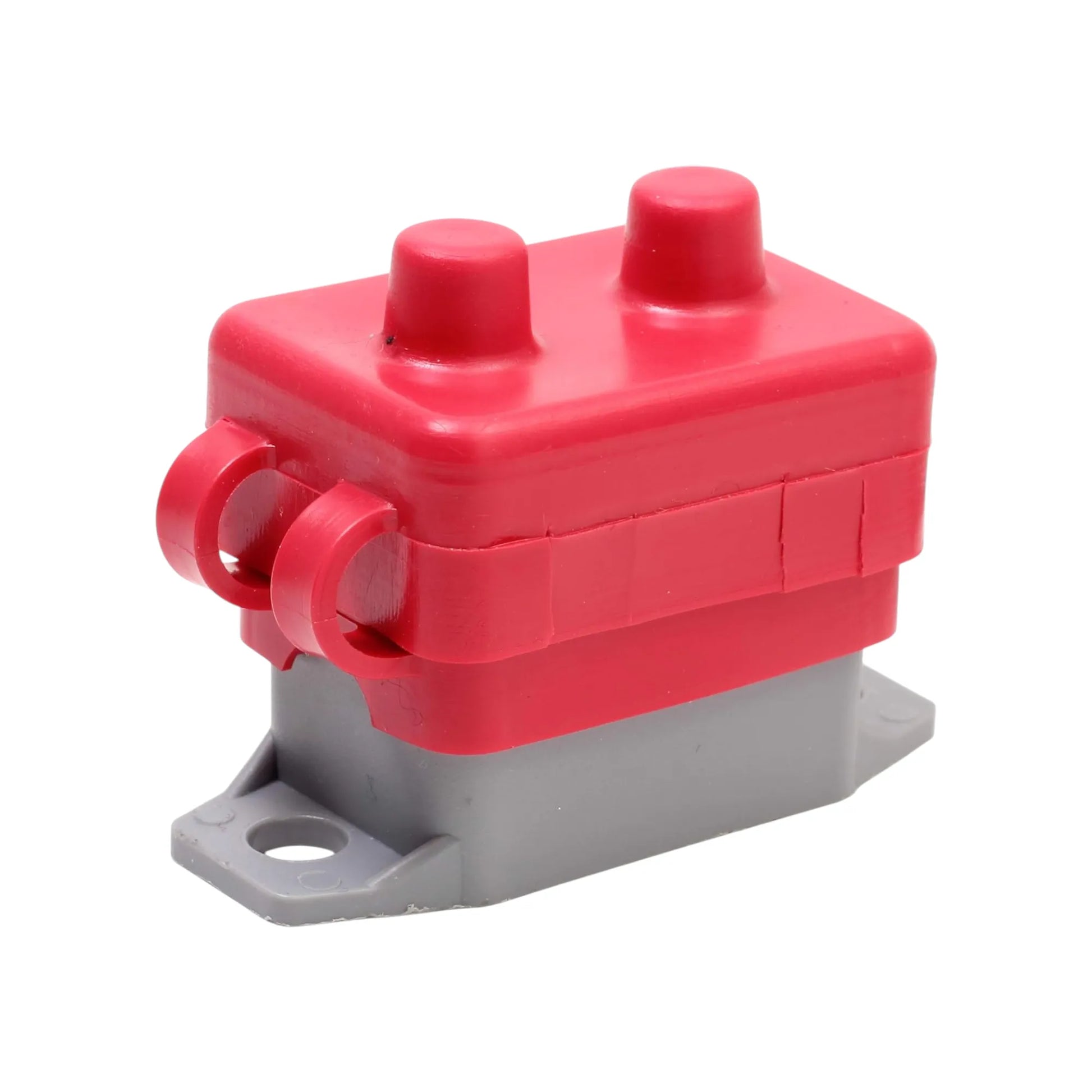

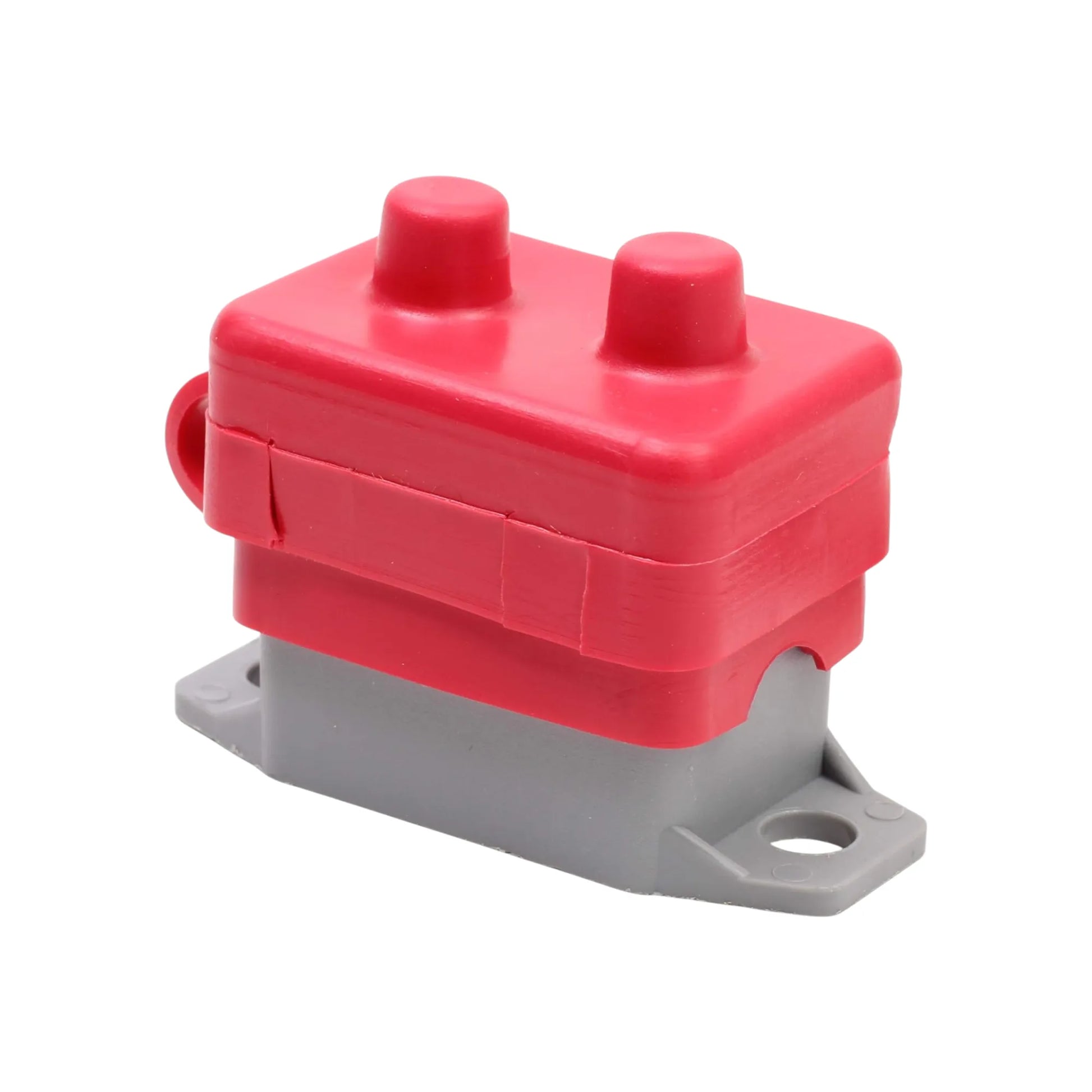

  • Red vinyl terminal cover

How it works

This breaker continuously monitors current flow and trips when the circuit exceeds 5 amps. Once the overload or short condition is removed, the breaker automatically resets, restoring power without manual intervention.

The unipolar, free-cycle trip design ensures consistent protection even during repeated faults, making it well suited to mobile and vibration-prone installations.

What it suits

  • 12V and 24V DC systems
  • Automotive and 4WD accessories
  • Marine and RV installations
  • Battery chargers and jump starters
  • Trolling motors and electric anchors
  • Winches, pressure washers, and auxiliary circuits

Fitting it

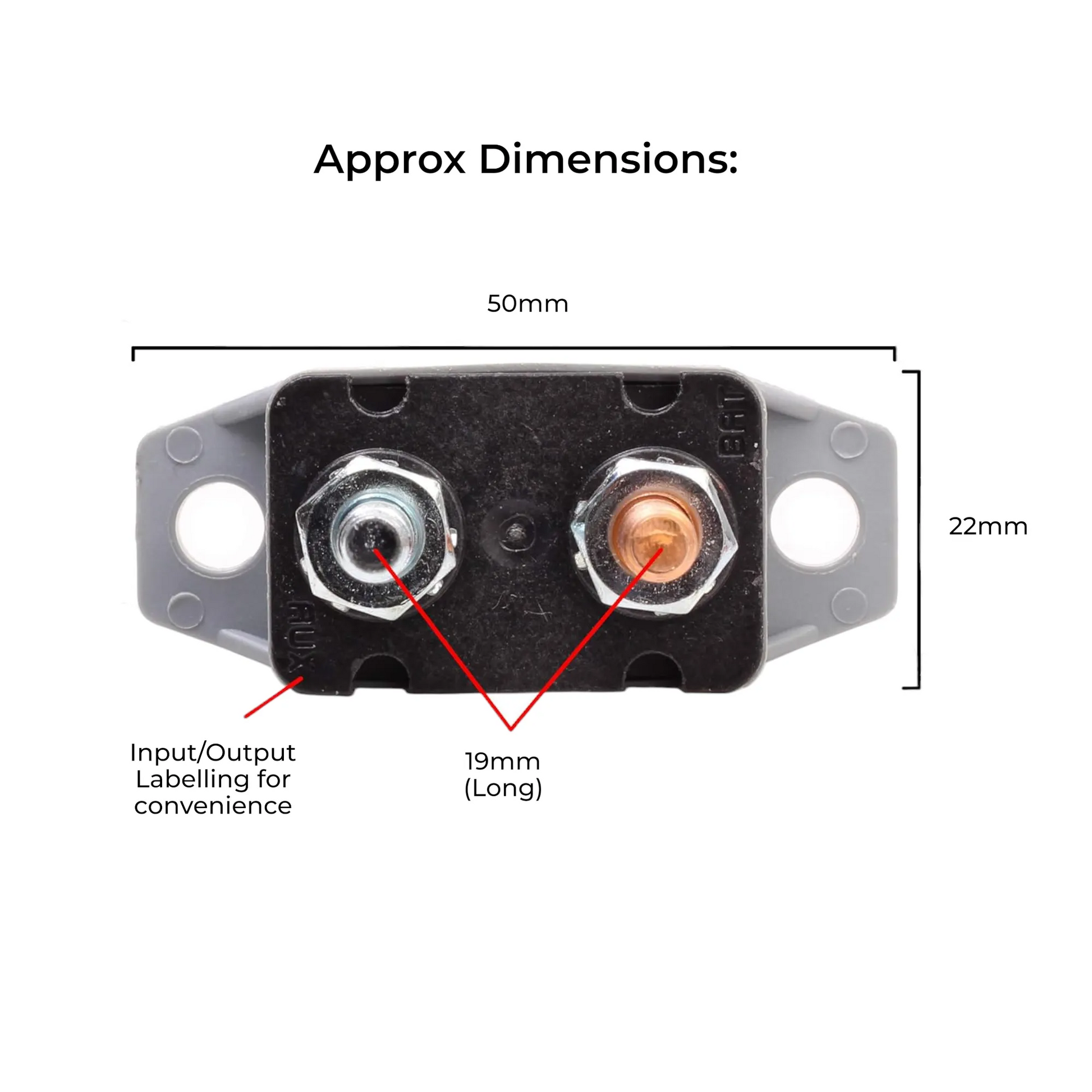

Difficulty: 2/5 (Easy). Surface-mount design with #10-32 stud terminals allows quick installation using standard ring terminals. Can be mounted in any orientation .

Features

  • Automatic thermal reset
  • Surface mount design
  • #10-32 stud terminals
  • Flexible red vinyl terminal cover
  • Rustproof, impact-resistant housing
  • Trip-free cycling operation
  • UL-rated 94V-0 thermosetting plastic body

Specifications

Rated current 5A
System compatibility 12V-24V DC systems
Rated operating voltage 14-28V DC
Reset type Automatic (thermal)
Mounting type Surface mount
Trip design Unipolar, free-cycle
Terminal size #10-32 studs
Housing material UL-rated 94V-0 thermosetting plastic

Testing & Compliance

  • Current test: 200% full-inspect test
  • Dielectric strength: 1800VAC / minute
  • Corrosion resistance: 96-hour salt spray

Certifications

  • UL certified
  • SAE J553 compliant
  • SAE J1171 compliant
  • RoHS compliant
