Auto Reset 30 Amp Breaker 12 - 24V

📝 Auto Reset 30 Amp Breaker 12–24V

The Auto Reset 30 Amp Circuit Breaker delivers robust, maintenance-free protection for higher-demand circuits in 12v and 24v electrical systems. Using a thermal automatic reset mechanism, it removes the need to replace blown fuses by restoring power automatically once a fault condition is cleared.

Built with a durable, rustproof housing and designed for flexible mounting, this breaker is well suited to automotive, marine, RV, and off-grid applications where reliable circuit protection is critical.

⭐ Essential Benefits

• Thermal auto-reset protection – automatically resets after overload, no fuse replacement required.
• 30 amp rating – ideal for compressors, fridges, pumps, and high-draw accessories.
• Suitable for 12v–24v systems – common automotive and marine voltages.
• Red vinyl protective cover – helps prevent corrosion and accidental shorts.
• Trip-free cycling design – maintains protection even during repeated faults.
• Compact, sealed construction – built for harsh operating environments.

⚙️ Functionality

This breaker monitors current flow and trips when the circuit exceeds 30 amps. Once the overload or short condition is removed, the breaker automatically resets, restoring power without manual intervention.

The unipolar, free-cycle trip design ensures consistent protection in vibration-prone and mobile installations.

🔌 Compatibility

• 12v and 24v DC systems
• Automotive and 4WD accessories
• Marine and RV installations
• Battery chargers and jump starters
• Trolling motors and electric anchors
• Winches, pressure washers, and auxiliary circuits

🧰 Installation Difficulty

🟢 2/5 (Easy)

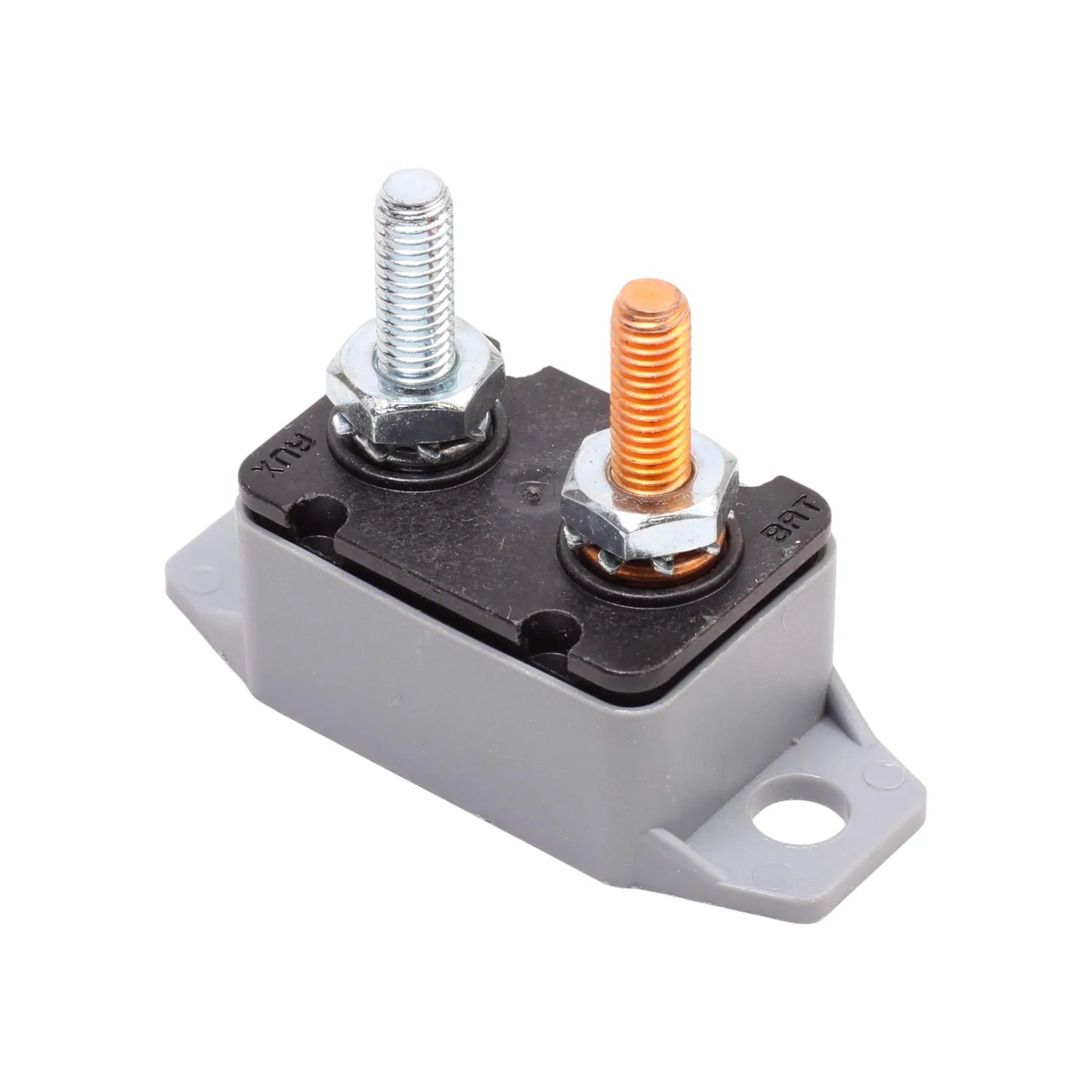

Surface-mount design with #10-32 stud terminals allows quick installation using standard ring terminals. Can be mounted in any orientation.

🔍 Features

• Automatic thermal reset
• Surface mount design
• #10-32 stud terminals
• Flexible red vinyl terminal cover
• Rustproof, impact-resistant housing
• Trip-free cycling operation
• UL-rated 94V-0 thermosetting plastic body

📊 Specifications

Testing & Compliance

• Current test: 200% full-inspect test
• Dielectric strength: 1800VAC / minute
• Corrosion resistance: 96-hour salt spray

Certifications

• UL certified
• SAE J553 compliant
• SAE J1171 compliant
• RoHS compliant

📦 What’s Included

• 1 × auto reset 30 amp circuit breaker
• 2 × lock nuts
• Red vinyl terminal cover

🙌 Why Choose This Product

This 30A auto reset breaker provides dependable protection for higher-load circuits without the inconvenience of replacing fuses. Certified performance, corrosion resistance, and flexible mounting make it a reliable choice for demanding environments.
