Auto Reset 15 Amp Breaker 12 - 24V

In stock SKU cbar15
$18.50inc. GST

Spend more, get more

Free Express
on orders over $130
Free 65W charger
on orders over $200
Order by 3pm AEST and it ships today
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices. How it works
  • Aussie warranty1 year, handled locally
  • Geelong supportReal people, real answers
  • Same day shippingOrder by 3pm AEST
$18.50Ships today by 3pm
Details

The full rundown

A 15A auto reset circuit breaker for 12V and 24V systems. It trips on overload, then restores power on its own once it cools, so there are no fuses to replace.

Why it works

  • Thermal auto-reset protection: Automatically resets after overload, no fuse replacement required.
  • 15 amp rating: Ideal for lighting, accessories, and auxiliary circuits.
  • Suitable for 12V-24V systems: Common automotive and marine voltages.
  • Red vinyl protective cover: Helps prevent corrosion and accidental shorts.
  • Trip-free cycling design: Maintains protection even during repeated faults.
  • Compact, sealed construction: Built for harsh operating environments.

What's in the box

  • 1 x auto reset 15 amp circuit breaker
  • 2 x lock nuts

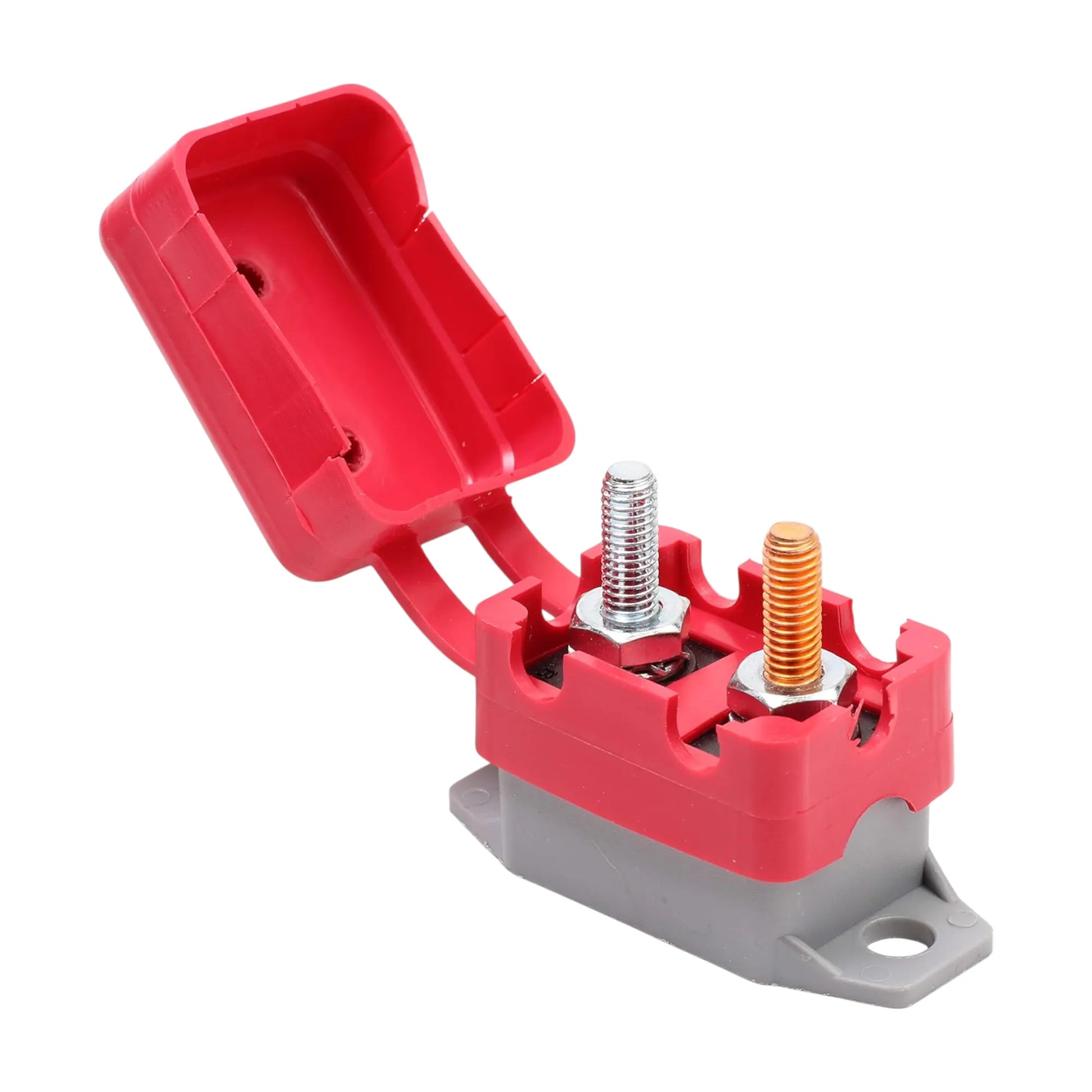

  • Red vinyl terminal cover

How it works

This breaker monitors current flow and trips when the circuit exceeds 15 amps. Once the overload or short condition is removed, the breaker automatically resets, restoring power without manual intervention.

The unipolar, free-cycle trip design ensures consistent protection in vibration-prone and mobile installations.

What it suits

  • 12V and 24V DC systems
  • Automotive and 4WD accessories
  • Marine and RV installations
  • Battery chargers and jump starters
  • Trolling motors and electric anchors
  • Winches, pressure washers, and auxiliary circuits

Fitting it

Difficulty: 2/5 (Easy). Surface-mount design with #10-32 stud terminals allows quick installation using standard ring terminals. Can be mounted in any orientation .

Features

  • Automatic thermal reset
  • Surface mount design
  • #10-32 stud terminals
  • Flexible red vinyl terminal cover
  • Rustproof, impact-resistant housing
  • Trip-free cycling operation
  • UL-rated 94V-0 thermosetting plastic body

Specifications

Rated current 15A
System compatibility 12V-24V DC systems
Rated operating voltage 14-28V DC
Reset type Automatic (thermal)
Mounting type Surface mount
Trip design Unipolar, free-cycle
Terminal size #10-32 studs
Housing material UL-rated 94V-0 thermosetting plastic

Testing & Compliance

  • Current test: 200% full-inspect test
  • Dielectric strength: 1800VAC / minute
  • Corrosion resistance: 96-hour salt spray

Certifications

  • UL certified
  • SAE J553 compliant
  • SAE J1171 compliant
  • RoHS compliant
