Auto Reset 10 Amp Breaker 12 - 24V

📝 Auto Reset 10 Amp Breaker 12–24V

The Auto Reset 10 Amp Circuit Breaker provides reliable, maintenance-free protection for medium-duty circuits in 12v and 24v electrical systems. Using a thermal automatic reset mechanism, it removes the inconvenience of blown fuses by restoring power automatically once a fault condition is cleared.

Built with a durable, rustproof housing and designed for flexible mounting, this breaker is ideal for automotive, marine, RV, and off-grid applications where dependable circuit protection is required.

⭐ Essential Benefits

• Thermal auto-reset protection – automatically resets after overload, no fuse replacement needed.
• 10 amp rating – suitable for accessory, lighting, and control circuits.
• Suitable for 12v–24v systems – common automotive and marine voltages.
• Red vinyl protective cover – reduces corrosion and helps prevent accidental shorts.
• Trip-free cycling design – continues to protect even during repeated fault conditions.
• Compact, sealed construction – suitable for harsh environments.

⚙️ Functionality

This breaker continuously monitors current flow and trips when the circuit exceeds 10 amps. Once the overload or short condition is removed, the breaker automatically resets, restoring power without manual intervention.

The unipolar, free-cycle trip design ensures consistent protection even during repeated faults, making it well suited to mobile and vibration-prone installations.

🔌 Compatibility

• 12v and 24v DC systems
• Automotive and 4WD accessories
• Marine and RV installations
• Battery chargers and jump starters
• Trolling motors and electric anchors
• Winches, pressure washers, and auxiliary circuits

🧰 Installation Difficulty

🟢 2/5 (Easy)

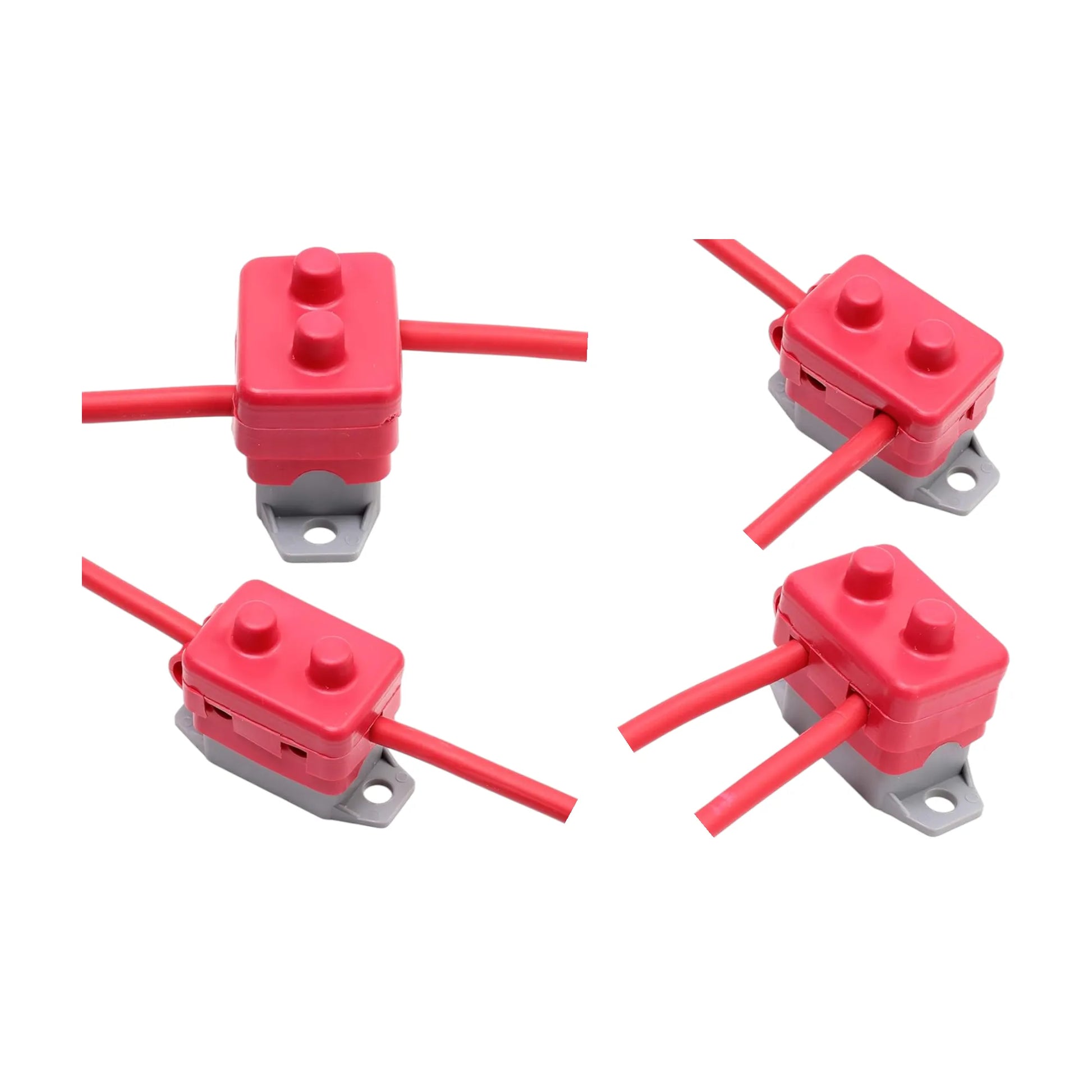

Surface-mount design with #10-32 stud terminals allows quick installation using standard ring terminals. Can be mounted in any orientation.

🔍 Features

• Automatic thermal reset
• Surface mount design
• #10-32 stud terminals

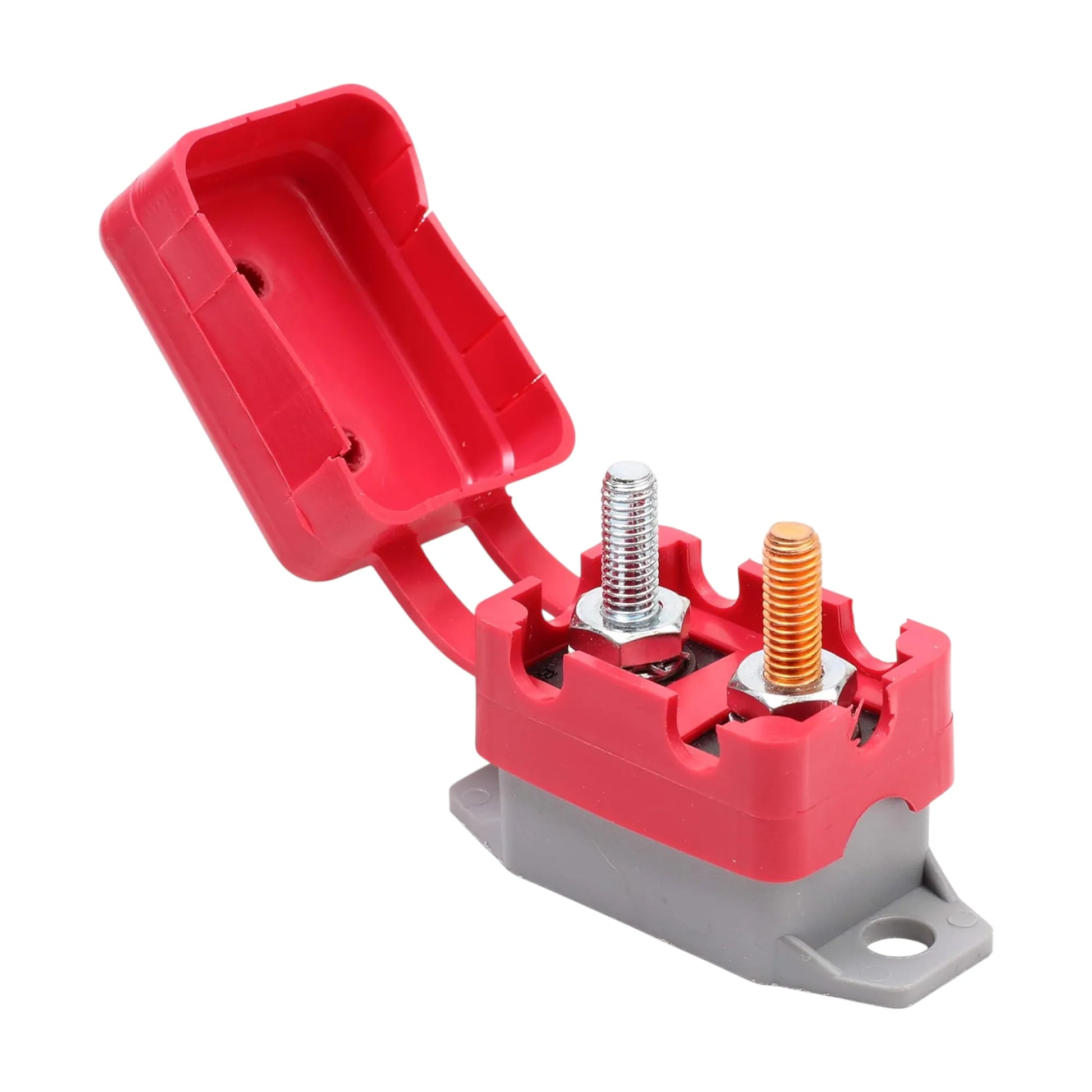

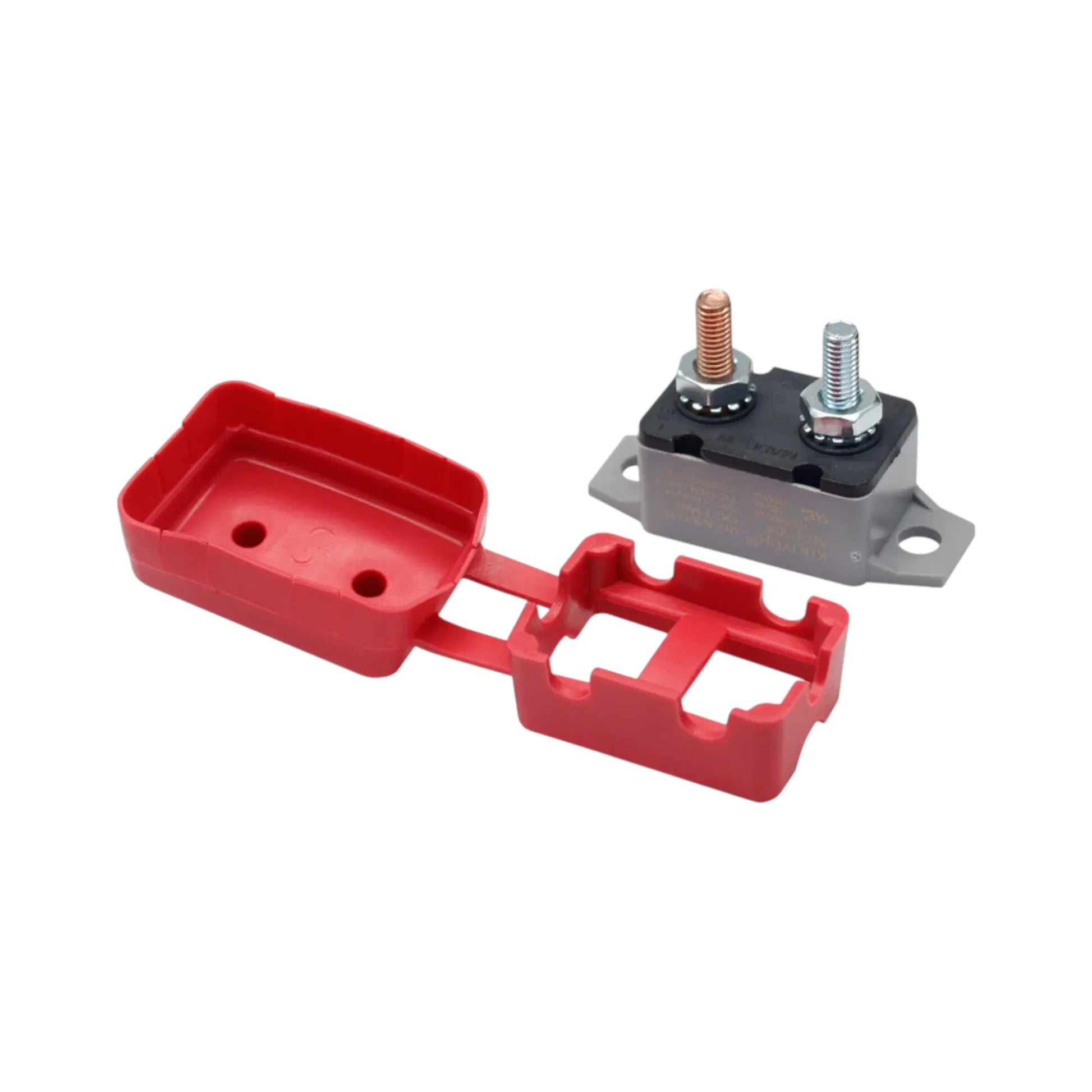

• Flexible red vinyl terminal cover
• Rustproof, impact-resistant housing
• Trip-free cycling operation
• UL-rated 94V-0 thermosetting plastic body

📊 Specifications

Testing & Compliance

• Current test: 200% full-inspect test
• Dielectric strength: 1800VAC / minute
• Corrosion resistance: 96-hour salt spray

Certifications

• UL certified
• SAE J553 compliant
• SAE J1171 compliant
• RoHS compliant

📦 What’s Included

• 1 × auto reset 10 amp circuit breaker
• 2 × lock nuts
• Red vinyl terminal cover

🙌 Why Choose This Product

This 10A auto reset breaker delivers dependable circuit protection without the inconvenience of replacing fuses. With certified performance, corrosion resistance, and flexible mounting, it’s a reliable choice for protecting medium-duty circuits in demanding environments.
