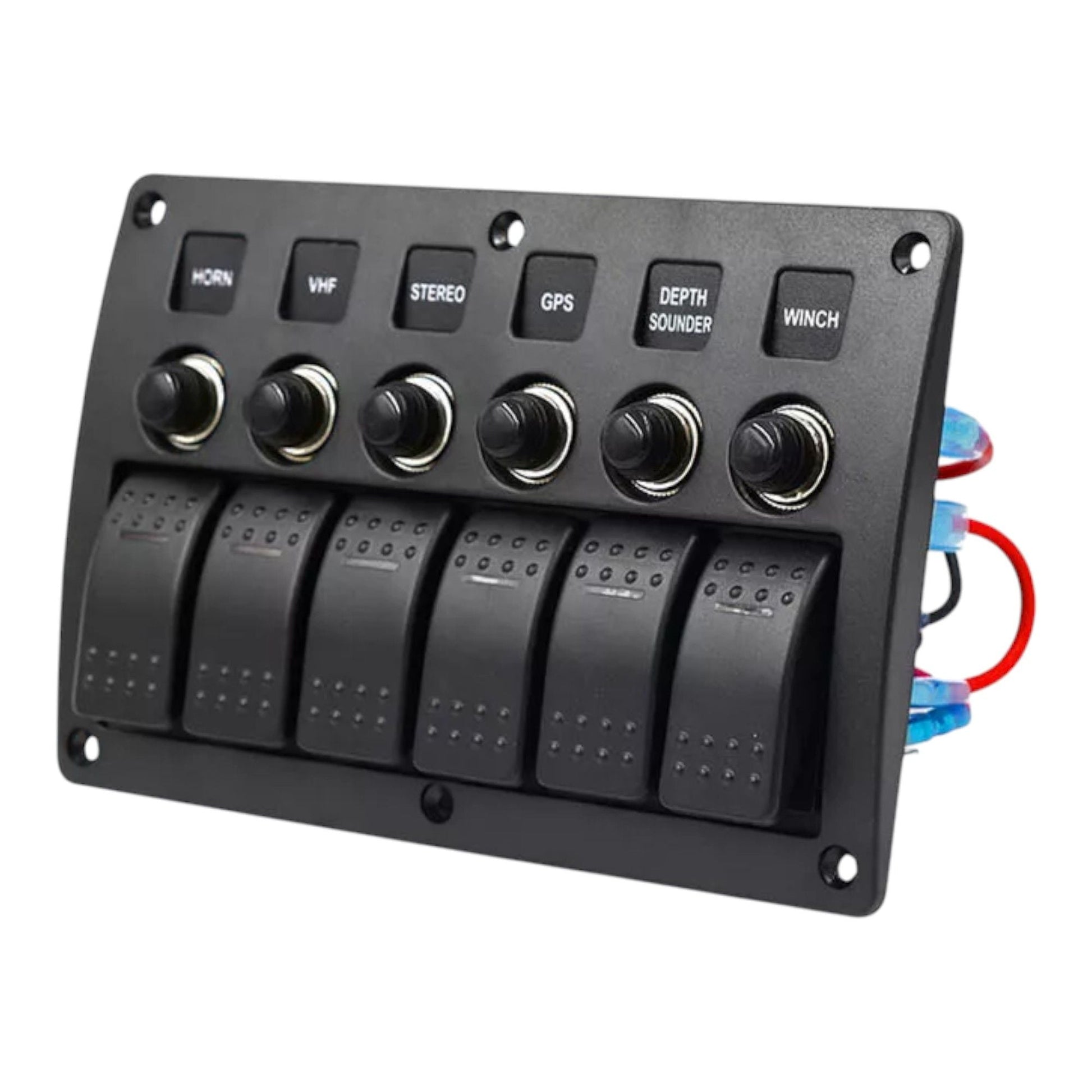

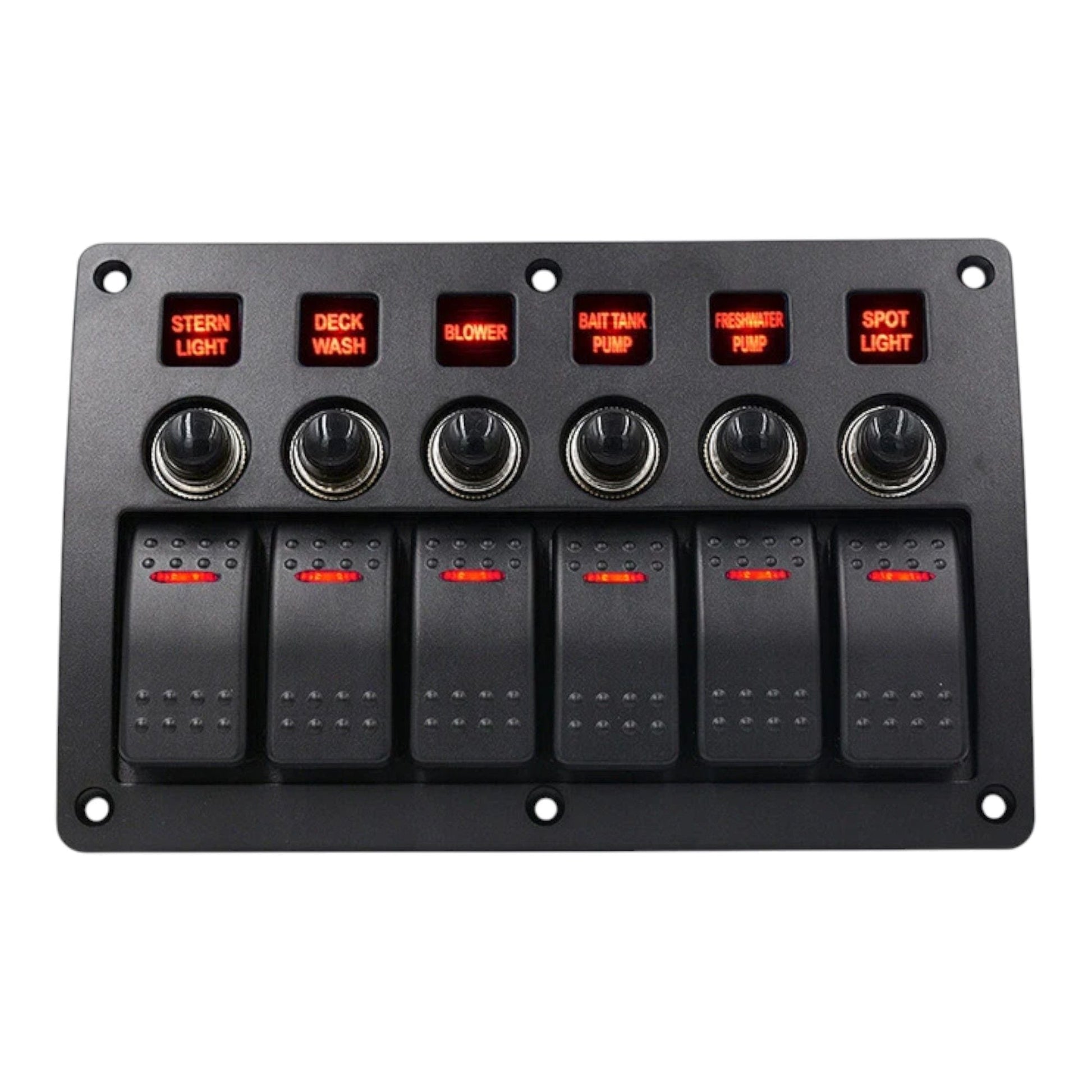

6 Way Rocker Switch Panel with Circuit Breakers (Red LED)

5.03 reviewsSold out SKU CVB-6WAY-SWITCH-CB
$52.99inc. GST

Spend more, get more

Free Express
on orders over $130
Free 65W charger
on orders over $200
Order by 3pm AEST and it ships today
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices. How it works
  • Aussie warranty1 year, handled locally
  • Geelong supportReal people, real answers
  • Same day shippingOrder by 3pm AEST
$52.99Sold out
Details

The full rundown

A waterproof 6 way rocker switch panel with circuit breakers built in, so each circuit is switched and protected in the one unit. Made from flame-retardant materials.

Why it works

  • Six independent circuits: Control six accessories from one compact panel.
  • Wide voltage compatibility: Supports both 12V and 24V DC systems.
  • Integrated circuit breakers: Built-in overload protection prevents device damage.
  • High-temperature materials: Abs, pc and pbt housing withstands -25ยฐc to 80ยฐc.
  • Waterproof IP65 rating: Suitable for marine and outdoor installations.
  • Clear red LED illumination: Switch status is easy to see day or night.

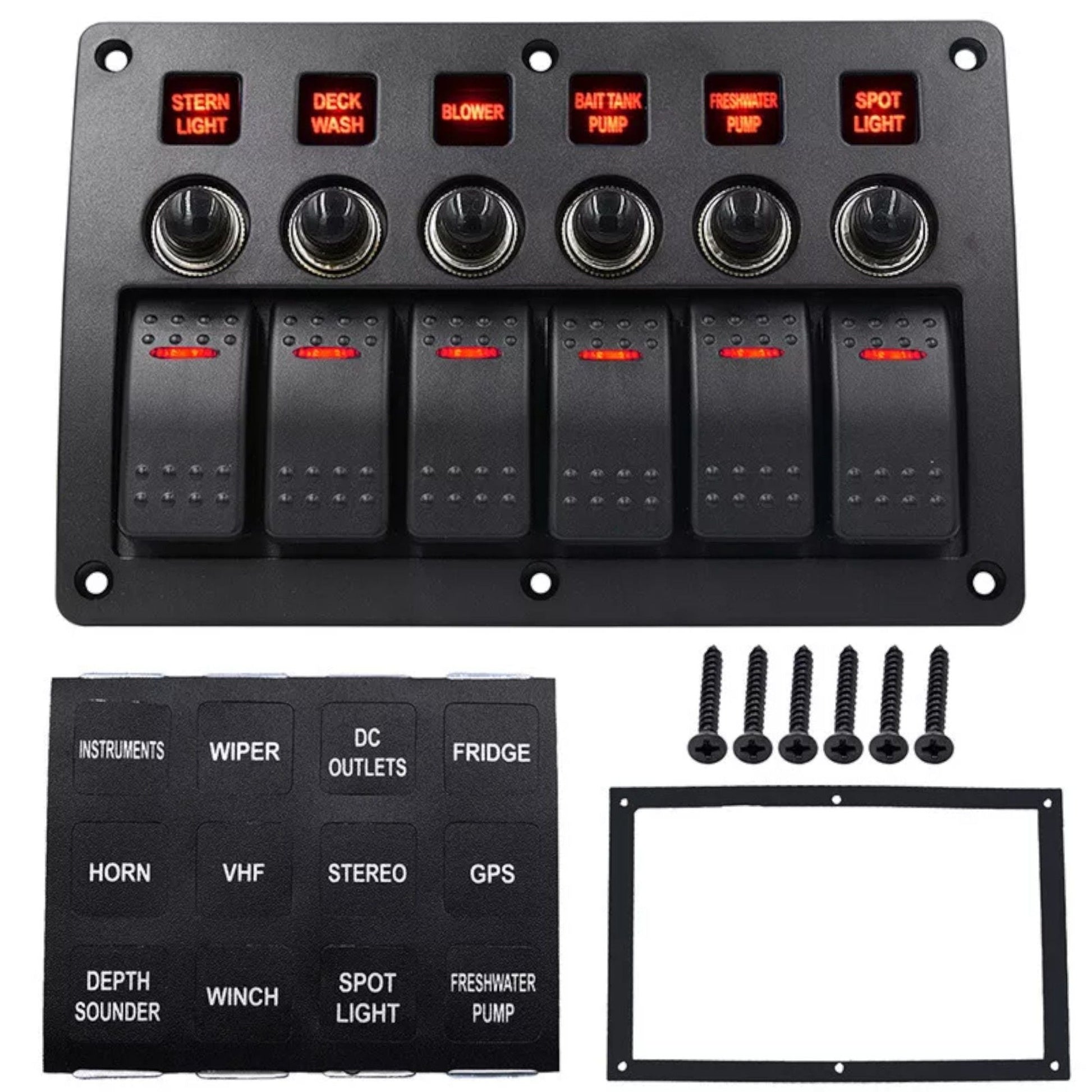

What's in the box

  • 1 x 6-gang rocker switch panel
  • 4 x Mounting screws

How it works

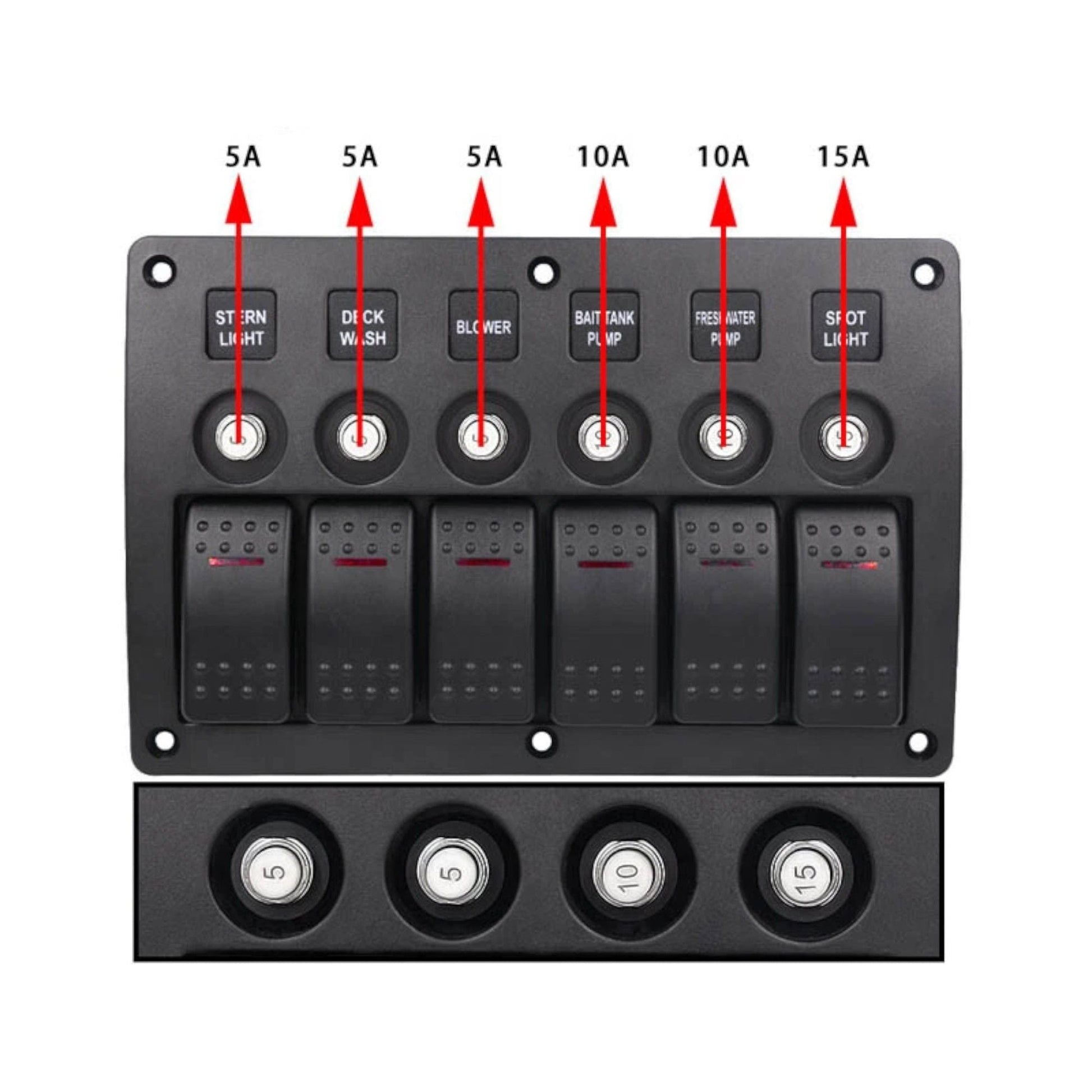

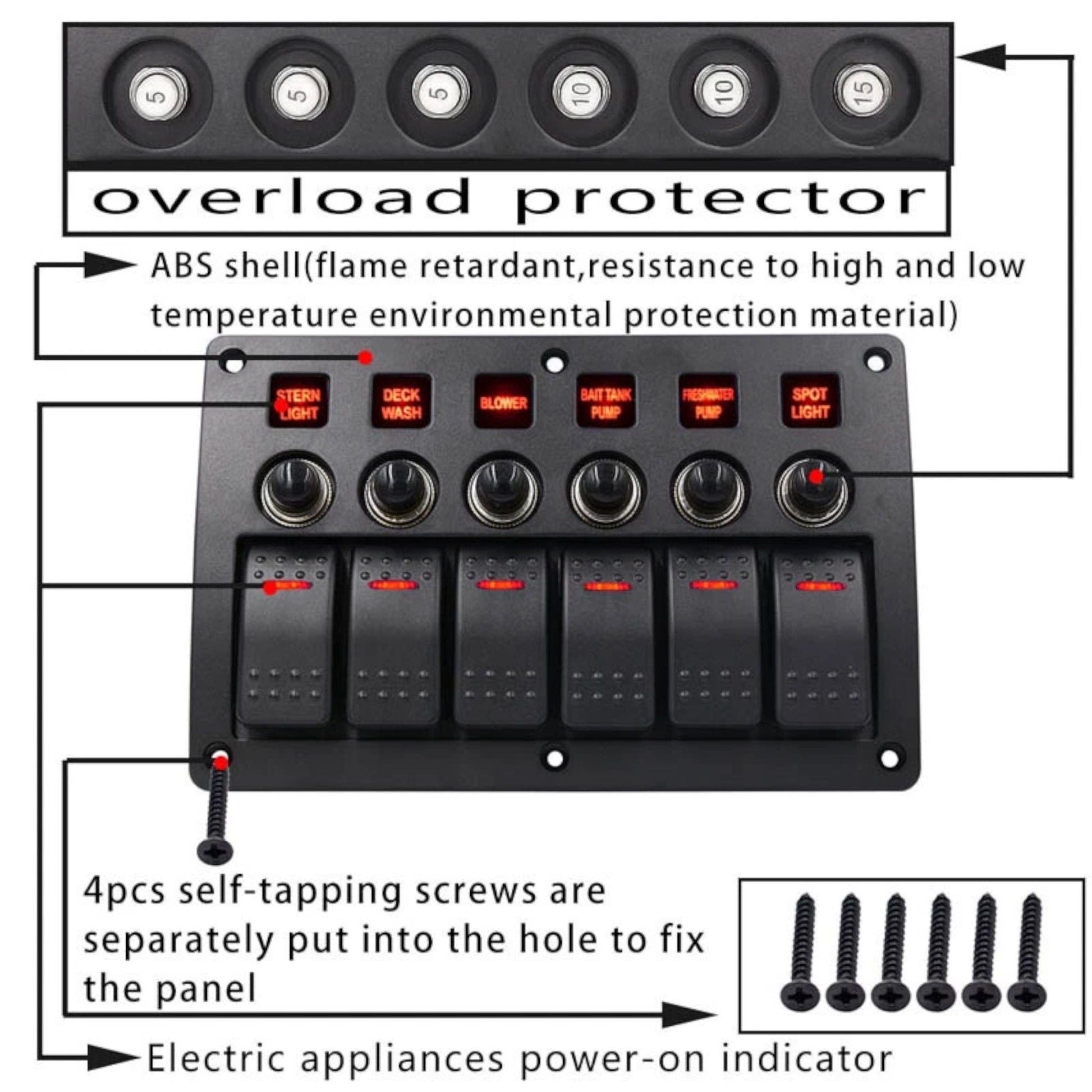

Each rocker switch controls an individual circuit and is protected by its own overload breaker. If a device exceeds the maximum current rating, the breaker automatically cuts power until reset, safeguarding your wiring and equipment. The flame-retardant housing and sealed panel design make it suitable for harsh automotive and marine environments.

What it suits

  • Works with 12V and 24V DC electrical systems
  • Suitable for lights, pumps, fridges, fans, compressors, and auxiliary accessories
  • Ideal for campervans, caravans, boats, RVs, 4WDs, and off-grid builds

Fitting it

Difficulty: 1/5 (Easy). Surface-mount installation with simple wiring to each circuit and breaker.

Features

  • Six rocker switches with red LED indication
  • Integrated overload protection
  • High/low temperature flame-retardant construction
  • IP65 waterproof rating
  • Durable black finish
  • Wide operating temperature range
  • Suitable for vehicle, marine and off-grid environments

Specifications

Max Voltage 12V / 24V DC
Max Power 120-260W
Waterproof Rating IP65
Operating Temp -25ยฐc to 80ยฐc
Light Colour Red
Housing Material ABS / PC / PBT
Dimensions 183 x 120 x 75mm
Cut-out Size 153 x 86mm
Colour Black
