6 Point Blade Fuse Positive and Negative Block
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown

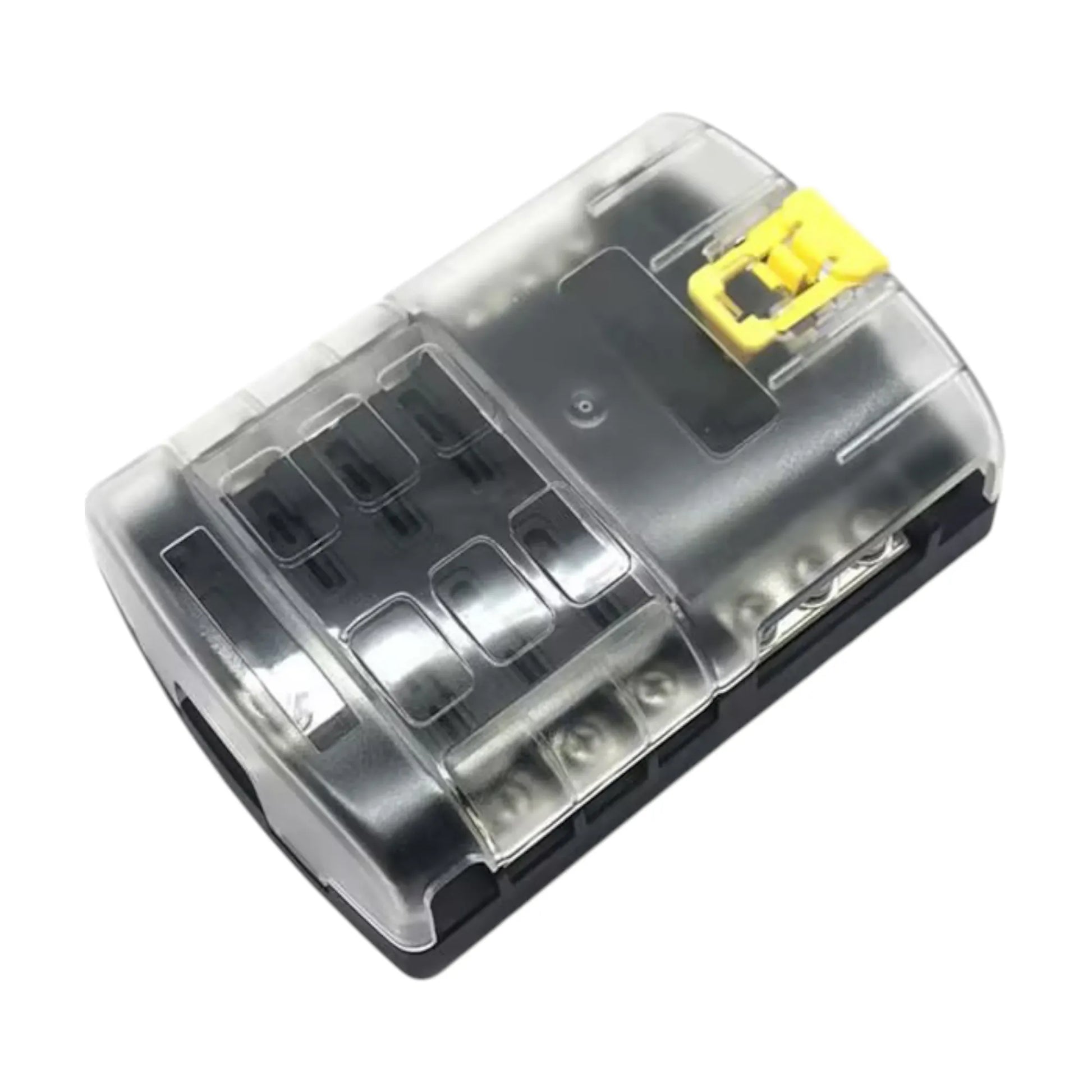

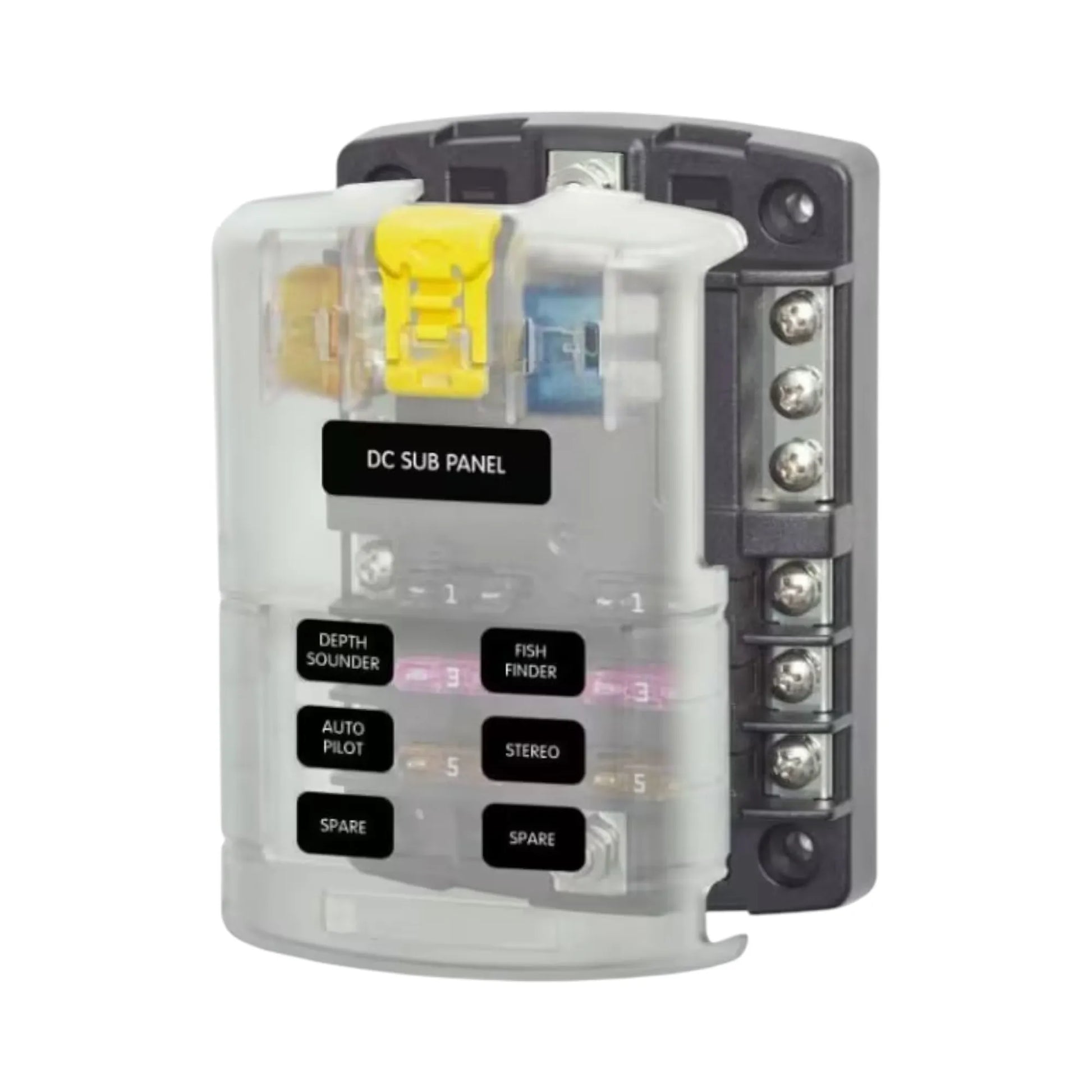

A 12-slot blade fuse block with positive and negative busbars built in and a labelled cover. It keeps power distribution safe, organised and easy to trace.
Why it works

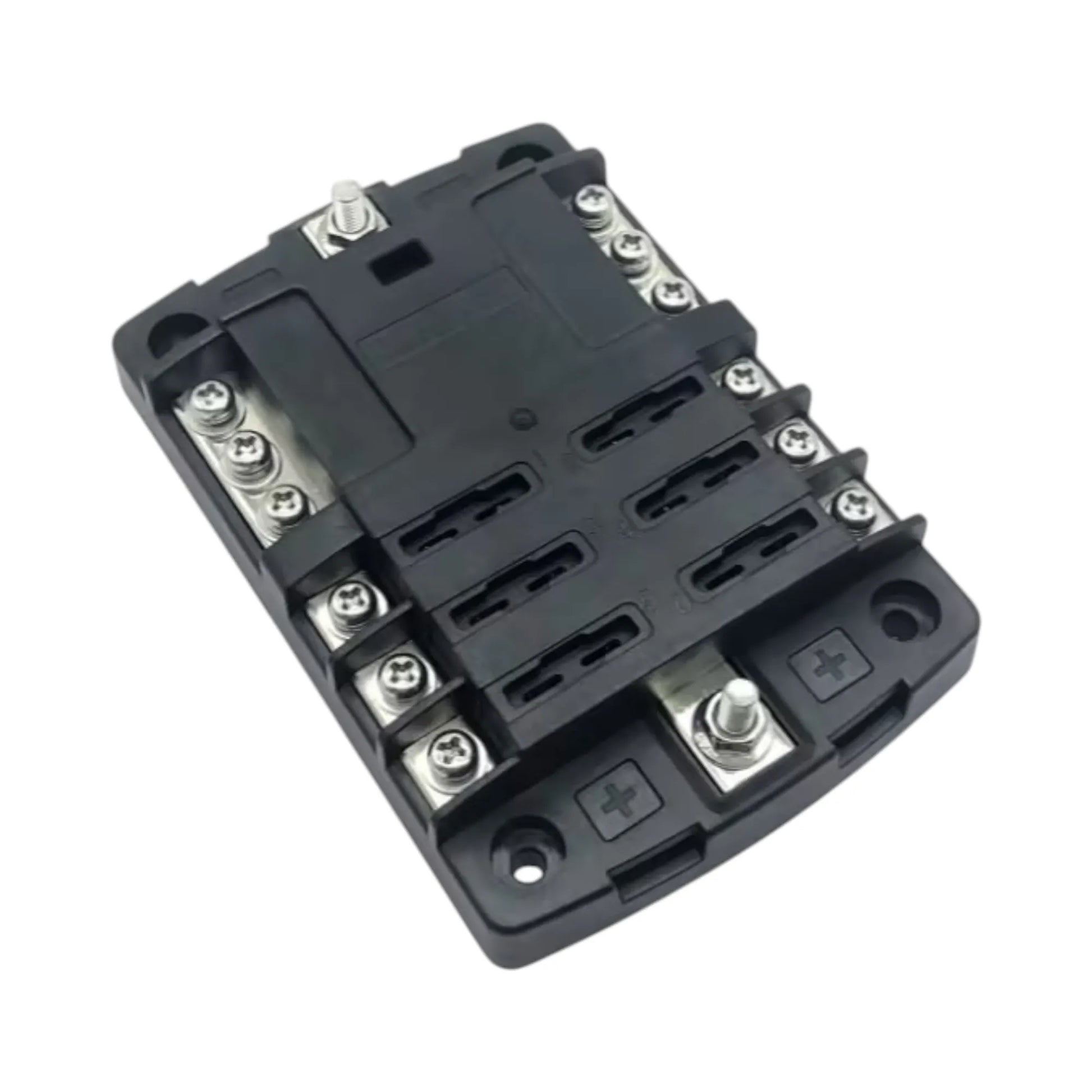

- Integrated positive & negative busbars: Centralise wiring for a tidy and efficient electrical layout.
- Six fused circuits: Power and protect multiple accessories with structured distribution.
- 100A maximum amperage: Supports larger 12V and 24V electrical systems.
- 30A per circuit: Suitable for a wide range of fused DC accessories.
- Versatile terminal compatibility: Accepts both ring and fork terminals for secure wiring.
- Clear protective cover: Features label recesses and spare-fuse storage for easy identification.
- Durable engineering: ABS housing with nickel-plated copper components for long-term reliability.
What's in the box

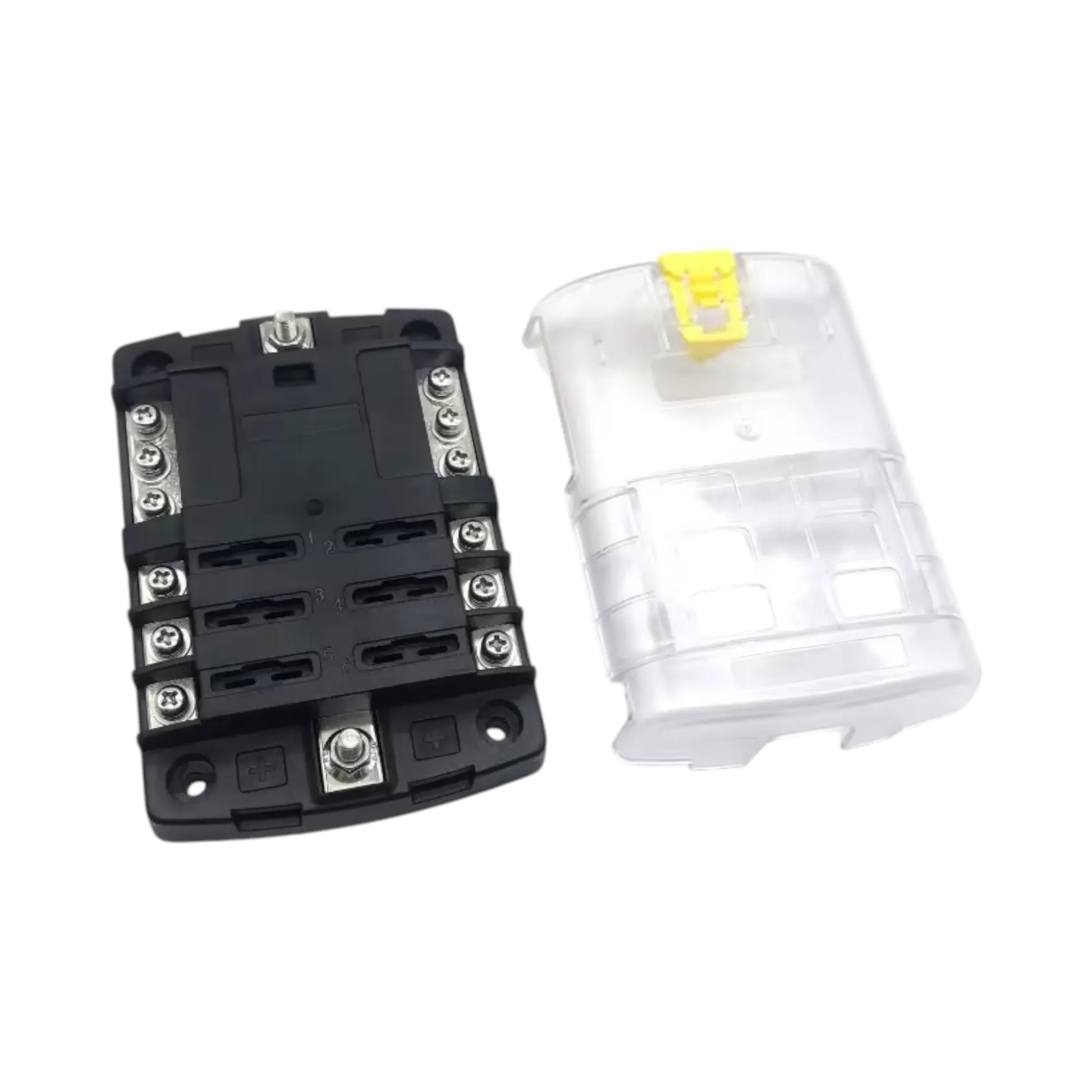

- 1 x 6-slot fuse block with positive and negative busbars and cover
- 1 x customisable circuit ID label sheet
- 4 x mounting screws
How it works
This fuse block provides a dedicated slot for each of the six positive circuits, with negative busbars to simplify the wiring layout. The cover latches securely with a push-button mechanism and meets ABYC/USCG insulation standards.

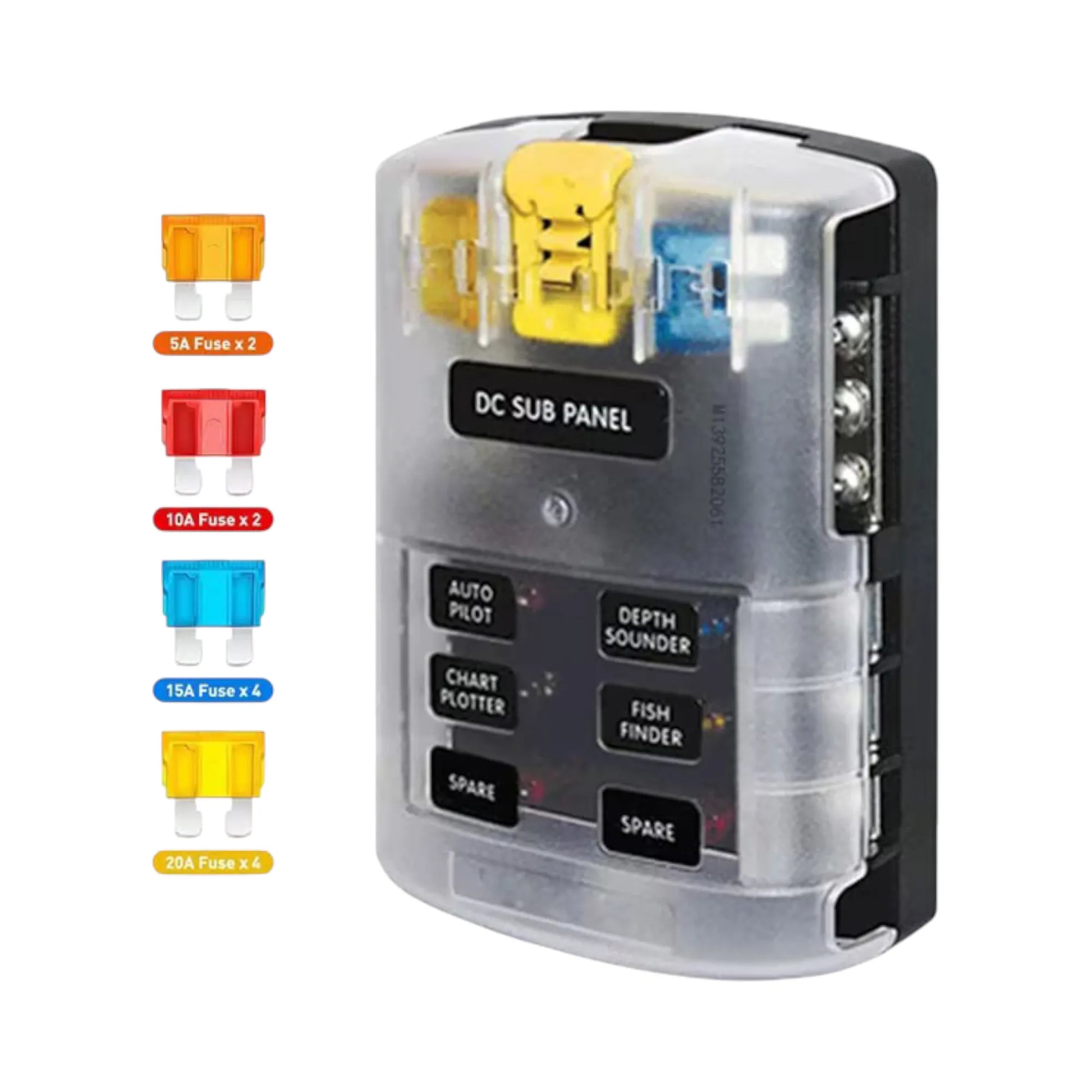

Spare fuses can be stored inside the cover, and label recesses make circuit identification simple and tidy. With a maximum voltage of 32V DC, 100A maximum total amperage, and 30A maximum per circuit, it provides dependable circuit protection across compact multi-accessory installations.
What it suits
- Suitable for 12V and 24V systems
- Maximum voltage up to 32V DC
- Compatible with ATC and ATO blade fuses
- Works with campervans, 4WDs, caravans, RVs, boats and auxiliary power systems
- Ideal for lights, pumps, fridges, accessories and low-voltage DC circuits
Fitting it
Difficulty: 2/5 (Easy). Surface-mount installation with straightforward busbar and 6-circuit wiring.
Features
- Six ATC/ATO fuse slots
- Maximum amperage 100A
- Maximum 30A per circuit
- Maximum voltage 32V DC
- Tin-plated copper bus studs and fuse clips
- Accepts spade or ring terminals
- Includes clear dust-proof protective cover
- Cover features label recesses and spare fuse holders
- Positive stud supports 24-hour/constant-power circuits
Specifications
| Max Voltage | 32V DC |
| Maximum Amperage | 100A |
| Maximum Current Per Circuit | 30A |
| Circuits | 6 |
| Fuse Type | ATC / ATO |
| Dimensions | 120 x 85 x 35mm |
| Materials | ABS housing, nickel-plated copper |
| Terminals | 6.3mm spade + ring terminal compatible |
| Weight | Approx 0.20kg |
