4 Way Rocker Switch Panel With 12V Socket Dual LED (Red, Green or Blue)

In stock SKU PNL-ROCK-4-12V-R-2L
$49.00inc. GST
Color

Spend more, get more

Free Express
on orders over $130
Free 65W charger
on orders over $200
Order by 3pm AEST and it ships today
Won't be home? We ship to Aus Post Parcel Lockers and Post Offices. How it works
  • Aussie warranty1 year, handled locally
  • Geelong supportReal people, real answers
  • Same day shippingOrder by 3pm AEST
$49.00Ships today by 3pm
Details

The full rundown

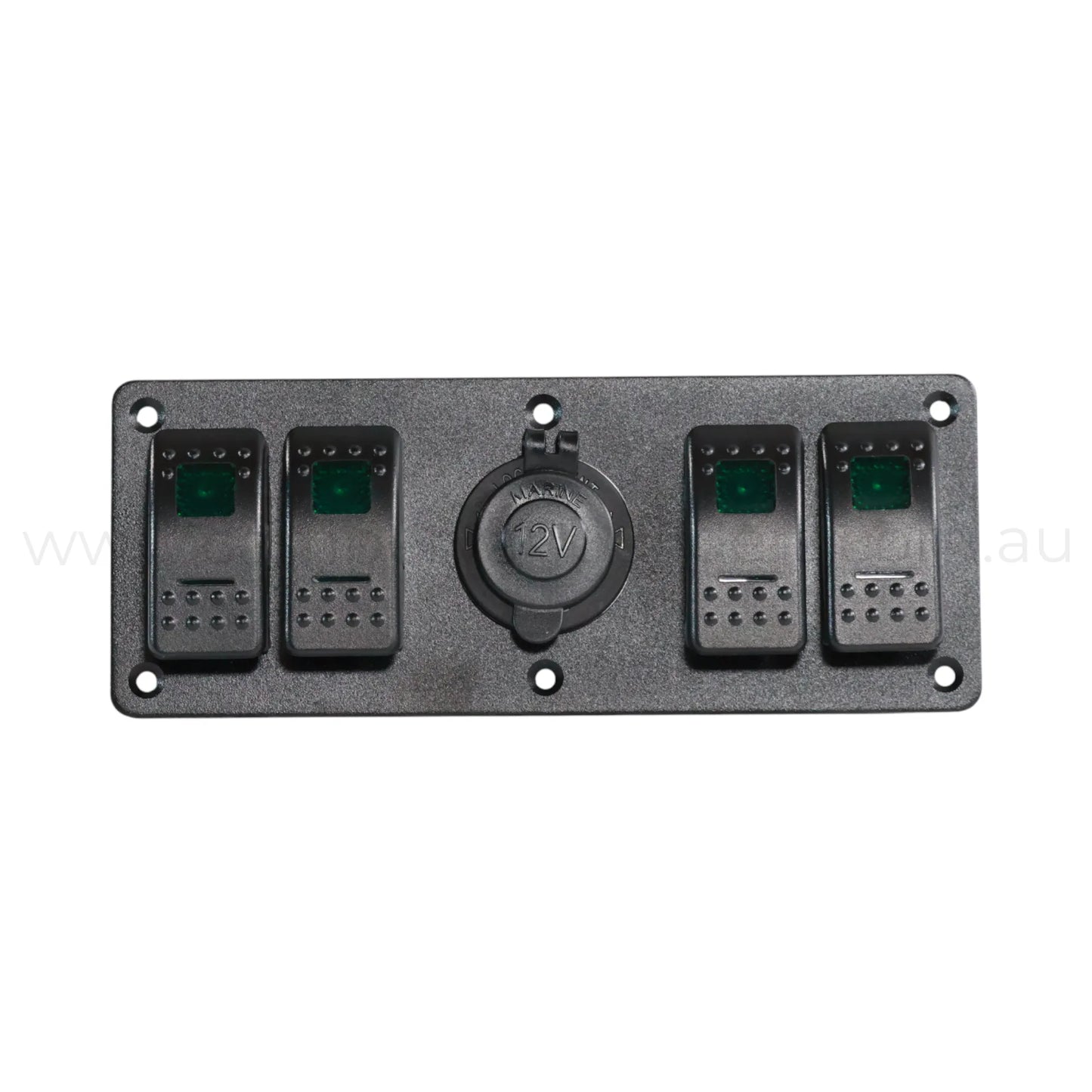

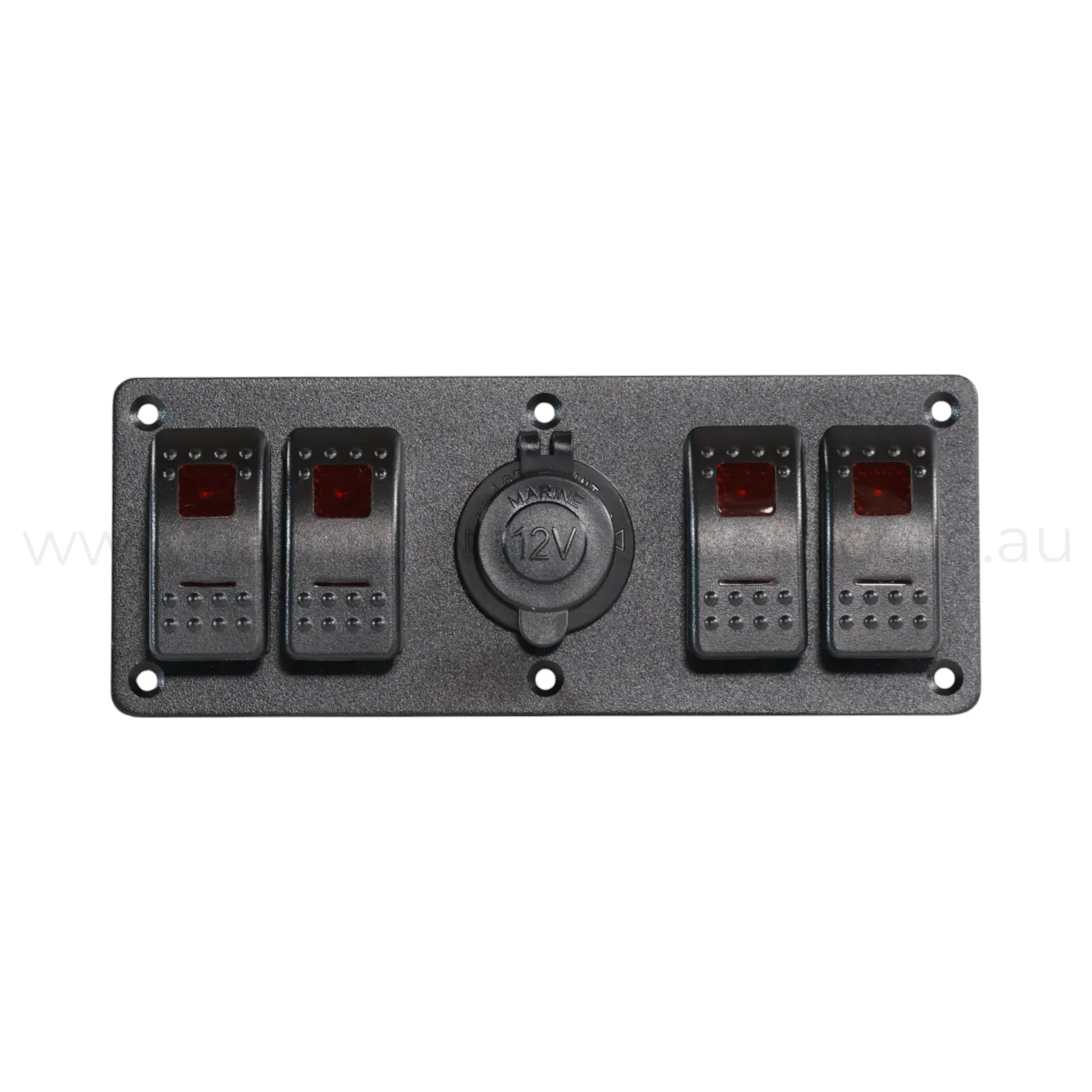

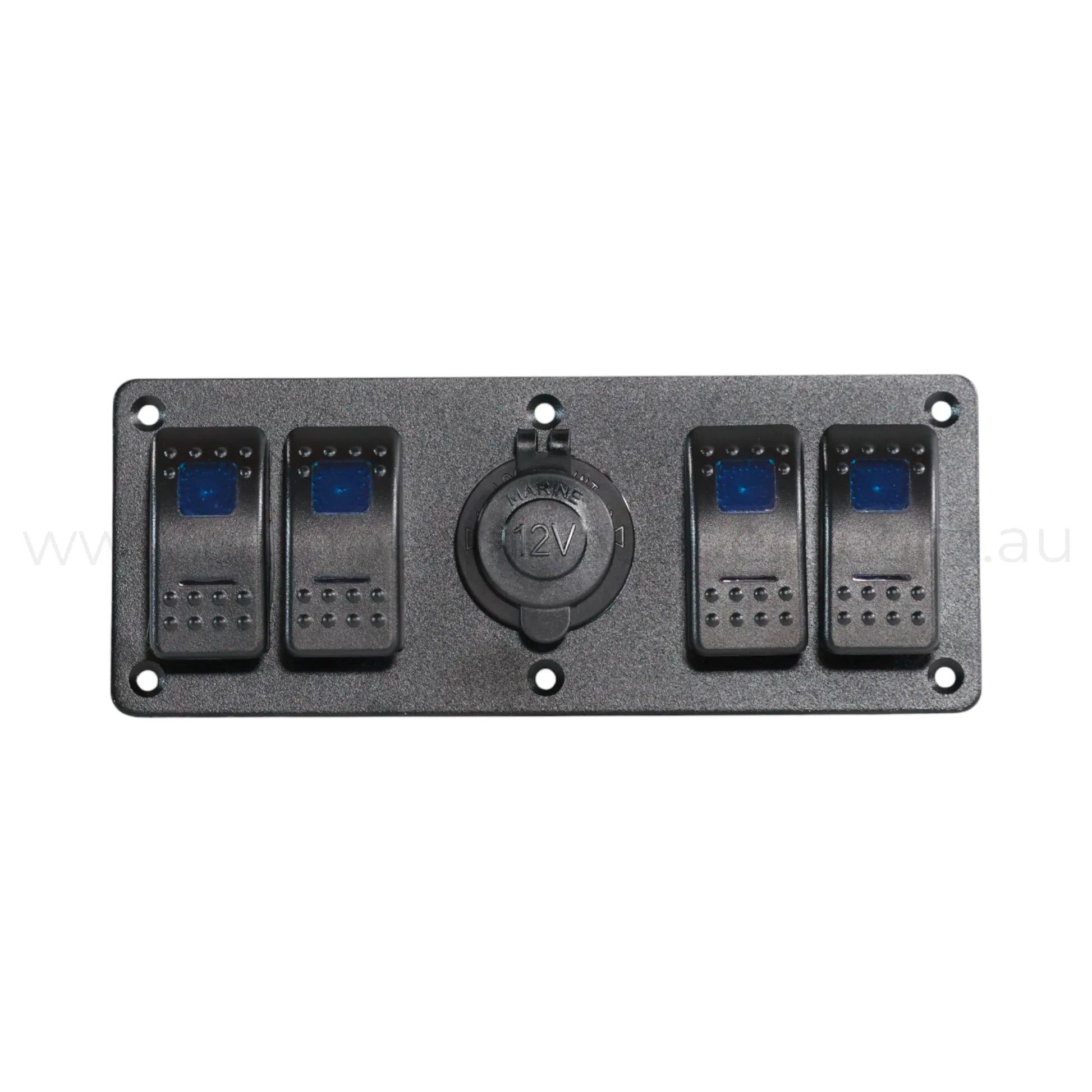

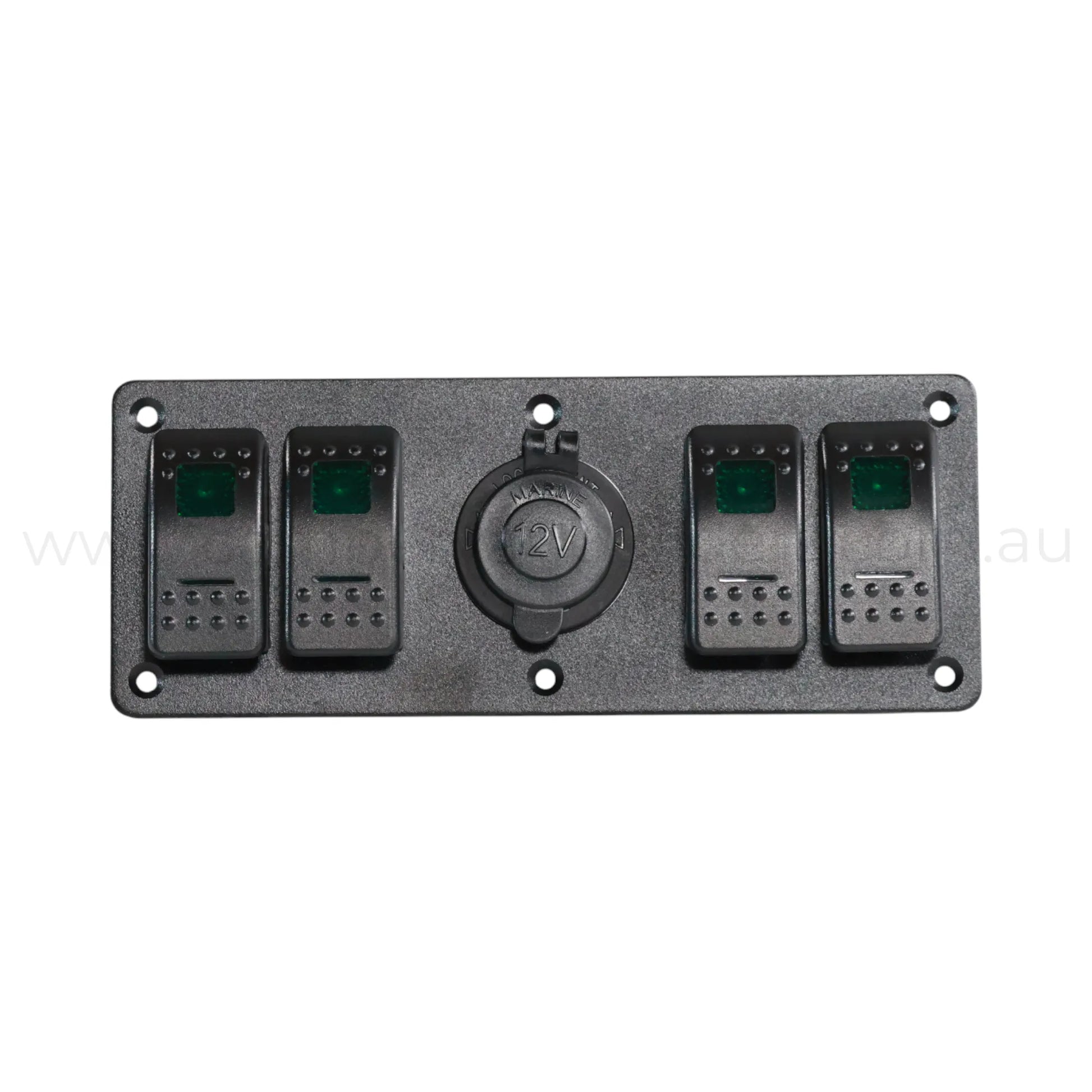

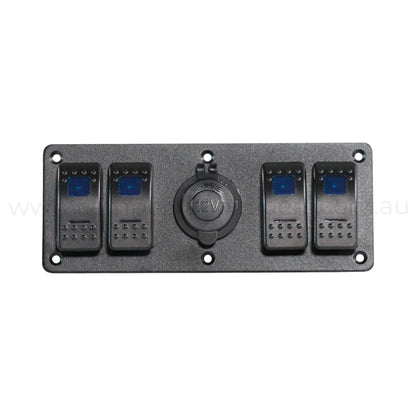

A pre-wired 4 way rocker switch panel with a 12V socket built in. Four dual-LED switches and a power outlet in one tidy panel.

Why it works

  • 4x rocker switches for independent control of 12V accessories.
  • Dual LED switches for clear dash light and on/off status indication.
  • Integrated 12V cigarette style socket for powering accessories.
  • Pre-wired design for fast, clean installation.
  • Aluminium mounting plate for strength and long-term durability.

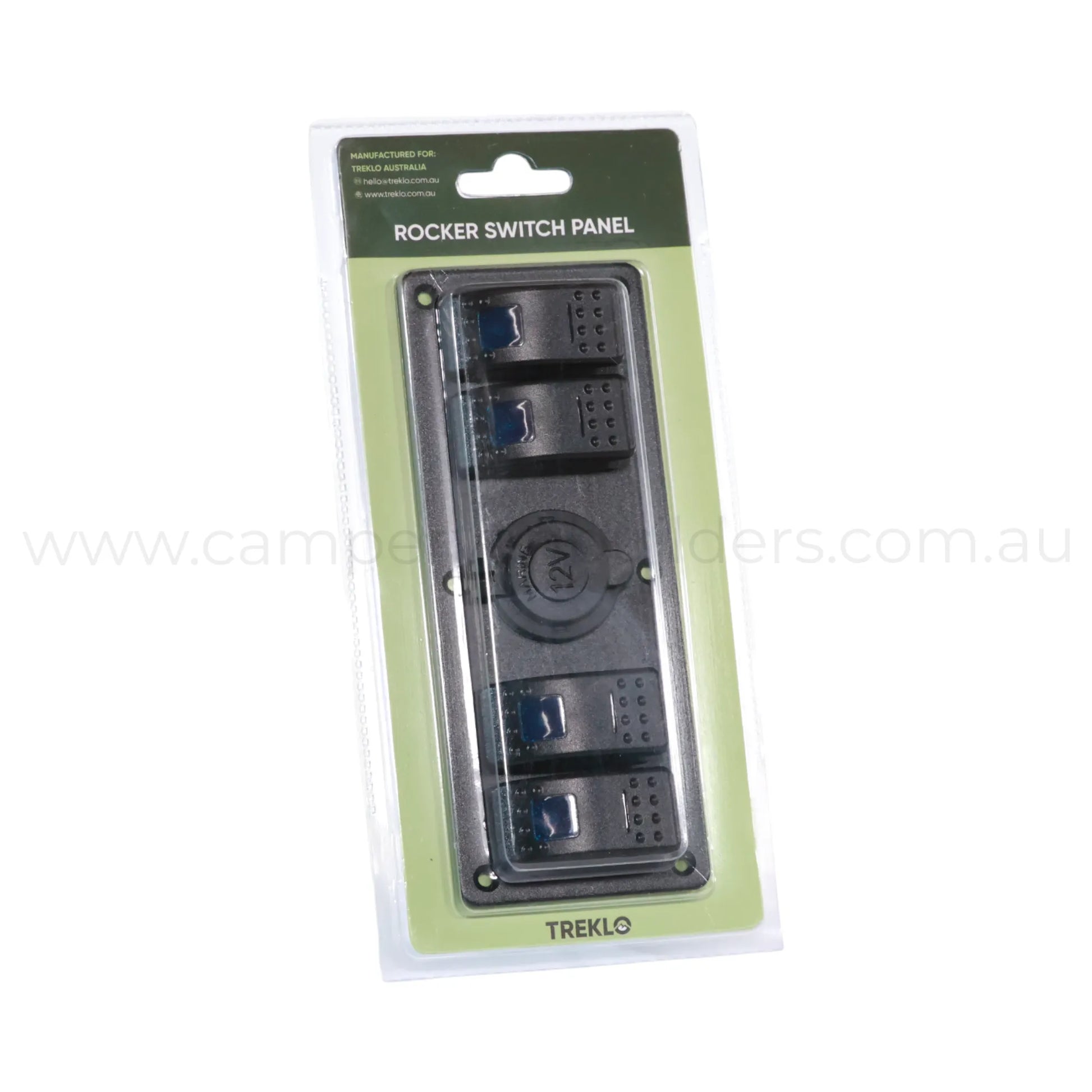

What's in the box

  • 1 x pre-assembled and pre-wired switch panel.
  • 4 x rocker switches.
  • 1 x 12V cigarette style socket.

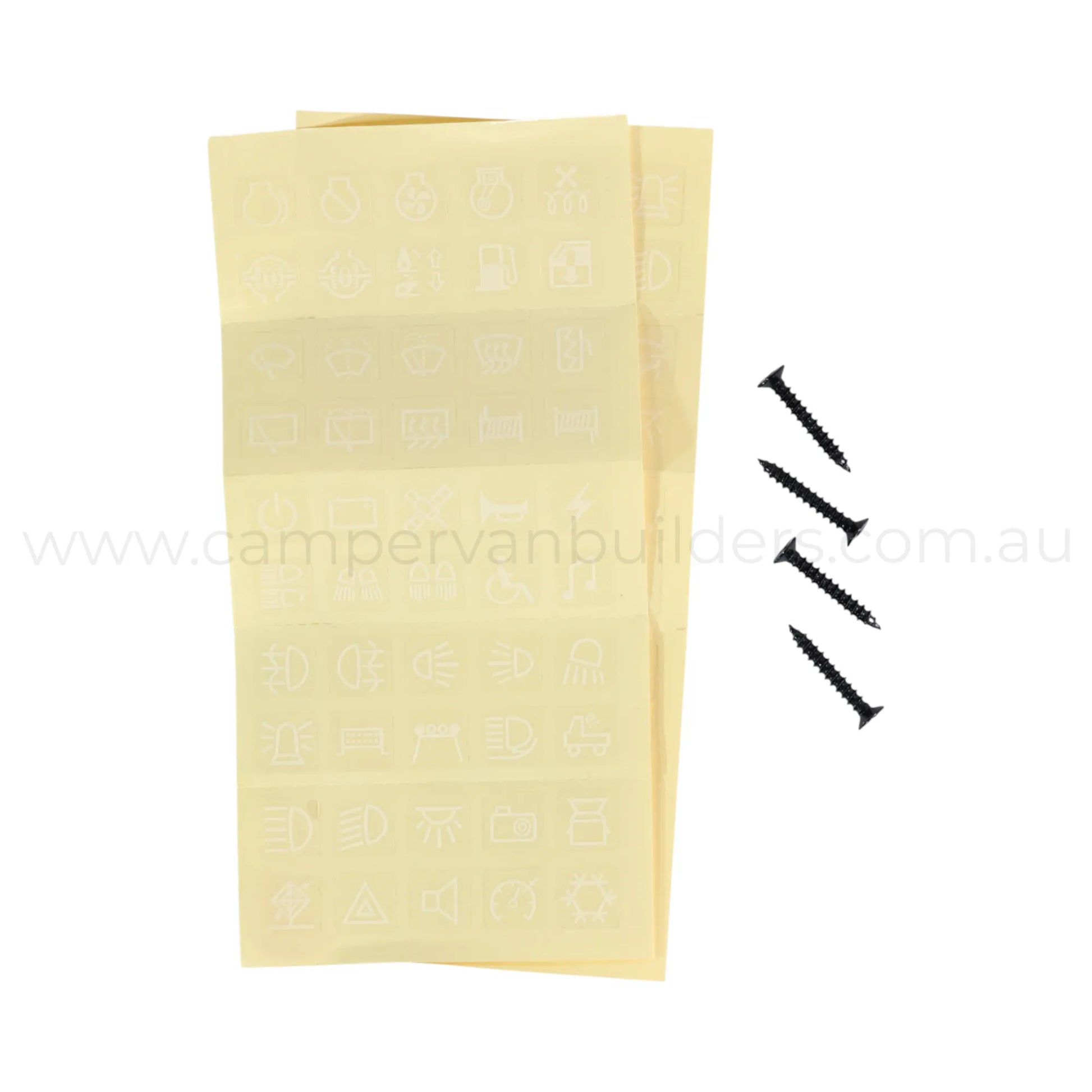

  • 1 x sticker / label pack.
  • 4 x mounting screws.

How it works

This panel is fully assembled with four SPST on/off rocker switches mounted to an aluminium plate. Each switch uses dual LEDs, with the lower LED acting as a dash light and the top LED illuminating when the switch is turned on.

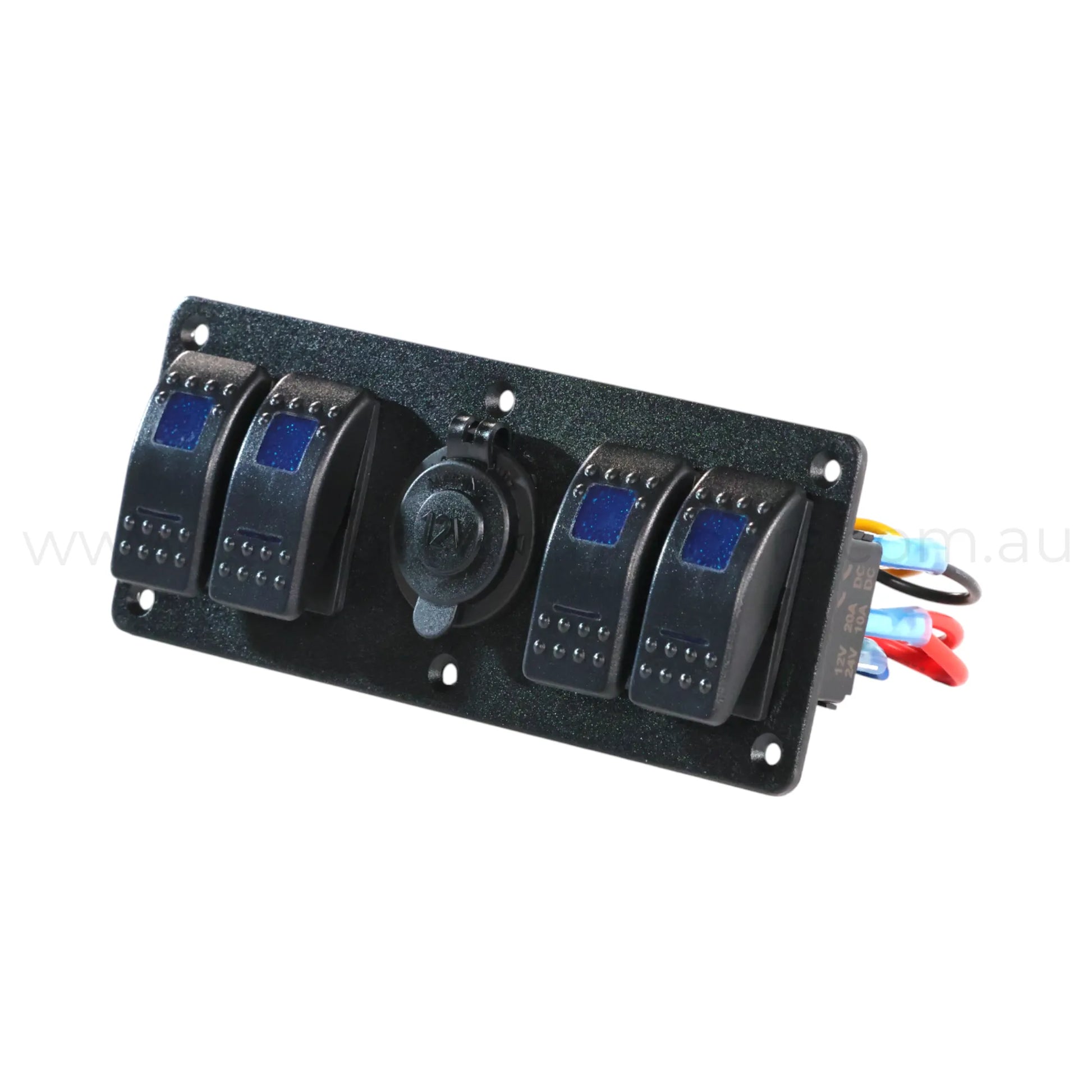

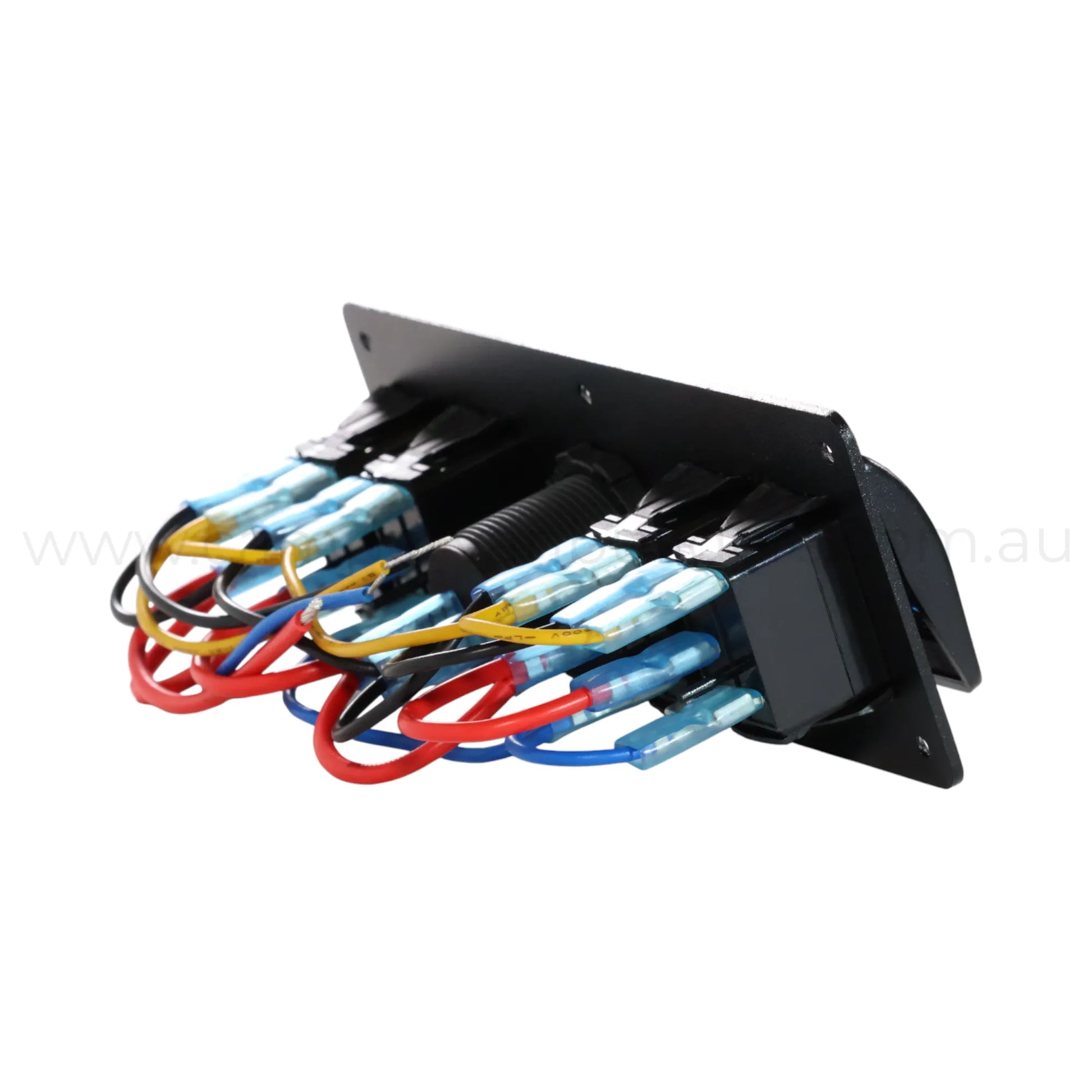

All dash light positive terminals are pre-wired together, requiring only a single positive connection, and all LED negatives are also pre-wired to a single negative connection. Each switch has a separate main power input to allow individual fused circuits if required, with pre-crimped male spade terminals fitted.

The panel also includes a pre-wired 12V cigarette style accessory socket, requiring only a single positive and negative connection for operation.

What it suits

  • Works with 12V and 24V DC systems.
  • Suitable for 4WDs, campervans, caravans, boats, and off-grid setups.
  • Ideal for lights, fans, pumps, fridges, and 12V plug-in accessories.
  • Compatible with standard rocker switch label covers.

Fitting it

Difficulty: 2/5 (Easy). Pre-wired panel with straightforward mounting and minimal wiring connections.

Features

  • 4 x SPST rocker switches (on/off).
  • Dual LED per switch for dash light and active status.
  • Integrated 12V cigarette style accessory socket.
  • Pre-wired LED circuits with shared positive and negative connections.
  • Separate power feed to each switch for flexible circuit design.
  • Aluminium mounting plate with a clean, professional finish.

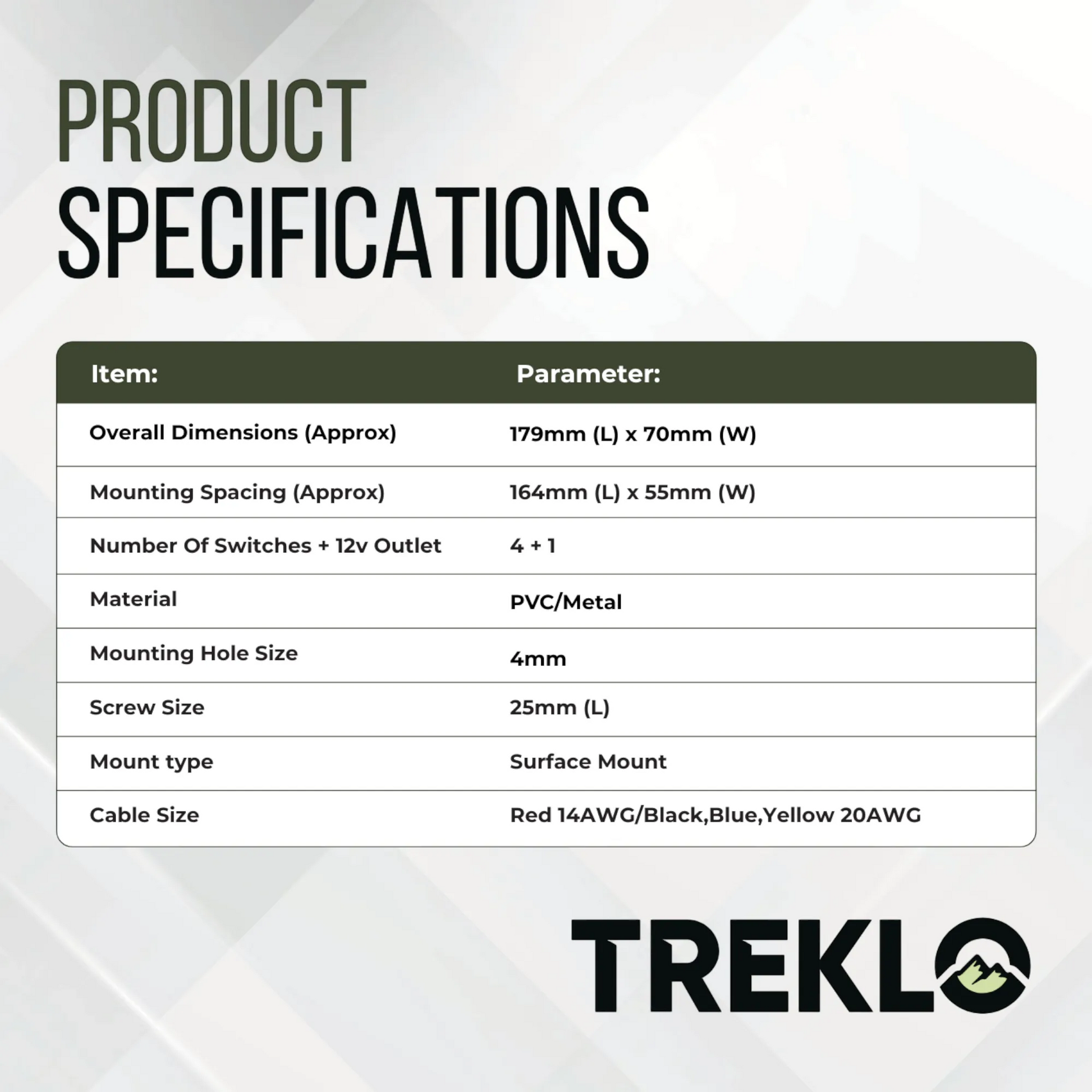

Specifications

Input voltage 12V / 24V DC
Maximum rating 20A @ 12V / 10A @ 24V
Switch type SPST on / off
Poles Single pole
Throws Single throw
LED type Dual LED per switch

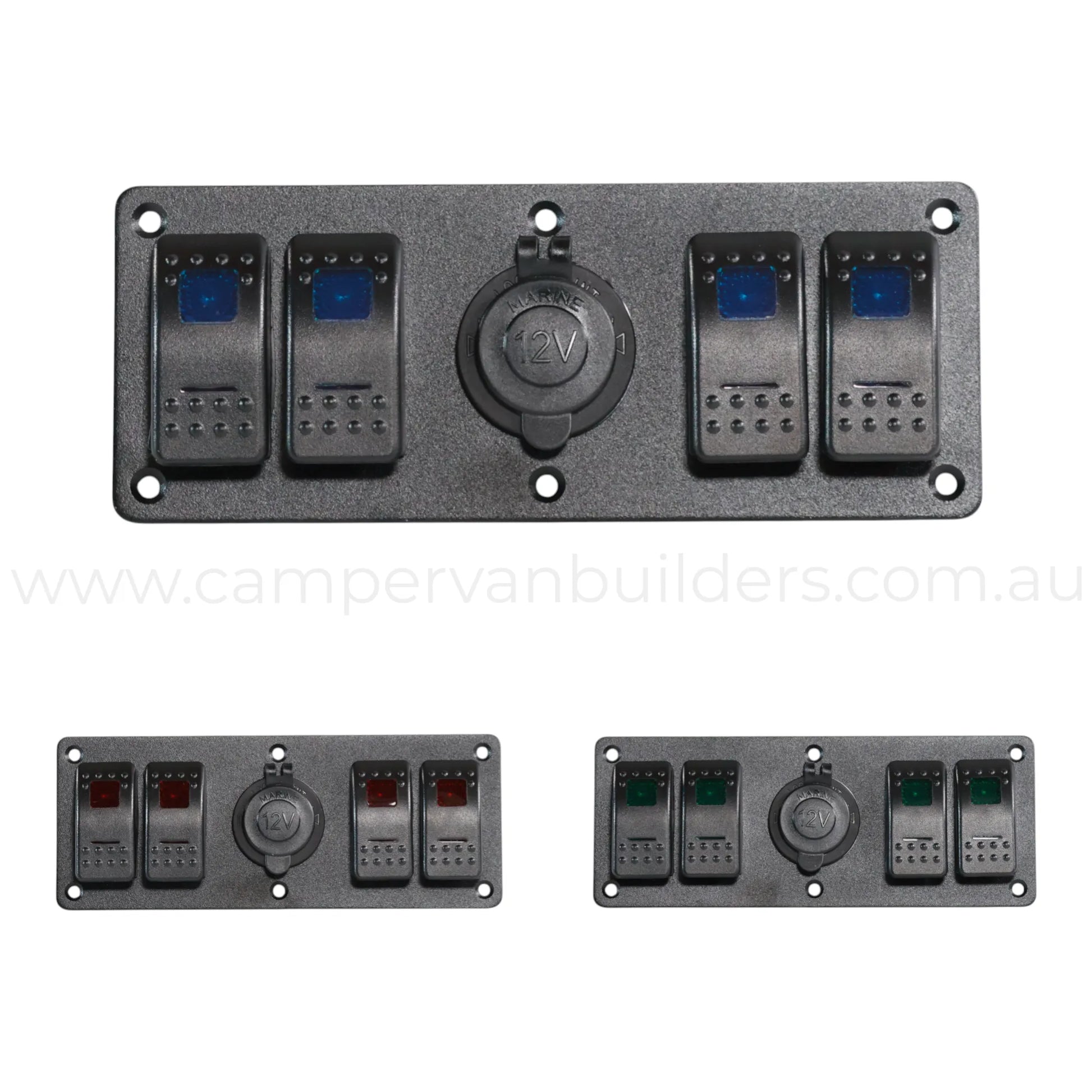

LED colours Red / green / blue
Accessory outlet 12V cigarette style socket
Materials Aluminium
Depth required Approx 75mm
Mounting hole diameter 4mm countersunk
