22mm LED Blue Push Button Switch - Stainless Steel Finish - 12-24V
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown
A 22mm push button switch with an LED halo ring, for builds where a larger switch face is easier to see and press. A clean, modern control for touring and off-grid setups.
Why it works

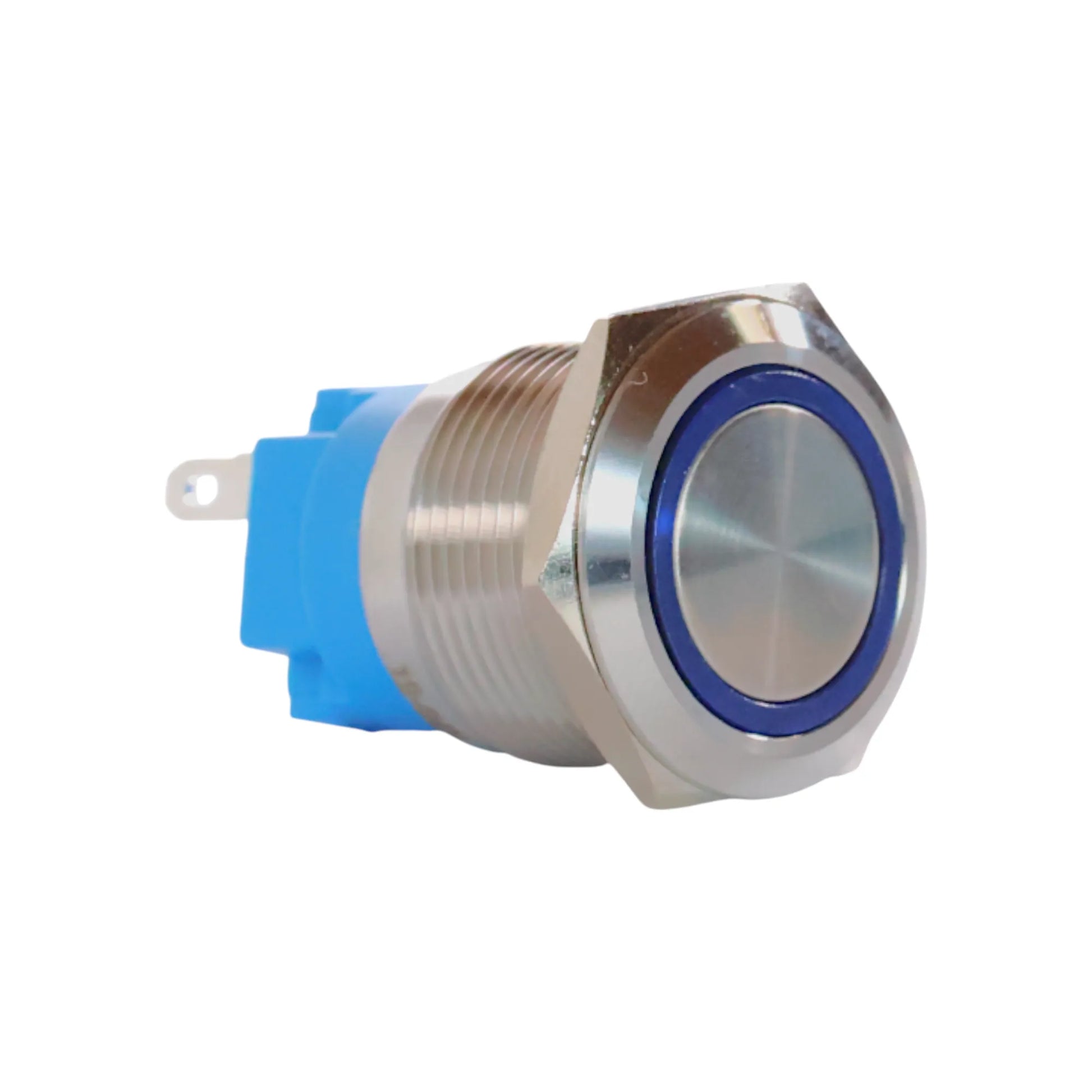

- Blue LED halo ring: Clear visual feedback when the circuit is active.
- Stainless steel finish: Premium look with long-term durability.
- Latching operation only: Press once to turn on, press again to turn off.
- Larger 22mm size: Easier to see and operate on busy control panels.
- IP65 front rating: Dust and splash resistant for rugged environments.

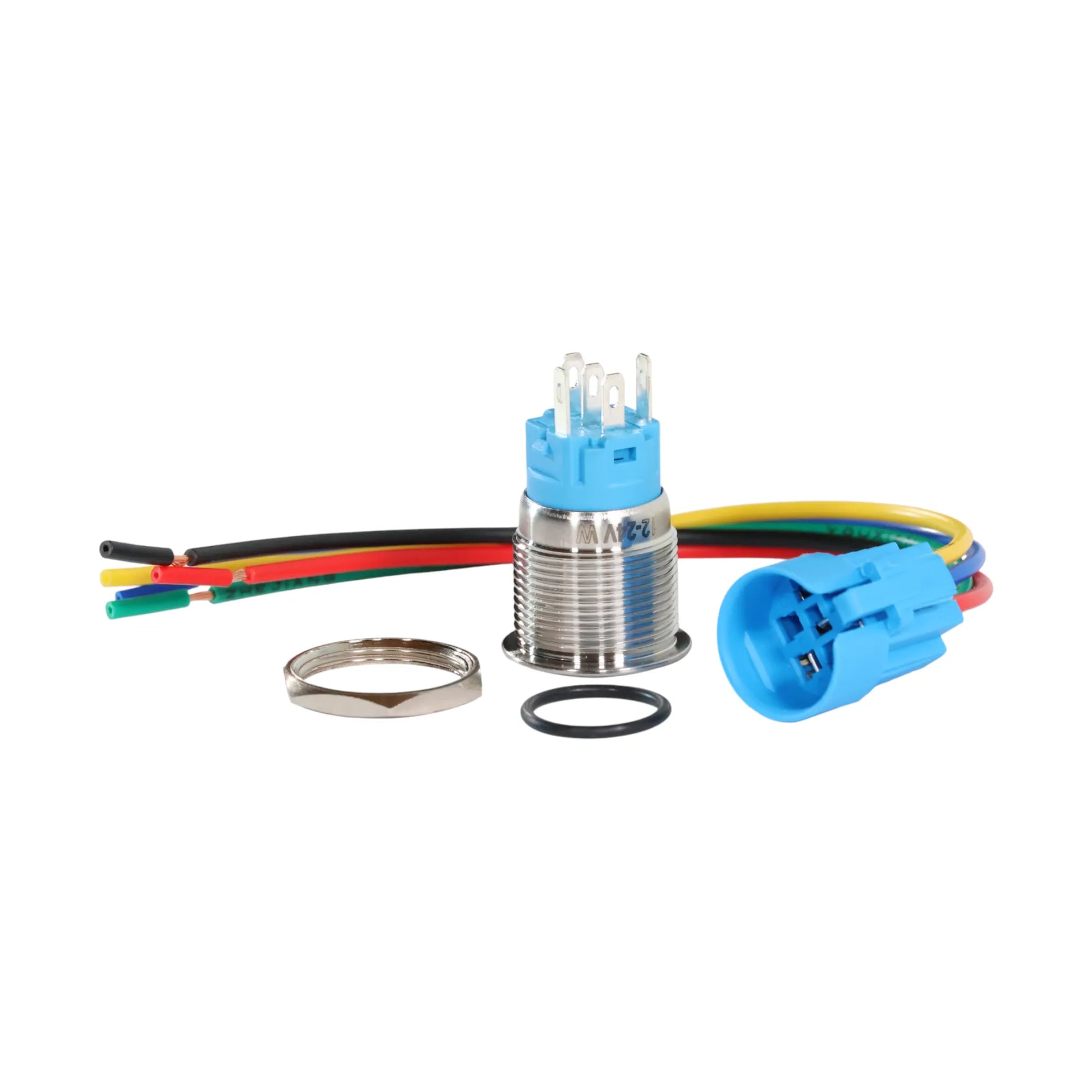

What's in the box
- 1 x 22mm LED push button switch.
- 1 x clip-on quick connect wiring loom.
- Mounting nut and O-ring.
How it works
This push button switch operates in latching mode only, meaning:
- Press once to turn on: Circuit activates.
- Press again to turn off: Circuit deactivates.
The illuminated blue LED halo ring provides instant confirmation of switch status, making it easy to identify active circuits at a glance.

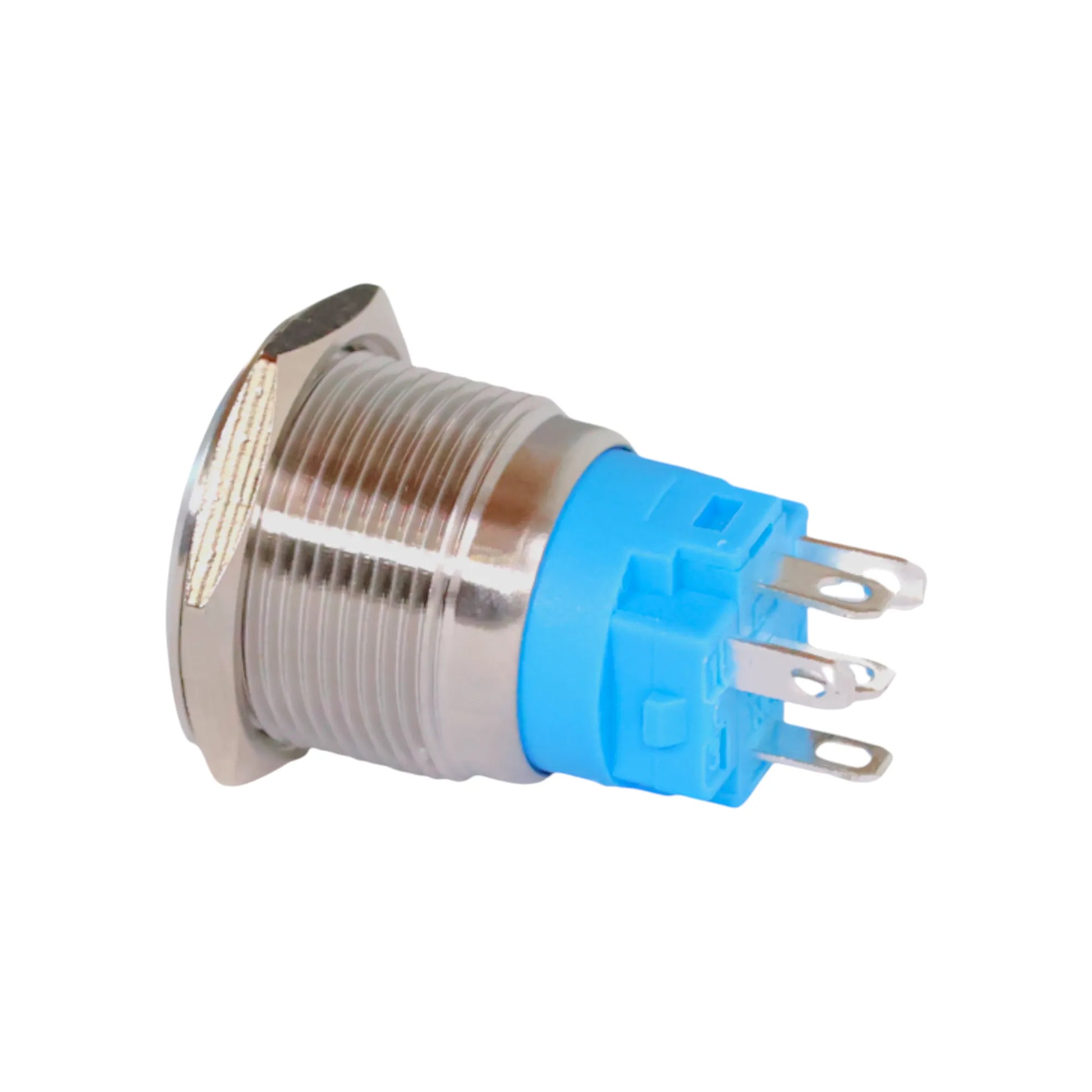

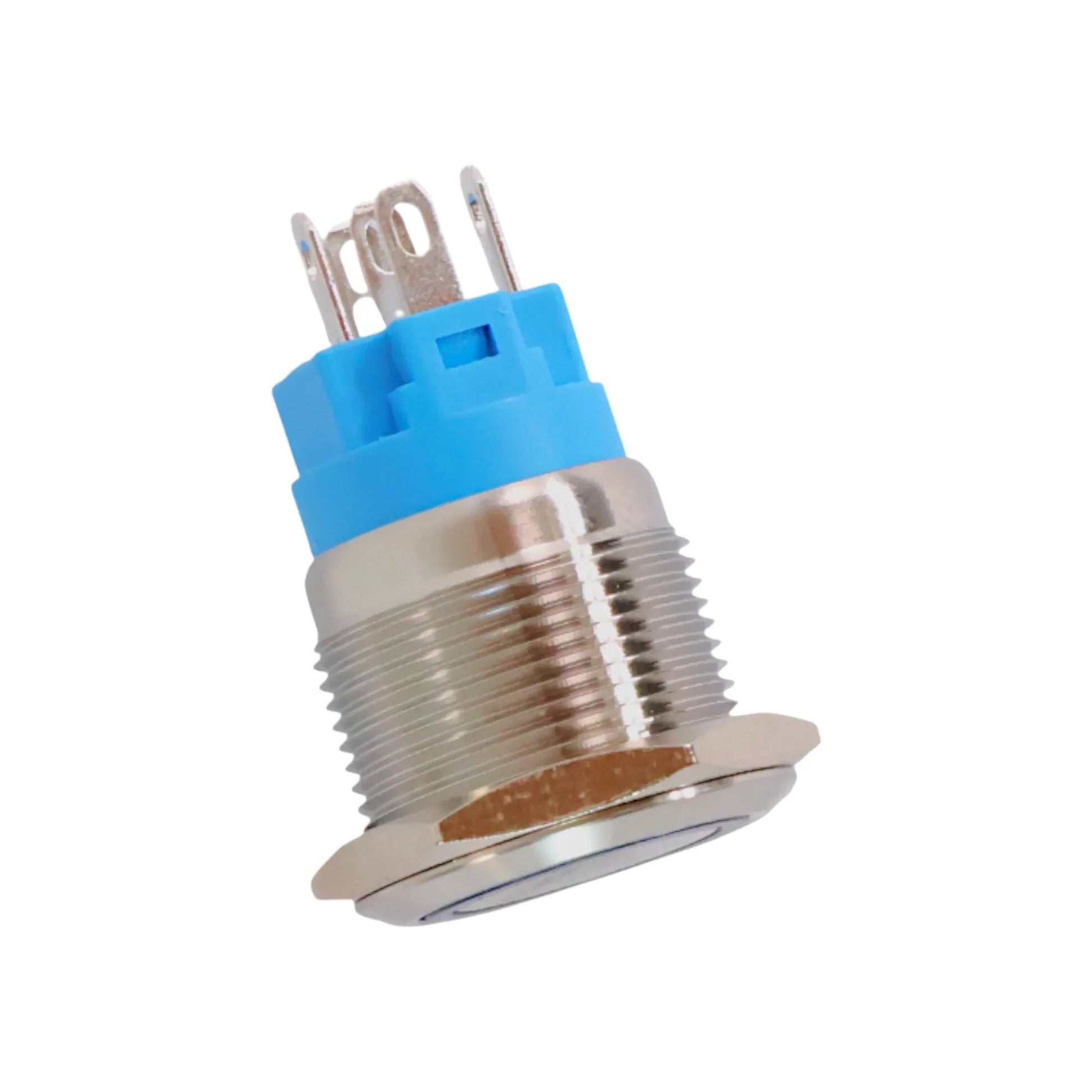

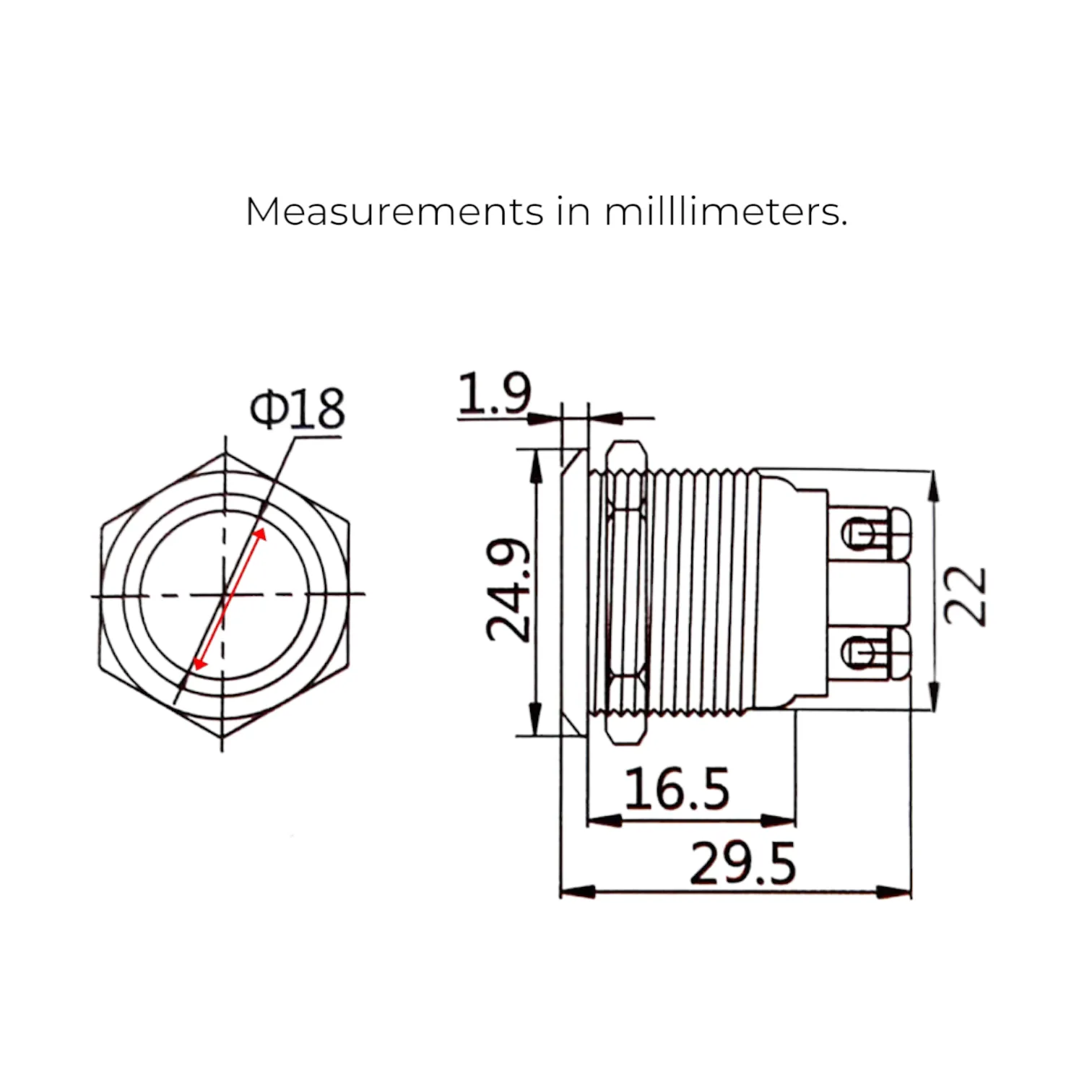

The switch mounts into a standard 22mm panel cutout and connects via 5-pin spade terminals, allowing straightforward integration into switch panels and control hubs.
What it suits
- 12V and 24V DC systems: Suitable for a wide range of vehicle and marine installs.
- Common applications: Lighting circuits, pumps, fans, accessories, relays, and control circuits.
- Flexible wiring: Suitable for use with or without relays depending on load.
- System integration: Compatible with fuse panels, control hubs, and switchboards.
Fitting it
Difficulty: 2/5 (Easy). Requires a 22mm drill bit and standard automotive spade connectors.
Features
- Blue LED halo ring illumination: Clean, easy-to-read status indication.
- Brushed stainless steel face: Clean, professional finish.
- Aluminium body construction: Strong and lightweight.
- IP65 front-face protection: Suitable for dusty and splash-prone areas.
- 5-pin spade terminals: Supports NO / NC and LED wiring.

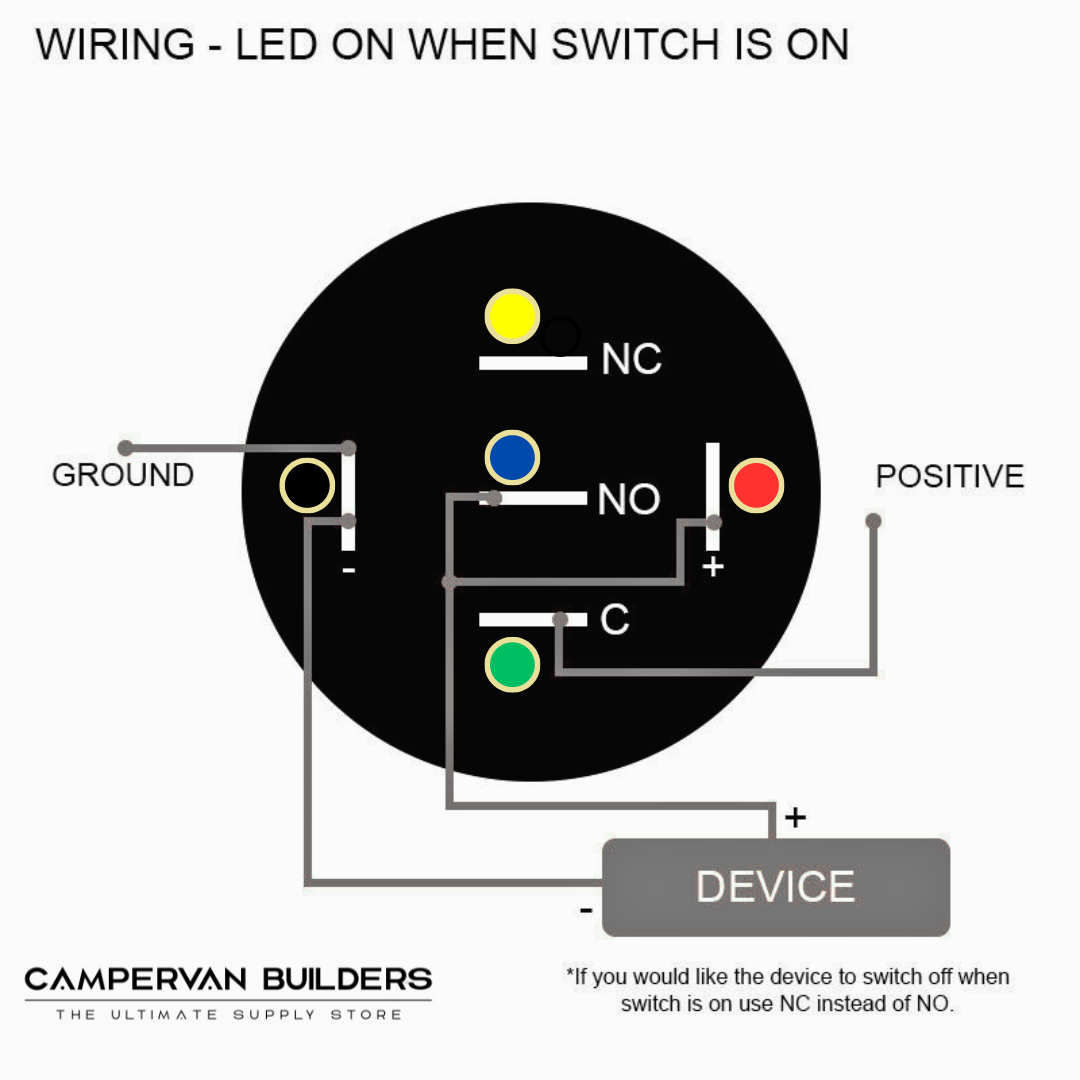

LED Wiring Options
- Always lit: Connect LED positive to constant power and negative to ground.
- Operational illumination: Connect LED positive to switch output so it lights only when active.
Specifications
| Voltage range | 12-24V DC |
| Switch type | Latching only |

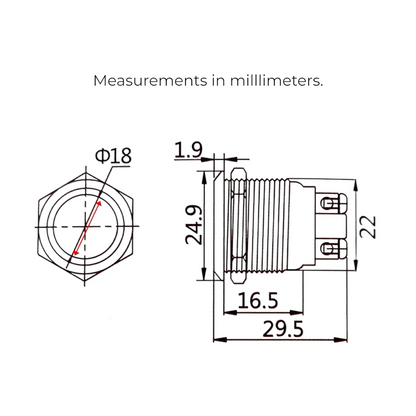

| Cutout size | 22mm |
| Current rating | 3A @ 12V / 1.5A @ 24V |
| LED colour | Blue |
| Finish | Brushed stainless steel |
| Ingress rating | IP65 (front face only) |
