2 Way Rocker Switch Panel With 12V Socket Dual LED

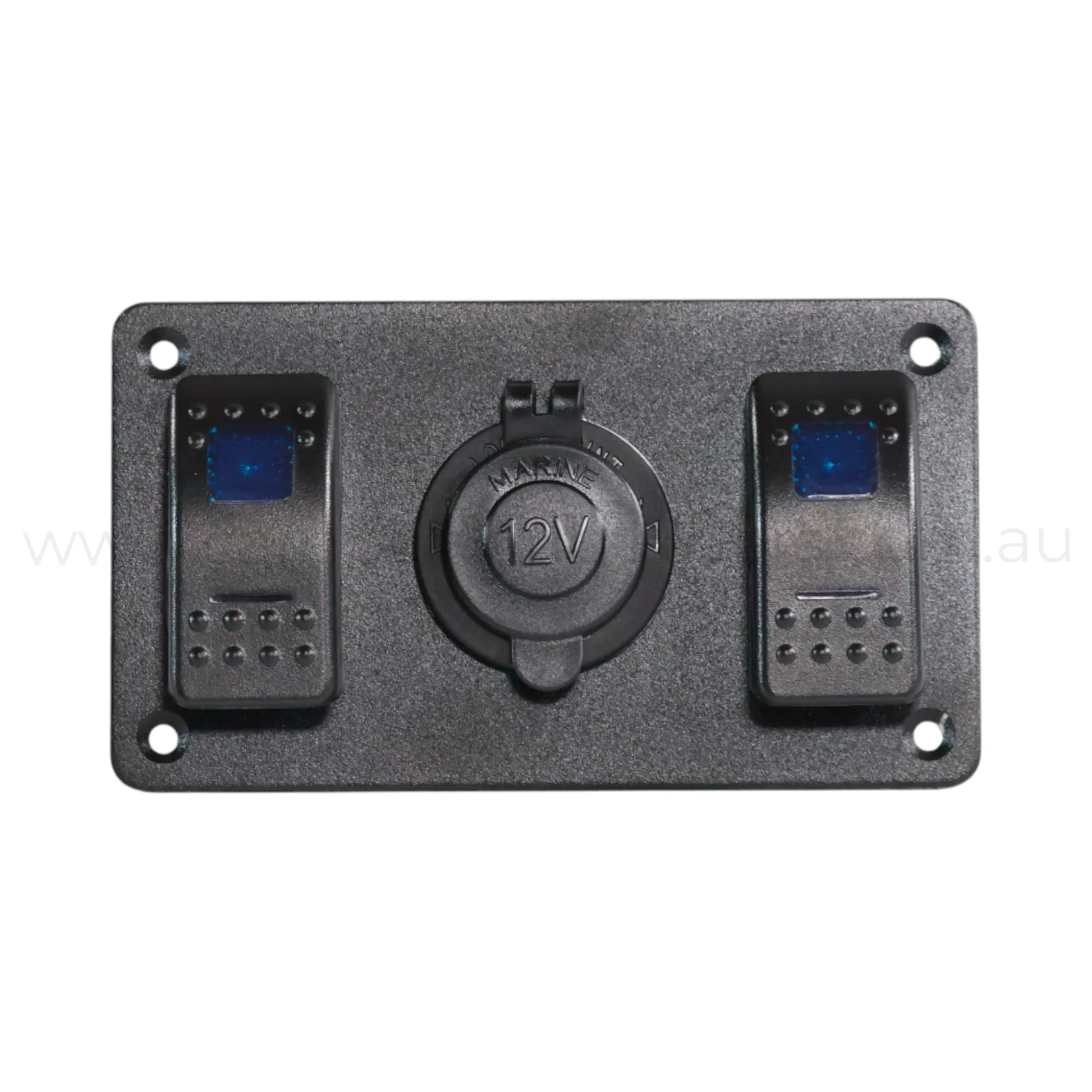

A pre-wired 2 way rocker switch panel with a 12V socket built in. Two dual-LED switches and a power outlet in one compact, tidy panel.

Why it works

• 2x rocker switches for independent control of 12V accessories.
• Dual LED switches for clear dash light and on/off status indication.
• Integrated 12V cigarette style socket for powering accessories.
• Pre-wired design for fast, clean installation.
• Aluminium mounting plate for strength and long-term durability.

What's in the box

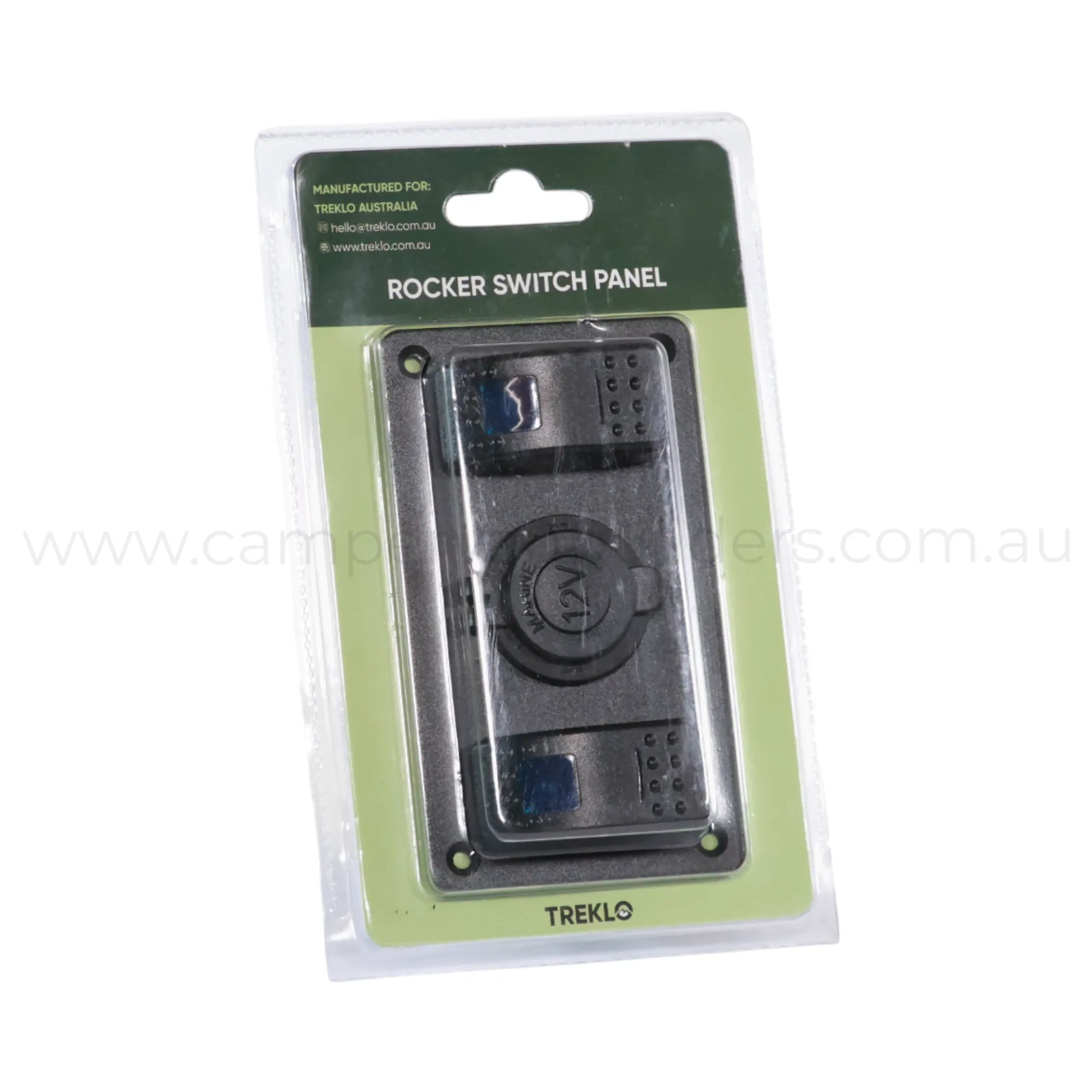

• 1 x pre-assembled and pre-wired switch panel.
• 2 x rocker switches.
• 1 x 12V cigarette style socket.

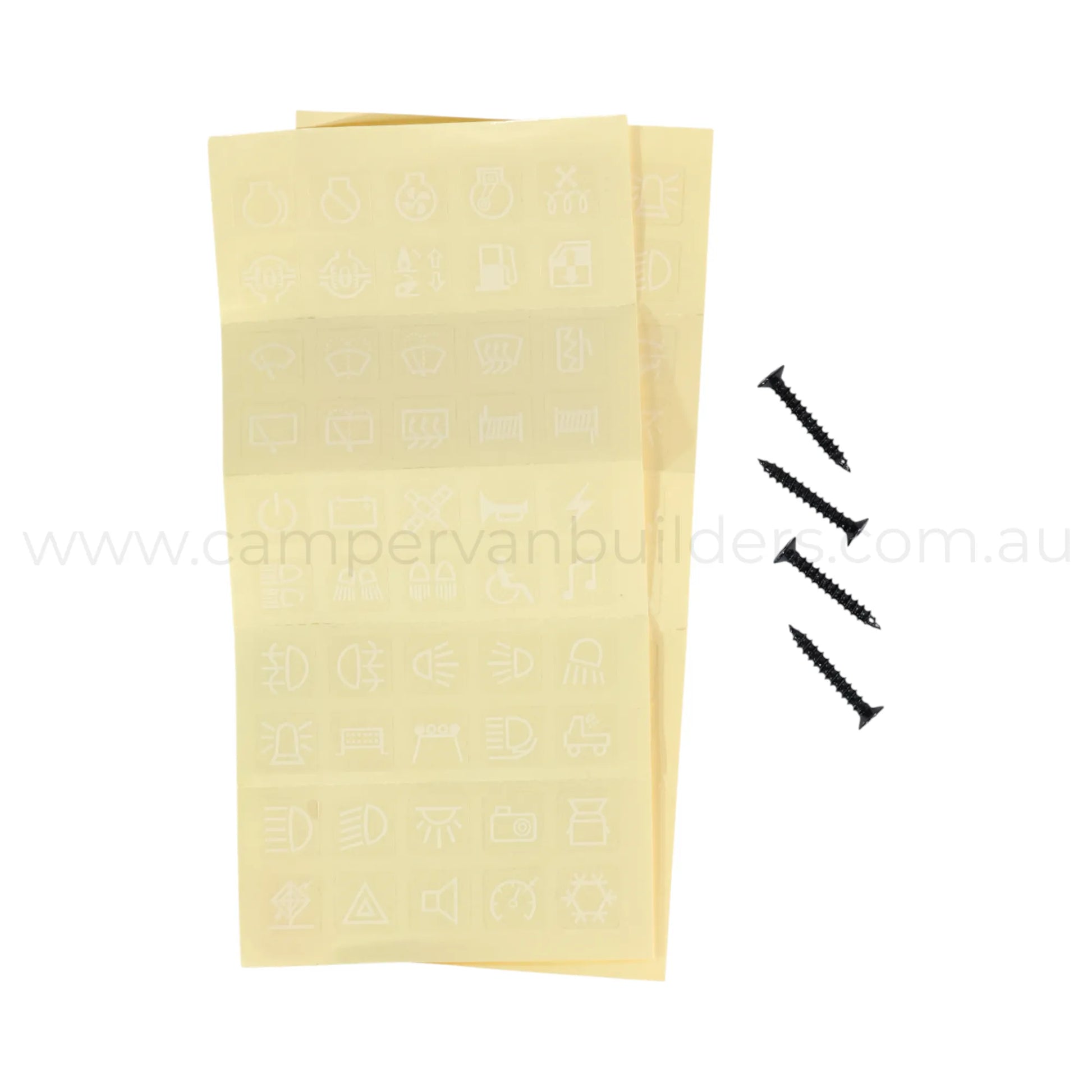

• 1 x sticker / label pack.
• 2 x mounting screws.

How it works

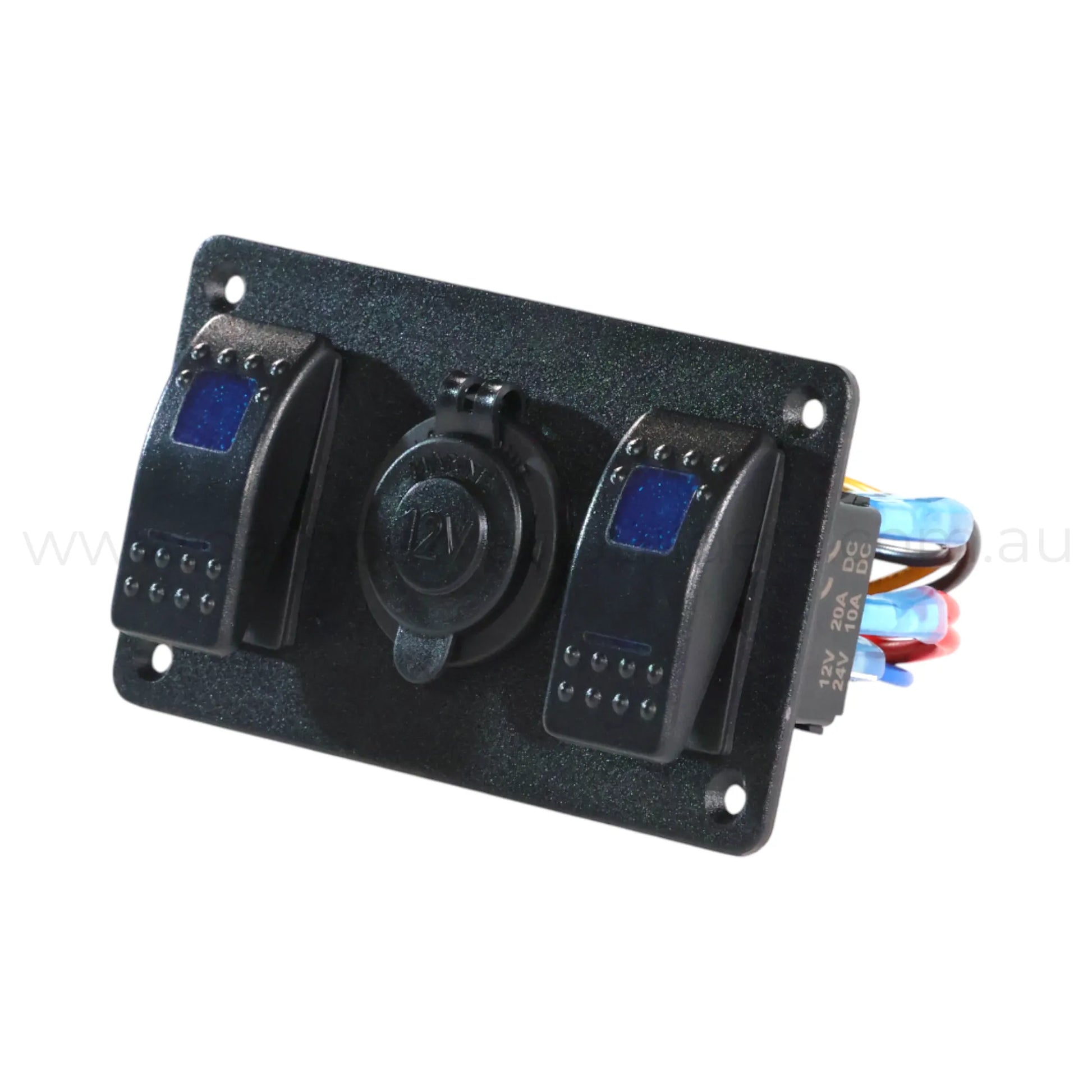

This panel is fully assembled with two SPST on/off rocker switches mounted to an aluminium plate. Each switch uses dual LEDs, with the lower LED acting as a dash light and the top LED illuminating when the switch is turned on.

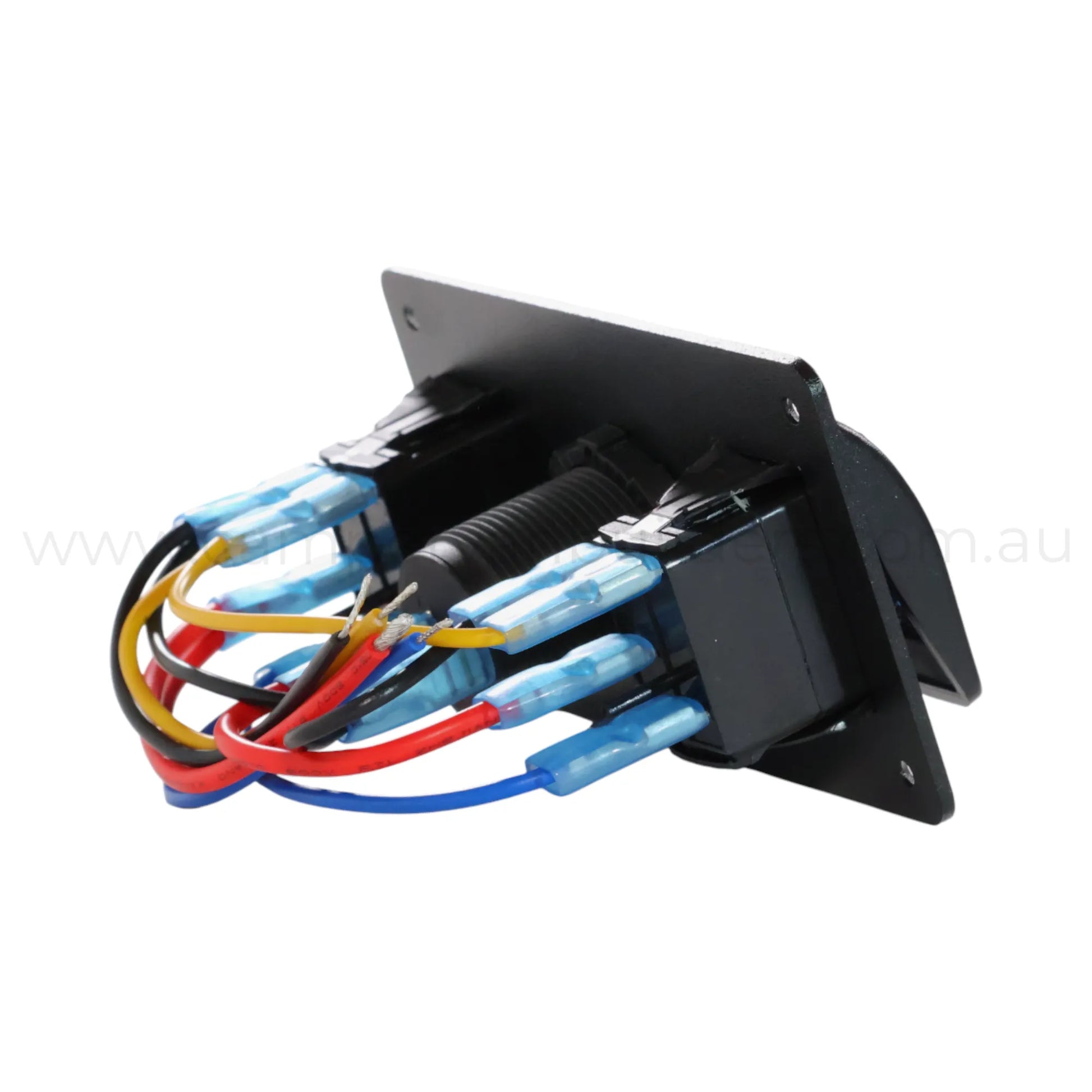

All dash light positive terminals are pre-wired together, requiring only a single positive connection, and all LED negatives are also pre-wired to a single negative connection. Each switch has a separate main power input to allow individual fused circuits if required, with pre-crimped male spade terminals fitted.

The panel also includes a pre-wired 12V cigarette style accessory socket, requiring only a single positive and negative connection for operation.

What it suits

• Works with 12V and 24V DC systems.
• Suitable for 4WDs, campervans, caravans, boats, and off-grid setups.
• Ideal for lights, fans, pumps, fridges, and 12V plug-in accessories.
• Compatible with standard rocker switch label covers.

Fitting it

Difficulty: 2/5 (Easy). Pre-wired panel with straightforward mounting and minimal wiring connections.

Features

• 2 x SPST rocker switches (on/off).
• Dual LED per switch for dash light and active status.
• Integrated 12V cigarette style accessory socket.
• Pre-wired LED circuits with shared positive and negative connections.
• Separate power feed to each switch for flexible circuit design.
• Aluminium mounting plate with a clean, professional finish.

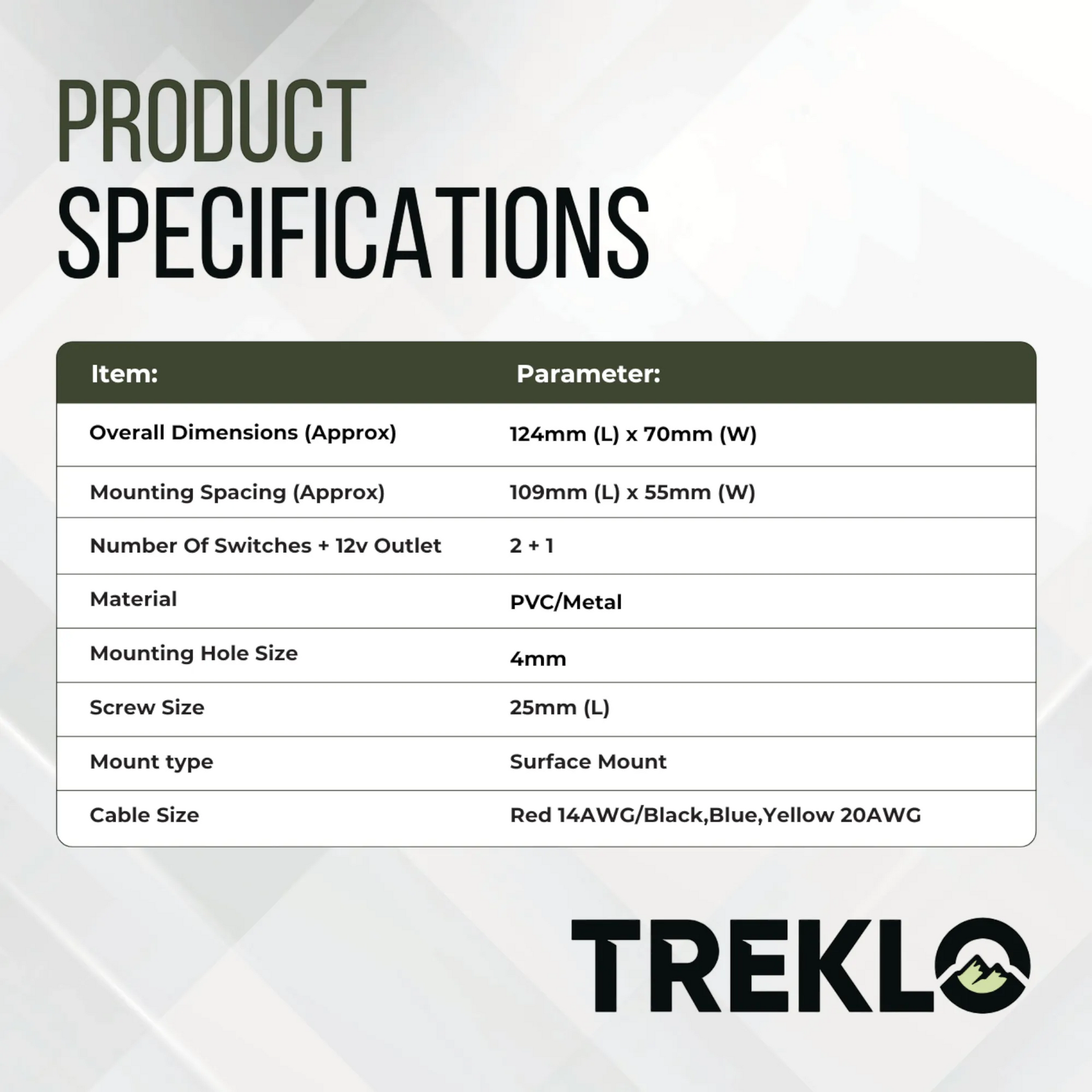

Specifications
