19mm VALVE White Push Button Switch - Stainless Steel Finish - 12-24V
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown
A 19mm push button switch with a laser-etched VALVE label and a white LED halo, for clear control of valve-operated systems.
Why it works
- Etched VALVE label: Laser-engraved for clean, fade-proof identification.
- White LED halo: Clear visual feedback when the circuit is active.
- Stainless steel finish: Premium look with long-term durability.
- Latching operation only: Press once to activate, press again to deactivate.
- IP65 front rating: Dust and splash resistant for rugged environments.

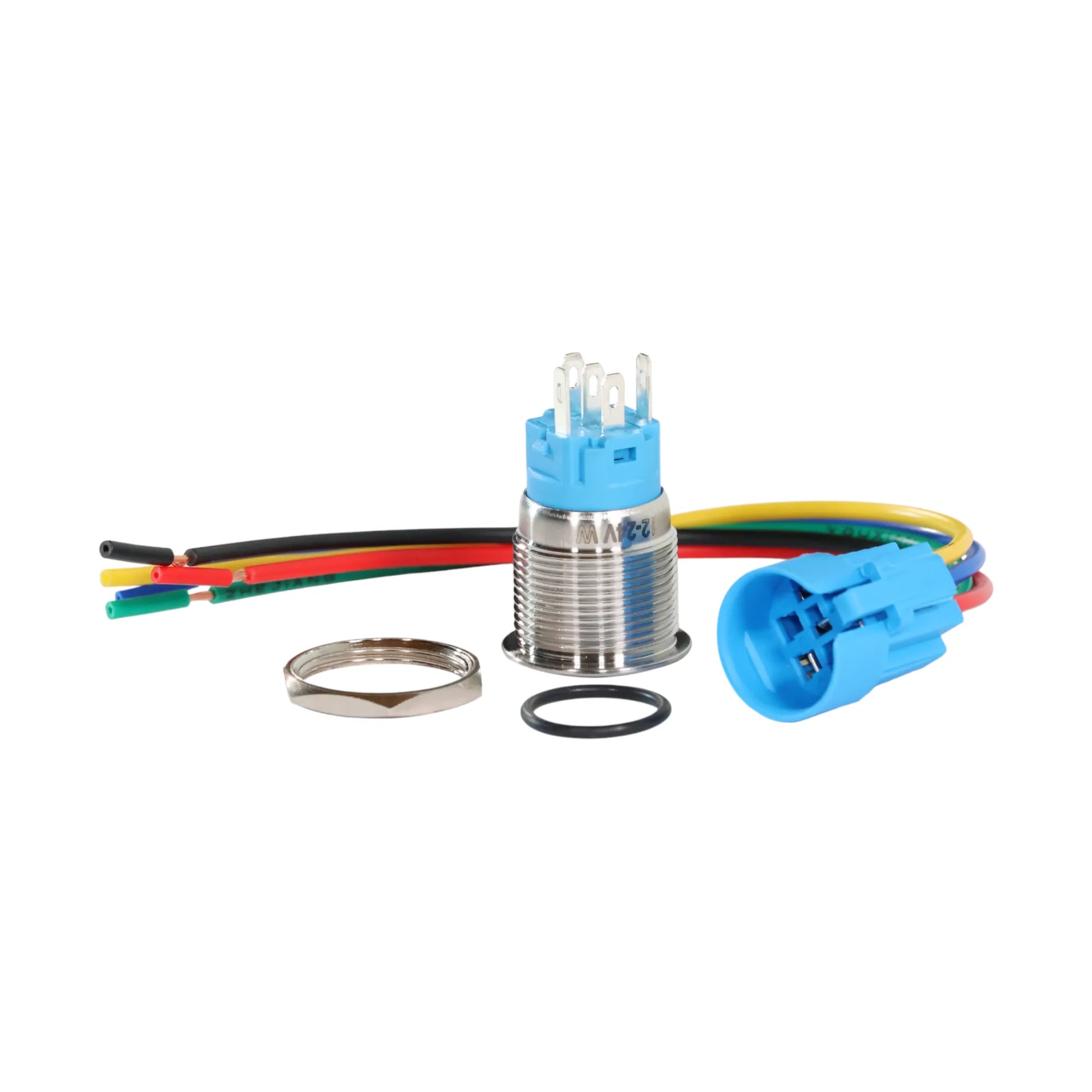

What's in the box
- 1 x 19mm push button switch with VALVE label.
- 1 x clip-on quick connect wiring loom.
- Mounting nut and O-ring.
How it works
This push button switch operates in latching mode only, meaning:
- Press once to turn on: Valve opens or system activates.
- Press again to turn off: Valve closes or system deactivates.
This makes it ideal for electrically controlled valves, solenoids, and systems that require a maintained on/off state rather than momentary control.
The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.
What it suits
- 12V and 24V DC systems: Suitable for a wide range of vehicle and marine installs.
- Common applications: Air valves, water valves, pneumatic systems, solenoid controls.
- Flexible wiring: Works with or without relays depending on load.
- System integration: Compatible with fuse panels, control hubs, and smart switchboards.
Fitting it
Difficulty: 2/5 (Easy). Requires a 19mm drill bit and standard automotive spade connectors.
Features
- Laser-etched VALVE text: Permanent, high-contrast marking.
- White LED halo illumination: Modern, easy-to-read status indication.
- Brushed stainless steel face: Clean, professional finish.
- Aluminium body construction: Strong and lightweight.
- IP65 front-face protection: Suitable for dusty and splash-prone areas.
- 5-pin spade terminals: Supports NO / NC and LED wiring.

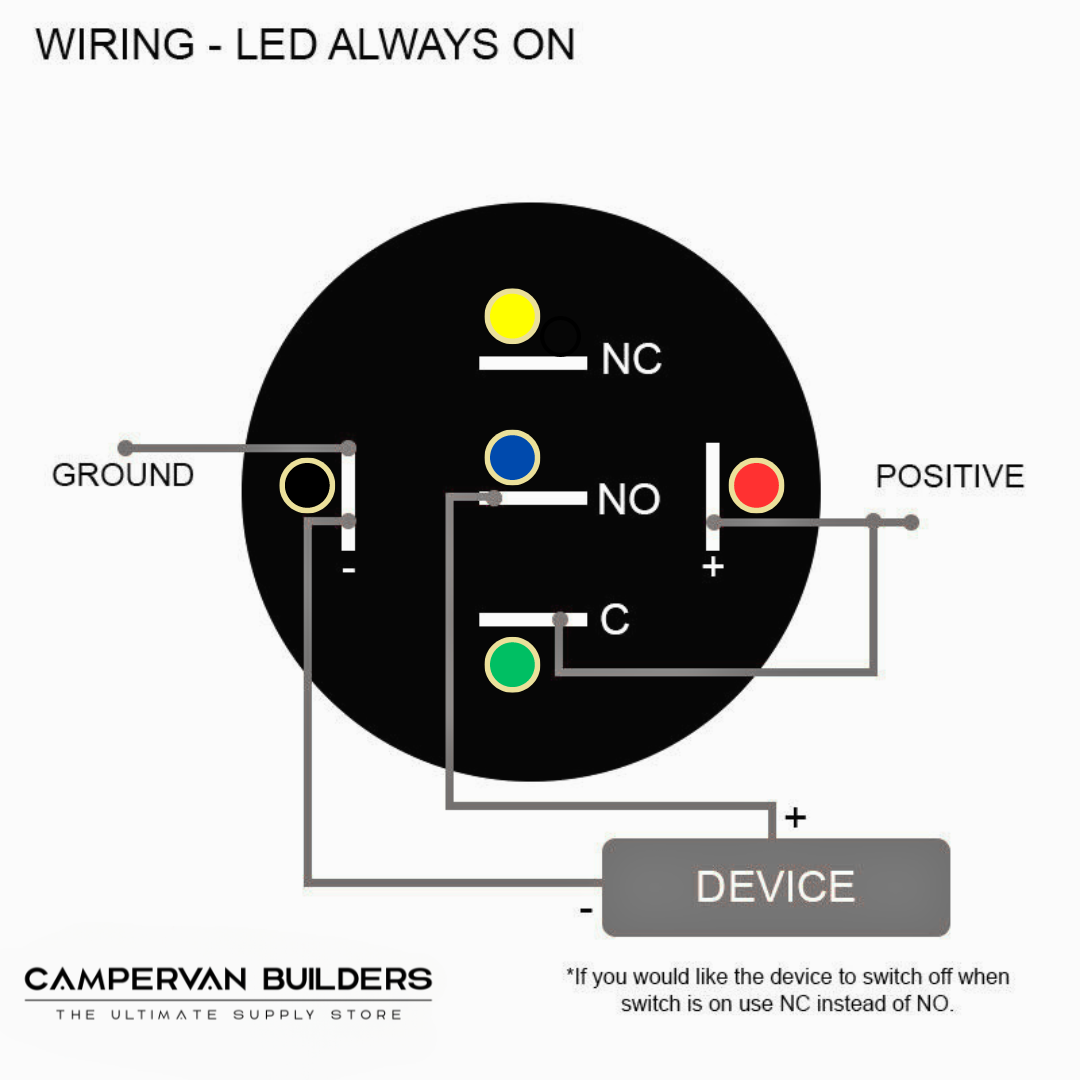

LED Wiring Options
- Always lit: Connect LED positive to constant power and negative to ground.
- Operational illumination: Connect LED positive to switch output so it lights only when active.
Specifications
| Voltage range | 12-24V DC |
| Switch type | Latching only |
| Cutout size | 19mm |
| Current rating | 3A @ 12V / 1.5A @ 24V |
| LED colour | White halo |
| Engraving | VALVE text (laser-etched) |
| Finish | Brushed stainless steel |
| Ingress rating | IP65 (front face only) |
