19mm LIGHT White Push Button Switch - Black Anodised Finish - 12-24V
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown

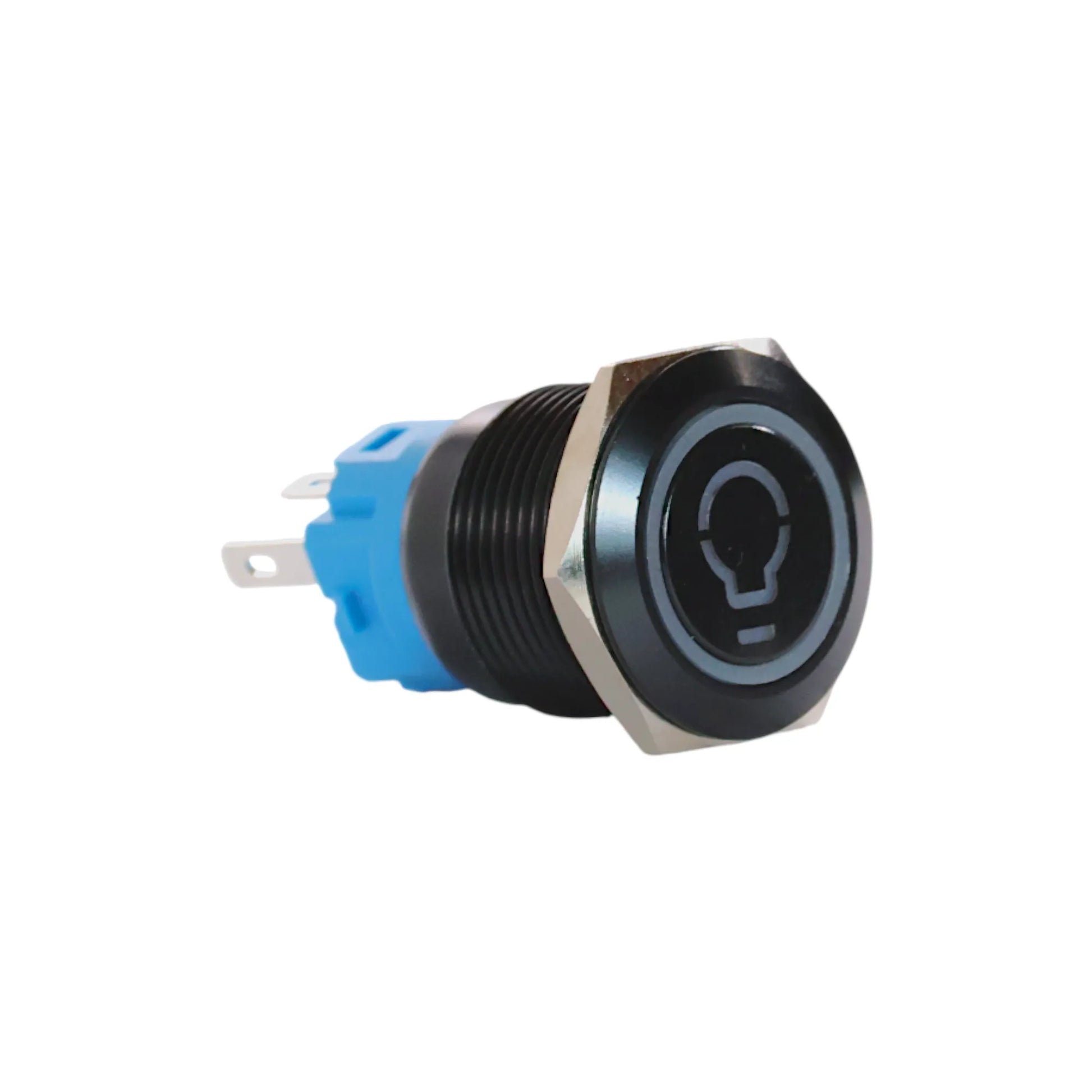

A 19mm push button switch with a laser-etched LIGHT label and a white LED halo, so there's no guessing which button runs the lights.
Why it works
- Etched LIGHT label: Laser-engraved for clean, fade-proof identification.
- White LED halo: Clear visual feedback when the circuit is active.
- Anodised black finish: Modern, low-glare professional appearance.
- Latching operation only: Press once to turn on, press again to turn off.
- IP65 front rating: Dust and splash resistant for rugged environments.

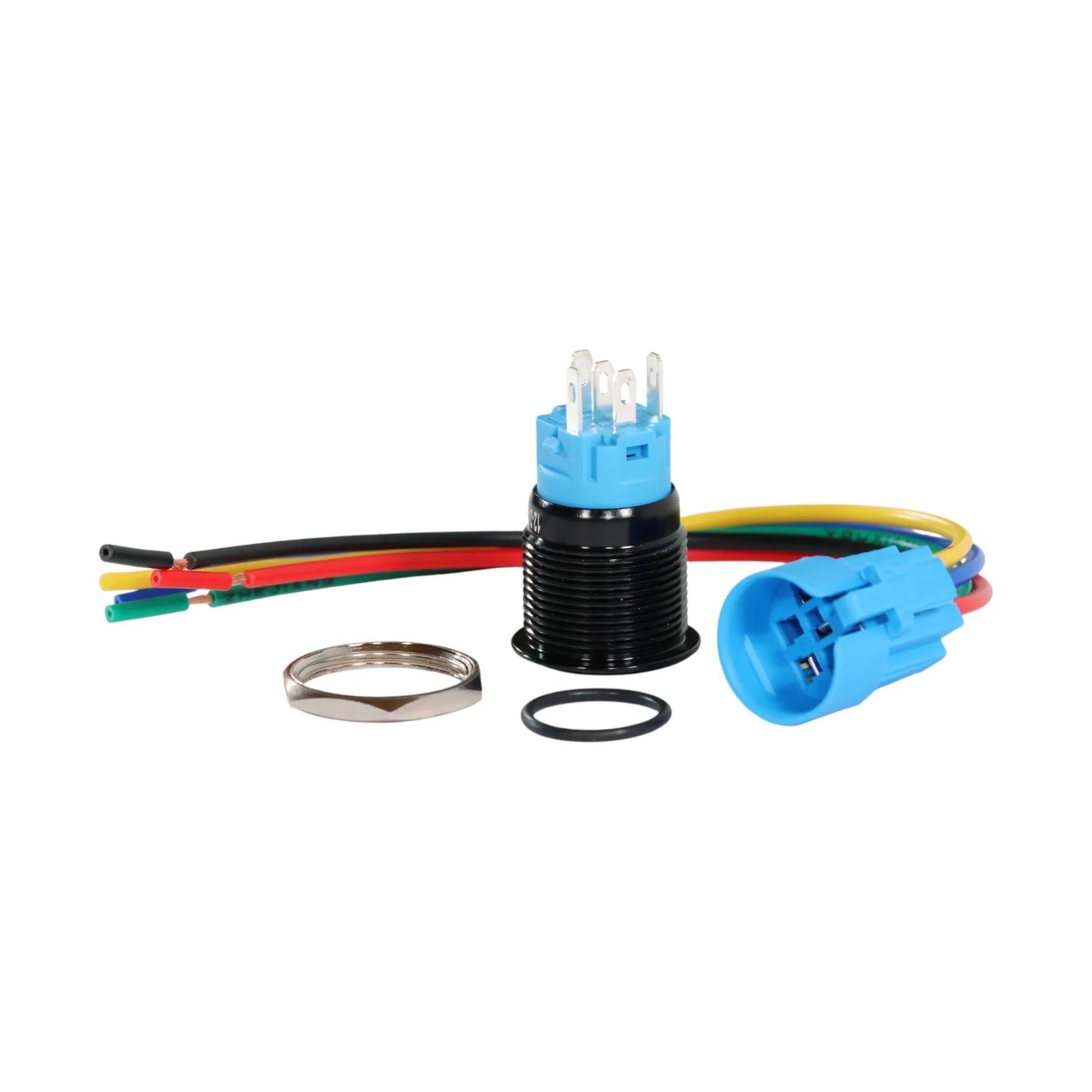

What's in the box
- 1 x 19mm push button switch with LIGHT label.

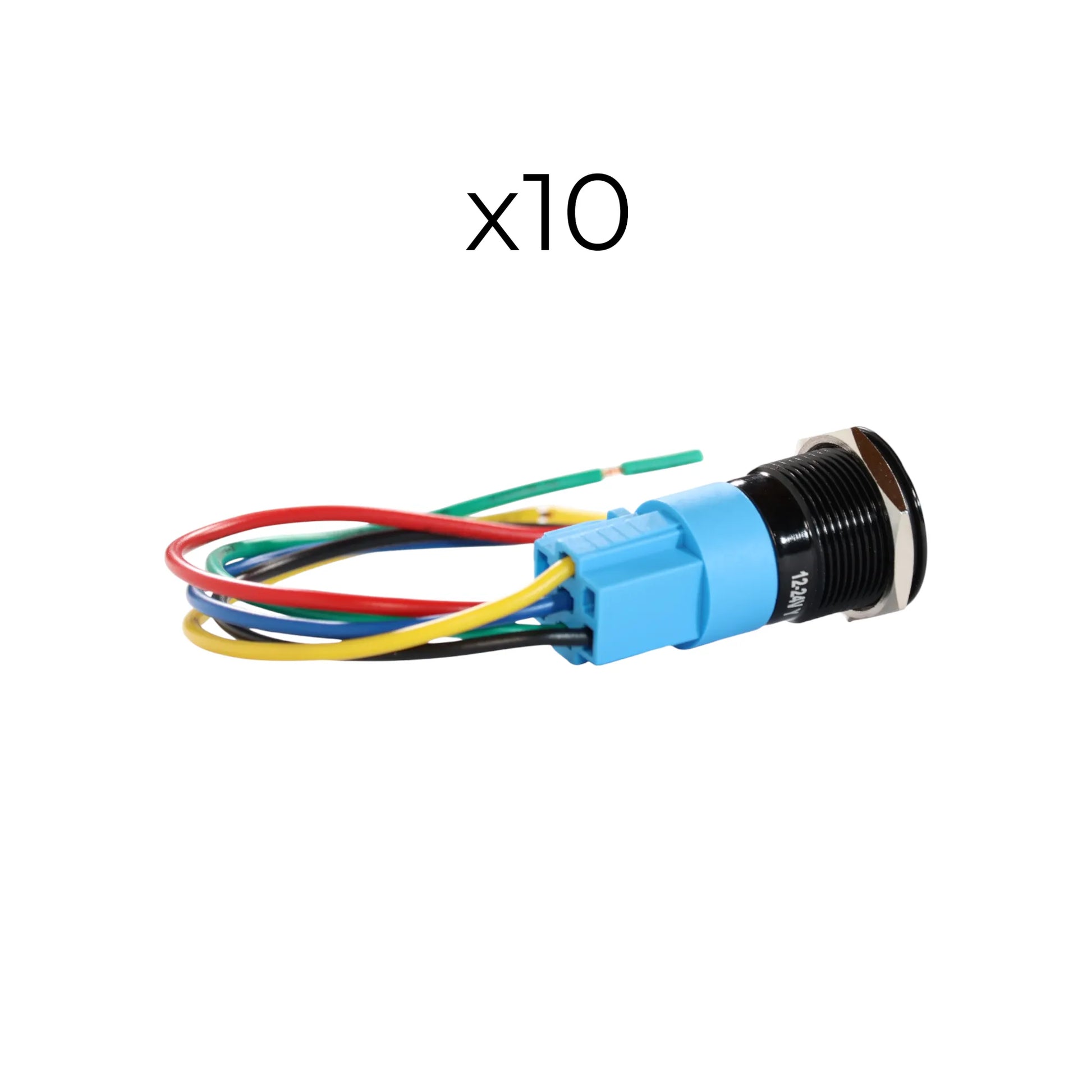

- 1 x clip-on quick connect wiring loom.
- Mounting nut and O-ring.
How it works
This push button switch operates in latching mode only, meaning:
- Press once to turn on: Lighting circuit activates.
- Press again to turn off: Lighting circuit deactivates.
This makes it ideal for interior lights, exterior scene lights, work lights, and auxiliary lighting circuits where a stable on/off state is required.

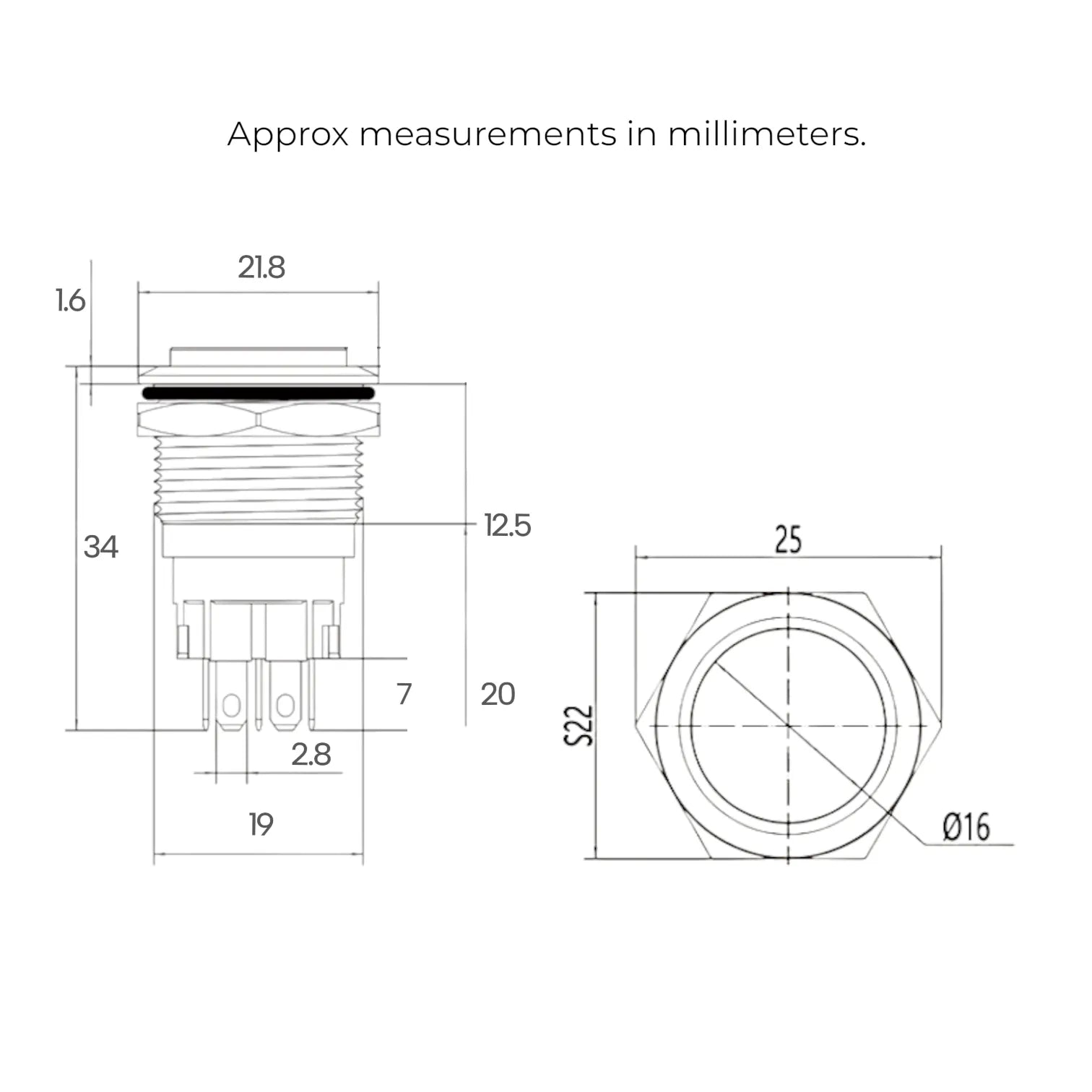

The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, making integration straightforward in custom control panels.
What it suits
- 12V and 24V DC systems: Suitable for a wide range of vehicle and marine installs.
- Common applications: Interior lights, exterior scene lights, work lights, auxiliary lighting circuits.
- Flexible wiring: Works with or without relays depending on load.
- System integration: Compatible with fuse panels, control hubs, and smart switchboards.
Fitting it
Difficulty: 2/5 (Easy). Requires a 19mm drill bit and standard automotive spade connectors.
Features
- Laser-etched LIGHT text: Permanent, high-contrast marking.
- White LED halo illumination: Modern, easy-to-read status indication.
- Anodised black face: Clean, stealth-style finish.
- Aluminium body construction: Strong and lightweight.
- IP65 front-face protection: Suitable for dusty and splash-prone areas.

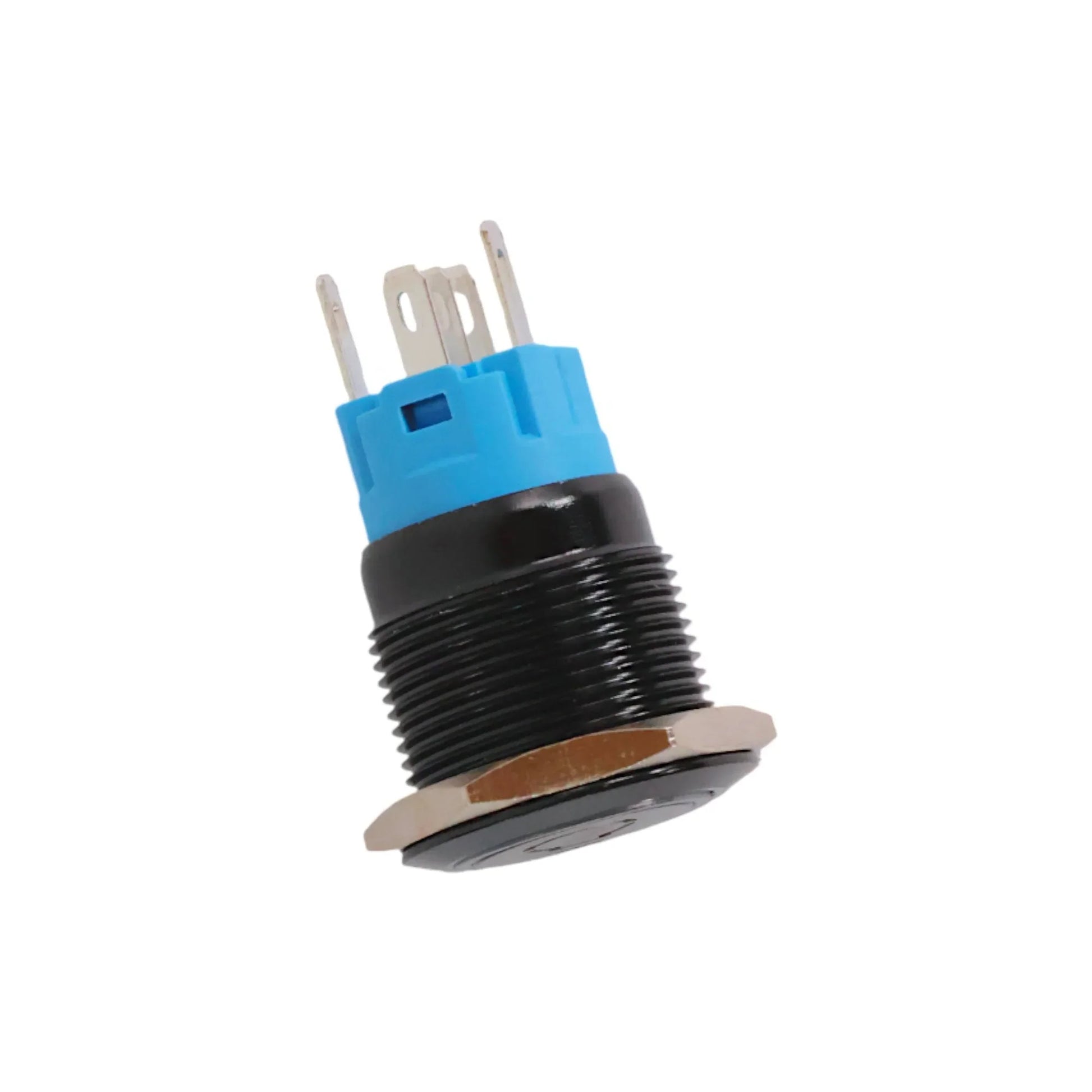

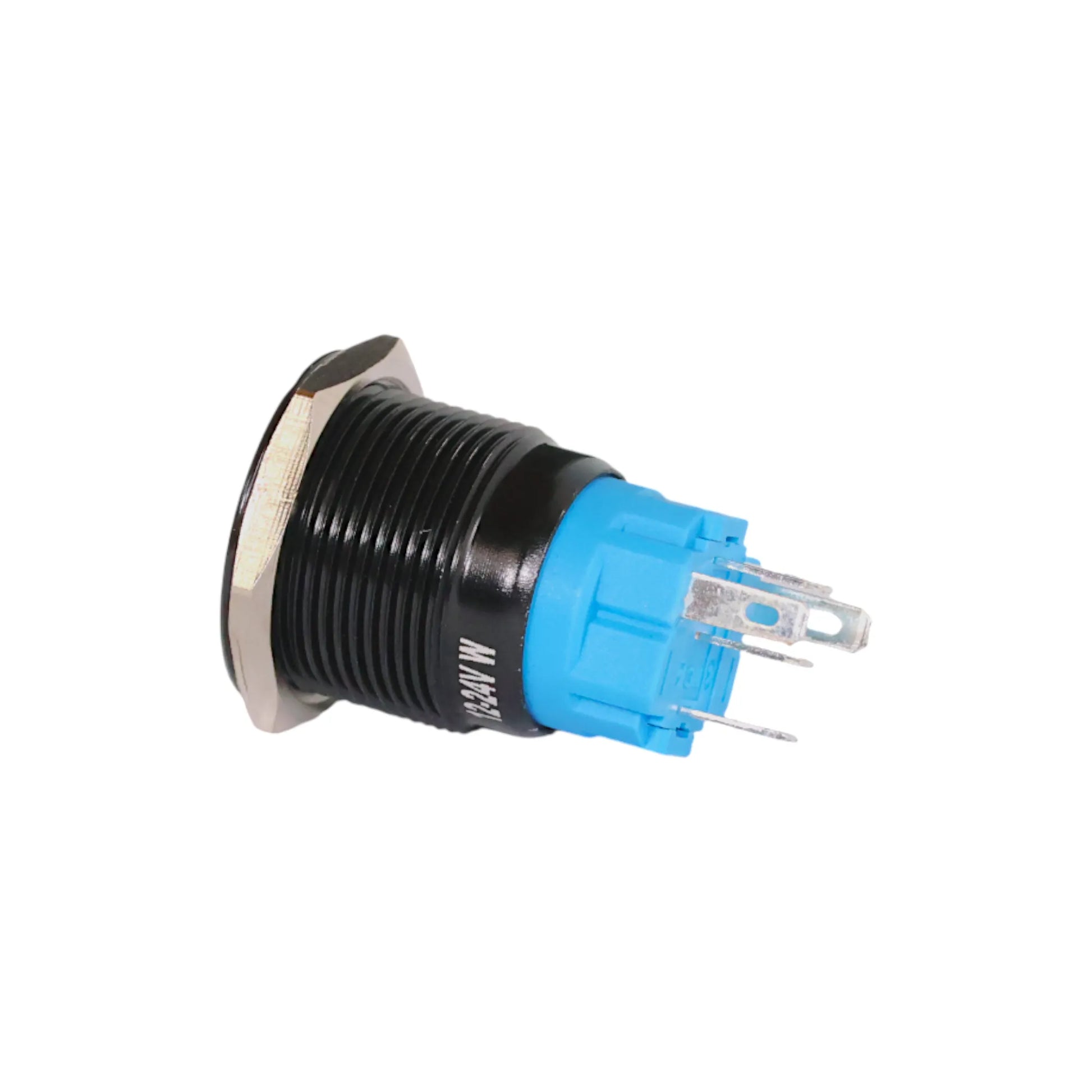

- 5-pin spade terminals: Supports NO / NC and LED wiring.

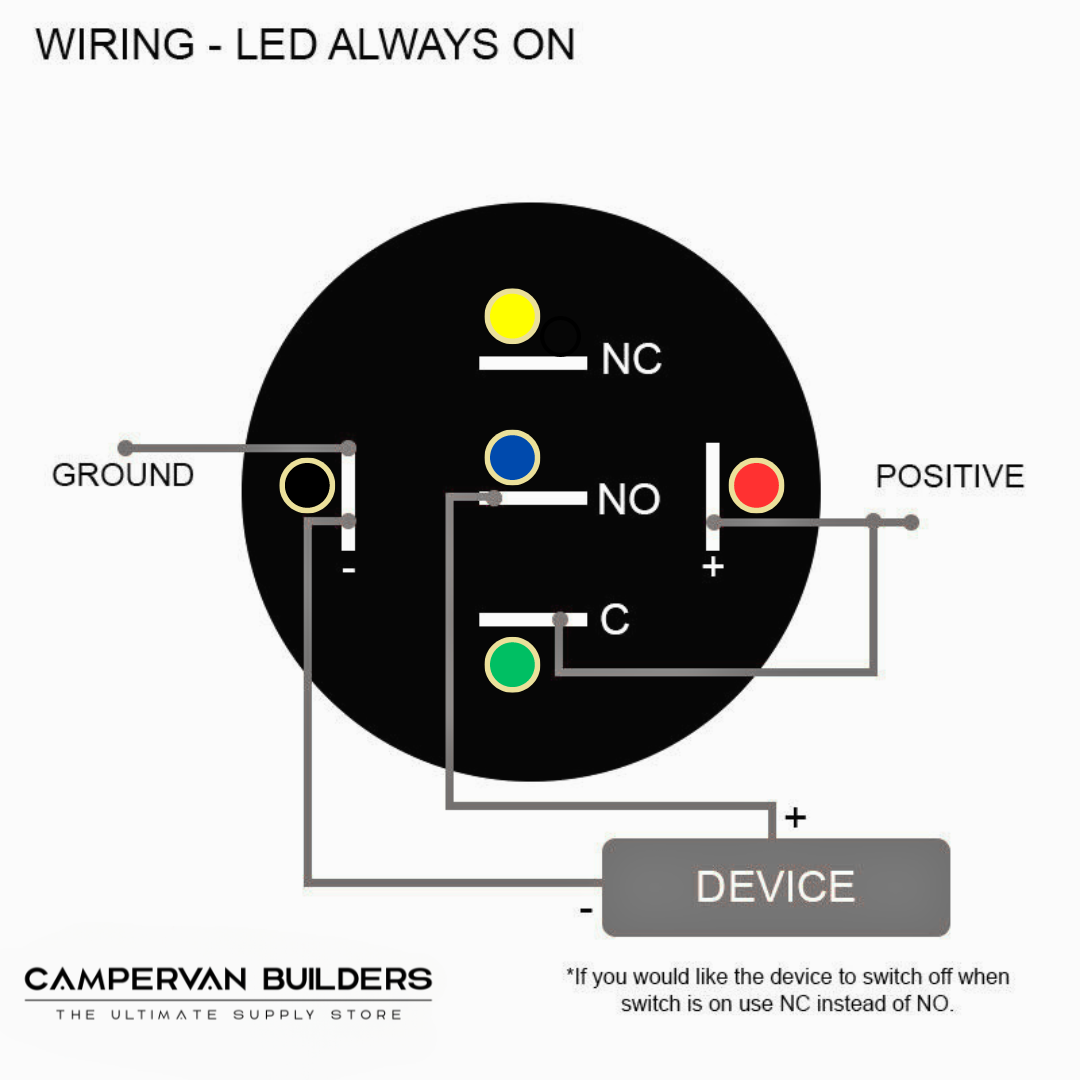

LED Wiring Options
- Always lit: Connect LED positive to constant power and negative to ground.
- Operational illumination: Connect LED positive to switch output so it lights only when active.
Specifications
| Voltage range | 12-24V DC |
| Switch type | Latching only |
| Cutout size | 19mm |
| Current rating | 3A @ 12V / 1.5A @ 24V |
| LED colour | White halo |
| Engraving | LIGHT text (laser-etched) |
| Finish | Anodised black |
| Ingress rating | IP65 (front face only) |
What owners say
Replaced the switches on our forward fold camper trailer.
Easy swap, and now we can tell which switch is which.
Great quality!
works very well, I have set it up as a light on when on. I had to download the circuit diagram from the web site, it should come with the diagram as part of the package. Easy to cable in, depending on where you require it. I also have the matching water pump switch.
