19mm LED Yellow Push Button Switch - Stainless Steel Finish - 12-24V
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown

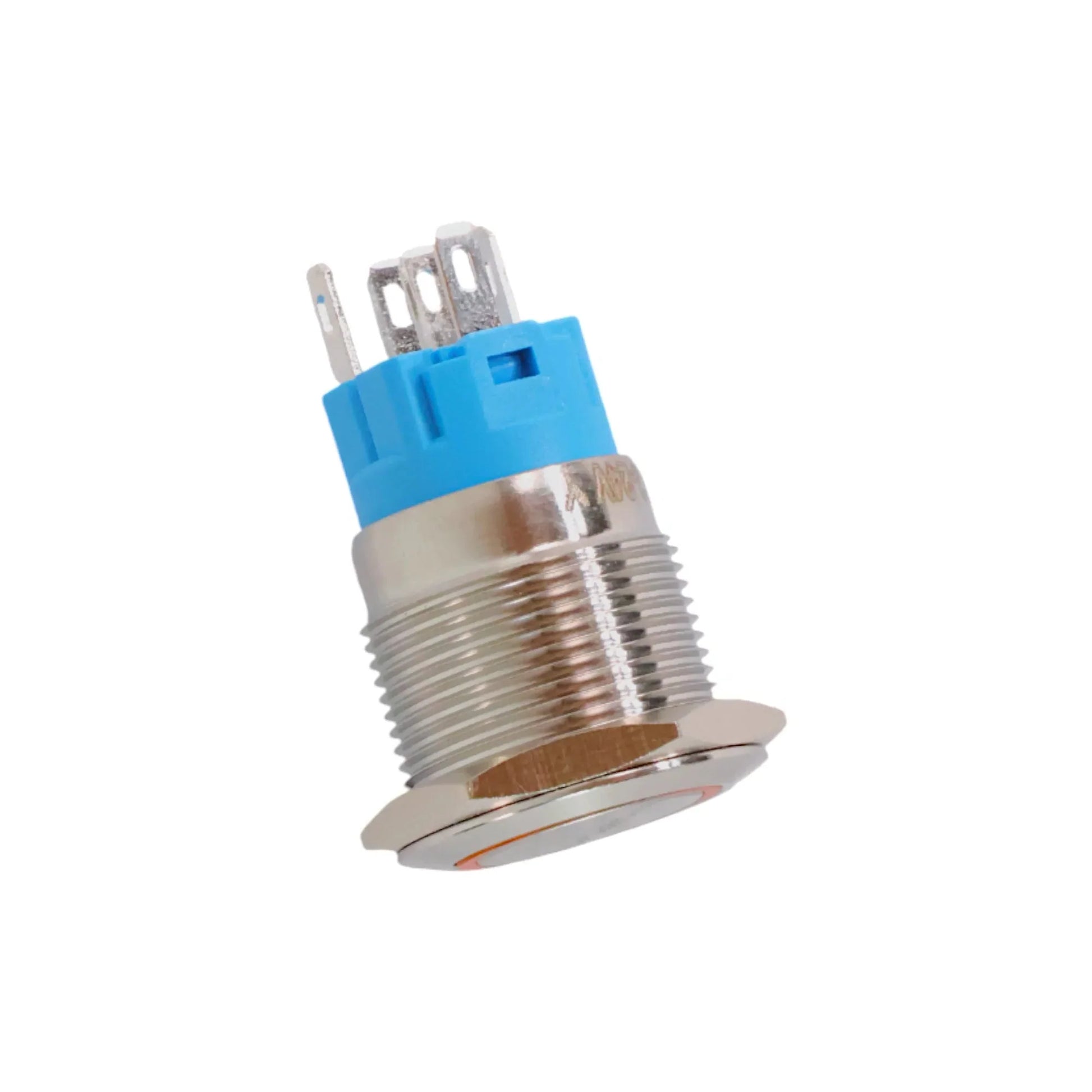

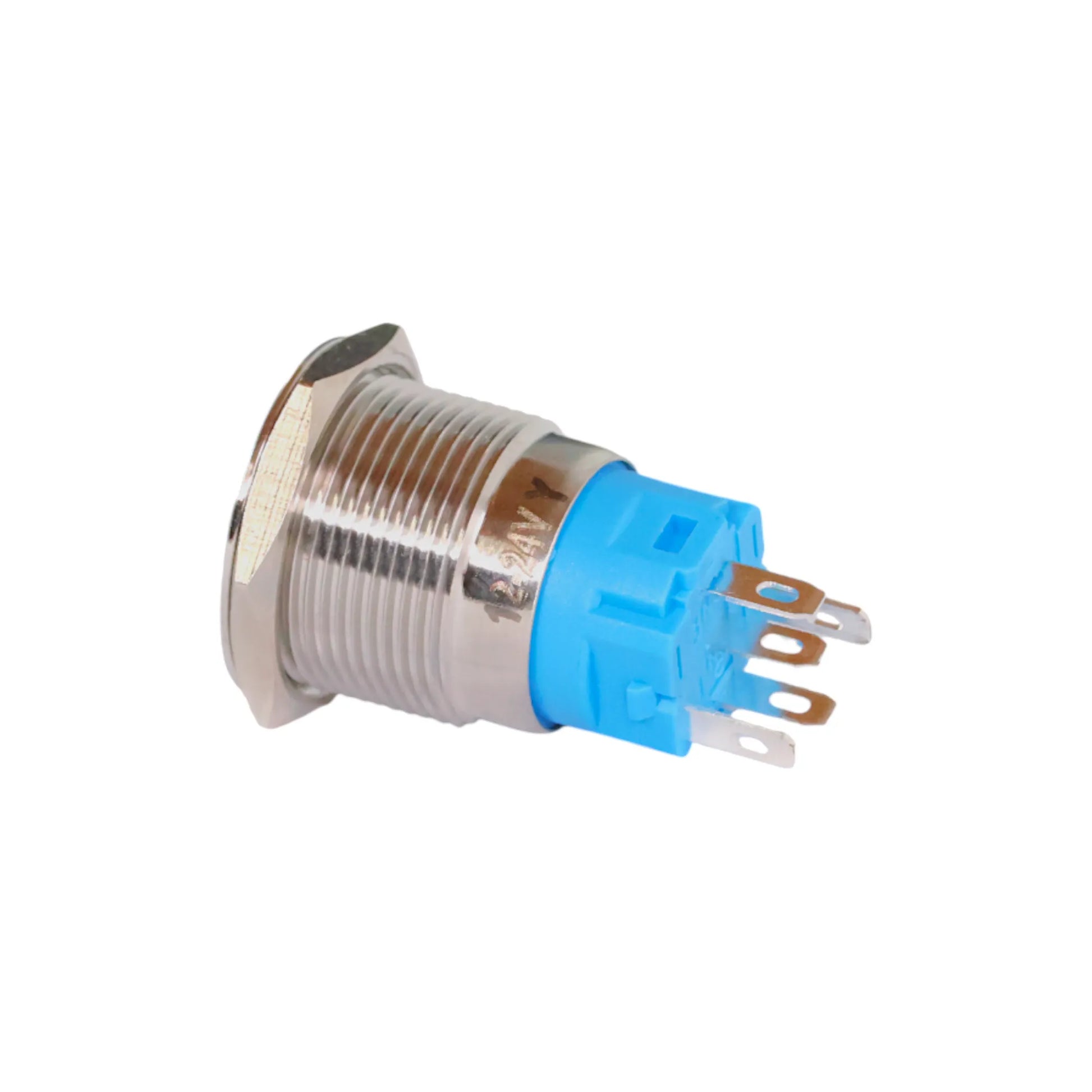

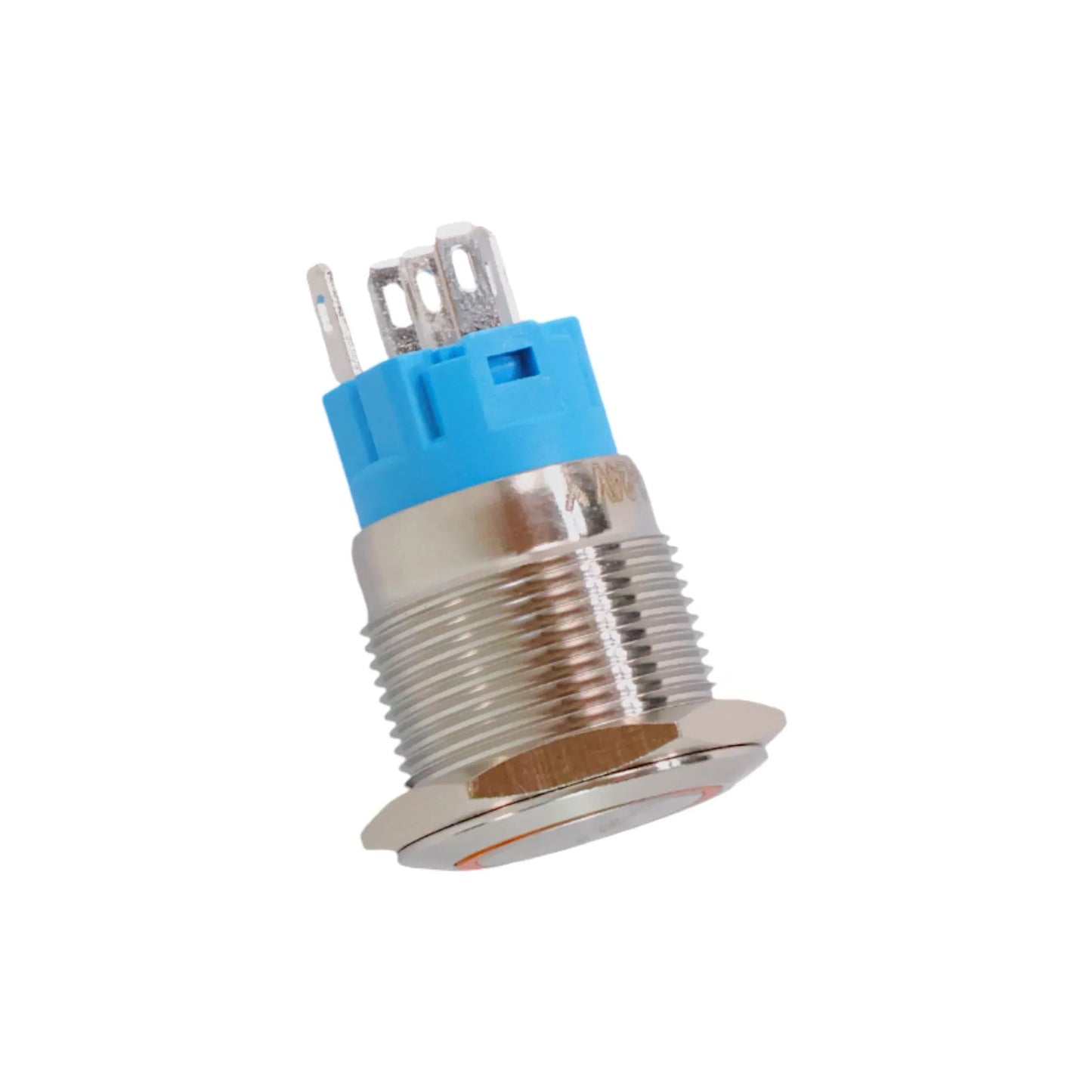

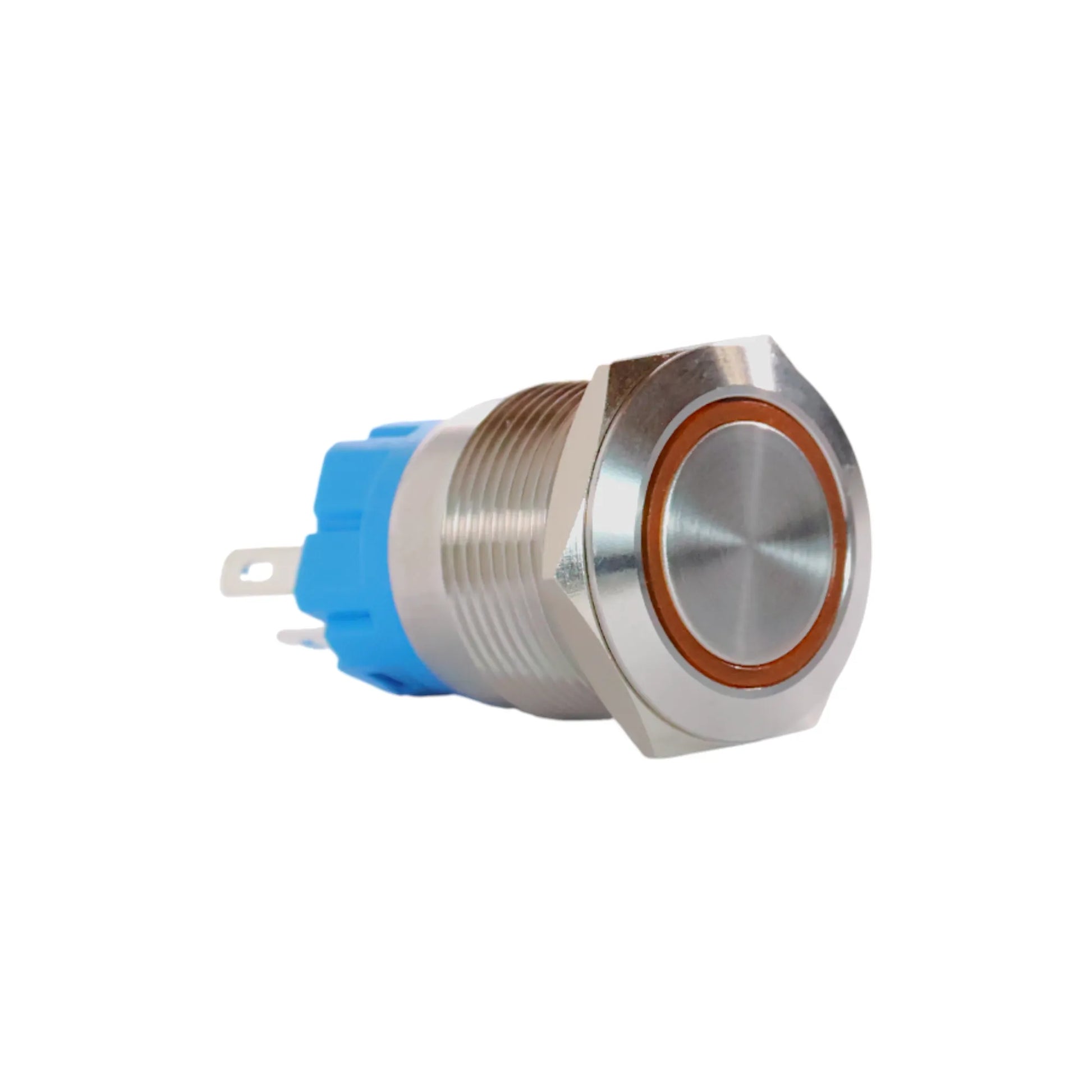

A 19mm push button switch with an LED halo ring that shows at a glance when the circuit is on. A clean, modern control for touring and off-grid builds.
Why it works
- Yellow LED halo ring: High-visibility visual feedback when the circuit is active.
- Stainless steel finish: Premium look with long-term durability.
- Two switch variants: Available in momentary or latching operation.
- IP65 front rating: Dust and splash resistant for rugged environments.
- Compact 19mm size: Ideal for clean, space-efficient installs.

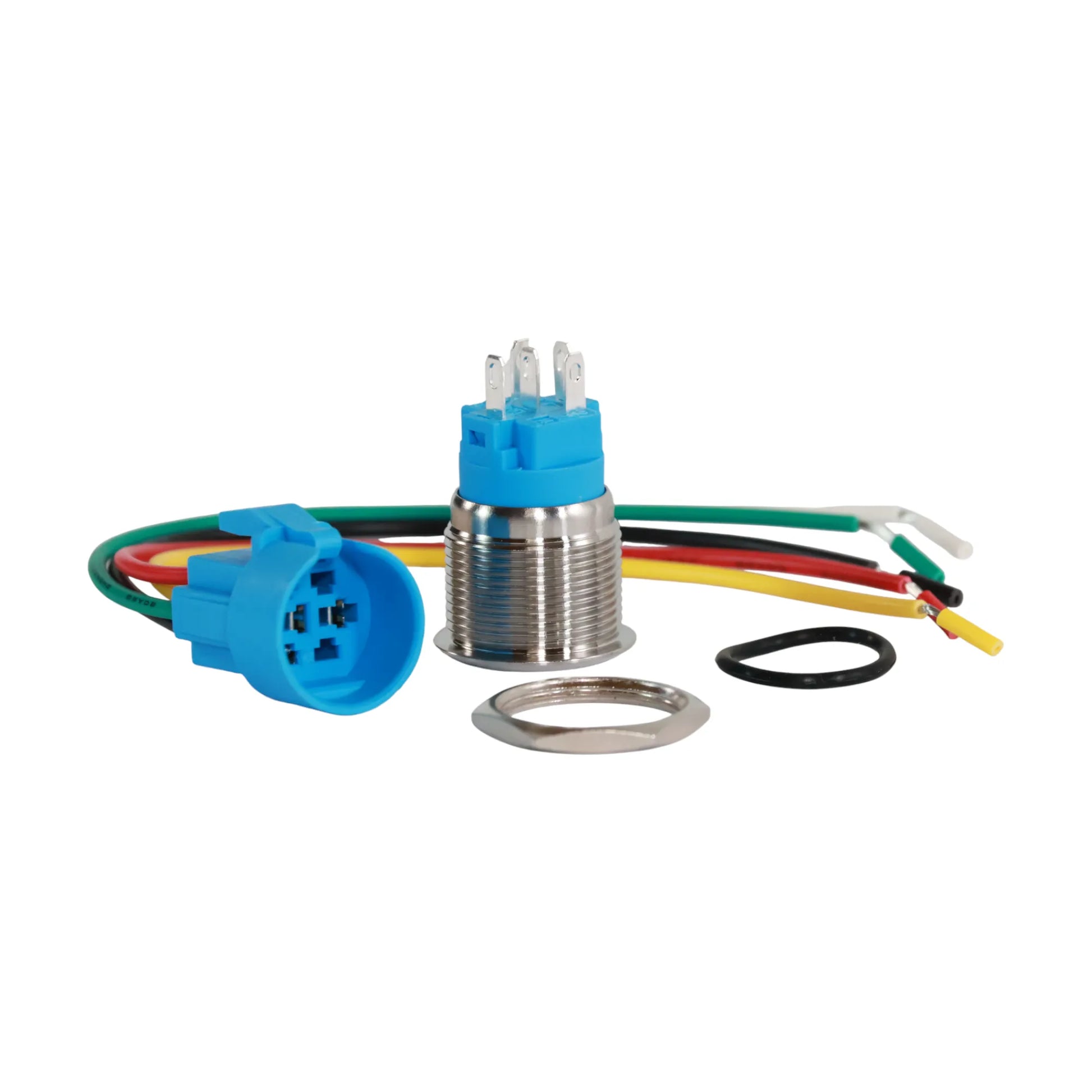

What's in the box
- 1 x 19mm LED push button switch.

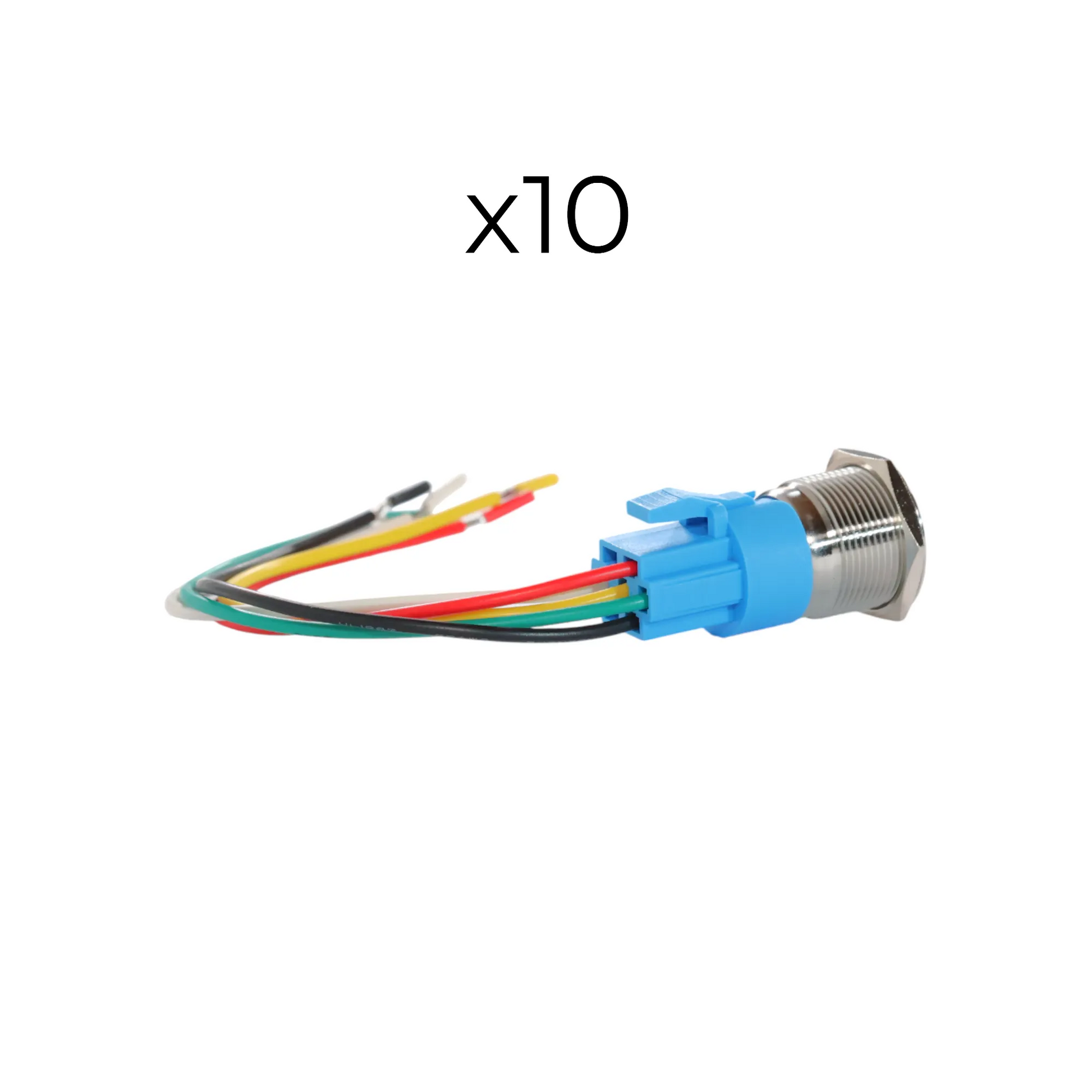

- 1 x clip-on quick connect wiring loom.
- Mounting nut and O-ring.
How it works
This push button switch provides intuitive control depending on your selected variant:
- Momentary operation: Press and hold to activate, release to stop.
- Latching operation: Press once to turn on, press again to turn off.
The illuminated yellow LED halo ring clearly indicates switch status, making it easy to confirm operation at a glance.
The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, allowing straightforward integration into control panels and switchboards.
What it suits
- 12V and 24V DC systems: Suitable for a wide range of vehicle and marine installs.
- Common applications: Lighting, pumps, fans, accessories, relays, and control circuits.
- Flexible wiring: Works with or without relays depending on load.
- System integration: Compatible with fuse panels, control hubs, and smart switchboards.
Fitting it
Difficulty: 2/5 (Easy). Requires a 19mm drill bit and standard automotive spade connectors.
Features
- Yellow LED halo ring illumination: Bright, easy-to-read status indication.
- Brushed stainless steel face: Clean, professional finish.
- Aluminium body construction: Strong and lightweight.
- IP65 front-face protection: Suitable for dusty and splash-prone areas.
- 5-pin spade terminals: Supports NO / NC and LED wiring.

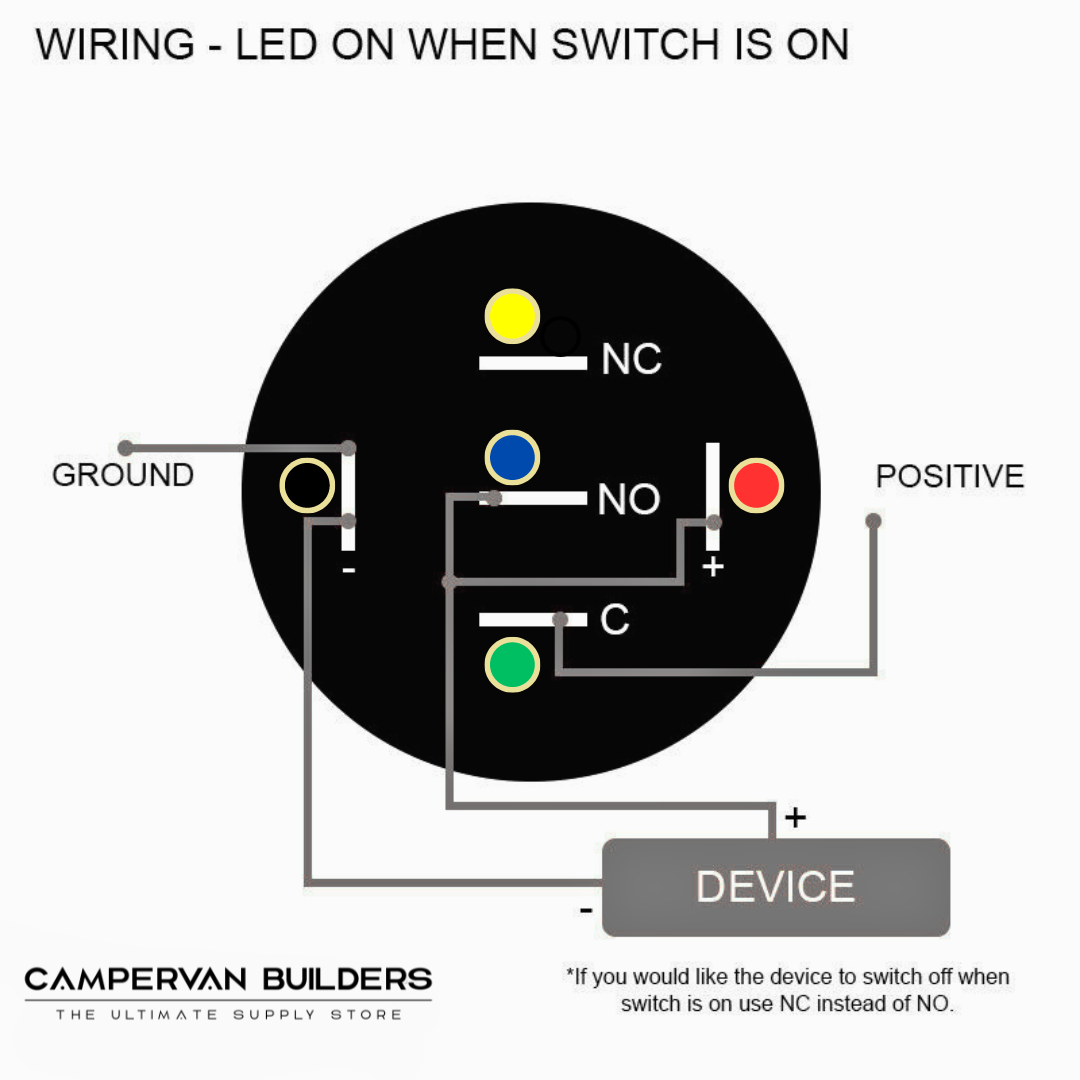

LED Wiring Options
- Always lit: Connect LED positive to constant power and negative to ground.
- Operational illumination: Connect LED positive to switch output so it lights only when active.
Specifications
| Voltage range | 12-24V DC |
| Switch type | Momentary or latching (selectable) |
| Cutout size | 19mm |
| Current rating | 3A @ 12V / 1.5A @ 24V |
| LED colour | Yellow |
| Finish | Brushed stainless steel |
| Ingress rating | IP65 (front face only) |
