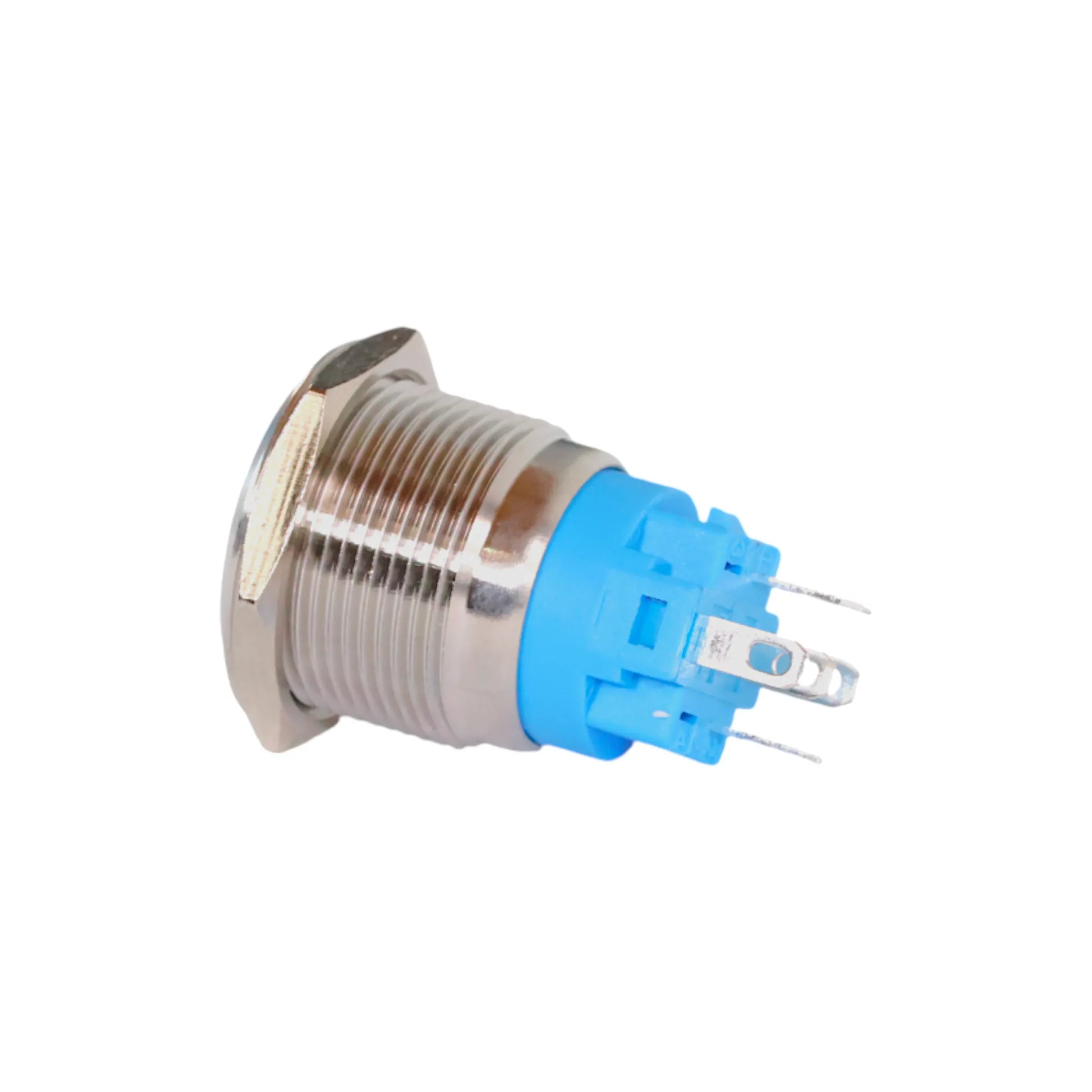

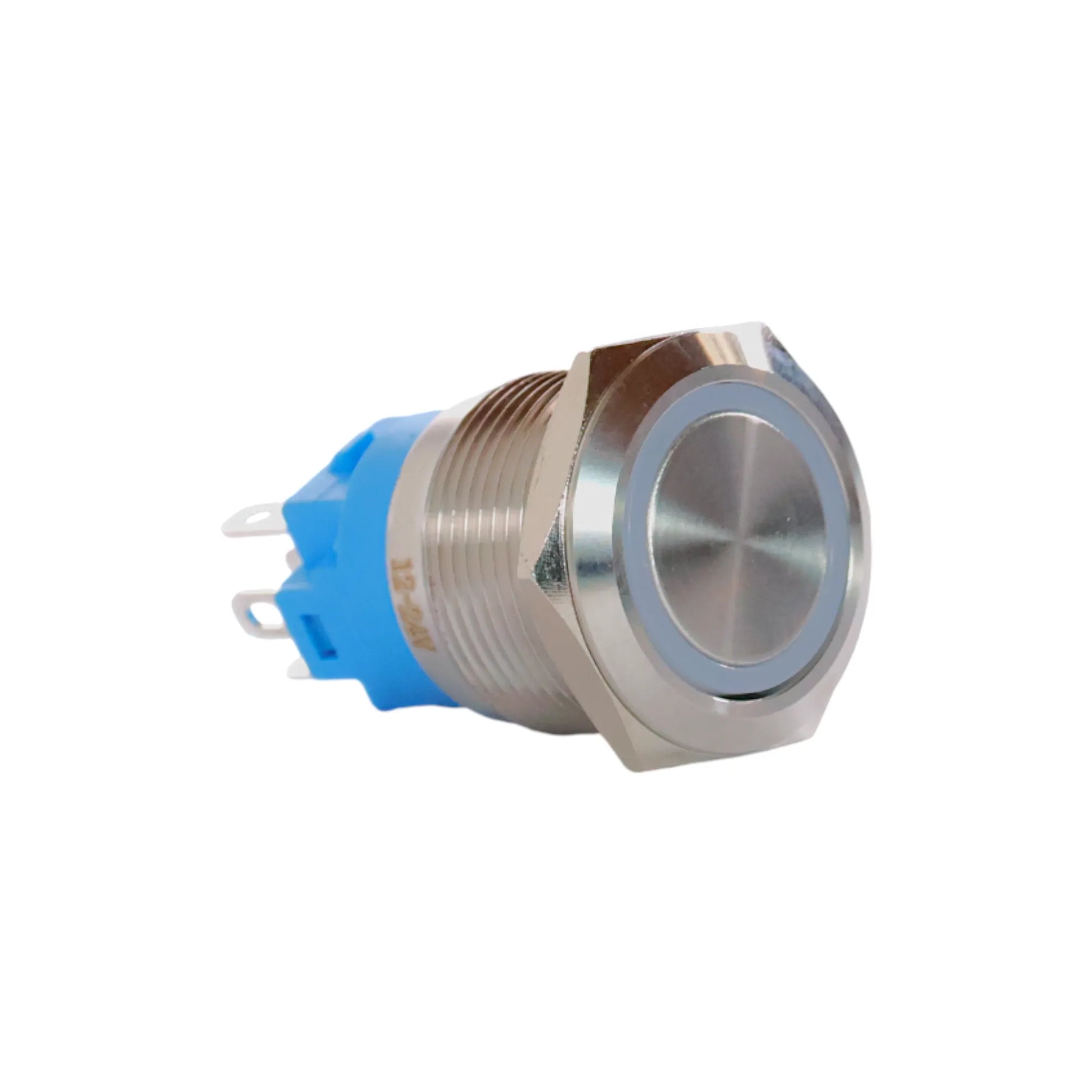

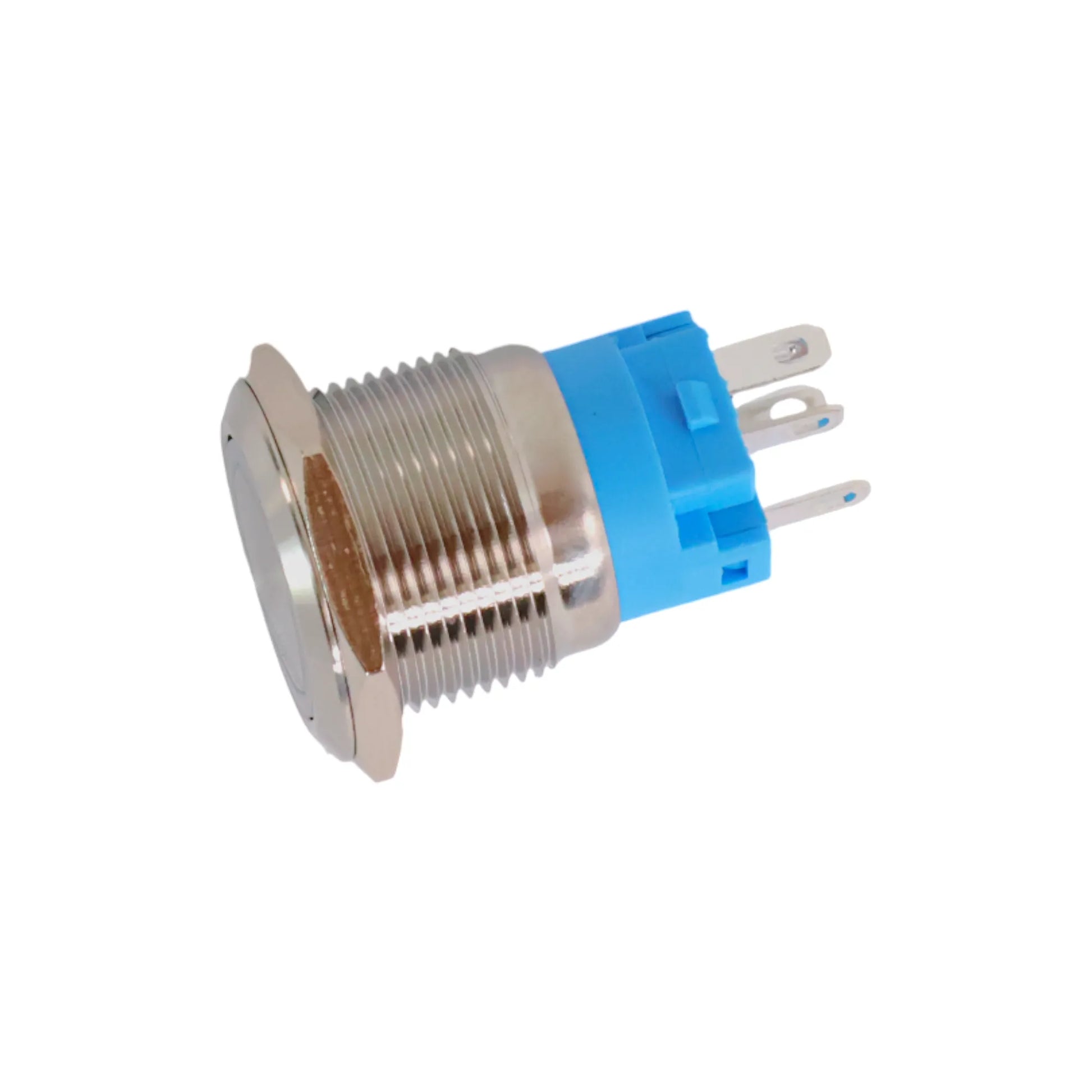

19mm LED White Push Button Switch - Stainless Steel Finish - 12-24V

📝 19mm LED White Push Button Switch – Stainless Steel Finish – 12–24v

This 19mm push button switch is designed for clean, reliable control across touring and off-grid builds. Featuring a white LED halo ring, it provides clear visual feedback while maintaining a professional, modern appearance suited to a wide range of control panel layouts.

Built with a brushed stainless steel finish and engineered for 12v and 24v DC systems, this switch is available in momentary or latching variants, making it suitable for a broad range of electrical control applications in vans, 4WDs, marine setups, and off-grid systems.

⭐ Essential Benefits

• White LED halo ring – clear visual feedback when the circuit is active.
• Stainless steel finish – premium look with long-term durability.
• Two switch variants – available in momentary or latching operation.
• IP65 front rating – dust and splash resistant for rugged environments.
• Compact 19mm size – ideal for clean, space-efficient installs.

⚙️ Functionality

This push button switch provides intuitive control depending on your selected variant:

• Momentary operation – press and hold to activate, release to stop.
• Latching operation – press once to turn on, press again to turn off.

The illuminated LED halo ring clearly indicates switch status, making it easy to confirm operation at a glance.

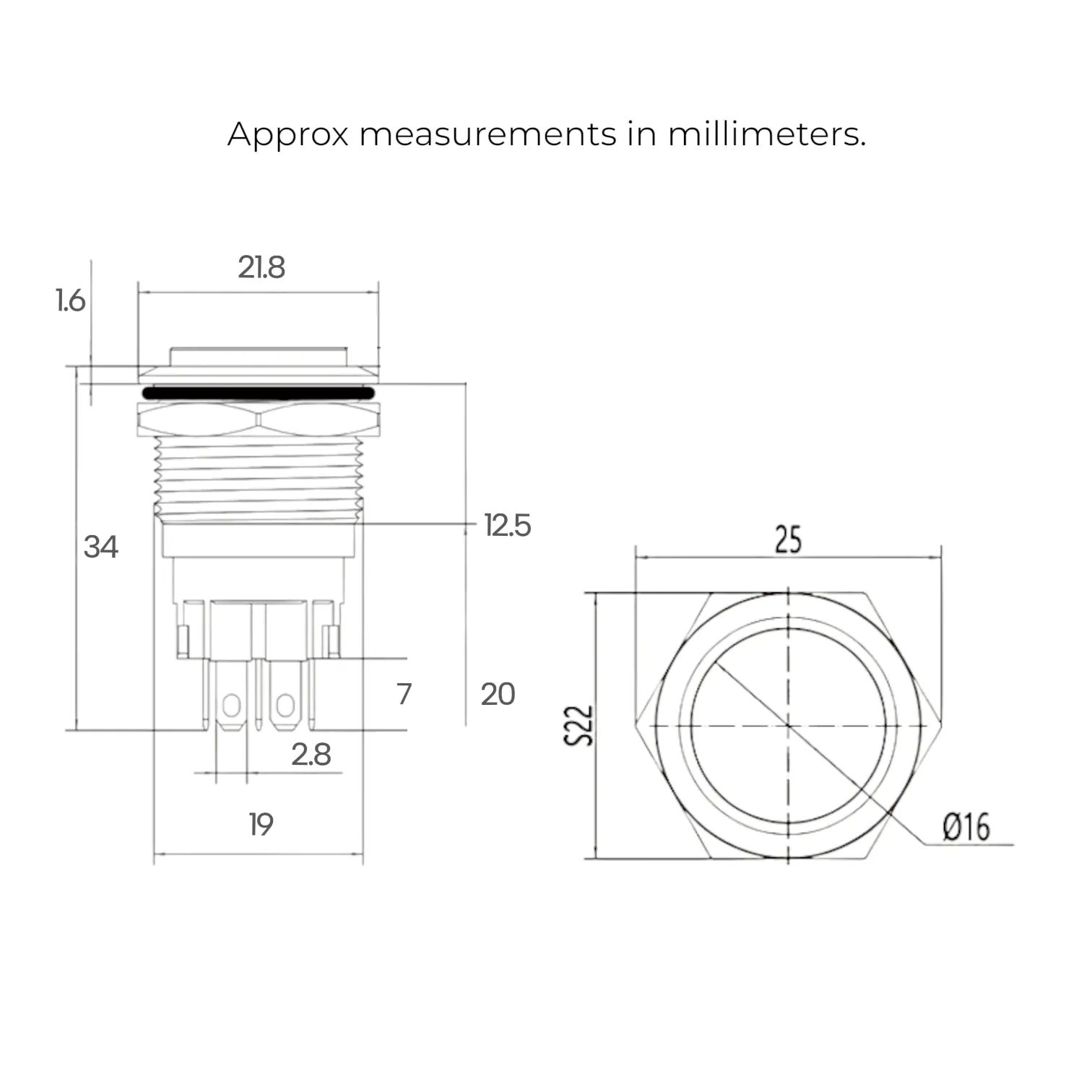

The switch mounts into a standard 19mm panel cutout and connects via 5-pin spade terminals, allowing straightforward integration into control panels and switchboards.

🔌 Compatibility

• 12v and 24v DC systems – suitable for a wide range of vehicle and marine installs.
• Common applications – lighting, pumps, fans, accessories, relays, and control circuits.
• Flexible wiring – works with or without relays depending on load.
• System integration – compatible with fuse panels, control hubs, and smart switchboards.

🧰 Installation Difficulty

🟢 2/5 (Easy)
Requires a 19mm drill bit and standard automotive spade connectors.

🔍 Features

• LED halo ring illumination – clean, modern status indication.
• Brushed stainless steel face – clean, professional finish.
• Aluminium body construction – strong and lightweight.
• IP65 front-face protection – suitable for dusty and splash-prone areas.
• 5-pin spade terminals – supports NO / NC and LED wiring.

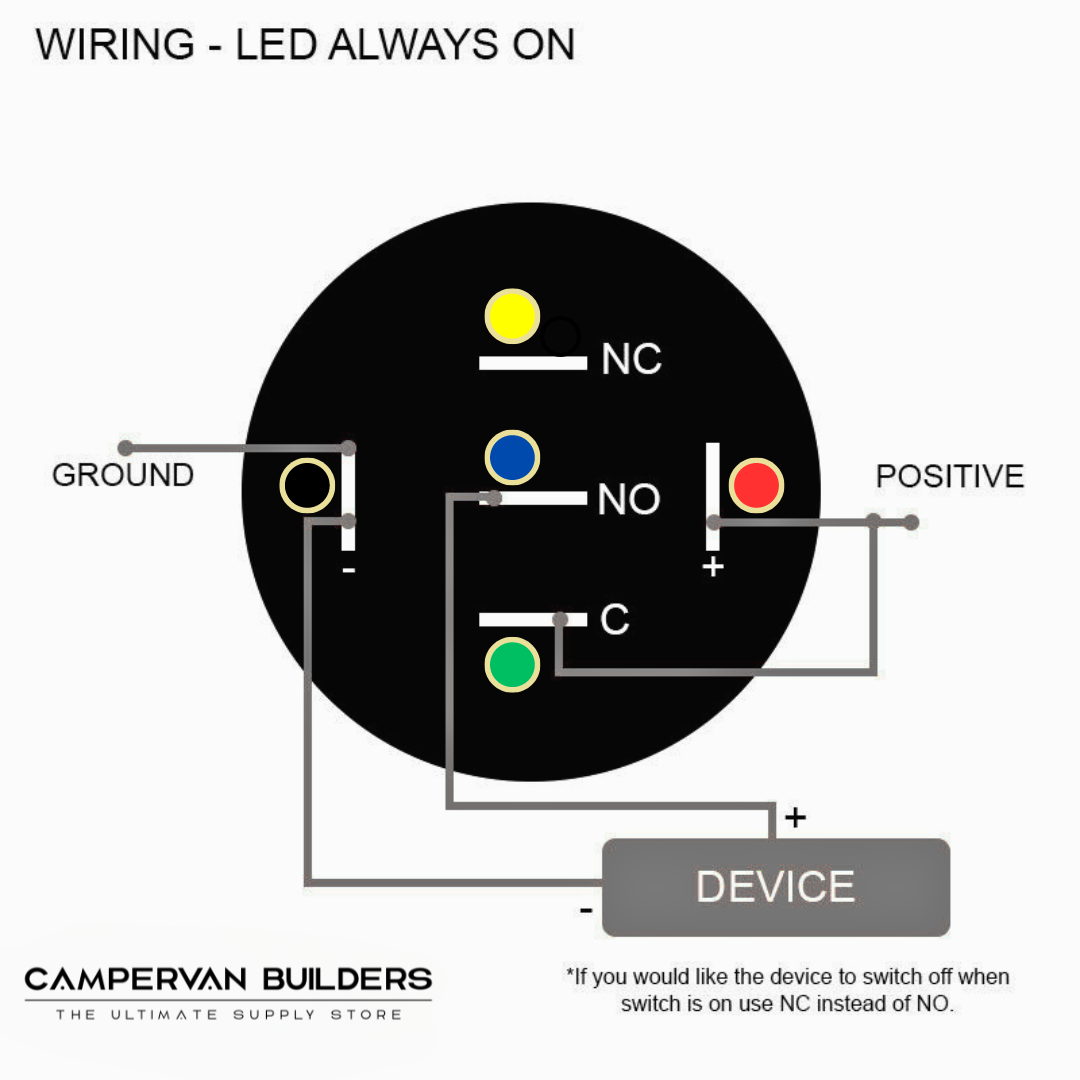

LED Wiring Options
• Always lit – connect LED positive to constant power and negative to ground.
• Operational illumination – connect LED positive to switch output so it lights only when active.

📊 Specifications

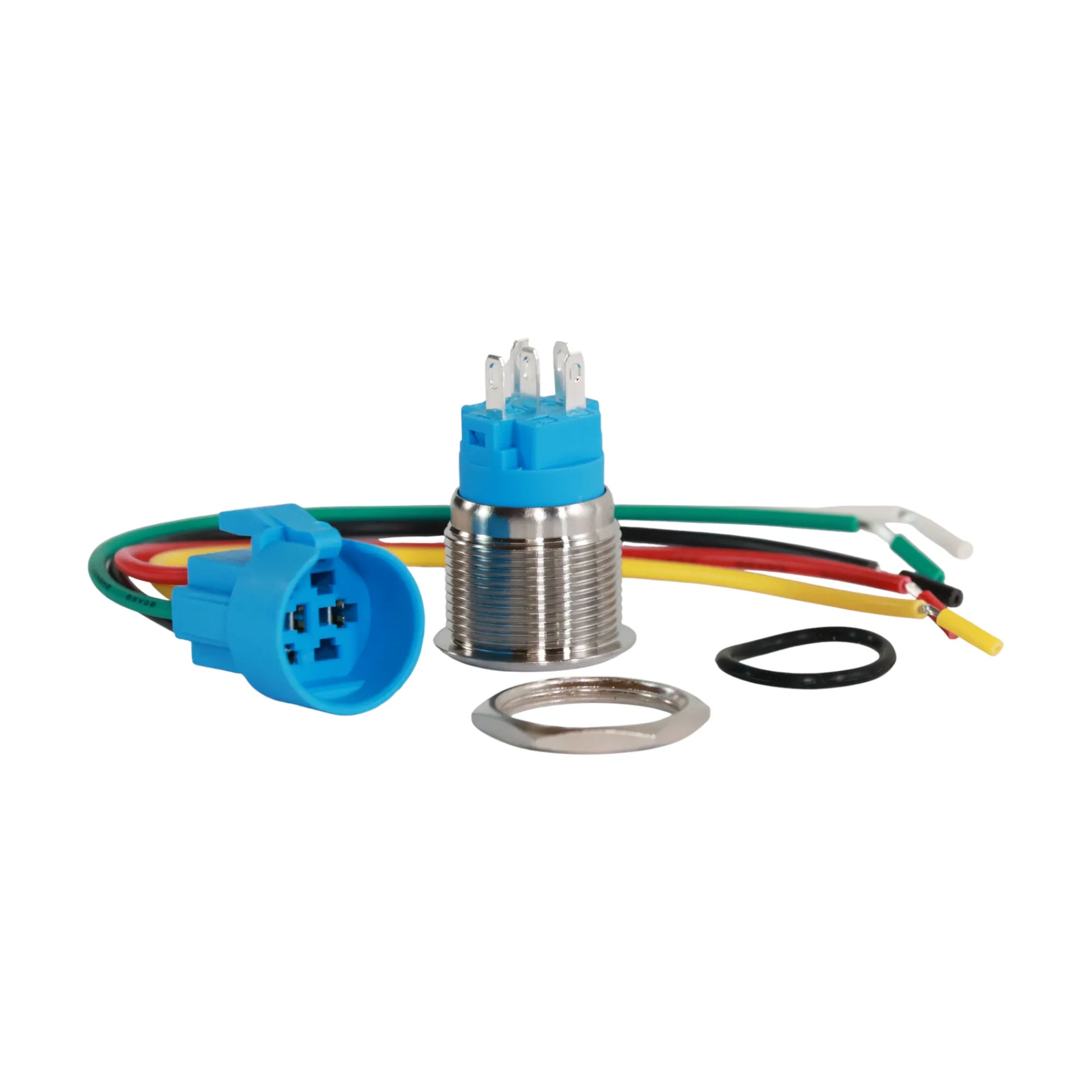

📦 What’s Included

• 1 × 19mm LED push button switch.

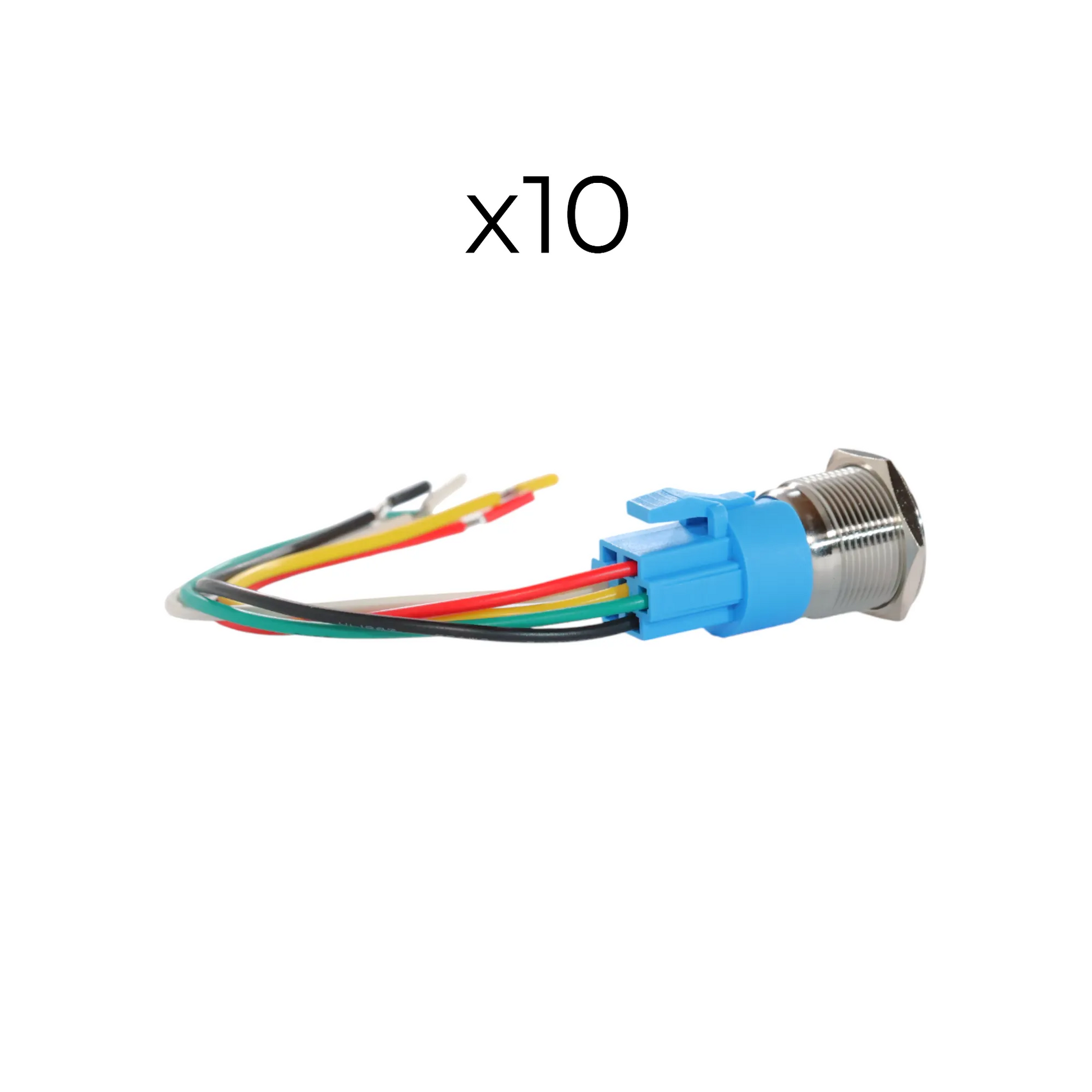

• 1 × clip-on quick connect wiring loom.
• Mounting nut and O-ring.

🙌 Why Choose This Product?

This LED push button switch delivers clean, dependable control with clear visual feedback. With a durable stainless steel finish and selectable momentary or latching operation, it’s a professional-grade solution for modern 12v and 24v electrical systems.

🚀 Our Promise

Order today for same-day dispatch and browse our full range of switch gear and control hardware.
