12V PWM LED Dimmer Switch - Silver Panel
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown

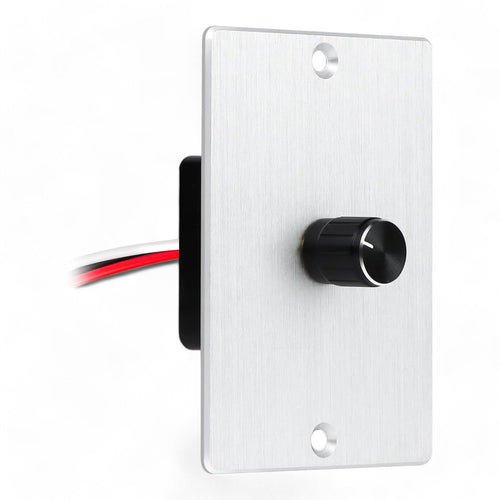

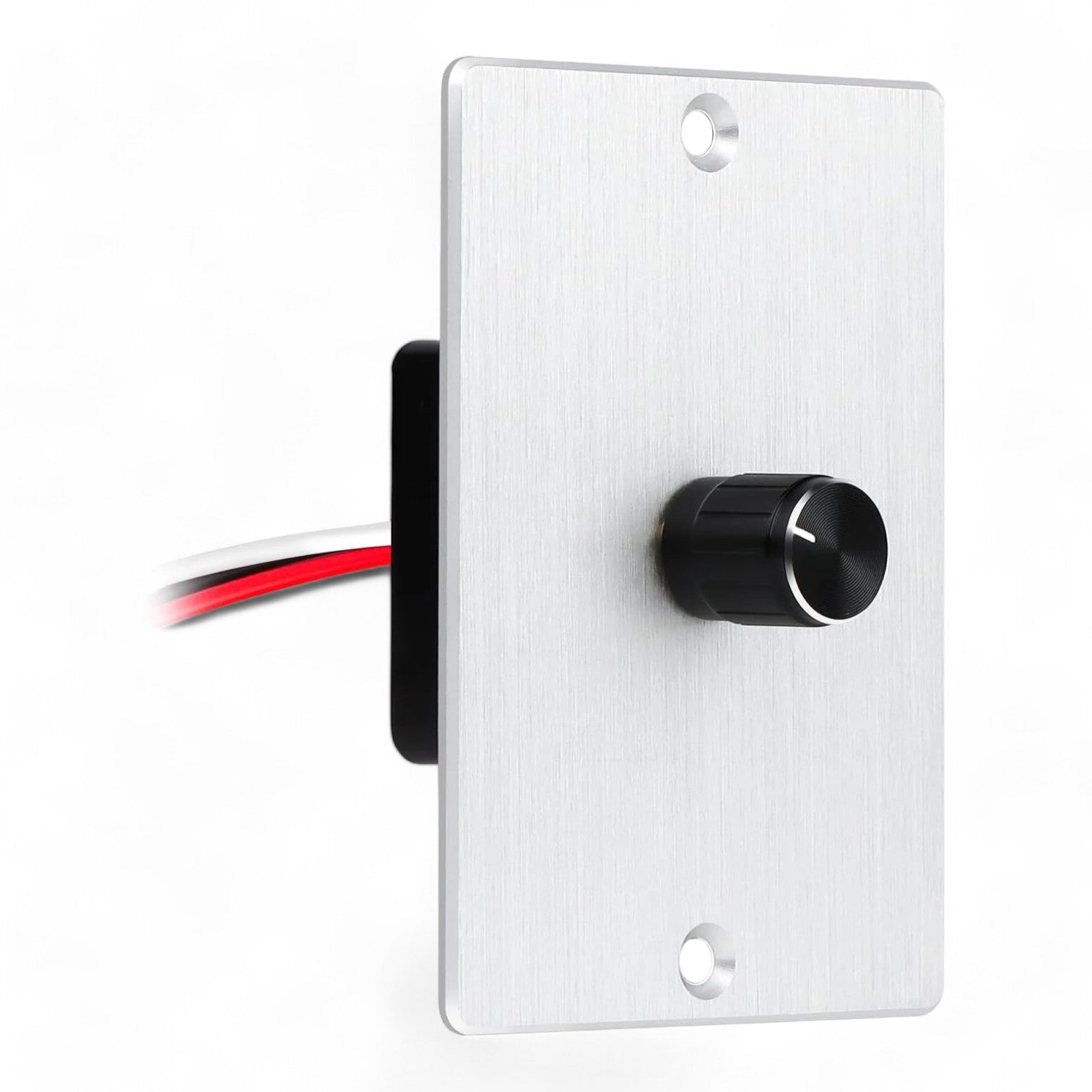

A rotary PWM dimmer on a silver aluminium panel. Turn the knob for smooth, flicker-free control of your LED lights on 12V or 24V.
Why it works
- High-efficiency PWM dimming: Stepless, flicker-free control from 5%-100% with built-in memory.

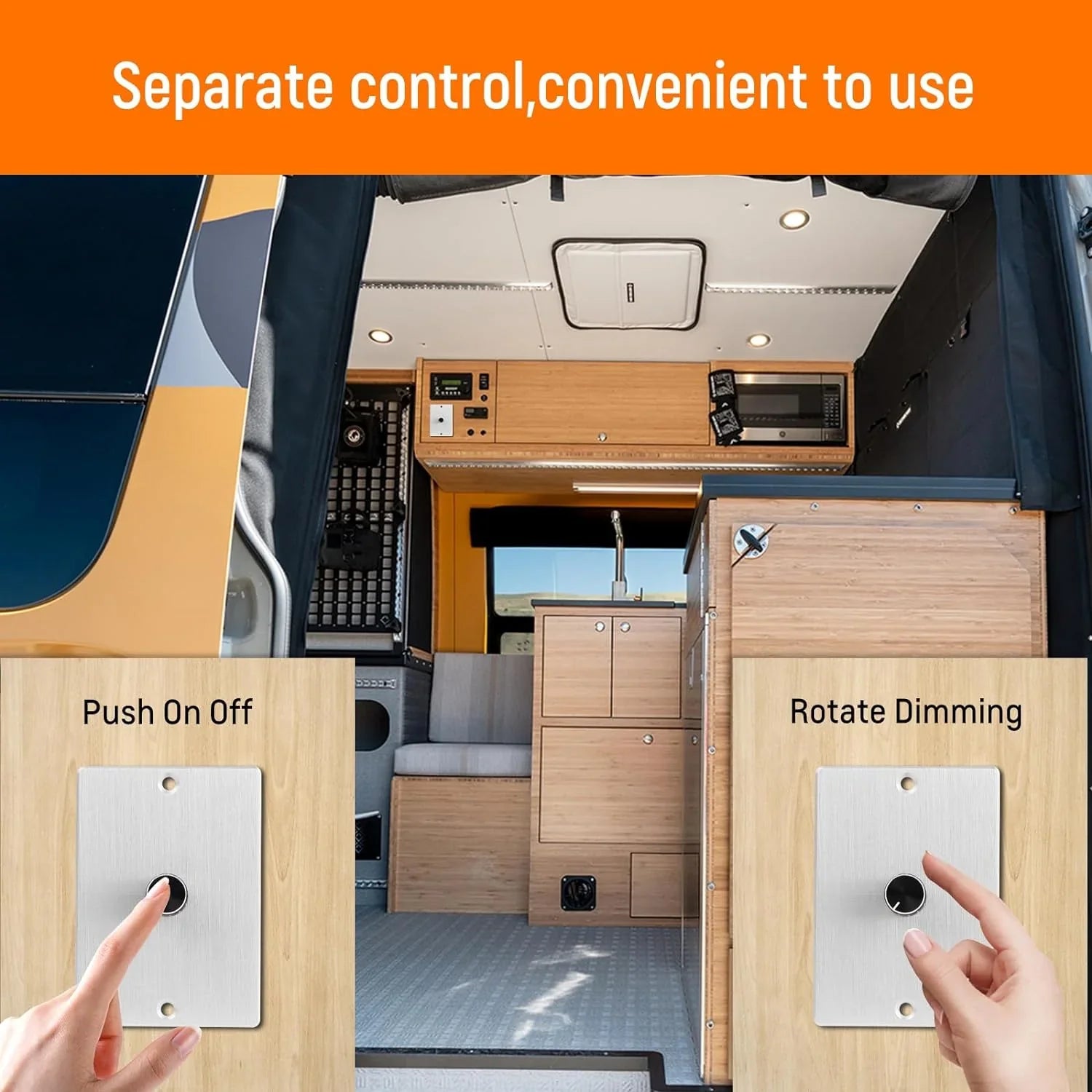

- Push + rotate controls: Tap the knob for on/off, rotate for smooth brightness adjustment.
- High power capacity: Handles up to 15A / 180W, perfect for larger lighting loads.

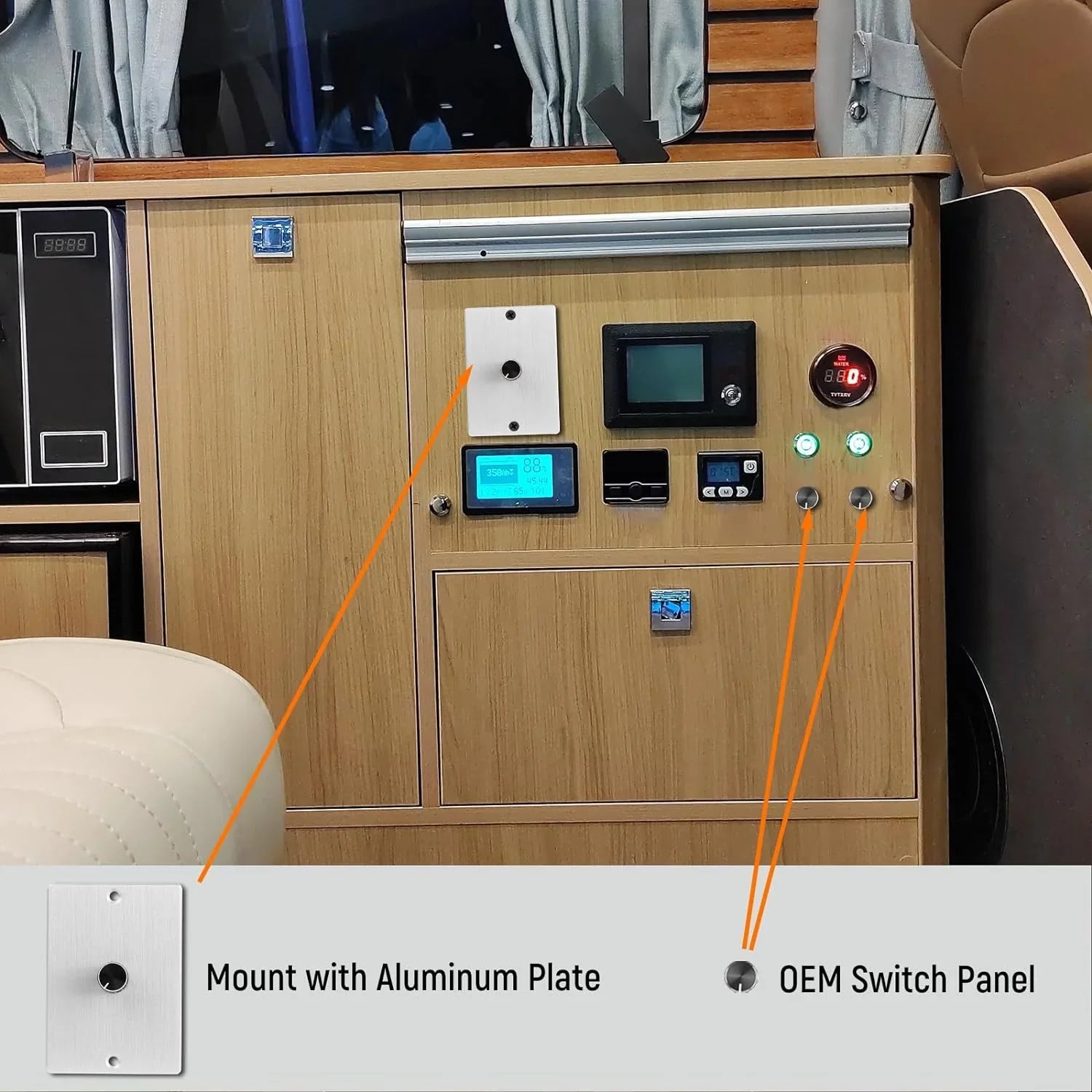

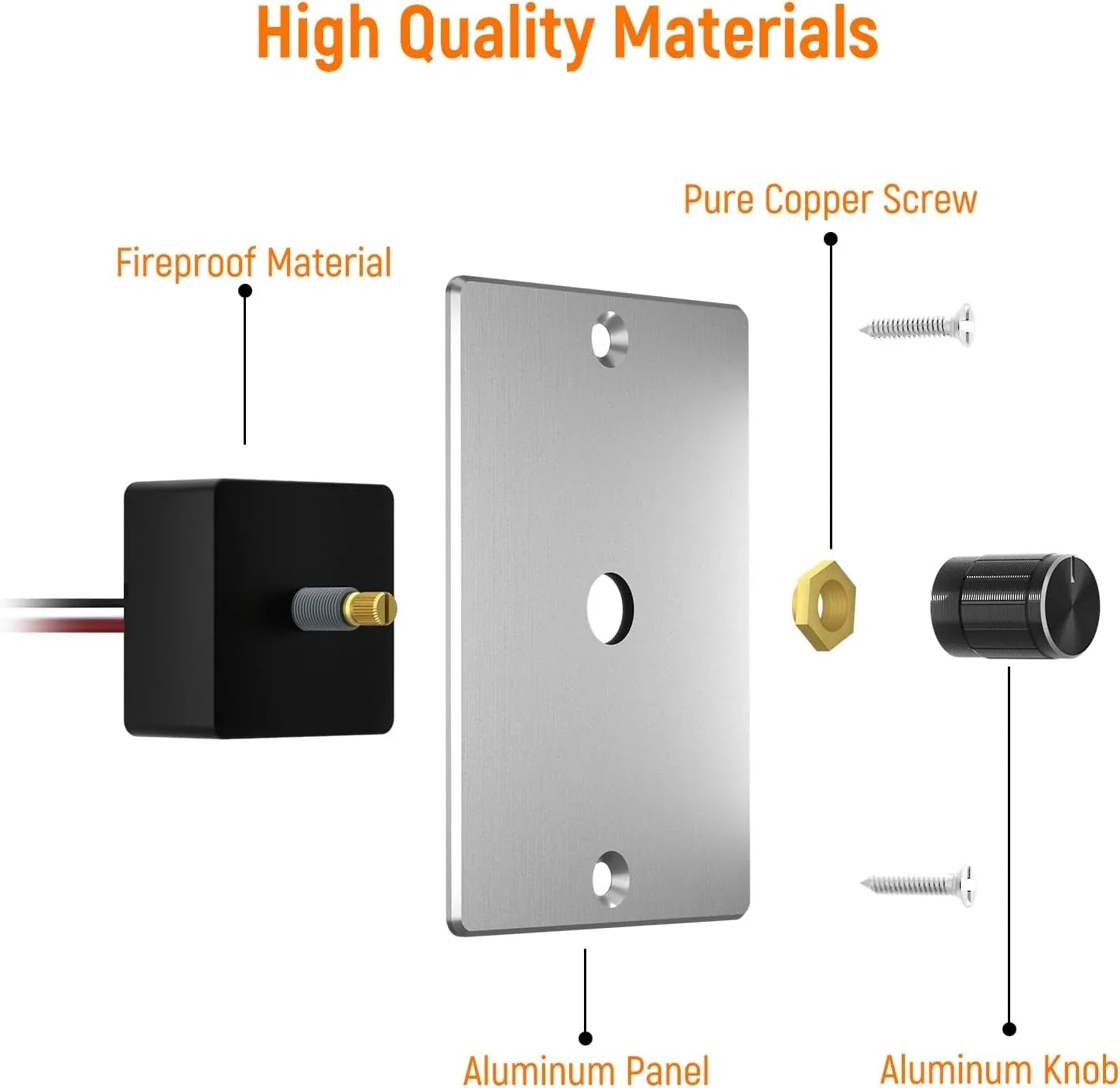

- Premium aluminium panel: Brushed silver finish with a flush-mount design for a clean, modern look.
- Wide compatibility: Works with LED, incandescent and halogen lights.
- Simple installation: Clear wiring instructions with included screws and mounting hardware.
What's in the box
- 1 x Silver Panel PWM Dimmer Switch
- 2 x Mounting screws
- 1 x Quick start guide
How it works
This dimmer uses pulse-width modulation (PWM), delivering smooth dimming without hum, flicker or LED damage. The push-button on/off control makes quick changes easy, while the rotary knob gives precise adjustment. A built-in memory function automatically returns to the last brightness level after power-off.

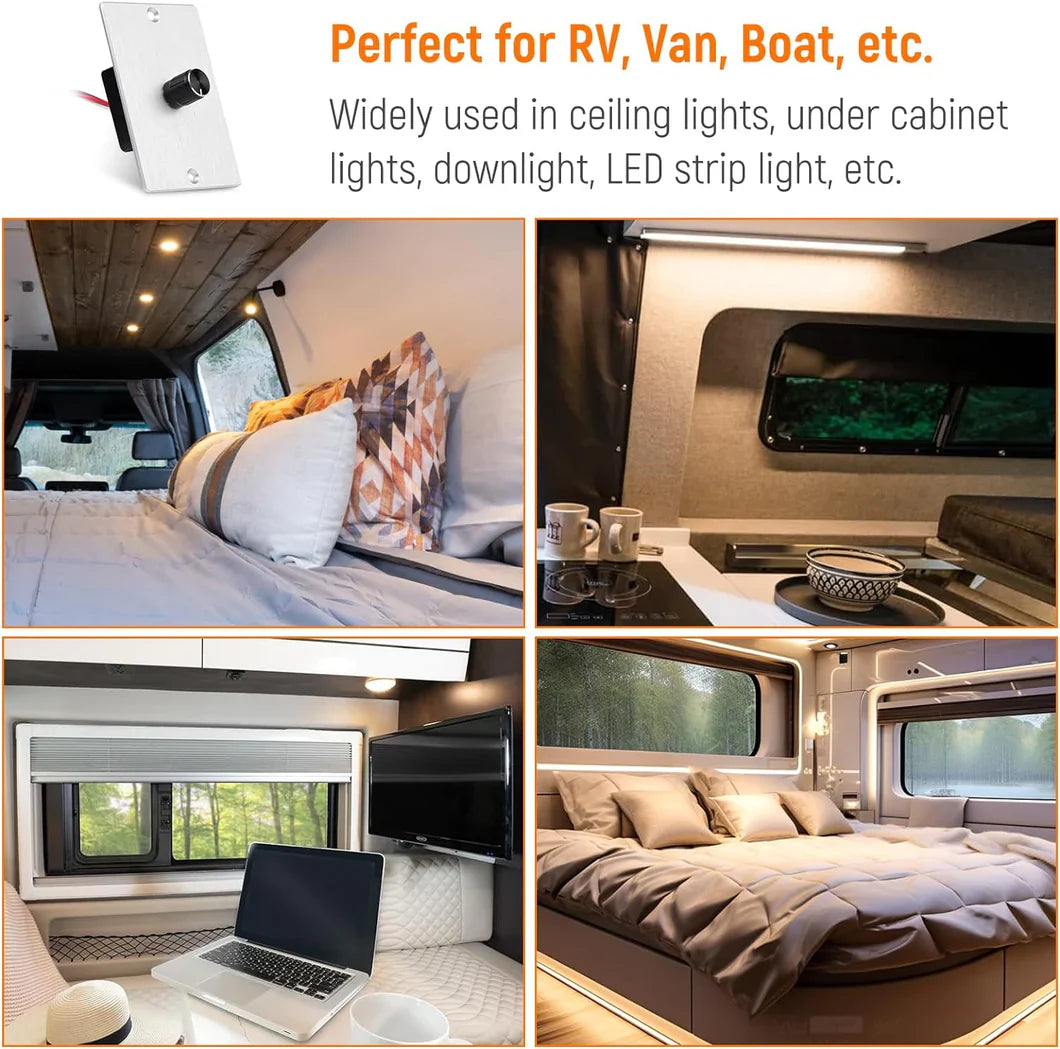

What it suits
- 12V and 24V DC lighting systems
- LED strip lights, recessed downlights, dome lights
- Campervans, caravans, RVs and trailers
- Boats, marine cabins and 4WD canopies
- Any DC lighting circuit requiring smooth dimming
Fitting it

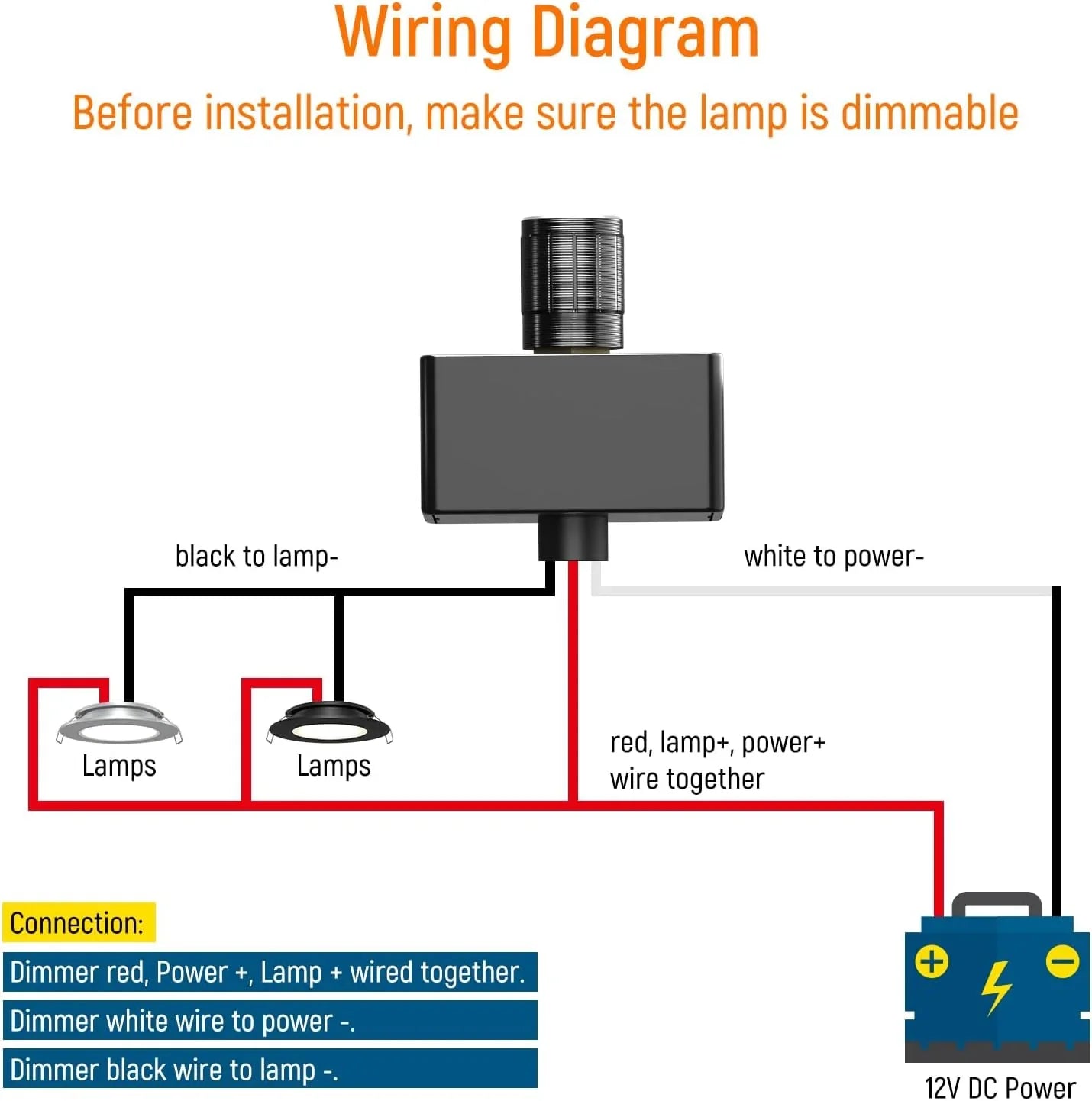

Difficulty: 1/5 (Easy). Simple four-wire connection with basic 12V wiring knowledge.
Features
- PWM dimmer technology
- Push on/off + rotary dimming
- High-power 15A rating (12V)
- Aluminium decorative faceplate
- Flicker-free soft-start control
- Memory function
- Compact cut-out size
- Engineered in California
- 5-year warranty
Specifications
| Working Voltage | 12V-24V DC |
| Max Current | 15A @ 12V / 7.5A @ 24V |
| Max Wattage | 180W |
| Dimmer Type | PWM |
| Switch Type | Push + rotary |
| Wiring | 4-wire |
| Materials | Silver aluminium panel |

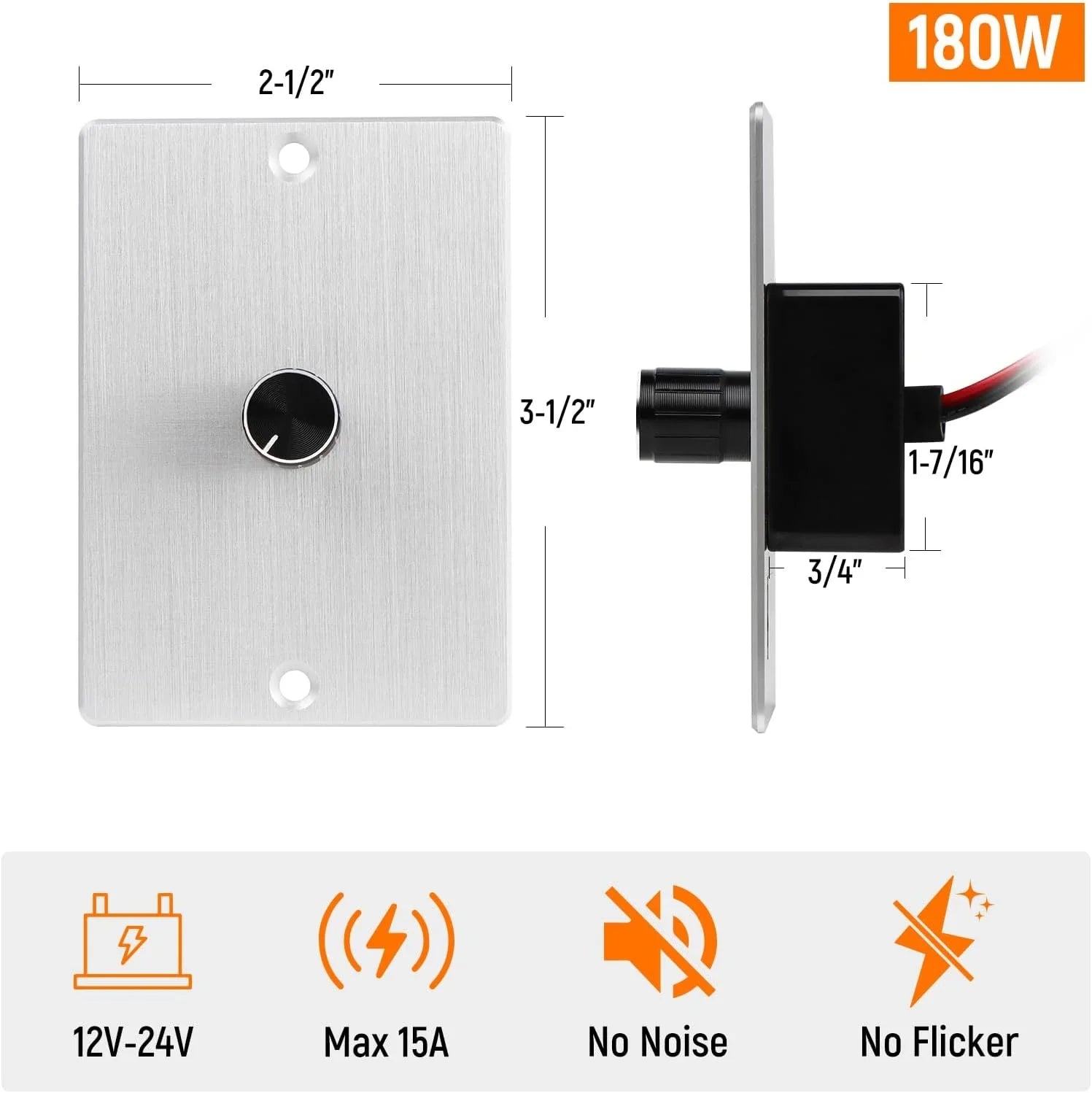

| Cutout Size | 41 x 41 x 22 mm |
| Front Plate Size | 90 x 63.5 mm |
| Overall Size | 63.5 x 41 x 90 mm |
| Feedback | Faint tick on on/off |
