12 Point Blade Fuse Positive and Negative Block
Spend more, get more
- Aussie warranty1 year, handled locally
- Geelong supportReal people, real answers
- Same day shippingOrder by 3pm AEST
The full rundown

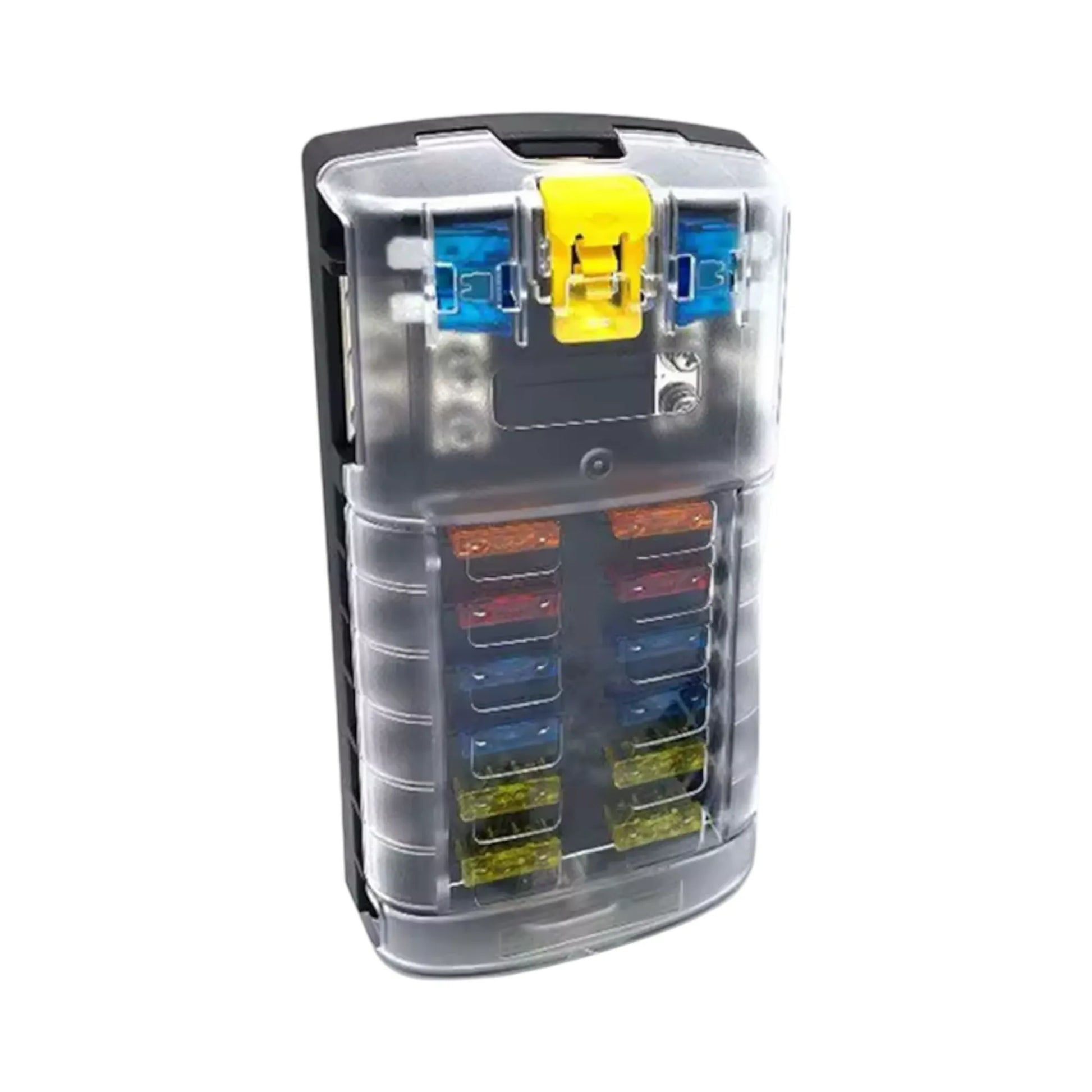

A 12-slot blade fuse block with positive and negative busbars built in and a labelled cover. It keeps power distribution safe, organised and easy to trace.
Why it works
- Integrated positive & negative busbars: Centralise wiring for a tidy and efficient electrical layout.
- Twelve fused circuits: Power and protect multiple accessories with structured distribution.
- 100A maximum amperage: Supports larger 12V and 24V electrical systems.
- 30A per circuit: Suitable for a wide range of fused DC accessories.
- Versatile terminal compatibility: Accepts both ring and fork terminals for secure wiring.
- Clear protective cover: Features label recesses and spare-fuse storage for easy identification.
- Durable engineering: ABS housing with nickel-plated copper components for long-term reliability.

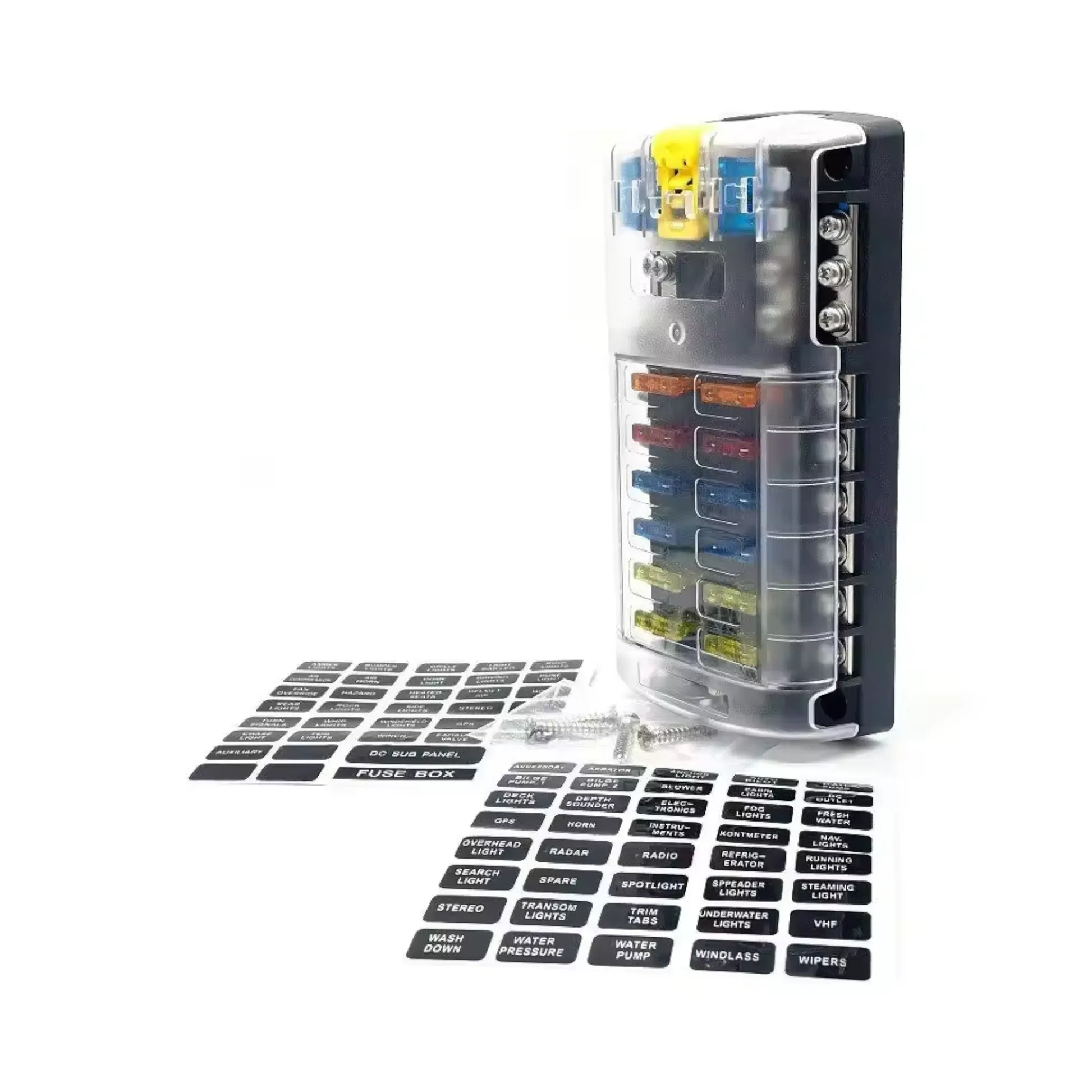

What's in the box
- 1 x 12-slot fuse block with positive and negative busbars and cover
- 1 x customisable circuit ID label sheet
- 4 x mounting screws
How it works

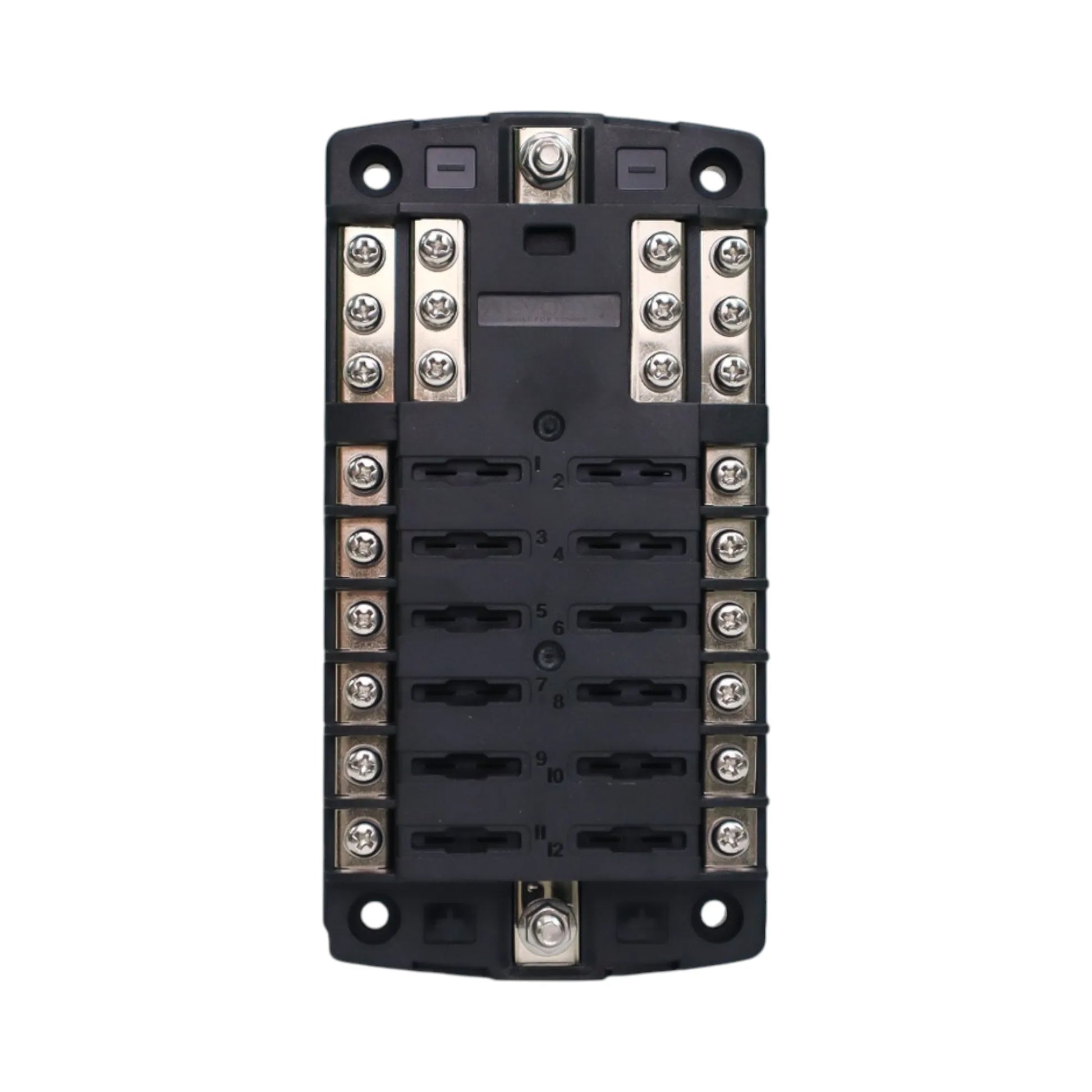

The unit includes M5 main positive and negative posts to feed the block and M4 load terminals for each of the 12 circuits. The clear cover snaps securely with a push-button latch and provides recesses for circuit ID labels.
Each circuit is individually fused, allowing for fast diagnosis and dependable protection across multi-accessory installations. With a maximum voltage of 32V DC, 100A maximum total amperage, and 30A maximum per circuit, it is well suited to organised 12V and 24V auxiliary power systems.
What it suits
- Suitable for 12V and 24V DC systems
- Maximum voltage up to 32V DC
- Compatible with ATC and ATO blade fuses
- Works with ring or fork-type terminals
- Ideal for campervans, caravans, RVs, 4WDs, boats and auxiliary power systems
Fitting it
Difficulty: 2/5 (Easy). Surface-mount install using ring or fork terminals for an organised electrical layout.
Features
- M5 DC positive and negative busbar posts
- M4 load terminals for each circuit
- Twelve ATC/ATO fuse slots
- Maximum amperage 100A
- Maximum 30A per circuit
- Maximum voltage 32V DC
- Clear dustproof cover with label recesses
- Rugged ABS housing with nickel-plated copper busbars
- Customisable ID labels
Specifications
| Max Voltage | 32V DC |
| Maximum Amperage | 100A |
| Maximum Amperage Per Circuit | 30A |
| Circuits | 12 |
| Fuse Type | ATC / ATO |
| Dimensions | 164 x 84 x 39mm |
| Input Posts | M5 positive & negative |
| Load Terminals | M4, ring or fork compatible |
| Housing Material | ABS with nickel-plated copper |
| Cover | Clear dustproof cover |
| Weight | Approx 0.34kg |
